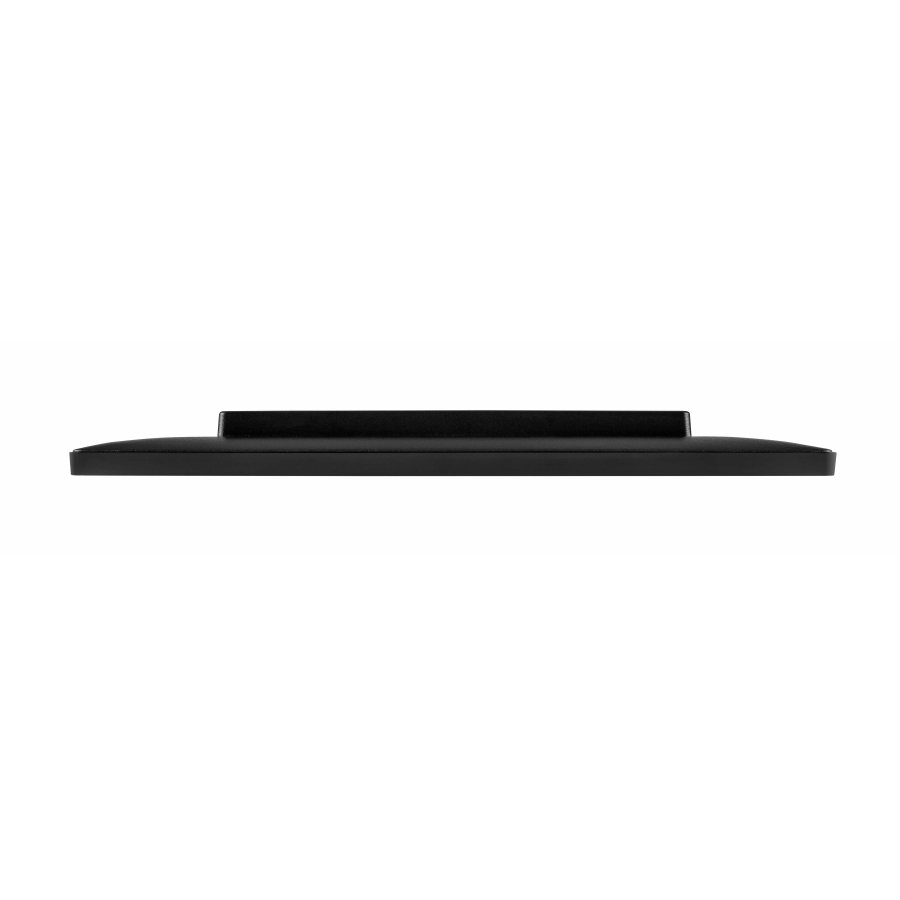

ProDVX SD-10 Black 10.1″ Professional Signage Display with Embedded Media Player

Name: ProDVX SD-10 Black 10.1" Professional Signage Display with Embedded Media Player
SKU: 2010100
Availability: InStock

ProDVX Commercial Displays

ProDVX SD-10 Black 10.1″ Professional Signage Display with Embedded Media Player

2010100

Black
25.6 cm (10.1″) 1024 x 600 pixels 250 cd/m²
Edge-LED
Built-in speaker(s)

Product Code: 2010100

Categories: 1" to 10" Commercial Displays, 10" Commercial Displays, Commercial Displays, ProDVX Commercial Displays, Professional Displays and Monitors, Professional Monitors, Shop By Size, Small Displays, Specialist Displays, Uncategorised

Range: ProDVX Commercial Displays

Details

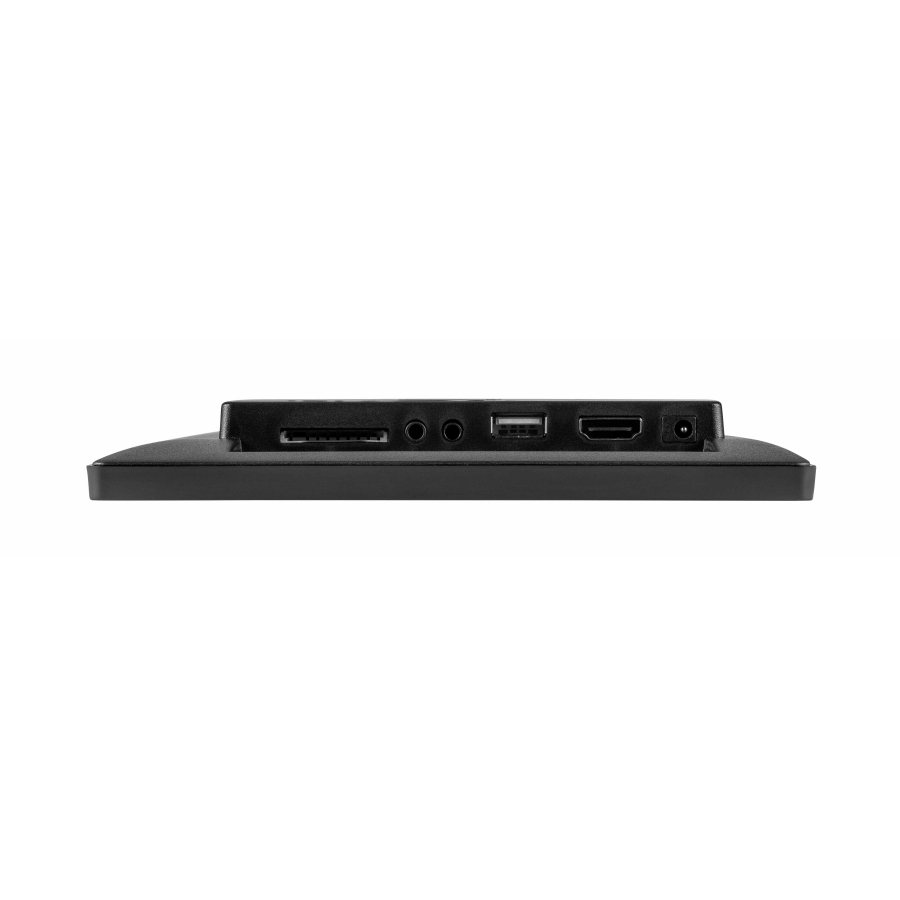

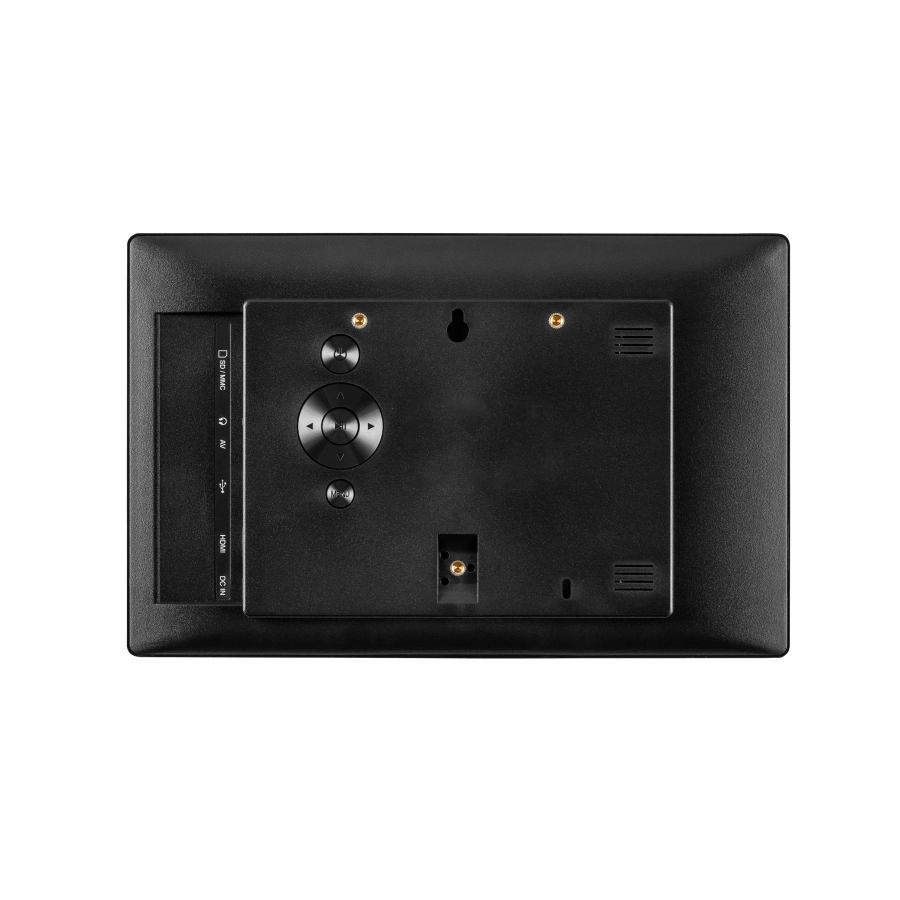

The ProDVX SD-10 is a professional Signage Display. The ProDVX SD-10 comes with an embedded FHD Media Player. The content can be connected through the HDMI input and the unit has a SD, MMC, and MS Card Slot. This 10.1" Commercial Grade Signage Display standard comes with an Auto Video Play & Loop option and has plastic housing. This device supports multiple video, audio and photo sources and can be mounted through a half VESA mount. The SD-10 standard comes with speakers and an audio jack output 3.5 mm.

Downloads

2010100 Leaflet (PDF)

0.83MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
LED backlighting type	Edge-LED
Display diagonal	25.6 cm (10.1″)
Display resolution	1024 x 600 pixels
Display brightness	250 cd/m²
Ports & interfaces
HDMI ports quantity	1
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
Design
Product colour	Black
VESA mounting	Yes
Power
Power consumption (typical)	9 W
Computer system
Video formats supported	MKV, H.264, MPEG2, MPEG4, MPG
Audio formats supported	AAC, MP3
Image formats supported	BMP, JPEG
Weight & dimensions
Display width	256.4 mm
Display depth	22.3 mm
Display height	163.8 mm
Width	247 mm
Depth	21 mm
Height	170 mm
Weight	850 g
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Certificates
Certification	CE, RoHS
Other features
Contrast ratio	450:1
Viewing angle	160°
Housing material	Plastic

Screen Size	10.1"
Aspect Ratio	16:9
Resolution	1024x600
Brightness	300nit
Viewing Angle	160/160 (HV)
Speaker	Yes
I/O	HDMI Input
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
