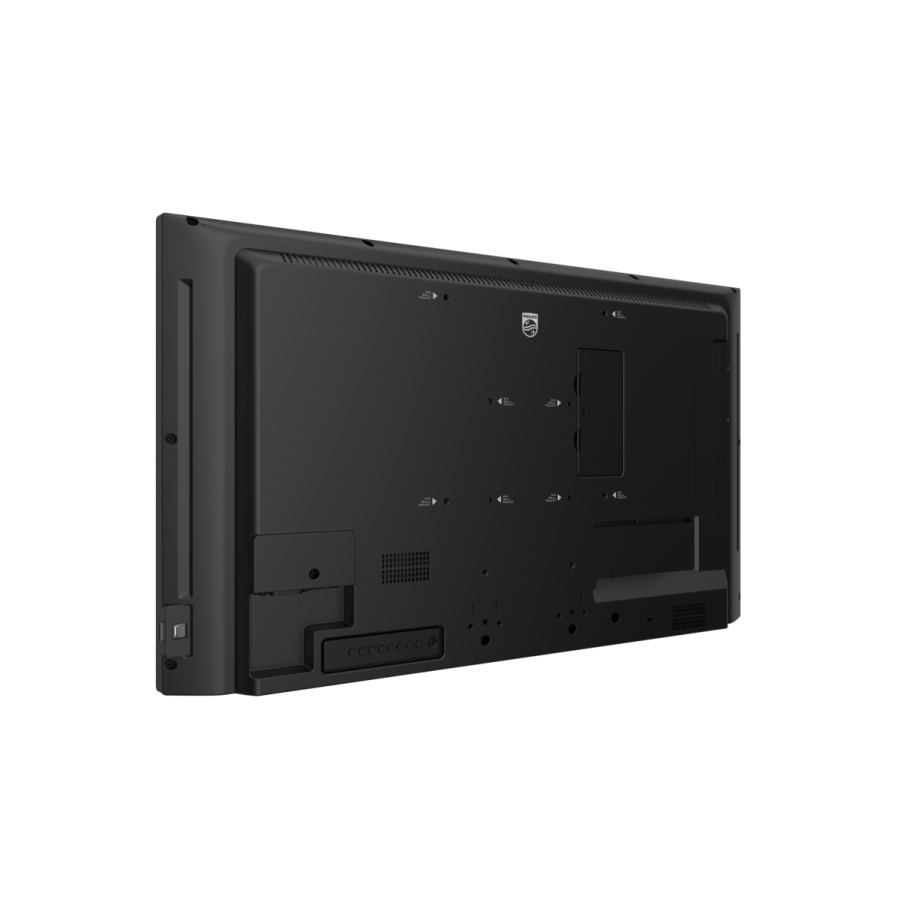

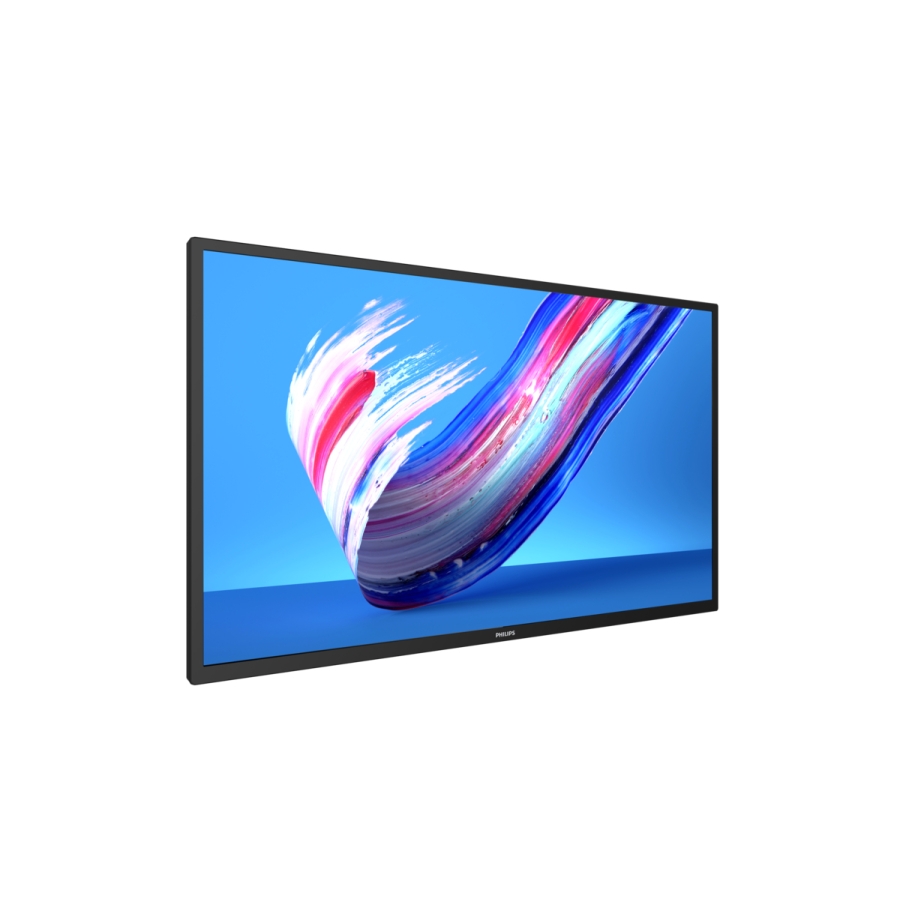

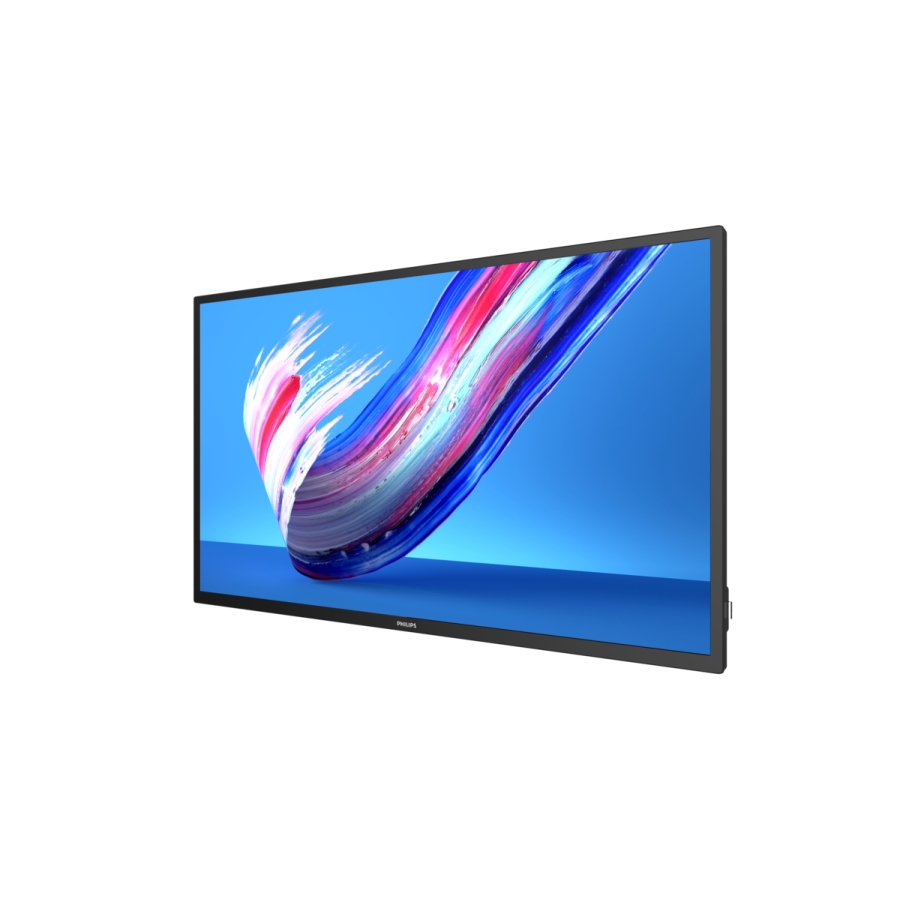

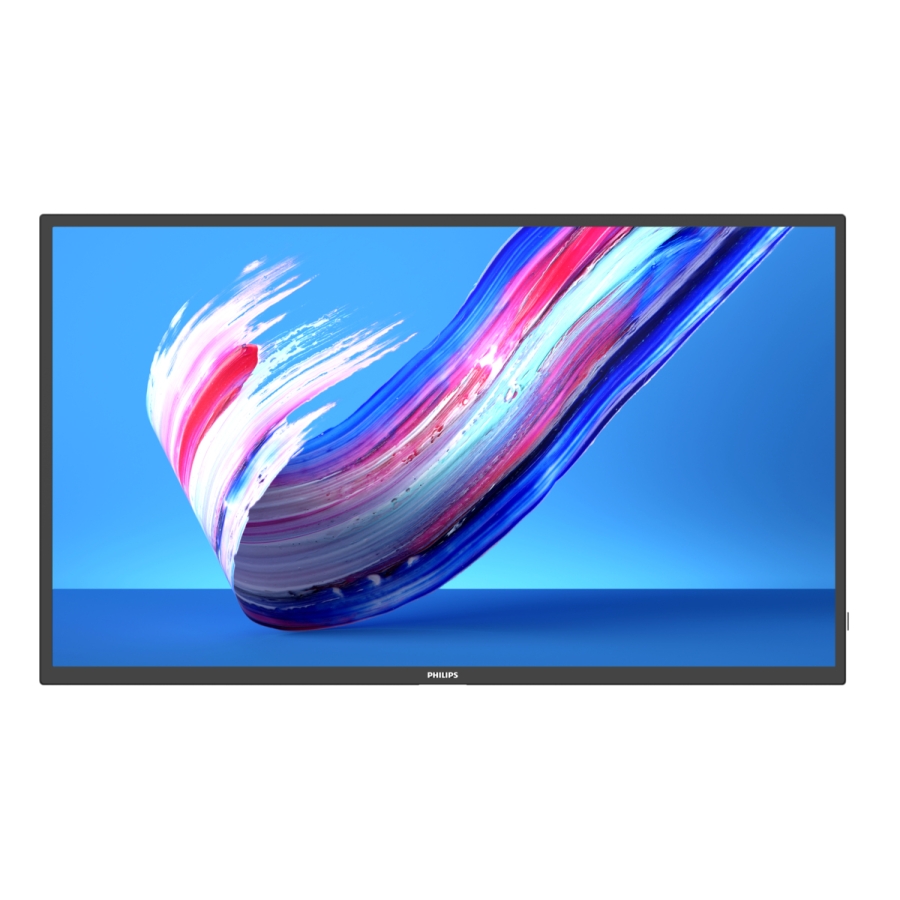

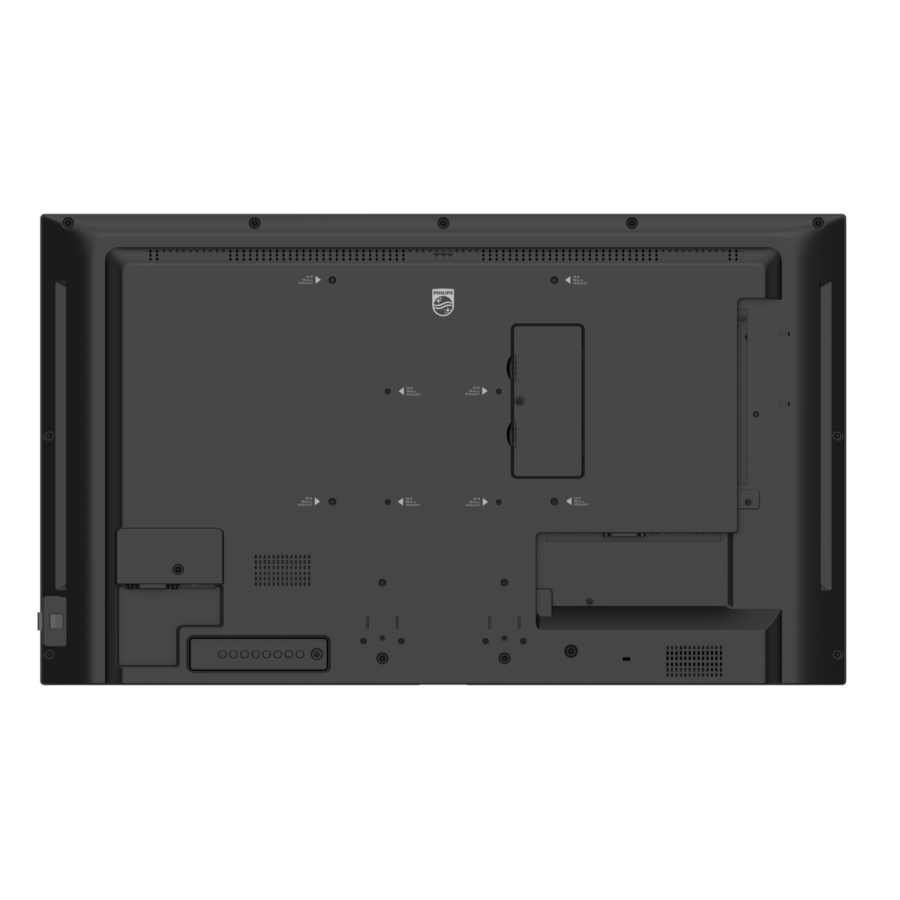

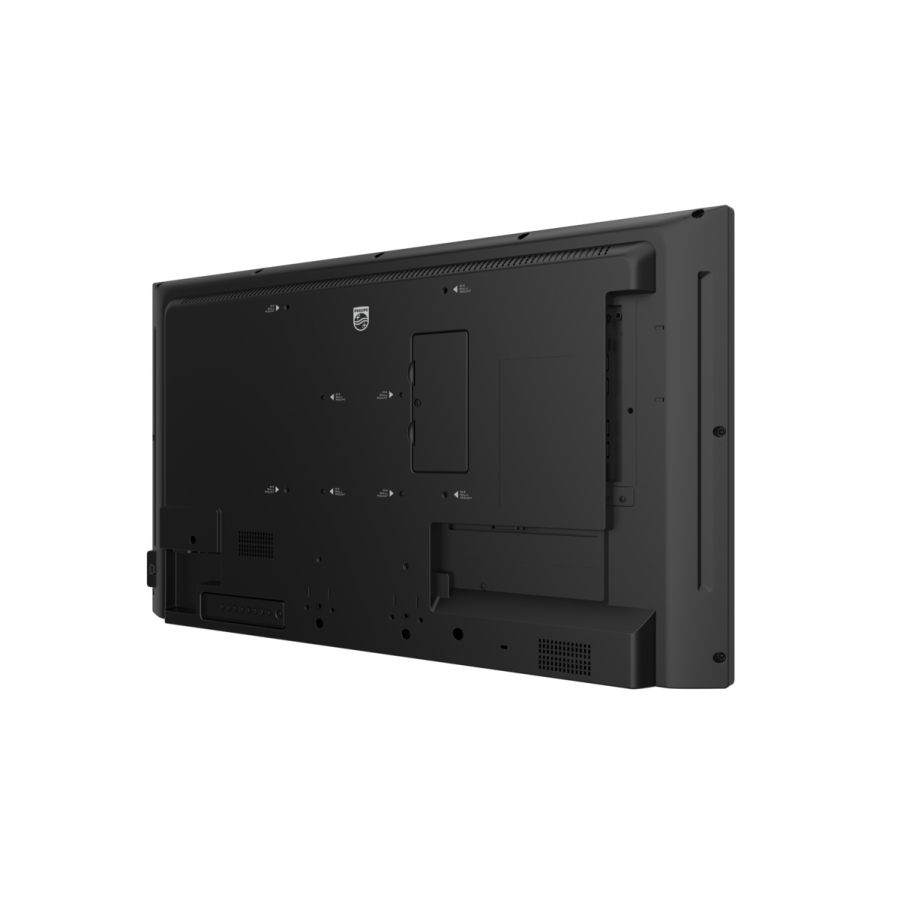

Philips 32BDL3650Q 32″ Digital Signage Flat Panel LCD Display with 350nit Brightness and Built-in Android 10 CPU
Philips 32BDL3650Q 32″ Digital Signage Flat Panel LCD Display with 350nit Brightness and Built-in Android 10 CPU
32BDL3650Q/00
- Indoor Digital signage flat panel Black
- 81.3 cm (32″) 1920 x 1080 pixels LCD 350 cd/m²
- Direct-LED 60 Hz 8 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 20 W
32BDL3650Q/00
2K Displays, Airport Digital Signage, Browse By Sector, Car Dealership, Commercial Displays, DOOH, Food and Drink, Gym and Fitness, Healthcare, Hotel, Kiosk, Philips, Professional Displays, Professional Displays and Monitors, Resolutions, Retail / POS Digital Signage, Shop by Sector, Shop By Size, Transport, Uncategorised
Details
Stand out from the crowd Inform and enthral with a Philips Q-Line 4K Ultra HD digital display. This reliable, easy-to-install, Android powered signage solution is Wave-ready for remote management, putting you in full control, any time, anywhere. Connect and control your content via the cloud Connect and control your content via the cloud with the integrated HTML5 browser. Using the Chromium based browser, design your content online and connect a single display, or your complete network. Show content in both landscape and portrait mode, with fullHD resolution. Simply connect the display to the internet using WiFi or with an RJ45 cable, and enjoy your own created playlists. FailOver. Ensure your display never goes blank Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of an input source or application failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection. Easily schedule content from USB or internal memory Easily schedule content to play from USB or from internal memory. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback is done. Optional Interact for wireless screen share Wirelessly screen share using your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI Interact dongle to cast directly onto the screen without connecting into the secured network. Android SoC processor. Native and web apps Powered by our Android 10 SoC platform, these hard-working Philips professional displays are optimised for native Android apps, and you can install web apps directly onto the display too. Flexible and secure, ensuring display specs stay up to the moment for longer. Catch the Wave for revolutionary results Unlock the power, versatility and intelligence inside your Philips Q-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Panel type | VA |
LED backlight | Yes |
LED backlighting type | Direct-LED |
Display diagonal | 81.3 cm (32″) |
Display technology | LCD |
Display resolution | 1920 x 1080 pixels |
Display brightness | 350 cd/m² |
HD type | Full HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
Response time | 8 ms |
Contrast ratio (typical) | 4000:1 |
Contrast ratio (dynamic) | 500000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 16.7 million colours |
Pixel pitch | 0.36375 x 0.36375 mm |
Display diagonal (metric) | 80 cm |
Native refresh rate | 60 Hz |
Haze rate | 2% |
Ports & interfaces | |
HDMI ports quantity | 2 |
HDMI version | 2.0 |
DVI port | Yes |
DVI-I ports quantity | 1 |
USB port | Yes |
USB ports quantity | 3 |
USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wi-Fi | Yes |
RS-232C | Yes |
Infrared data port | Yes |
Card reader integrated | Yes |
Compatible memory cards | MicroSD (TransFlash) |
Audio | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 20 W |
Design | |
Product design | Digital signage flat panel |
Placement supported | Indoor |
Orientation | Horizontal/Vertical |
Product colour | Black |
VESA mounting | Yes |
Panel mounting interface | 100 x 100,200 x 200 mm |
Bezel width (bottom) | 1.72 cm |
Bezel width (side) | 1.19 cm |
Bezel width (top) | 1.19 cm |
Performance | |
Purpose | Universal |
On Screen Display (OSD) | Yes |
Operating hours (hours/days) | 18/7 |
Mean time between failures (MTBF) | 50000 h |
Power | |
Power consumption (typical) | 50 W |
Power consumption (standby) | 0.5 W |
Power consumption (max) | 100 W |
Energy efficiency class (SDR) | G |
AC input voltage | 100-240 V |
AC input frequency | 50-60 Hz |
Energy efficiency scale | A to G |
Computer system | |
Computer system | Yes |
Computer system type | System on Chip (SoC) |
Built-in processor | Yes |
Processor family | ARM Cortex |
Processor architecture | ARM Cortex-A55 |
Processor cores | 4 |
Internal memory | 3 GB |
Internal storage capacity | 16 GB |
Operating system installed | Android 10 |
Weight & dimensions | |
Display width | 726.5 mm |
Display depth | 69.1 mm |
Display height | 425.4 mm |
Display weight | 5.31 kg |
Packaging content | |
Remote control included | Yes |
Batteries included | Yes |
Cables included | AC, IR sensor, RS-232 |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Storage relative humidity (H-H) | 5 – 95% |
Other features | |
Quick start guide | Yes |
Audio input | 1 |
Audio output | 1 |
Aspect Ratio | 16:9 |
---|---|
Resolution | 1920x1080 |
Brightness | 350nit |
Viewing Angle | 178/178 (H/V) |
Speaker | Yes |
I/O | DVI-I, HDMI, RJ45, RS233 |
Mounting | Wall Mount |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 5% to 95% |
LAN | Yes |
Wi-Fi | Yes |
OS | Android |
