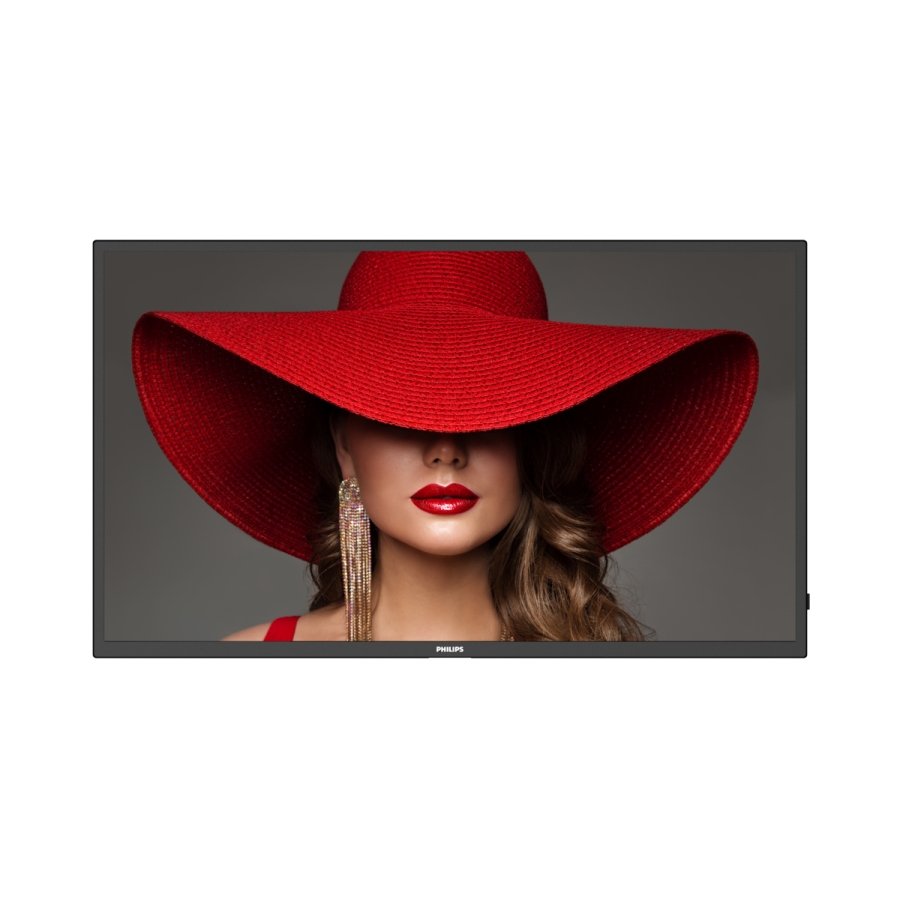

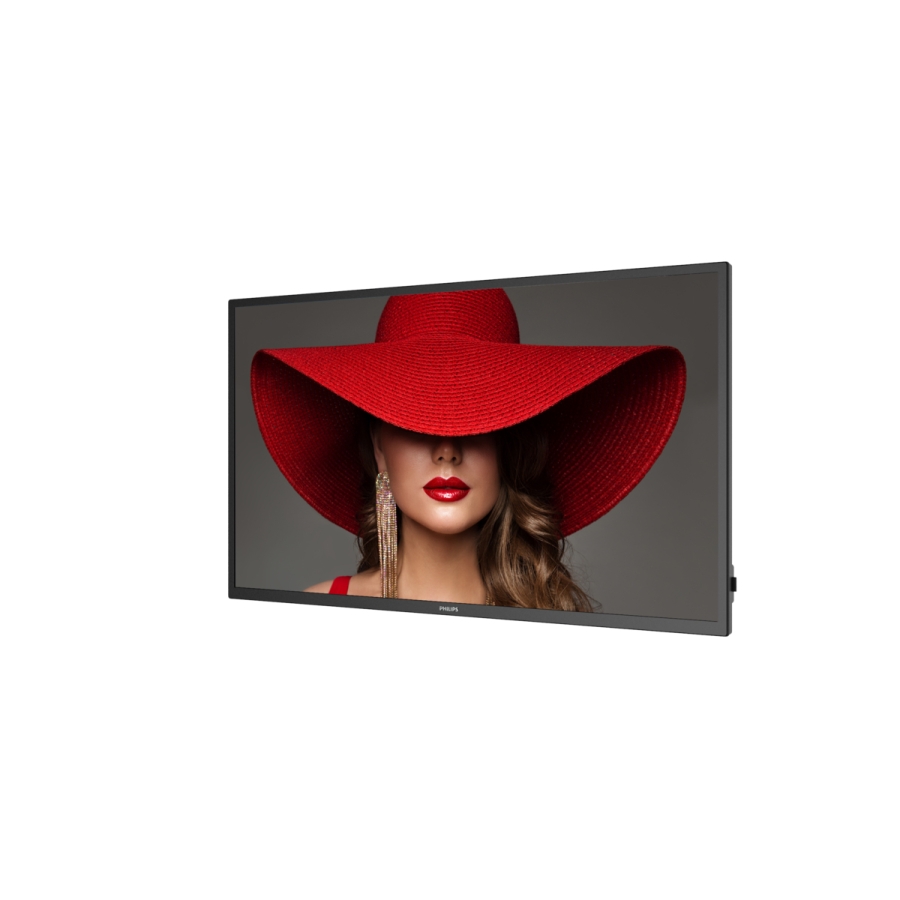

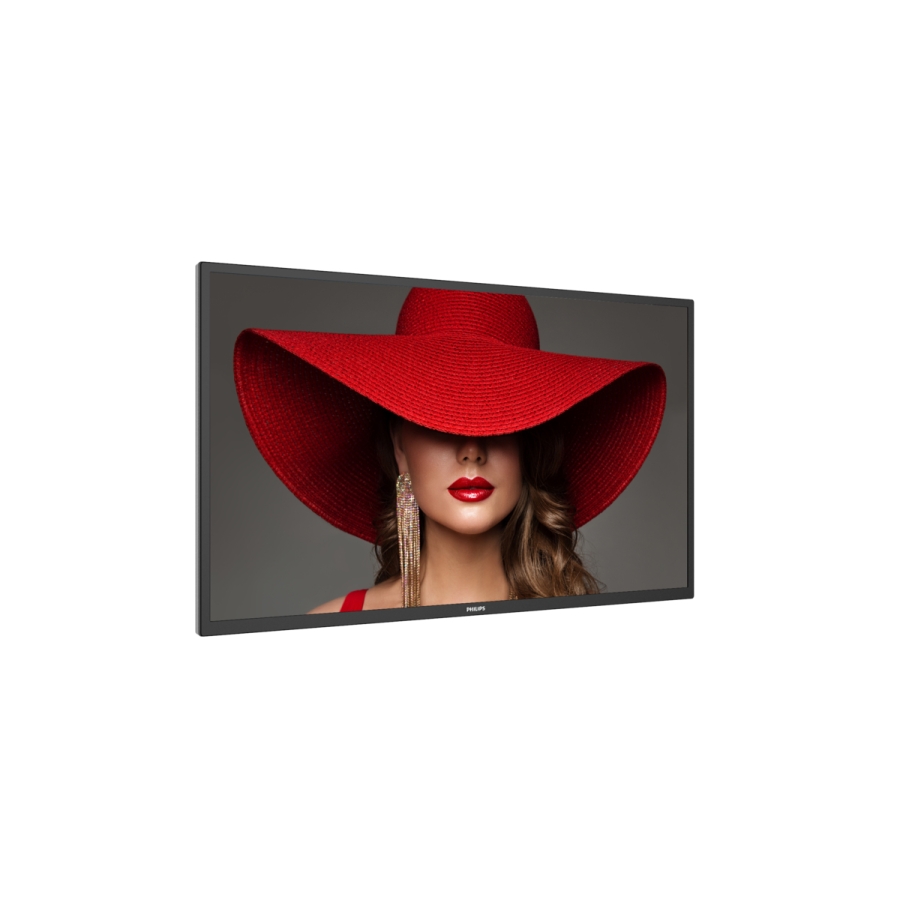

Philips 32BDL4650D 32″ Digital Signage Flat Panel LCD Display with 400nit Brightness and Built-in Android CPU

Philips 32BDL4650D 32″ Digital Signage Flat Panel LCD Display with 400nit Brightness and Built-in Android CPU

32BDL4650D/00

  • Indoor Digital signage flat panel Black
  • 81.3 cm (32″) 1920 x 1080 pixels LCD 400 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
-
+

Details

Smart and modular for an even longer lifetime Philips D-Line is designed to engage your audience and delight customers. Powered by Android 11 for easy software integrations, this versatile display is suitable for impact in any setting. Save and play content with internal memory Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down. 4G/LTE optional module for reliable connection Select our optional 4G/LTE module for more predictable bandwidth and faster download speeds, providing you with a reliable backup connection in case of 24/4 work requirements or where local network connections are not possible. ADS wide-view panel display Be seen from any angle with ADS wide-view technology. Advanced Super Dimension Switch delivers faster on-display picture processing for smoother content transitions, remarkable image accuracy, and superior colour reproduction with 180 degree viewing. FailOver. Ensure your display never goes blank Critical for demanding commercial applications, FailOver is a revolutionary technology that automatically plays back-up content on screen in the unlikely event of a media player failure. Simply select a primary input connection and a FailOver connection and you are ready for instant content protection. Modularity - longer product lifetime Extend your display into the future with our modular approach. Bringing opportunities for longer product lifetime with easily detached and replaced components, and a firm focus on sustainability, with reduced WEEE disposal. Android SoC processor. Native and web apps Powered by Android 11, your Philips D-Line delivers the ultimate, most secure and connected display experience. Optimised for native Android apps, and enabling you to install web apps and software directly onto the display, eliminating the need for an external media player. Connect and control your content via the cloud Connect and control your content via the cloud with our integrated HTML5, Chromium-based browser. Design your content online and connect a single display, or your entire network, either landscape or portrait. Simply connect to the internet via an RJ45 cable. Catch the Wave for revolutionary results Unlock the power, versatility and intelligence inside your Philips D-Line displays remotely with Wave. This evolutionary cloud platform puts you fully in control, with simplified installation and set-up, monitoring and controlling displays, upgrading firmware, managing playlists and setting power schedules. Saving you time, energy and environmental impact.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type ADS
Display diagonal 81.3 cm (32″)
Display technology LCD
Display resolution 1920 x 1080 pixels
Display brightness 400 cd/m²
HD type Full HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 500000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.36375 x 0.36375 mm
Display diagonal (metric) 81.28 cm
Native refresh rate 60 Hz
Haze rate 25%
Ports & interfaces
HDMI ports quantity 2
HDMI version 2.0
HDMI input ports quantity 2
DVI port Yes
DVI-I ports quantity 1
DisplayPorts quantity 2
DisplayPorts in 1
DisplayPorts out 1
USB port Yes
USB ports quantity 4
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type Micro-USB, USB Type-A
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi No
RS-232C Yes
Infrared data port Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Black

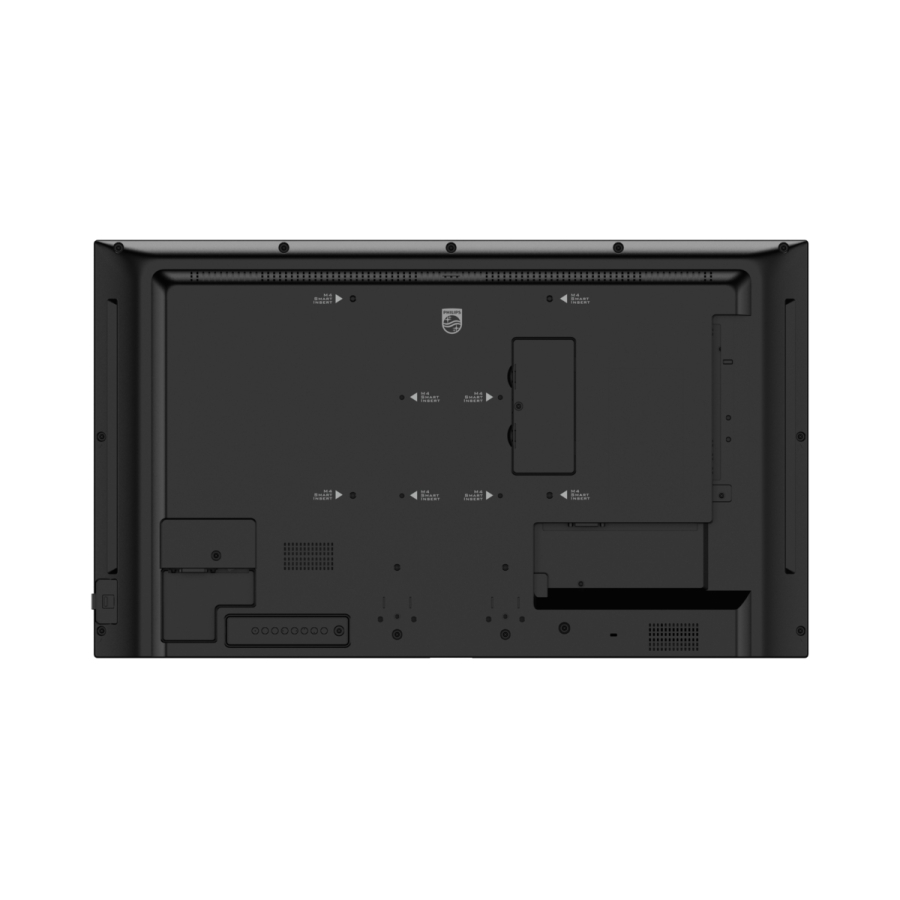

VESA mounting Yes
Panel mounting interface 100 x 100,200 x 200 mm
Bezel width (bottom) 1.72 cm
Bezel width (side) 1.19 cm
Bezel width (top) 1.19 cm
Performance
Purpose Universal
On Screen Display (OSD) Yes
Operating hours (hours/days) 24/7
Mean time between failures (MTBF) 50000 h
Power
Power consumption (standby) 0.5 W
Energy efficiency class (SDR) G
AC input voltage 100-240 V
AC input frequency 50-60 Hz
Energy efficiency scale A to G
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Built-in processor Yes
Processor family ARM Cortex
Processor architecture ARM Cortex-A53+Cortex-A72
Internal memory 4 GB
Internal storage capacity 32 GB
Operating system installed Android 11
Weight & dimensions
Display width 726.5 mm
Display depth 65.1 mm
Display height 425.4 mm
Display weight 5.7 kg
Packaging content
Remote control included Yes
Batteries included Yes
Cables included AC, IR sensor, RS-232
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 20 – 80%
Storage temperature (T-T) -20 – 60 °C
Storage relative humidity (H-H) 5 – 95%
Other features
Quick start guide Yes
Audio input 1
Audio output 1
Screen Size 32"
Aspect Ratio 16:9
Resolution 1920x1080
Brightness 400nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O DisplayPort, DVI, HDMI, LAN, RJ45, RS232, USB
Mounting Wall Mount
Operating Temperature 0°C to 40°C
Operating Humidity 20% to 80%
CPU ARM
LAN Yes
Wi-Fi Yes
OS Android
