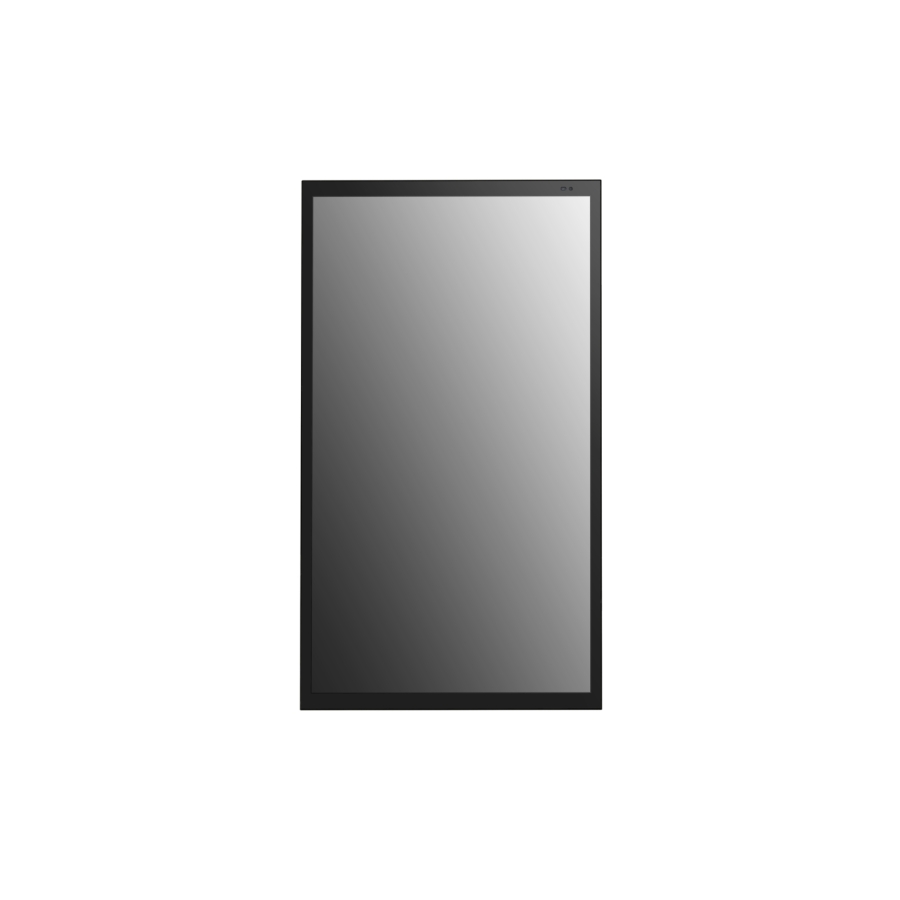

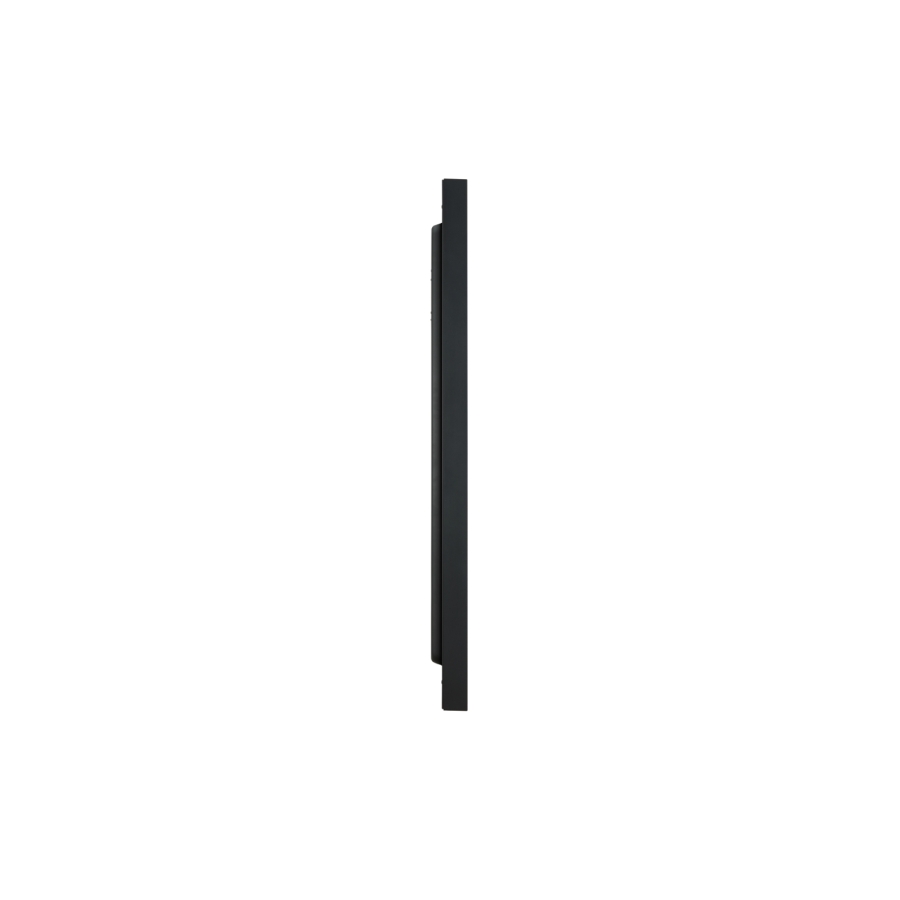

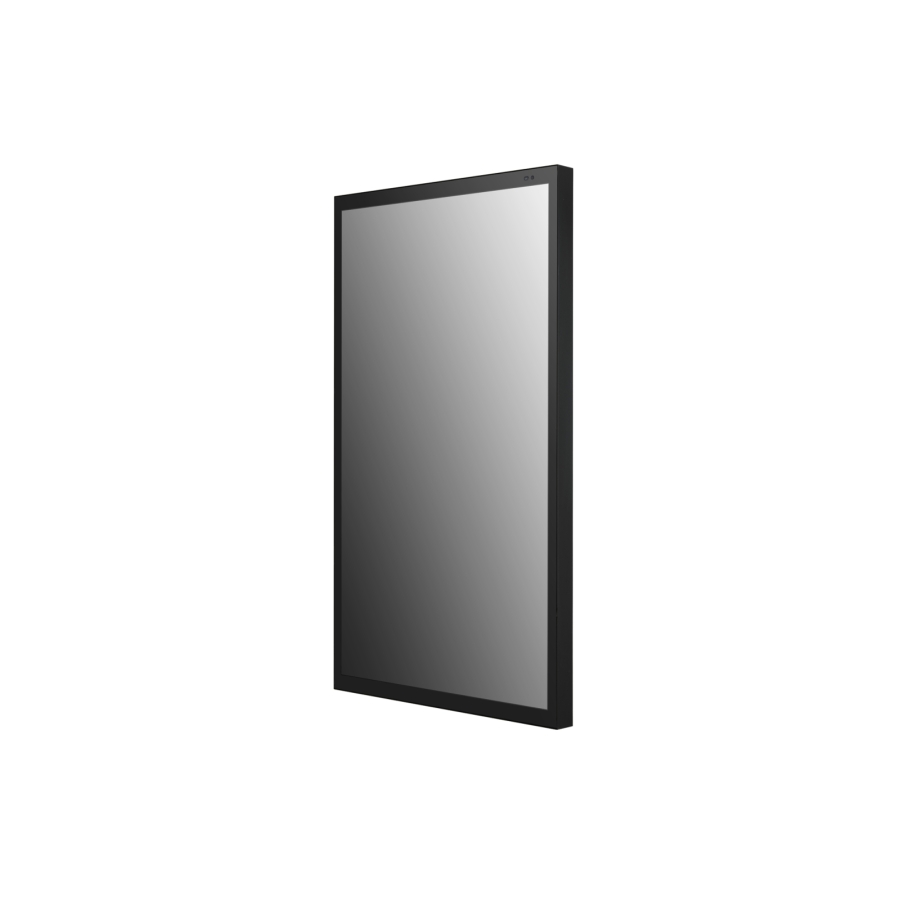

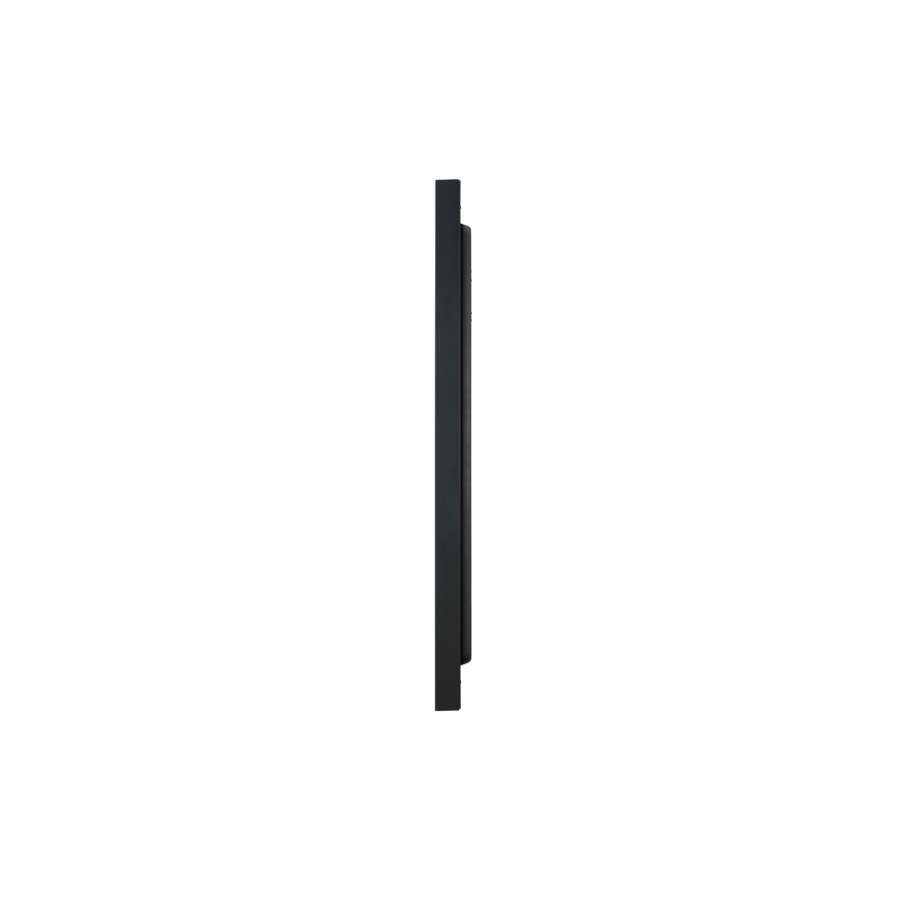

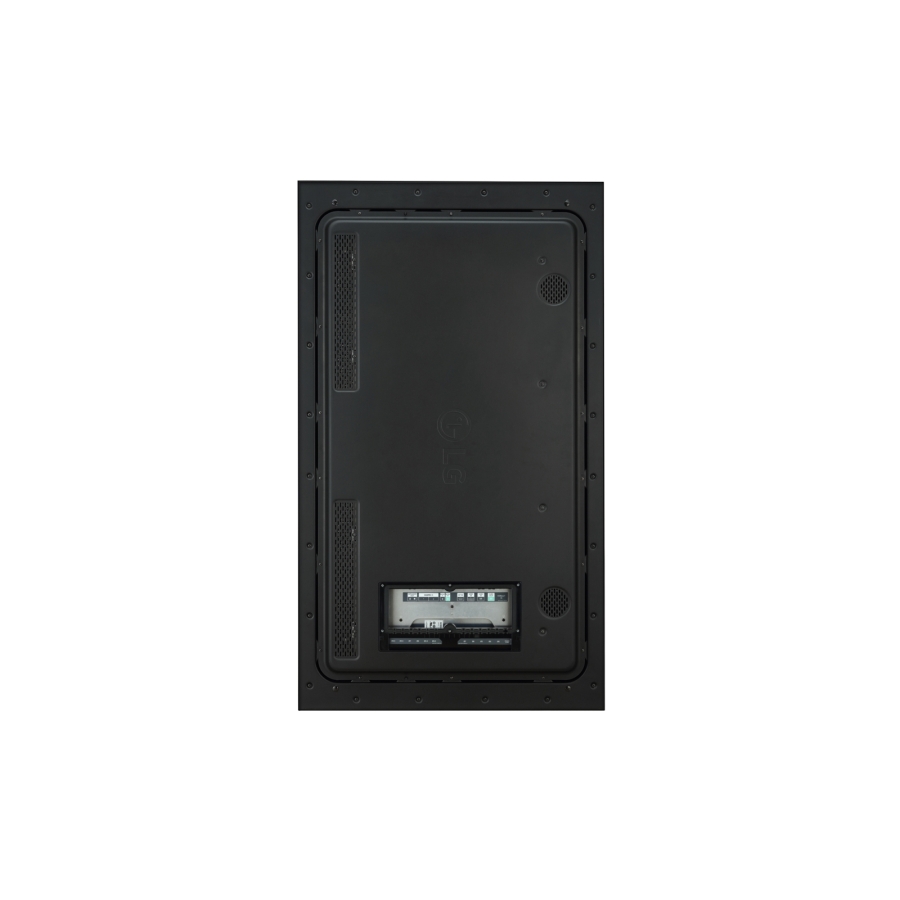

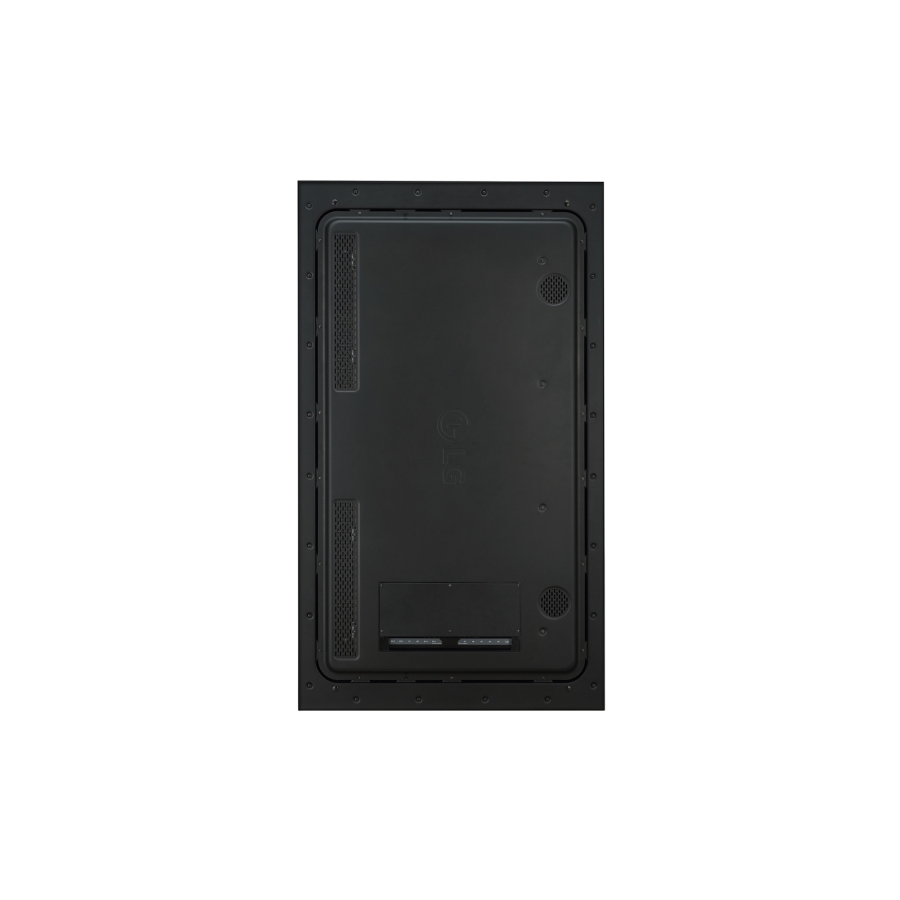

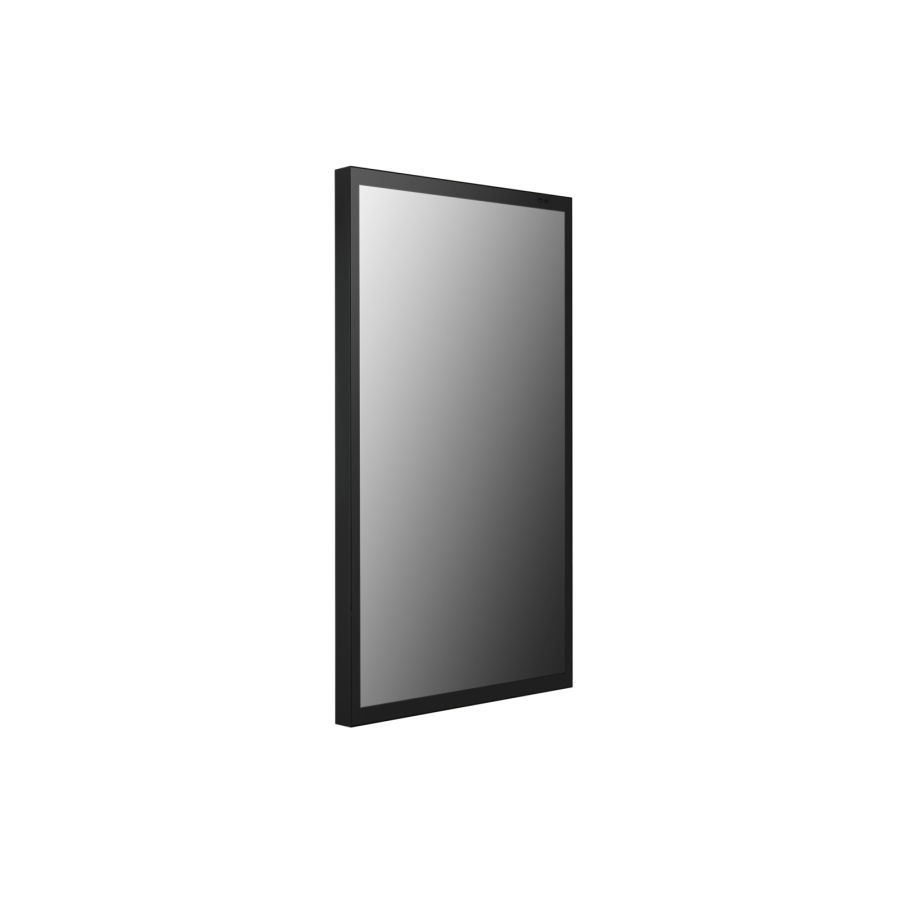

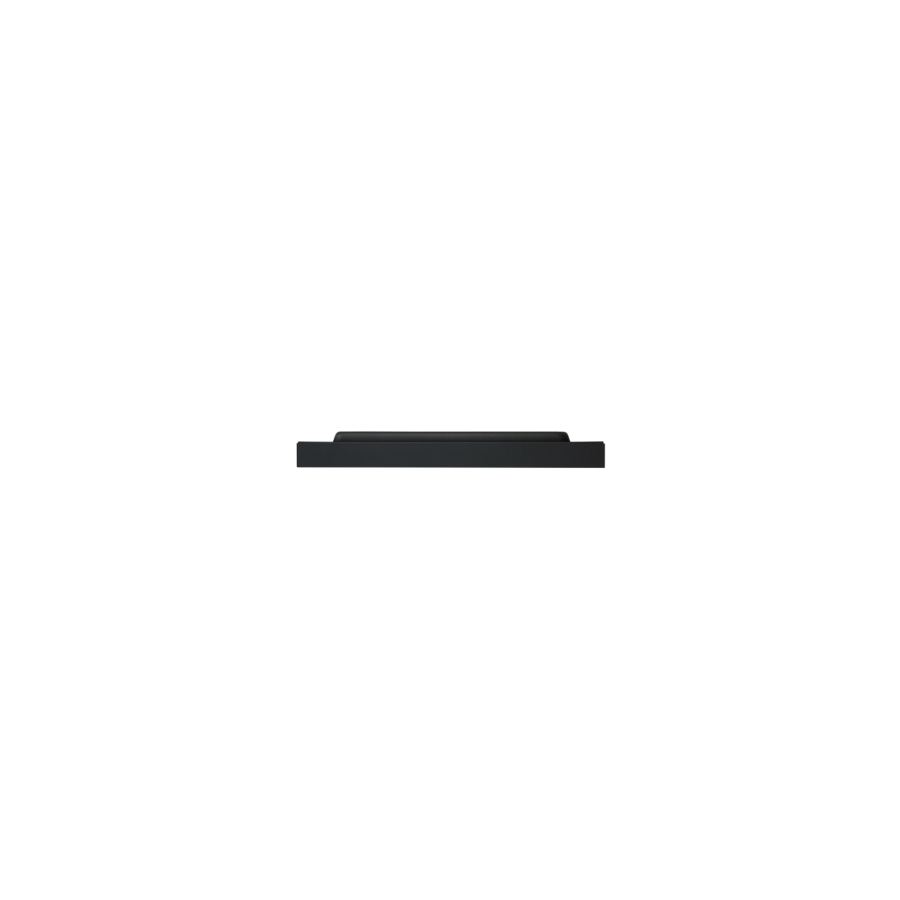

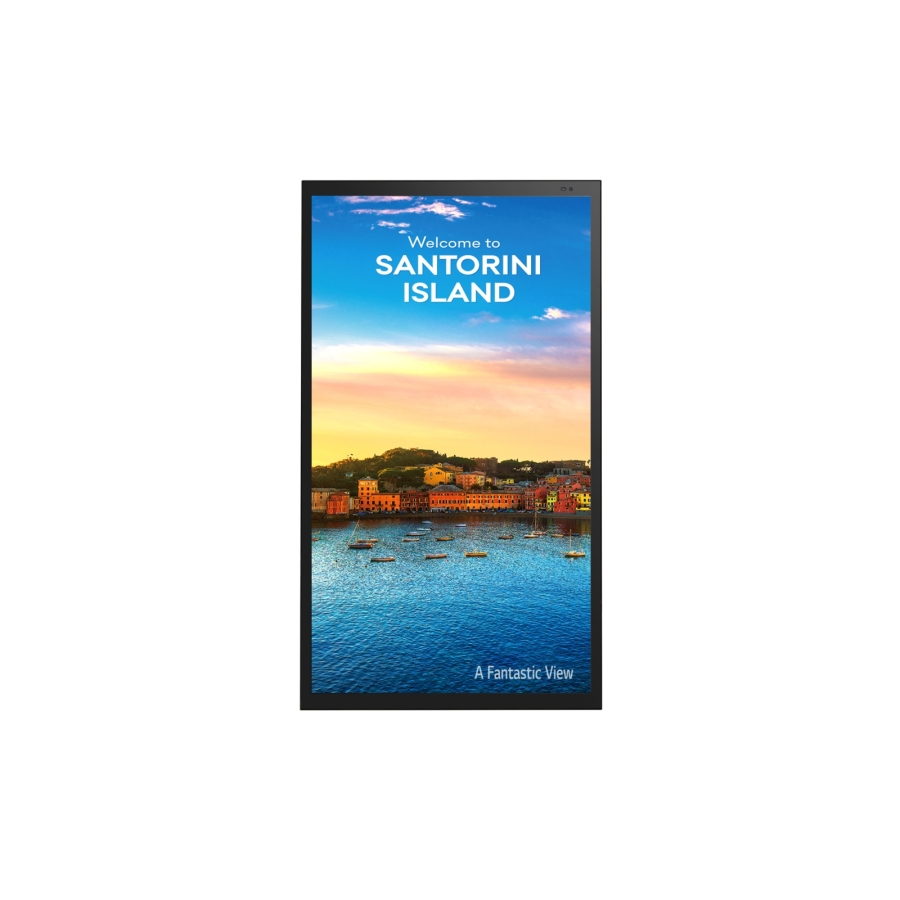

LG 49XE4F 49″ Digital Signage Flat Panel Display LED with 4000nit High Brightness and Full HD Black WebOS 24/7

LG

LG 49XE4F 49″ Digital Signage Flat Panel Display LED with 4000nit High Brightness and Full HD Black WebOS 24/7

49XE4F

  • Indoor/outdoor Digital signage flat panel Black
  • 124.5 cm (49″) 1920 x 1080 pixels LED 4000 cd/m²
  • Direct-LED 8 ms
  • Ethernet LAN
-
+

Details

Slim & Robust Design with Outstanding Visibility With a slim & robust design, XE4F series can be easily installed to meet the customer’s needs under in external environments that require complex installation conditions. And upgraded brightness captures the customer’s attention even under strong and direct sunlight. Slim & Light Design XE4F series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing. Easy integration for partner’s customized design The XE4F series are lighter and ready to be customized for various customer needs and settings. From outdoor menu boards to kiosks, the XE4F series are also mount ready and optimized for customers, based on the industry destination and use. Bright & Brilliant The XE4F series possess powerful brightness of 4,000nits, providing clear and vivid picture quality even under direct sunlight. Wide Viewing Angle IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle. Long Lasting Brightness By adding more LED units, XE4F operates brighter at a lower temperature, thereby lasting longer than conventional products. Visible with Polarized Sunglasses QWP enables clear visibility even when the viewer is wearing polarized sunglasses. Secured Protection with IP56 Design The display is sealed with IP56 design for reliable operation. It’s designed to be not only waterproof but also weatherproof against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application. Protective Glass (IK10 Certified) The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts. Support HDBaseT ™ XE4F Series support HDBaseT ™, the global standard for the transmission of ultra-high definition video & audio, Ethernet, controls, USB and IR over a single, long-distance cable, for easier control of the display and saving installaiton and maintenance costs. Web Monitoring This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
LED backlighting type Direct-LED
Display diagonal 124.5 cm (49″)
Display technology LED
Display resolution 1920 x 1080 pixels
Display brightness 4000 cd/m²
HD type Full HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1300:1
Contrast ratio (dynamic) 500000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Panel life 50000 h
Ports & interfaces
HDMI ports quantity 2
HDMI input ports quantity 2
DVI port No
DisplayPorts quantity 1
DisplayPorts in 1
USB port Yes
USB ports quantity 2
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 2
Wi-Fi No
Audio (L/R) out 1
RS-232C Yes
Audio
Built-in speaker(s) No
Design
Product design Digital signage flat panel
Placement supported Indoor/outdoor
Orientation Horizontal/Vertical
Product colour Black
Bezel width (bottom) 3.84 cm
Bezel width (side) 2.6 cm
Bezel width (top) 3.84 cm
Performance
Purpose Transportation
Operating hours (hours/days) 24/7
International Protection (IP) code IP56
Power
Power consumption (typical) 290 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Computer system
Computer system Yes
Internal storage capacity 16 GB
Operating system installed WebOS
Weight & dimensions
Width 656.2 mm
Depth 88 mm
Height 1153 mm
Weight 32 kg
Packaging data
Package width 1286 mm
Package depth 207 mm
Package height 797 mm
Package weight 37 kg
Packaging content
Remote control included Yes
Batteries included Yes
Cables included AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T) -30 – 50 °C
Operating relative humidity (H-H) 5 – 100%
Certificates
Certification IEC 60950-1 / EN 60950-1 / UL 60950-1, FCC Class “A” / CE / KCC, ErP “C”
Logistics data
Harmonized System (HS) code 85285210
Other features
HDBaseT port Yes
Manual Yes
Screen Size 49"
Aspect Ratio 16:9
Resolution 1920x1080
Brightness 4000nit
Glass Type Anti-Reflective
Viewing Angle 178/178 (H/V)
I/O DP, HDMI, RJ45, RS232
Mounting VESA, Wall Mount
Operating Temperature -30°C to 50°C
Operating Humidity 5% to 95%
LAN Yes
