ProDVX APPC-10SLBN-R23 Rockchip RK3568 25.6 cm (10.1″) 1280 x 800 pixels Touchscreen All-in-One tablet PC 4 GB DDR4-SDRAM 16 GB eMMC Android 12 Wi-Fi 5 (802.11ac) Black

Name: ProDVX APPC-10SLBN-R23 Rockchip RK3568 25.6 cm (10.1") 1280 x 800 pixels Touchscreen All-in-One tablet PC 4 GB DDR4-SDRAM 16 GB eMMC Android 12 Wi-Fi 5 (802.11ac) Black
SKU: 5010505
Availability: InStock

ProDVX

ProDVX APPC-10SLBN-R23 Rockchip RK3568 25.6 cm (10.1″) 1280 x 800 pixels Touchscreen All-in-One tablet PC 4 GB DDR4-SDRAM 16 GB eMMC Android 12 Wi-Fi 5 (802.11ac) Black

5010505

All-in-One tablet PC Black
Rockchip RK3568 2 GHz
Touchscreen 25.6 cm (10.1″) HD 1280 x 800 IPS Matt
4 GB DDR4-SDRAM
16 GB eMMC Card reader integrated
ARM Mali-G52 2EE MC2
Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.0
Android 12

Product Code: 5010505

Categories: 1" to 10" Commercial Displays, 10" Commercial Displays, Commercial Displays, ProDVX, Resolutions, Small Displays, Specialist Displays, Touchscreen, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

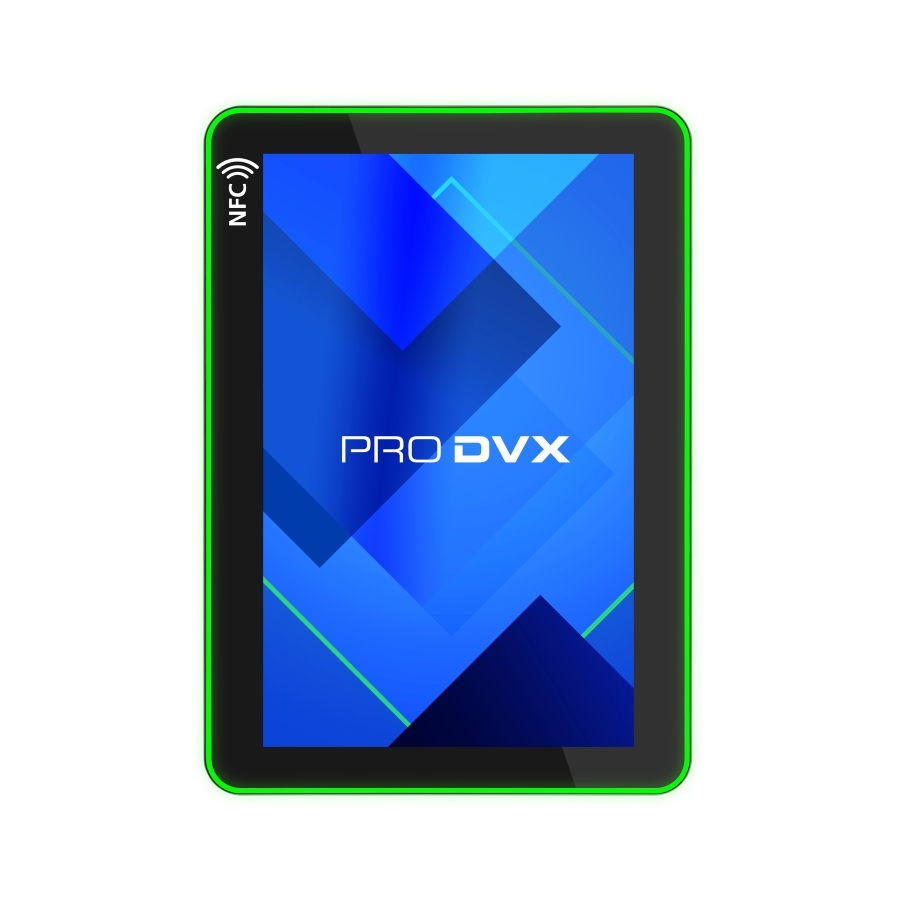

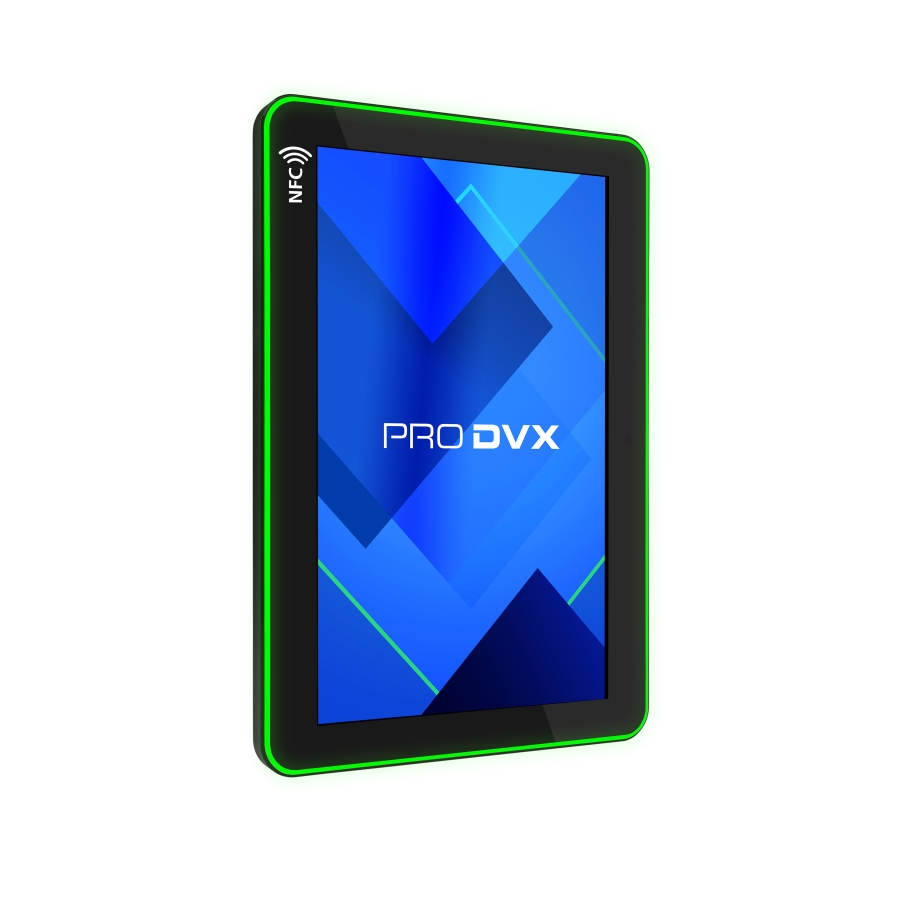

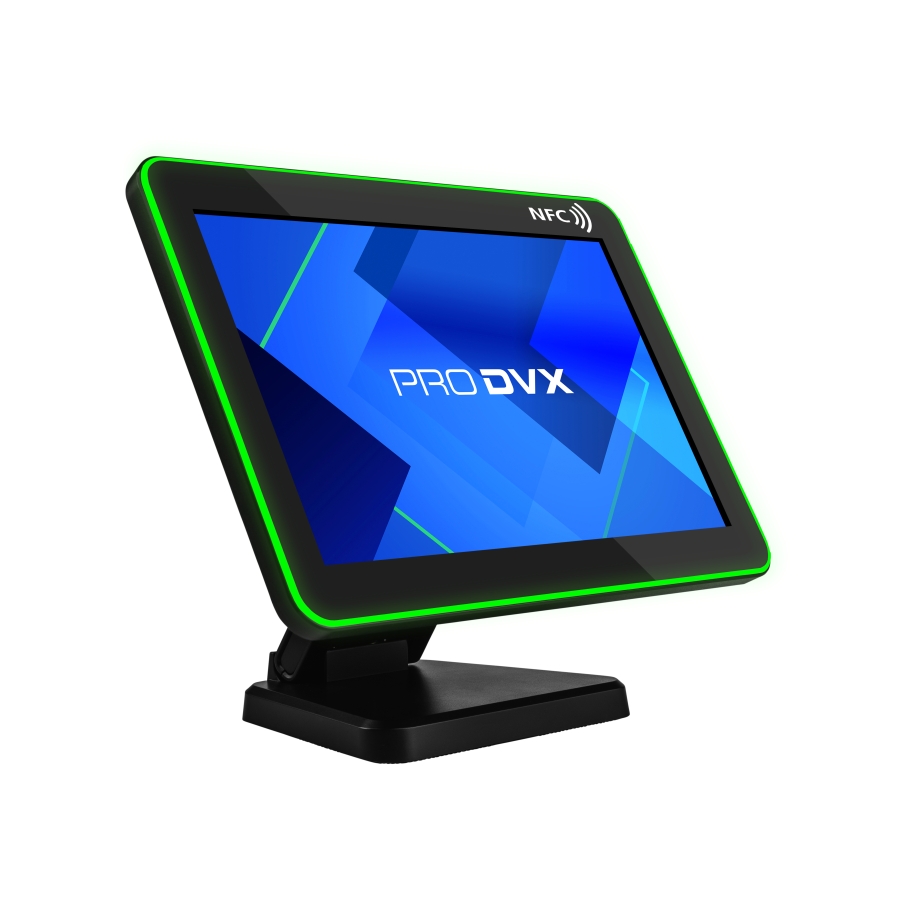

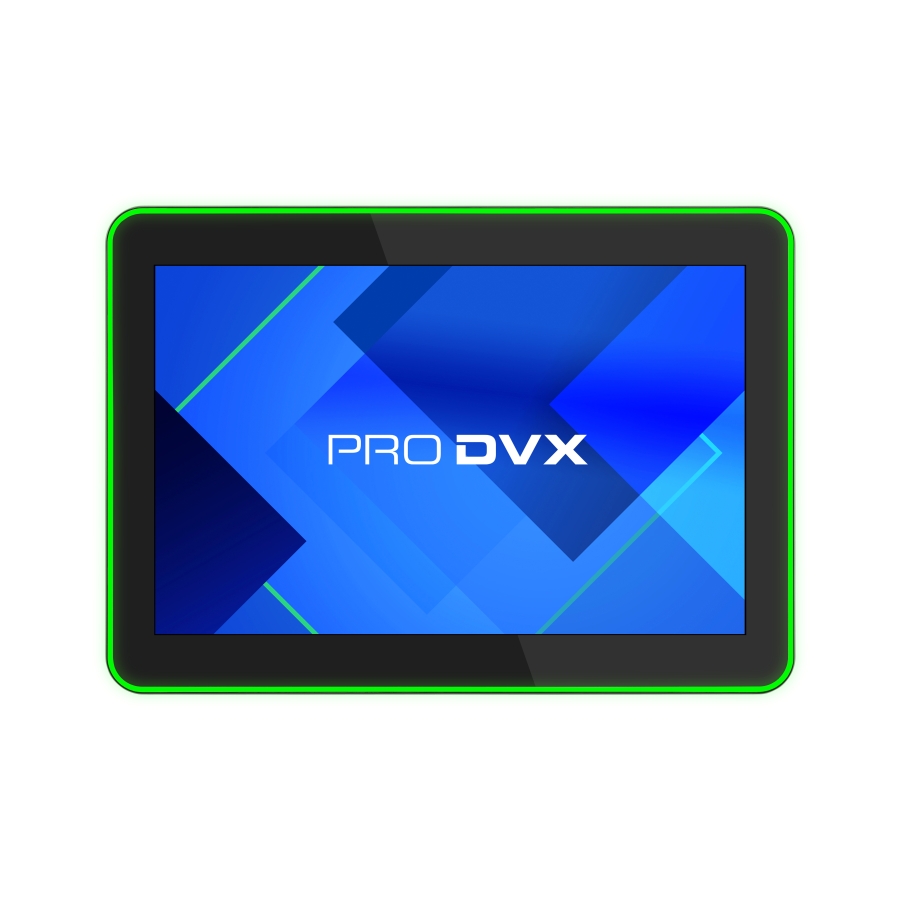

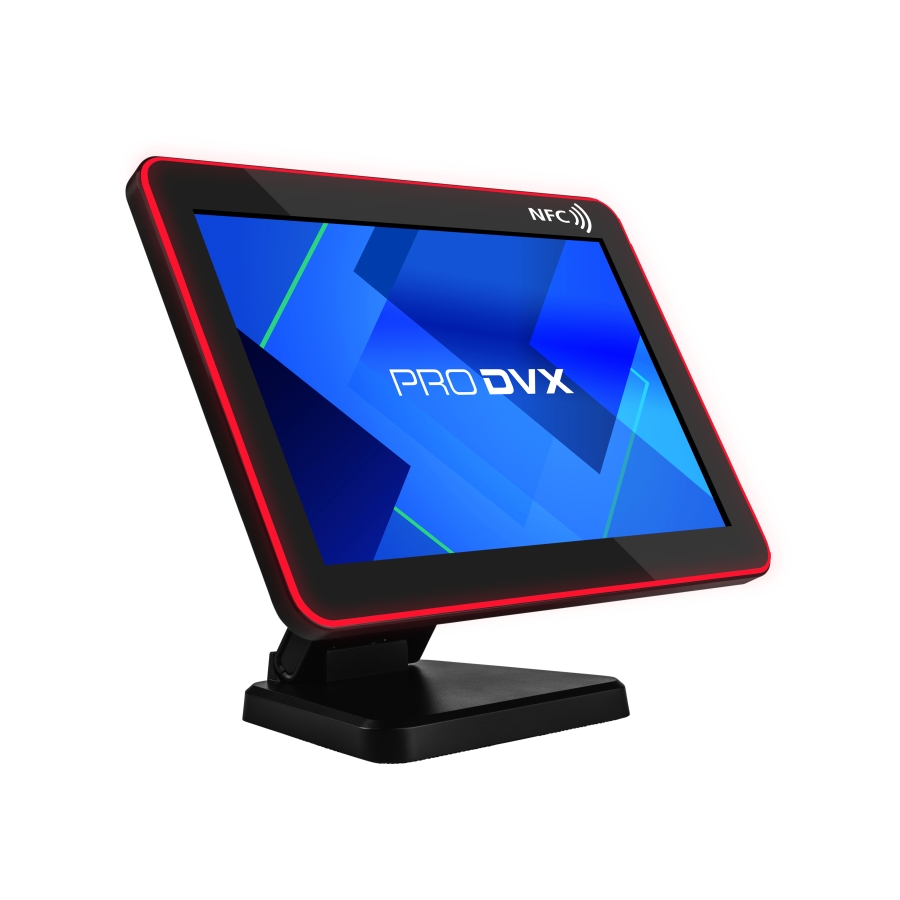

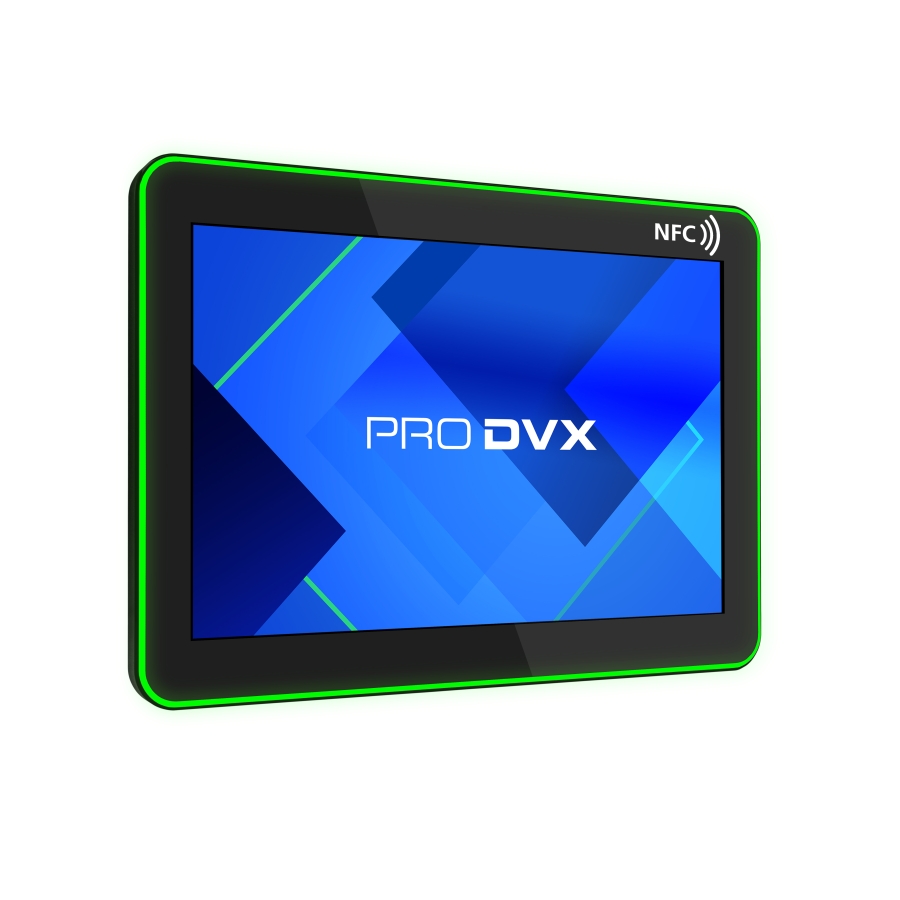

The APPC-10SLBN-R23 is a 10.1-inch Android Panel PC, featuring Android 12 and a new quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568). It comes with a surround full RGB LED bar for efficient signalling, and an integrated NFC reader for NFC-enabled solutions. The APPC-10SLBN-R23 ensures superior performance and next-level user experience. Enjoy hassle-free installation with the VESA mounting frame, and Power over Ethernet+ capability for efficient power provisioning. In addition, the anti-glare touch panel, which supports 10-point PCAP touch functionality and high brightness, ensures an optimal user experience. The APPC-10SLBN-R23 is a highly versatile device, capable of handling any solution with ease. Its variety of I/O ports and pogo pin ports allow you to add any peripheral to further enhance your solution.

Downloads

5010505 Leaflet (PDF)

0.9MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	25.6 cm (10.1″)
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	HD
Touch technology	Multi-touch
Native aspect ratio	16:10
Display brightness	500 cd/m²
Display surface	Matt
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3568
Processor cores	4
Processor frequency	2 GHz
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	ARM
On-board graphics card model	ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s)	Yes
Number of speakers	2
Camera
Built-in camera	No
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

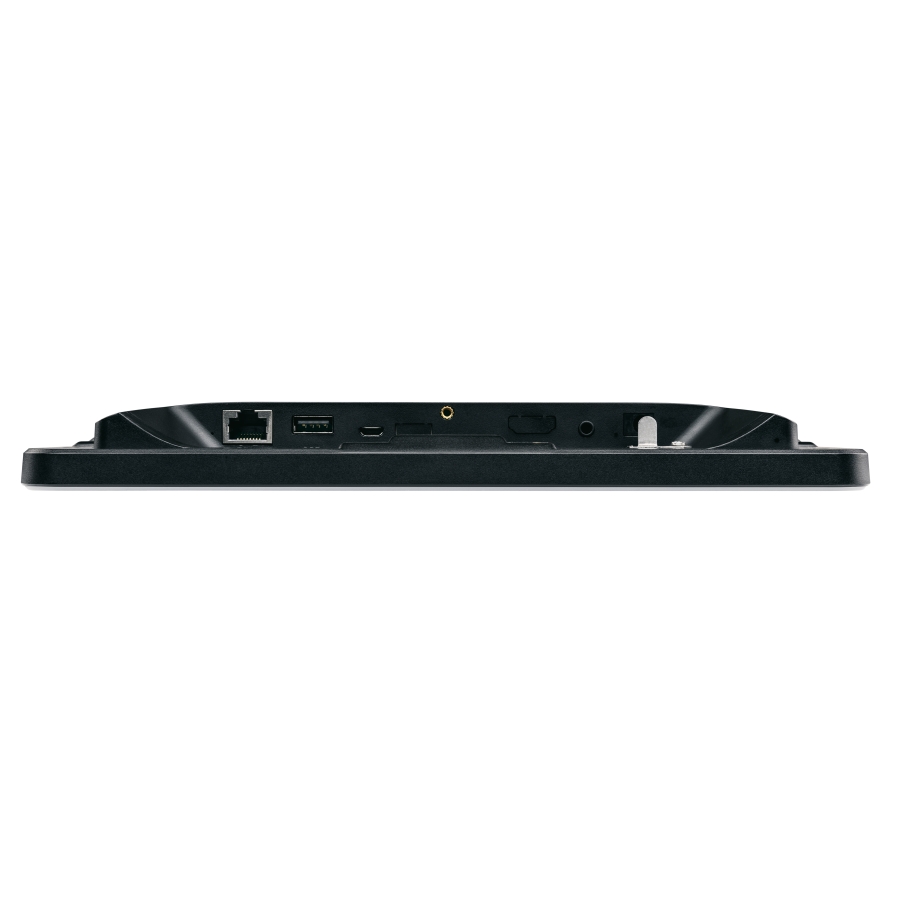

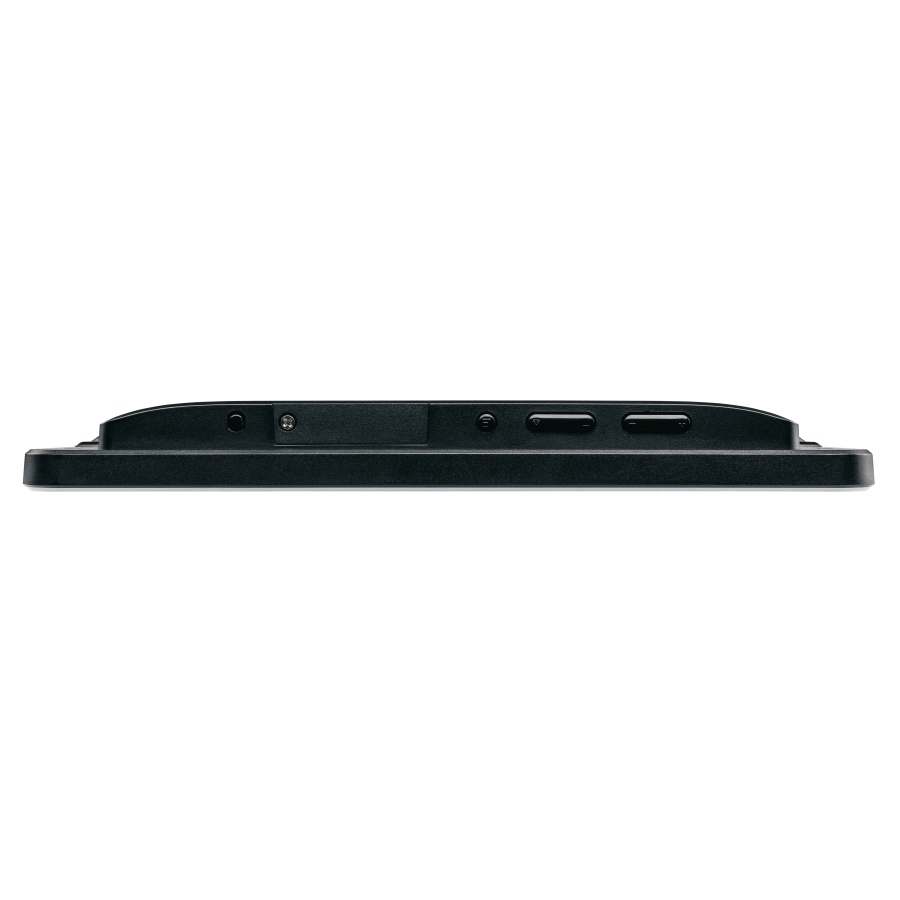

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
HDMI output ports quantity	1
Audio output	Yes
DC-in jack	Yes
Micro-USB ports quantity	1
Design
Housing material	ABS synthetics
Product colour	Black
Wall mountable	Yes

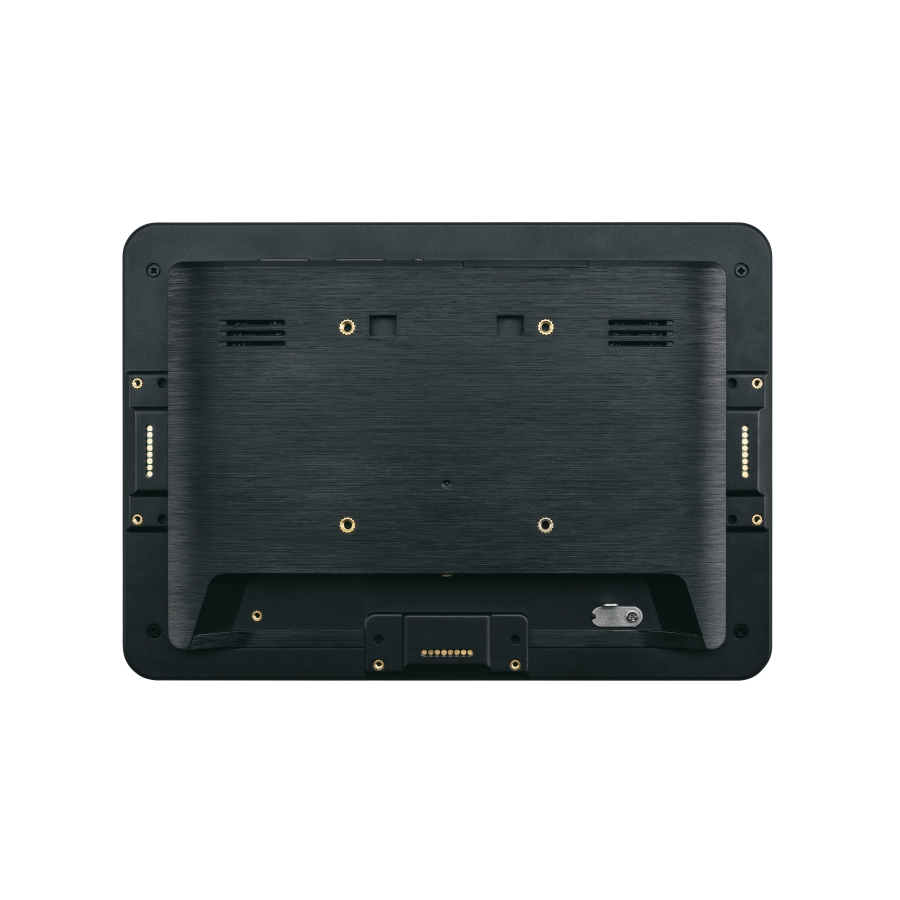

VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 12
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	255.3 mm
Depth (without stand)	26.7 mm
Height (without stand)	181 mm
Weight	650 g
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	0 – 90%
Storage relative humidity (H-H)	0 – 90%
Certificates
Compliance certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Packaging content
Cables included	No
Other features
Mean time between failures (MTBF)	50000 h
Backlight type	Edge LED
Backlight	Yes
Near Field Communication (NFC)	Yes

Screen Size	10.1"
Resolution	1280x800
Brightness	500nit
Glass Type	Anti-Glare
Viewing Angle	160/160 (H/V)
Touch Technology	PCAP
Speaker	Yes
I/O	HDMI
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
