ProDVX APPC-10SLBe

Name: ProDVX APPC-10SLBe
SKU: 5010825
Availability: InStock

ProDVX

ProDVX APPC-10SLBe

5010825

All-in-One tablet PC Black
Rockchip RK3399
Touchscreen 25.6 cm (10.1″) 1280 x 800 IPS
4 GB DDR4-SDRAM
16 GB Flash Card reader integrated
ARM Mali-T860 MP4
Wi-Fi 4 (802.11n) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 4.2
Android 11

Product Code: 5010825

Categories: 1" to 10" Commercial Displays, 10" Commercial Displays, Commercial Displays, ProDVX, Resolutions, Small Displays, Specialist Displays, Touchscreen, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

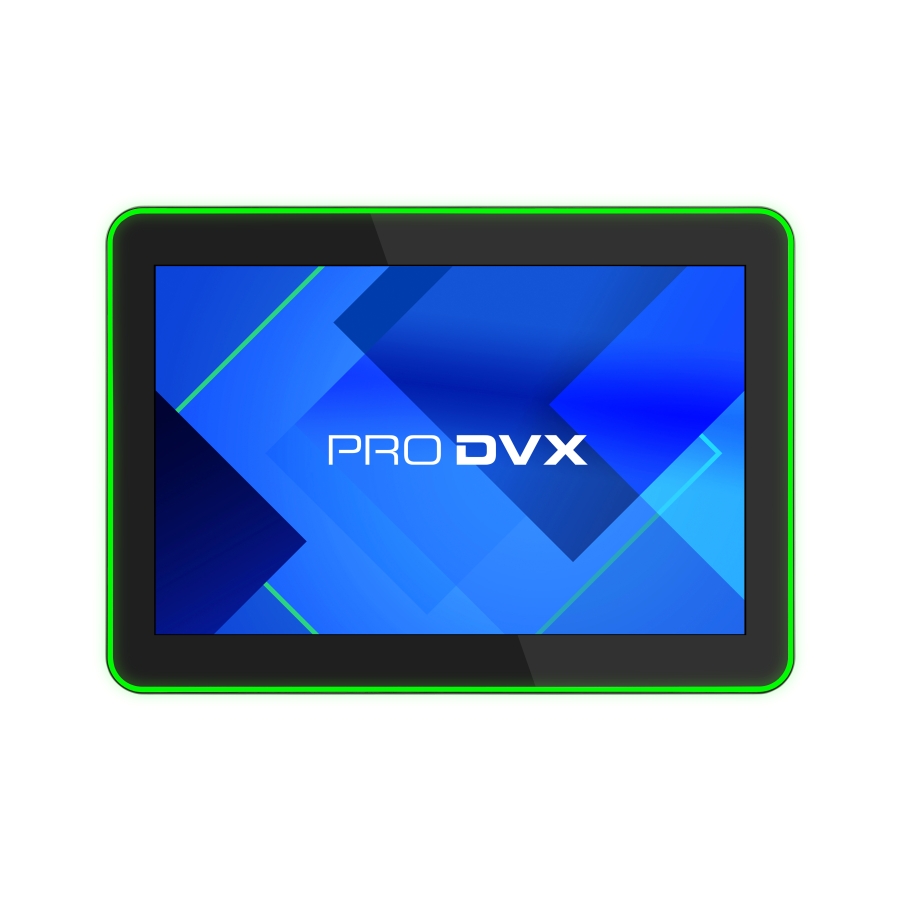

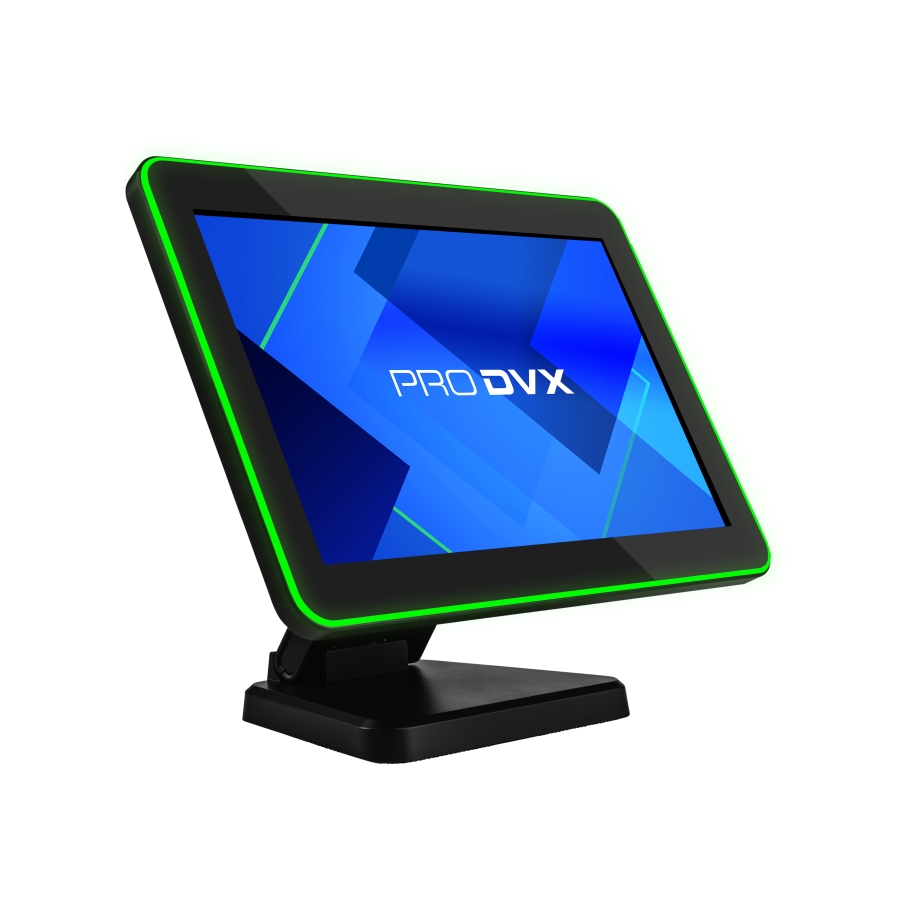

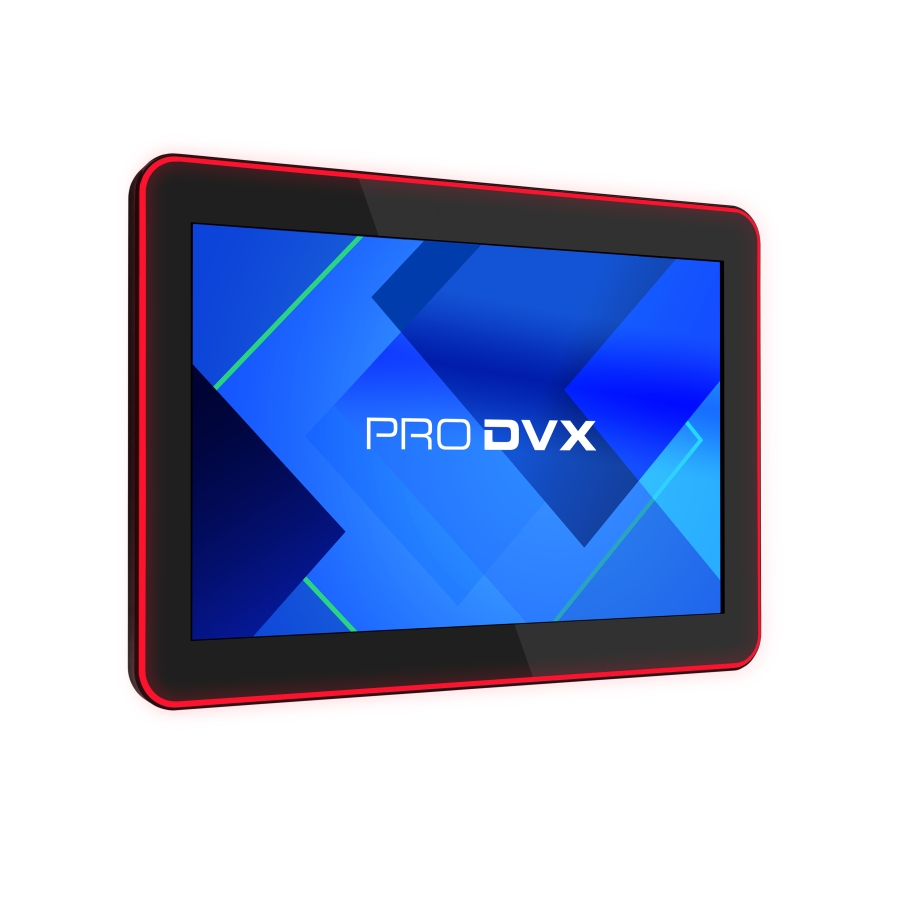

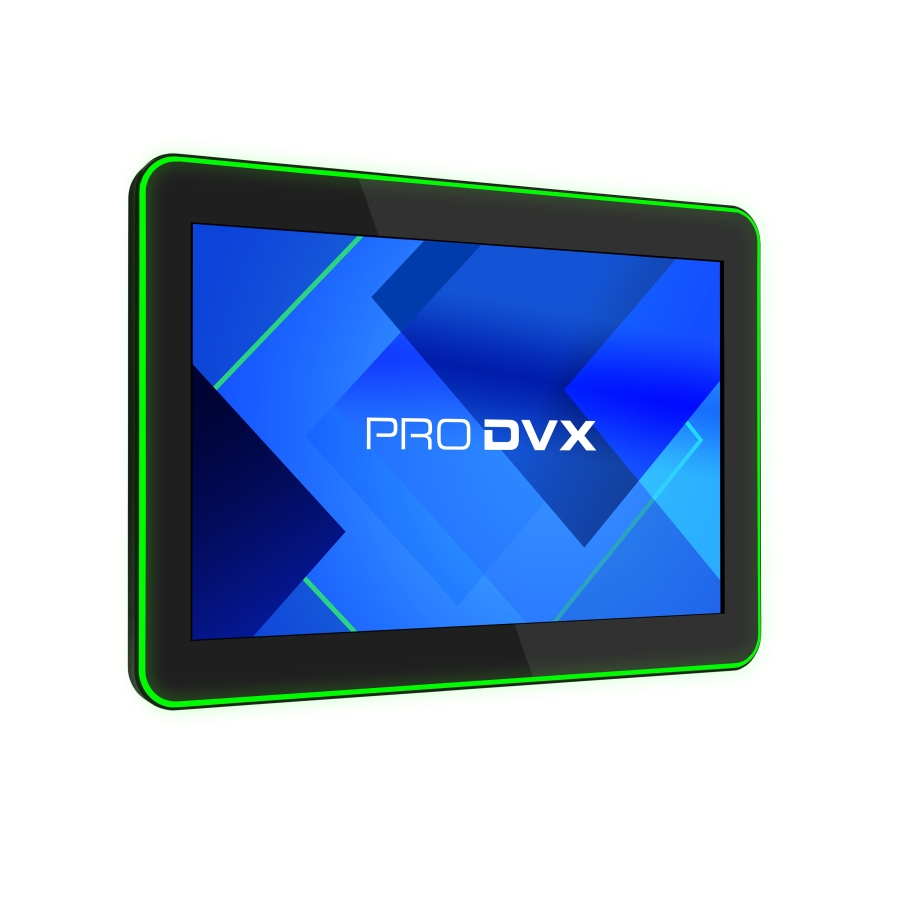

The APPC-10SLBe (R24-7701) is a 10.1 inch Android Panel PC running Android 11 with GMS. It includes essential Google apps like Google Play Store, Chrome, YouTube, and more. With Google Play Store, you can remotely manage content and updates via an MDM tool. Zero Touch Deployment simplifies device configuration with your organization’s policies. Google Play Protect ensures automatic security updates, enhancing security. The APPC-10SLBe (R24-7701) features a robust RK3399 CPU and 4GB RAM for multitasking. It accommodates multiple background apps while ensuring smooth front-end operation. Notable features include an RGB surround LED bar, non-glare coating, up to 500cd/m2 brightness, an internal NFC module, and Power over Ethernet+ connectivity. Additionally, it comes with a 5-year warranty, making it our most secure and high-performance device to date.

Downloads

5010825 Leaflet (PDF)

1.22MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	25.6 cm (10.1″)
Display resolution	1280 x 800 pixels
Touchscreen	Yes
Touch technology	Multi-touch
Native aspect ratio	16:10
Display brightness	500 cd/m²
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor cores	6
Memory
Internal memory	4 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	Flash
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	ARM Mali-T860 MP4
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes
Camera
Built-in camera	No
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

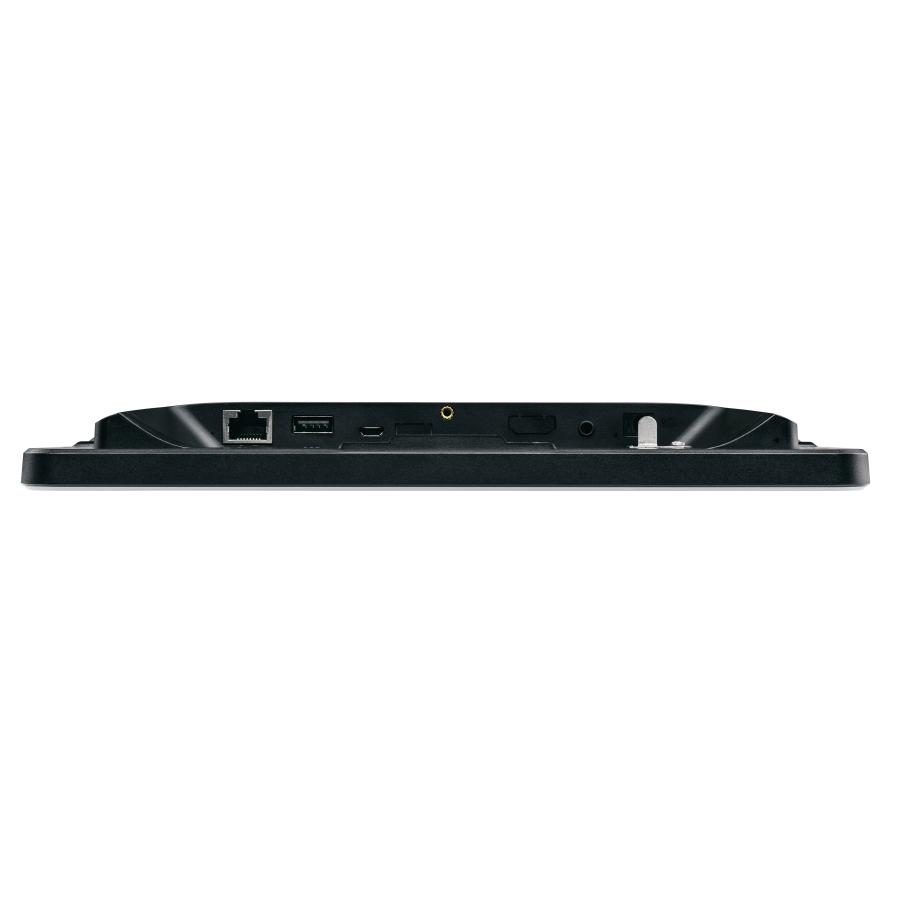

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Audio output	Yes
DC-in jack	Yes
Micro-USB ports quantity	1
Design
Housing material	Plastic
Product colour	Black
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	255.3 mm
Depth (without stand)	26.7 mm
Height (without stand)	181 mm
Weight (without stand)	650 g
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	10 – 90%
Certificates
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Logistics data
Harmonized System (HS) code	84713000
Other features
Mean time between failures (MTBF)	50000 h
Backlight type	Edge LED
Backlight	Yes
Near Field Communication (NFC)	Yes

Screen Size	10.1"
Resolution	1280x800
Brightness	500nit
Glass Type	Anti-Glare
Viewing Angle	160/160 (H/V)
Touch Technology	PCAP
Speaker	Yes
I/O	HDMI
Mounting	VESA
Operating Temperature	0°C to 40°C
Built In Media Player	Yes
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
