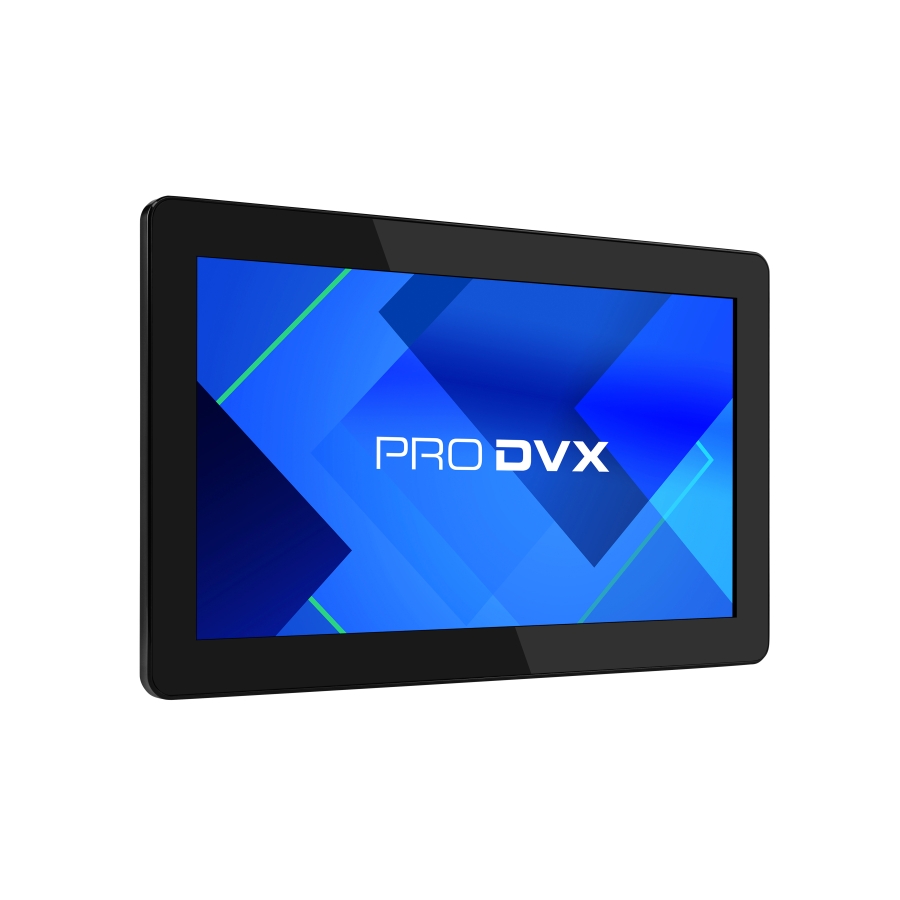

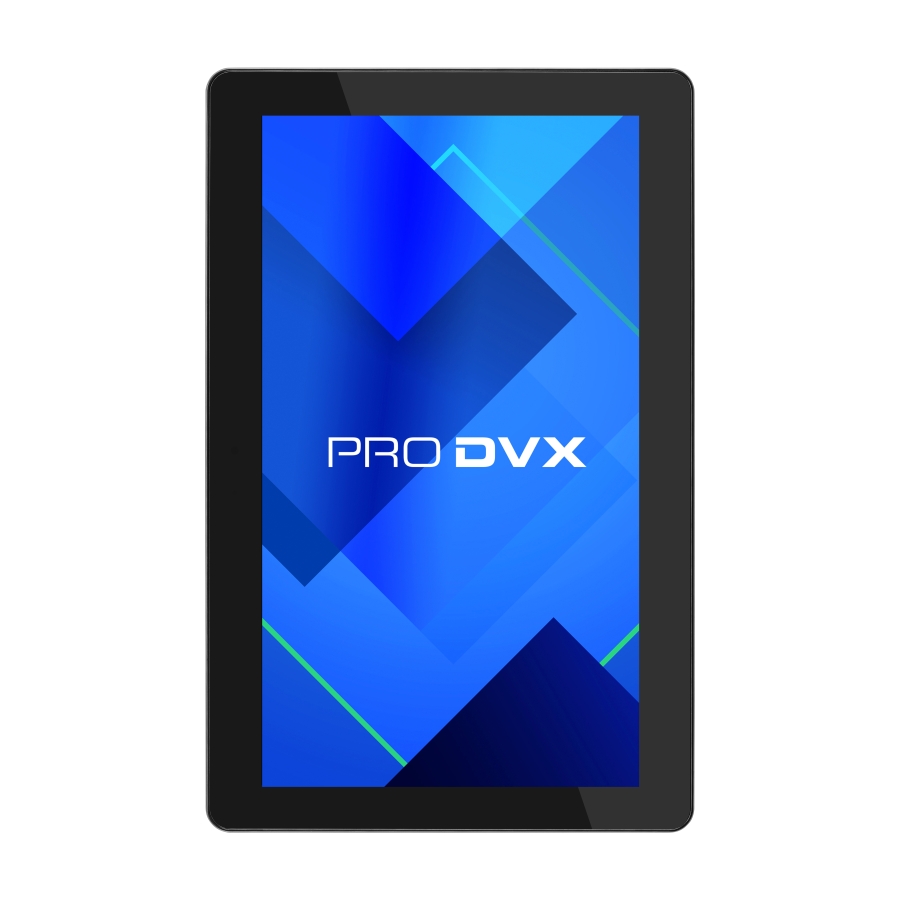

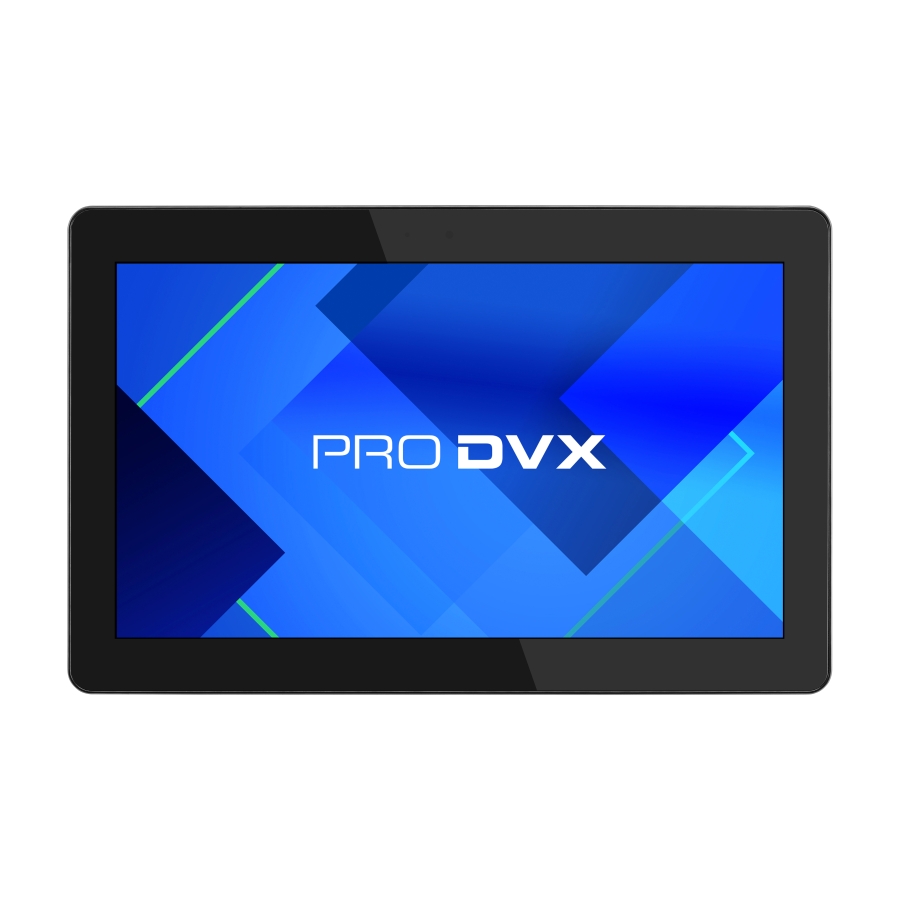

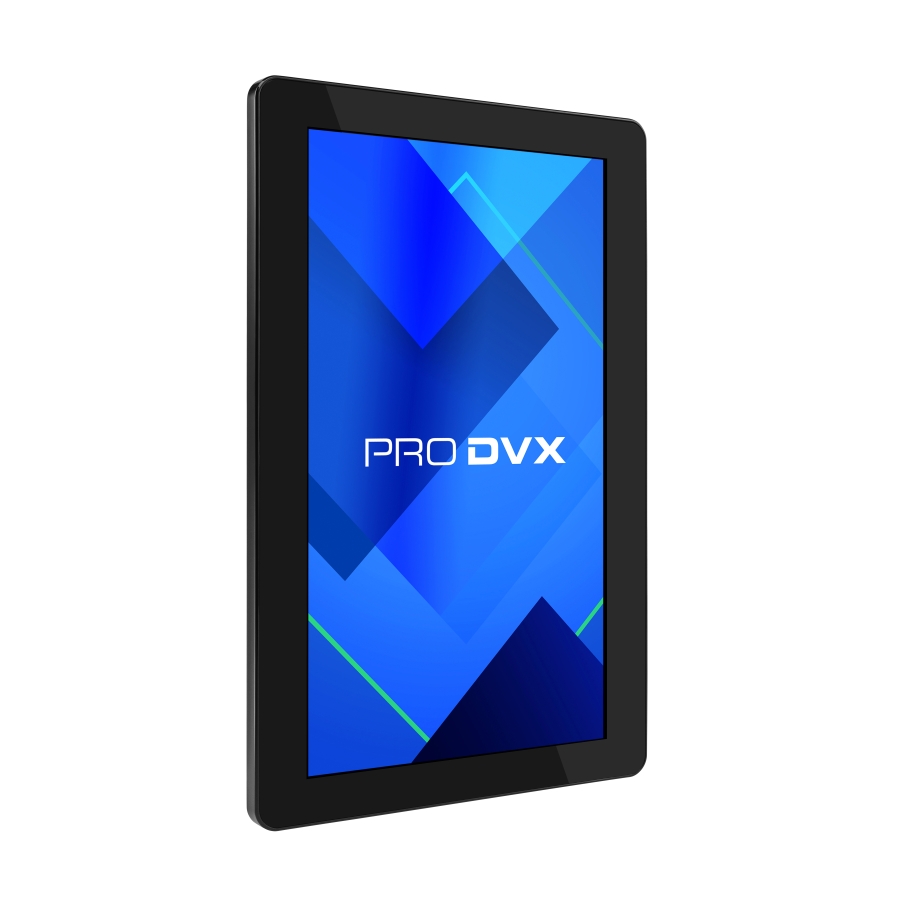

ProDVX APPC-12XP-R23 Black 11.6″ RK3568 Android Panel PC with 600nit Brightness and PCAP Touch

Name: ProDVX APPC-12XP-R23 Black 11.6" RK3568 Android Panel PC with 600nit Brightness and PCAP Touch
SKU: 5012200
Availability: InStock

ProDVX

ProDVX APPC-12XP-R23 Black 11.6″ RK3568 Android Panel PC with 600nit Brightness and PCAP Touch

5012200

All-in-One tablet PC Black
Rockchip RK3568
Touchscreen 29.5 cm (11.6″) Full HD 1920 x 1080 IPS Matt
4 GB LPDDR4-SDRAM
16 GB eMMC Card reader integrated
ARM Mali-G52 2EE MC2
Wi-Fi 4 (802.11n) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.2
Android 12

Product Code: 5012200

Categories: 11" Commercial Displays, 11" to 20" Commercial Displays, 2K Displays, Commercial Displays, ProDVX, Resolutions, Shop By Size, Small Displays, Specialist Displays, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

Explore our latest 12-inch Android Panel PC, the APPC-12XP-R23. Operating on Android 12 and powered by the quad-core Cortex-A55 CPU and Mali-G52 GPU (RK3568), this device provides seamless operation and advanced graphics capabilities. Featuring 4GB RAM and 16GB storage, it enables efficient multitasking, while IEEE 802.3at PoE+ support streamlines power and connectivity and eliminates complex wiring plans. This Android Panel PC offers diverse I/O ports for peripheral devices, making it ideal for many solutions from retail and corporate, to healthcare and industrial settings. The APPC-12XP-R23 supports 10-point PCAP touch functionality and has undergone an anti-glare treatment for enhanced visibility. In addition, the APPC-12XP-R23 supports 600cd/m2. With its innovative features, the APPC-12XP-R23 is the perfect device to enhance your solution.

Downloads

5012200 Leaflet (PDF)

0.88MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	29.5 cm (11.6″)
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	600 cd/m²
Display surface	Matt
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3568
Processor cores	4
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	ARM
On-board graphics card model	ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in microphone	Yes
Camera
Built-in camera	No
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

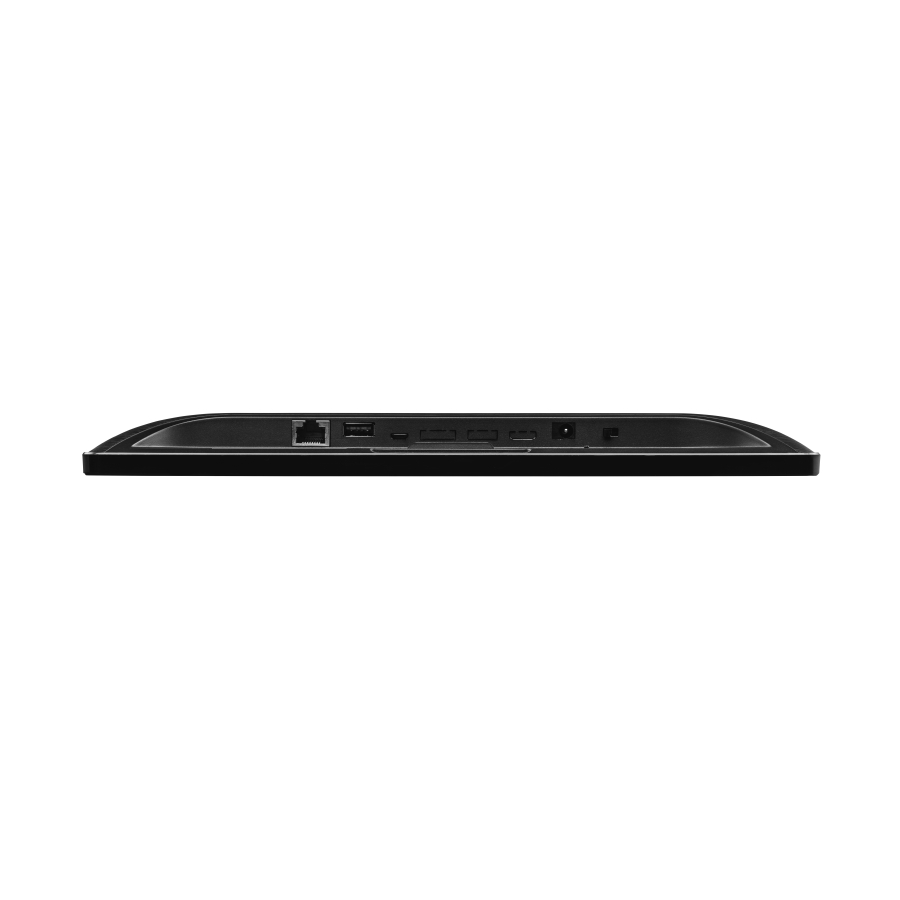

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Audio output	Yes
DC-in jack	Yes
Micro-USB ports quantity	1
Design
Housing material	ABS synthetics
Product colour	Black
Wall mountable	Yes

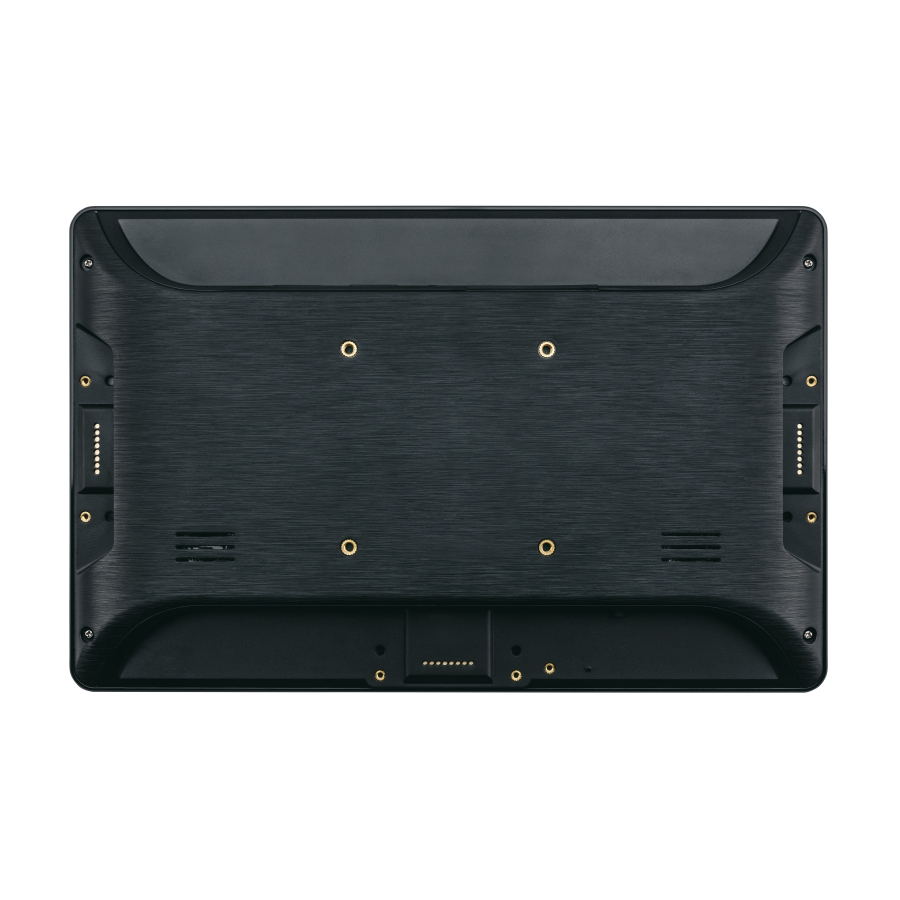

VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 12
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	295.8 mm
Depth (without stand)	26 mm
Height (without stand)	189.6 mm
Weight (without stand)	900 g
Weight	900 g
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	10 – 90%
Certificates
Compliance certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Logistics data
Harmonized System (HS) code	84713000
Other features
Mean time between failures (MTBF)	45000 h
Backlight type	Edge LED
Backlight	Yes

Screen Size	11.6"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	600nit
Glass Type	Anti-Glare
Viewing Angle	160/160 (HV)
Touch Technology	PCAP
Speaker	Yes
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	ARM
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Android
