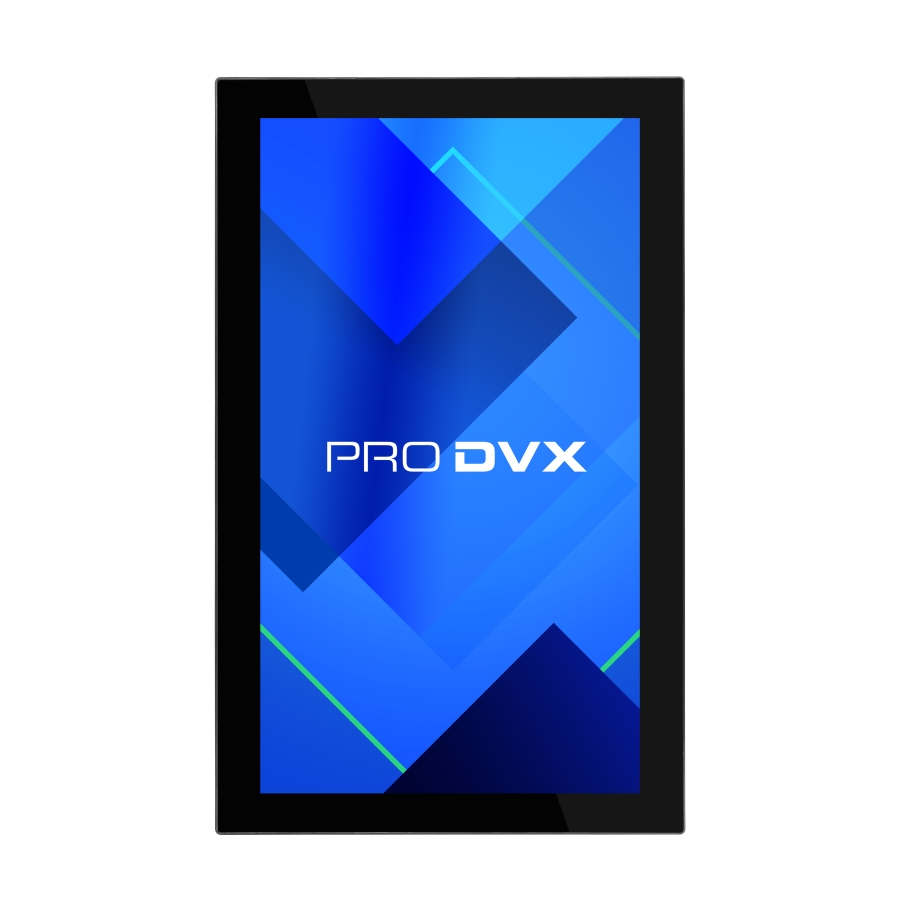

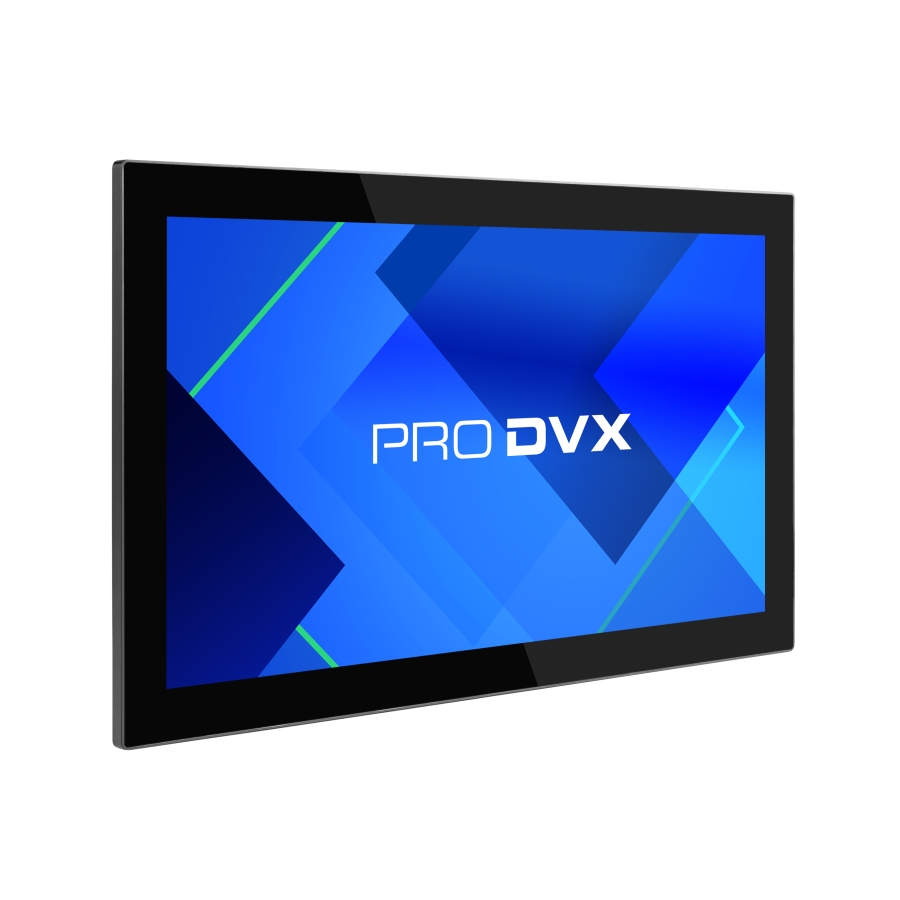

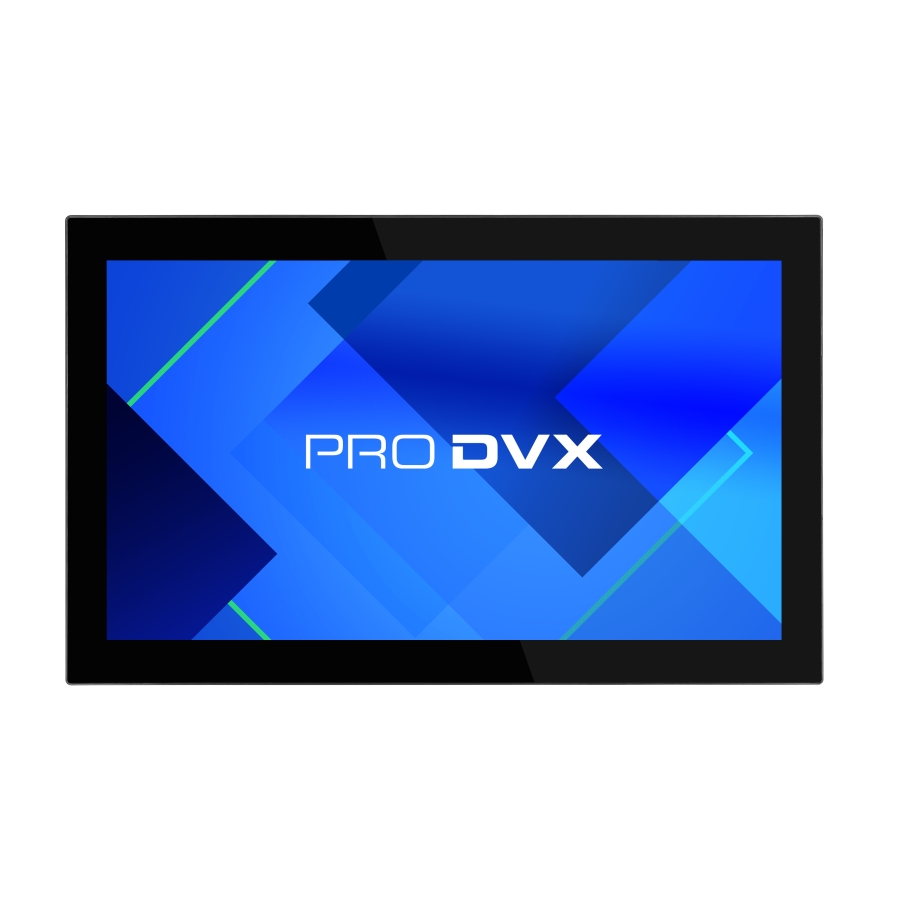

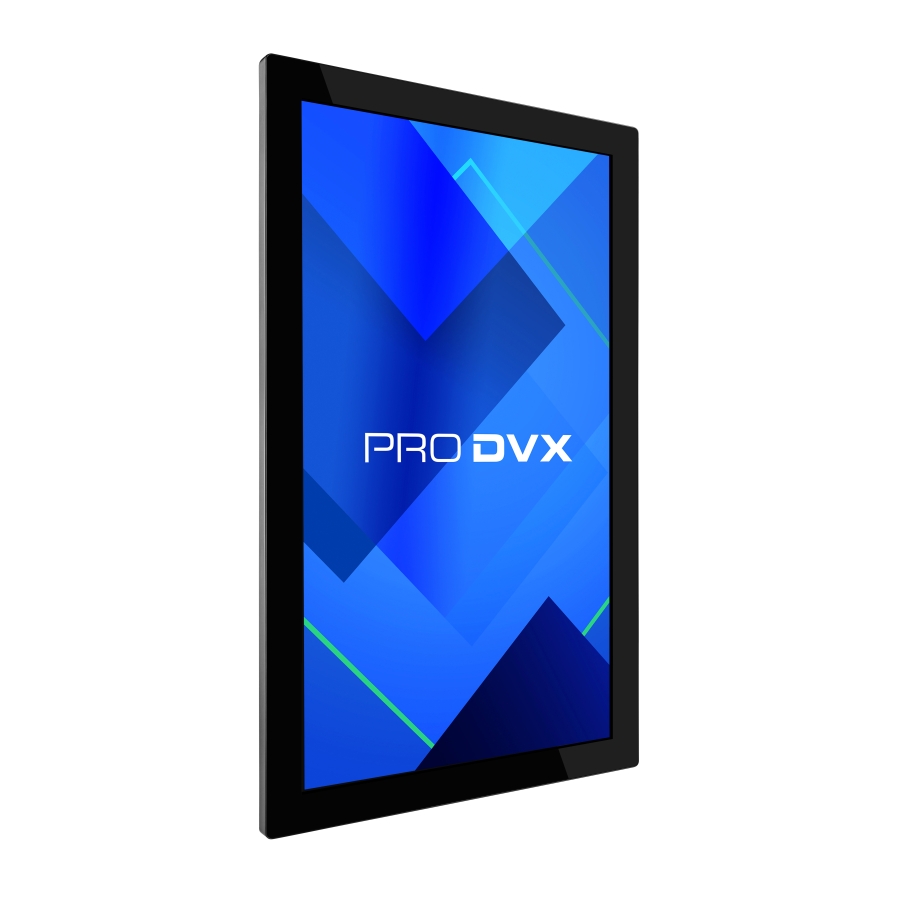

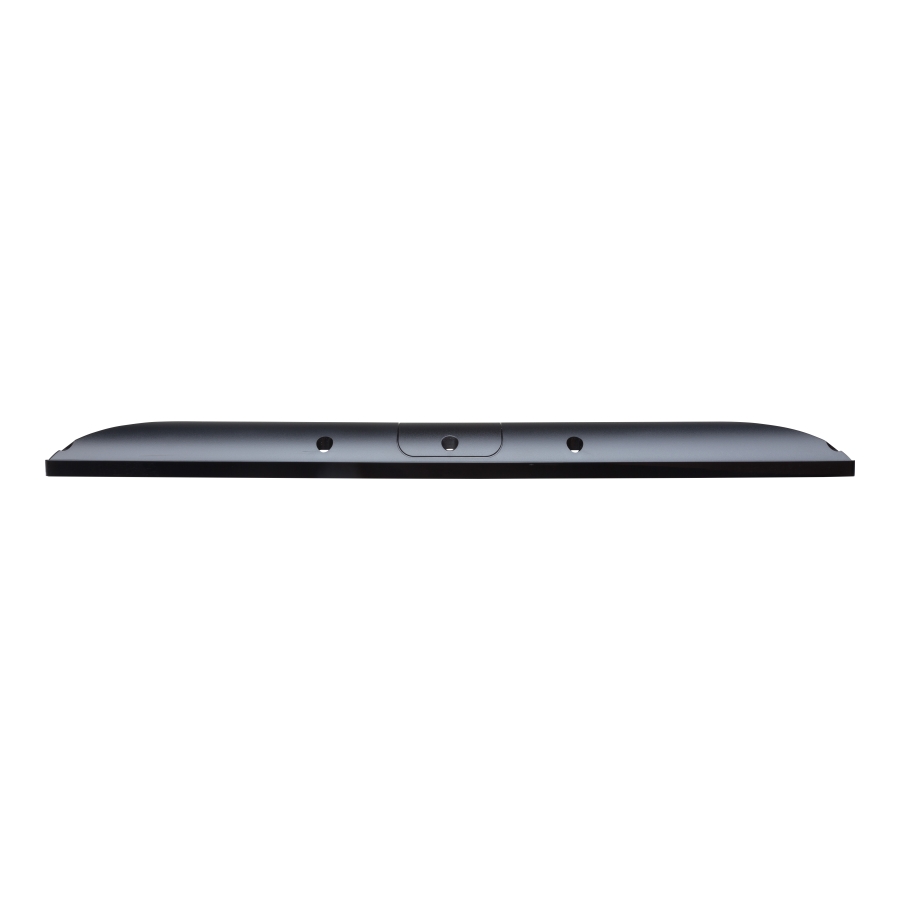

ProDVX APPC-15XP-R23 Black 15.6″ RK3399 Android Panel PC with 400nit Brightness and PCAP Touch

Name: ProDVX APPC-15XP-R23 Black 15.6" RK3399 Android Panel PC with 400nit Brightness and PCAP Touch
SKU: 5015210
Availability: InStock

ProDVX

ProDVX APPC-15XP-R23 Black 15.6″ RK3399 Android Panel PC with 400nit Brightness and PCAP Touch

5015210

All-in-One tablet PC Black
Rockchip RK3399 1.8 GHz
Touchscreen 39.6 cm (15.6″) Full HD 1920 x 1080 IPS Matt
4 GB DDR3-SDRAM
32 GB Flash Card reader integrated
ARM Mali-T860 MP4
Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 4.2
Android 11

Product Code: 5015210

Categories: 11" to 20" Commercial Displays, 15" Commercial Displays, 2K Displays, Commercial Displays, ProDVX, Resolutions, Small Displays, Specialist Displays, Touchscreen, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

The APPC-15XP-R23 is a highly versatile 15.6-inch Android Panel Panel PC designed to improve any solution. With its powerful RK3399 CPU and Android 11 operating system, this device offers high performance and seamless user experience. Equipped with Power over Ethernet technology, the APPC-15XP-R23 allows for simple and flexible installation, eliminating the need for additional power cables. The device also features Pogo pin ports, enabling easy and secure connectivity with a wide range of peripherals, such as cameras, barcode scanners or LED modules. The APPC-15XP-R23 boasts an extensive array of I/O ports, providing unparalleled flexibility for any application. Whether it's for digital signage, interactive kiosks, or point-of-sale, the APPC-15XP-R23 can handle it all with ease. Upgrade your solution with the APPC-15XP-R23 and enjoy the benefits of a highly versatile device that offers unmatched performance, flexibility, and durability.

Downloads

5015210 Leaflet (PDF)

0.75MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	39.6 cm (15.6″)
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Full HD	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	300 cd/m²
Display surface	Matt
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor frequency	1.8 GHz
Memory
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage
Total storage capacity	32 GB
Storage media	Flash
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	ARM Mali-T860 MP4
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

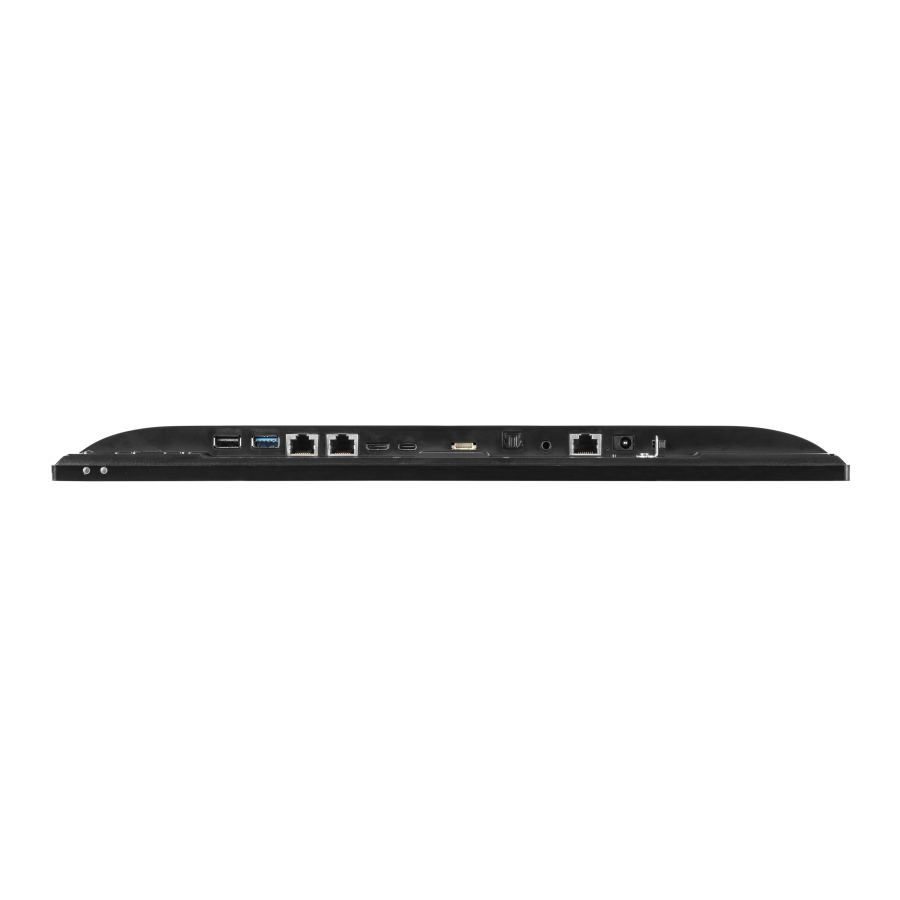

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio output	Yes
DC-in jack	Yes
S/PDIF out port	Yes
Design
Housing material	Plastic
Product colour	Black
Wall mountable	Yes

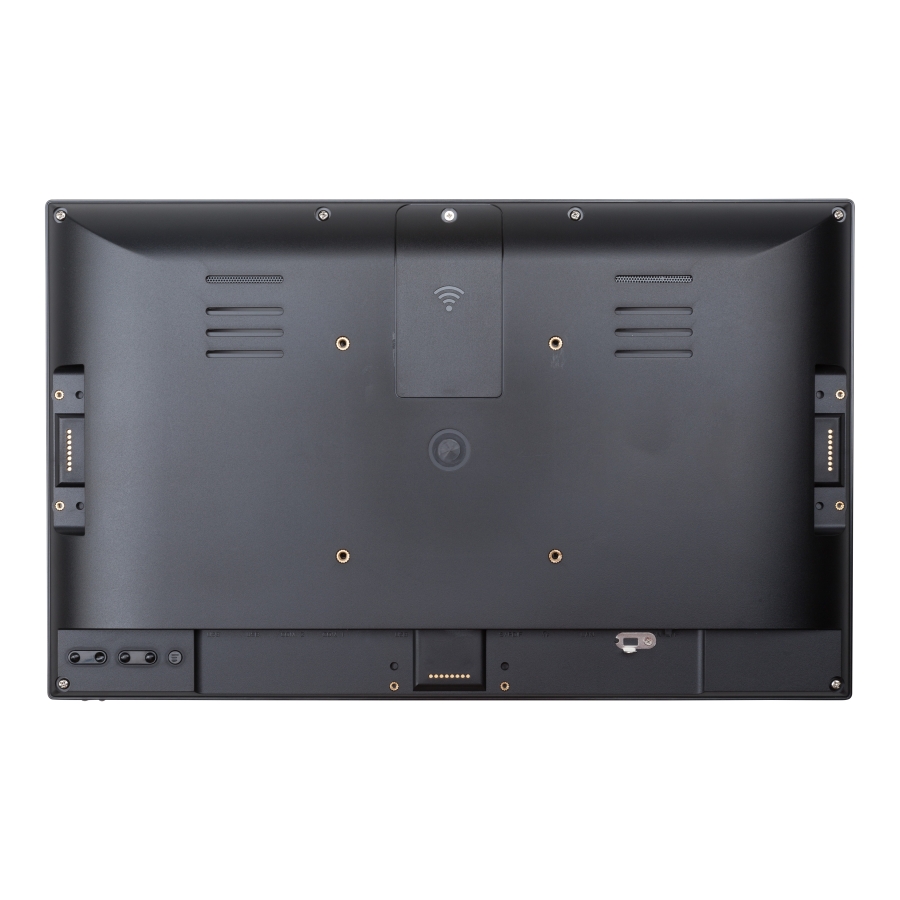

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	387.3 mm
Depth (without stand)	27.2 mm
Height (without stand)	240.3 mm
Weight (without stand)	1.3 kg
Weight	1.3 kg
Certificates
Compliance certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Other features
Mean time between failures (MTBF)	50000 h
COM ports quantity	2
Mini HDMI ports quantity	1
Backlight type	Edge LED
Backlight	Yes
Warranty period	3 year(s)

Screen Size	15.6"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	400nit
Glass Type	Anti-Glare
Viewing Angle	170/170 (H/V)
Touch Technology	PCAP
Speaker	Yes
I/O	HDMI
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	ARM
GPU	Yes
RAM	4GB
Wi-Fi	Yes
OS	Android
