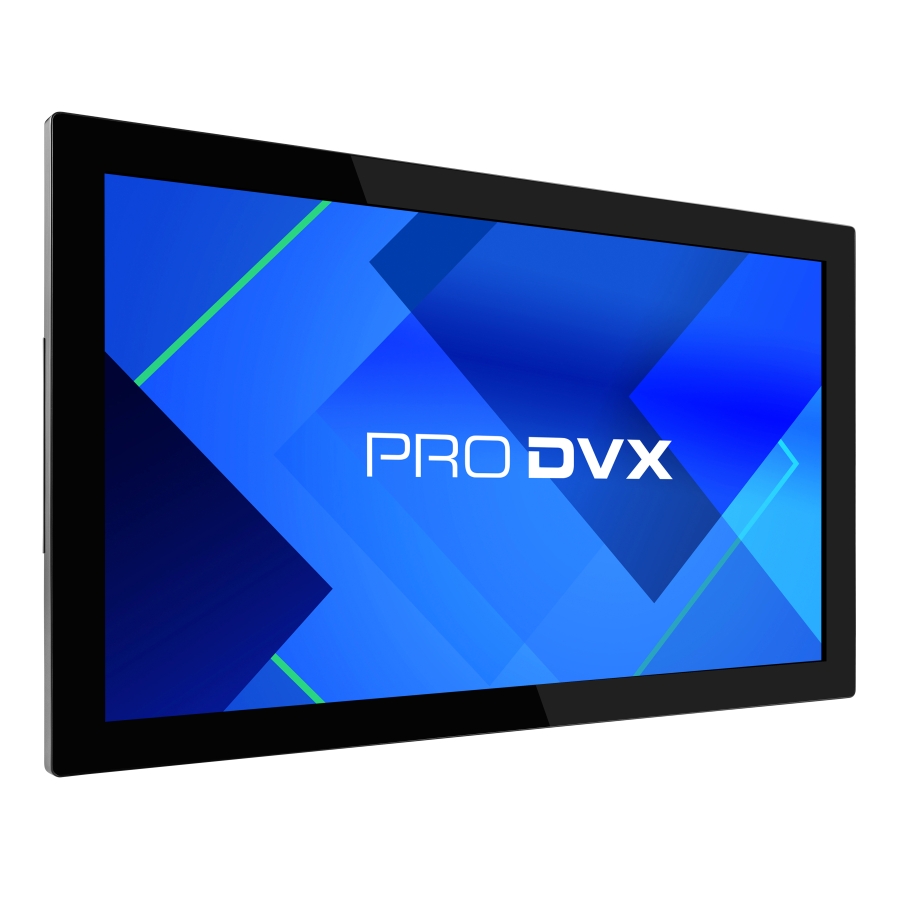

ProDVX APPC-22XP-R23 Black 21.5″ RK3399 Android Panel PC with 250nit Brightness and PCAP Touch

Name: ProDVX APPC-22XP-R23 Black 21.5" RK3399 Android Panel PC with 250nit Brightness and PCAP Touch
SKU: 5022300
Availability: InStock

ProDVX

ProDVX APPC-22XP-R23 Black 21.5″ RK3399 Android Panel PC with 250nit Brightness and PCAP Touch

5022300

All-in-One tablet PC Black
Rockchip RK3399 1.8 GHz
Touchscreen 54.6 cm (21.5″) Full HD 1920 x 1080 IPS Matt
4 GB DDR3-SDRAM
32 GB Flash Card reader integrated
ARM Mali-T860 MP4
Wi-Fi 5 (802.11ac) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 4.2
Android 11

Product Code: 5022300

Categories: 21" to 30" Commercial Displays, 22" Commercial Displays, 2K Displays, Commercial Displays, ProDVX, Resolutions, Shop By Size, Small Displays, Specialist Displays, Touchscreen, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

The APPC-22XP-R23 is a 22-inch Android-based Panel PC, ready to improve your digital communication with its cutting-edge features. Featuring a high-performance Rockchip dual-processor and Mali-T860 GPU, it delivers a seamless user experience. Enhanced RAM and storage ensure multitasking capability, while Android 11 provides the APPC-22XP-R23 with a soft ware agnostic operating system. In addition, the APPC-22XP-R23 is easily installable thanks to its VESA mounting frame and PoE++ capability, eliminating the requirement for extra power cables. Its durable touch panel supports 10-point touch functionality, up to 250 cd/m2 and is treated for anti-glare to provide the most optimal user experience. Moreover, the APPC-22XP-R23 showcases a broad range of I/O ports, granting unmatched flexibility for various applications. Whether utilized for interactive kiosks, self-service, or interactive wayfinding, the APPC-22XP-R23 effortlessly handles any solution.

Downloads

5022300 Leaflet (PDF)

1.05MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	54.6 cm (21.5″)
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
Full HD	Yes
HD type	Full HD
LED backlight	Yes
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Display surface	Matt
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	170°
Viewing angle, vertical	170°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor frequency	1.8 GHz
Memory
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Storage
Total storage capacity	32 GB
Storage media	Flash
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board graphics card model	ARM Mali-T860 MP4
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Built-in microphone	Yes
Camera
Built-in camera	No
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	4.2

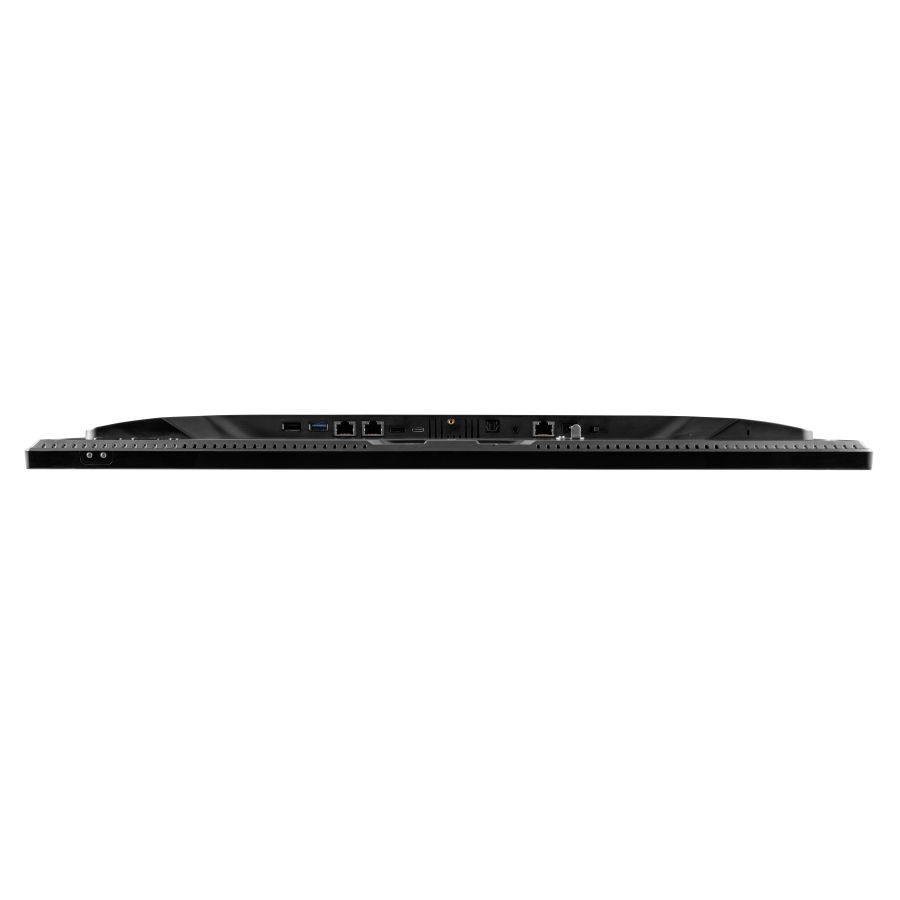

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Audio output	Yes
DC-in jack	Yes
S/PDIF out port	Yes
Design
Housing material	Plastic
Product colour	Black
Wall mountable	Yes

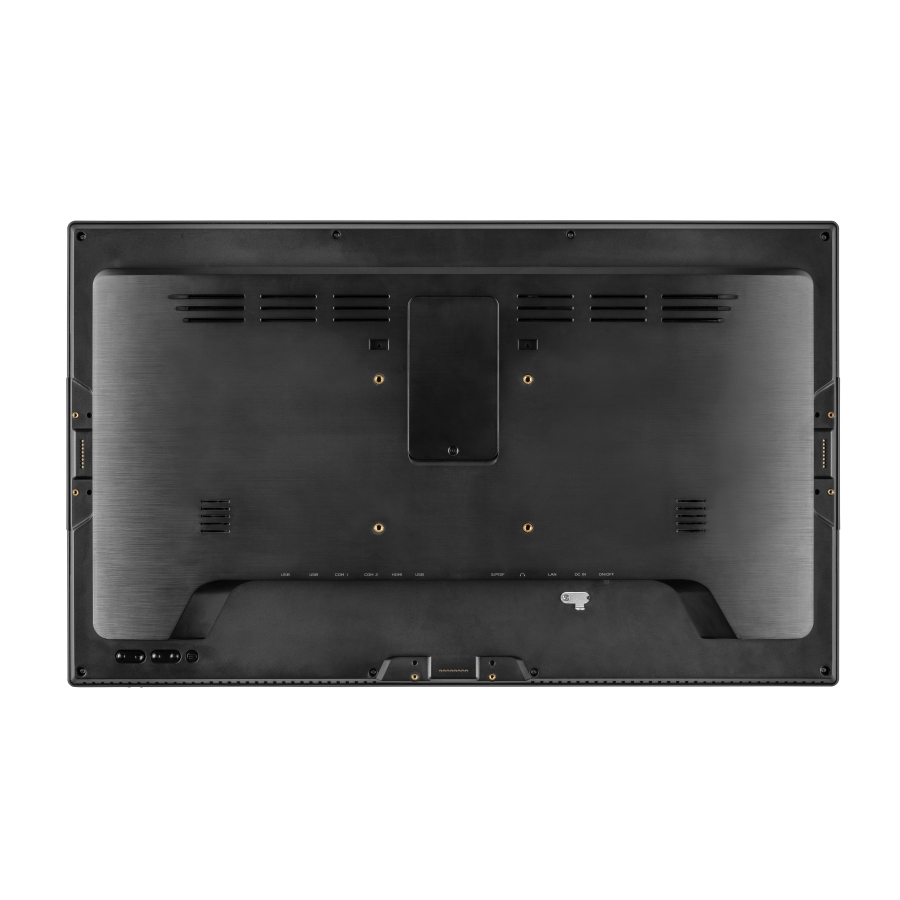

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	530.5 mm
Depth (without stand)	35 mm
Height (without stand)	321.2 mm
Weight (without stand)	4.2 kg
Weight	4.2 kg
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	10 – 90%
Certificates
Compliance certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Certification	FCC, CE, RoHS
Packaging content
Cables included	No
Other features
Mean time between failures (MTBF)	50000 h
COM ports quantity	2
Mini HDMI ports quantity	1
USB connector type	USB Type-A, USB Type-C
Backlight type	Edge LED
Backlight	Yes
Warranty period	3 year(s)

Screen Size	21.5"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	250nit
Glass Type	Anti-Glare
Viewing Angle	178/178 (H/V)
Touch Technology	PCAP
Speaker	Yes
I/O	HDMI
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	ARM
GPU	Yes
RAM	4GB
Wi-Fi	Yes
OS	Android
