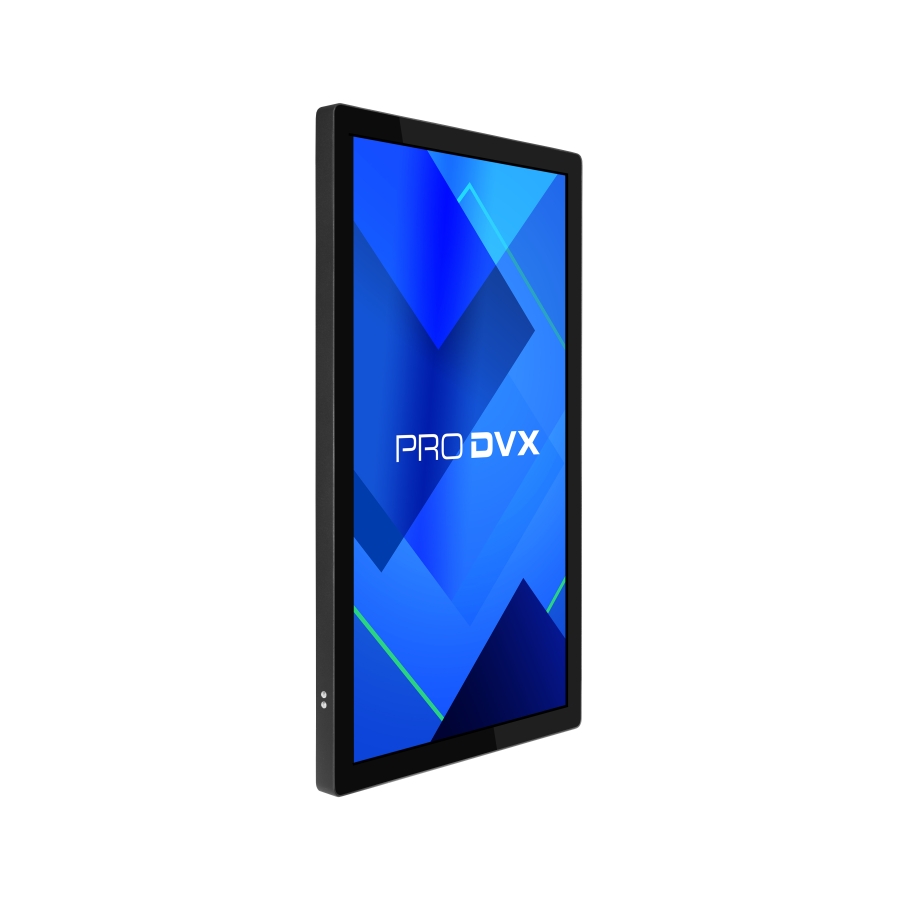

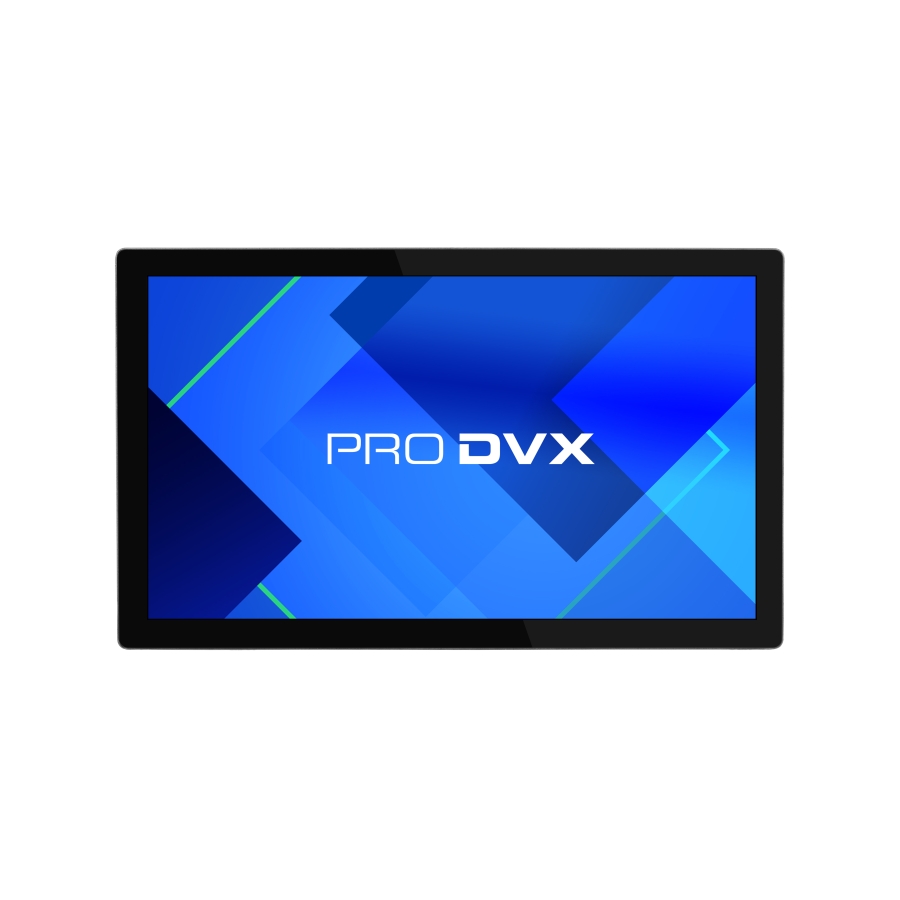

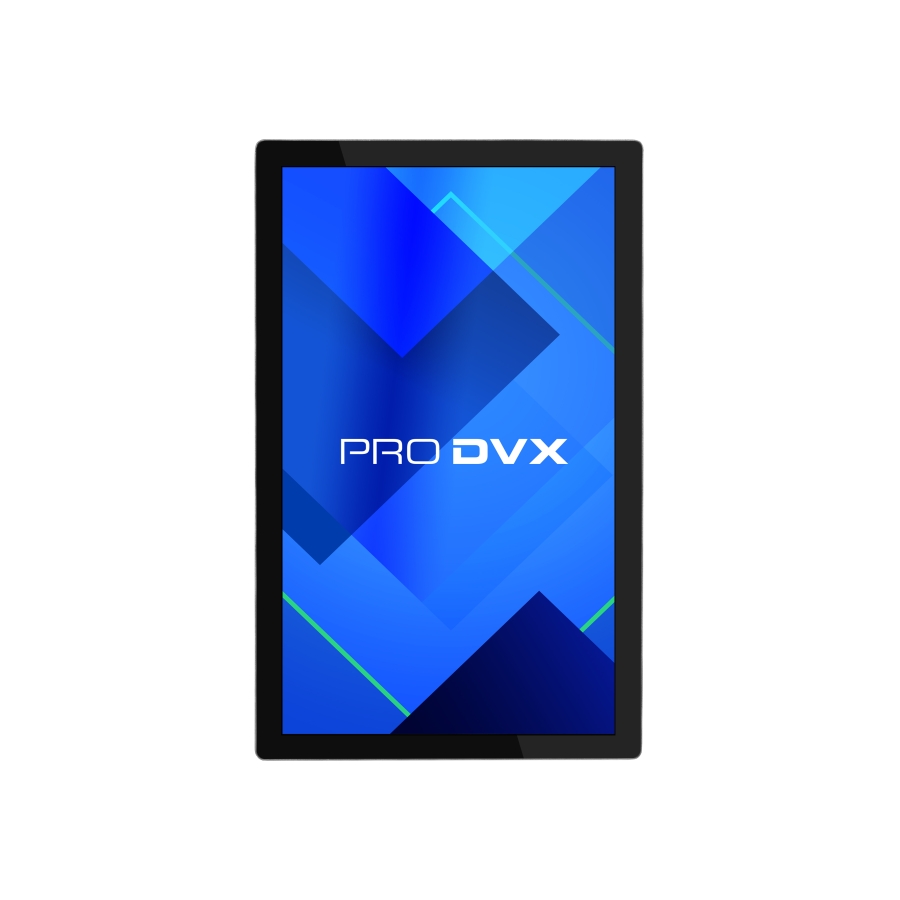

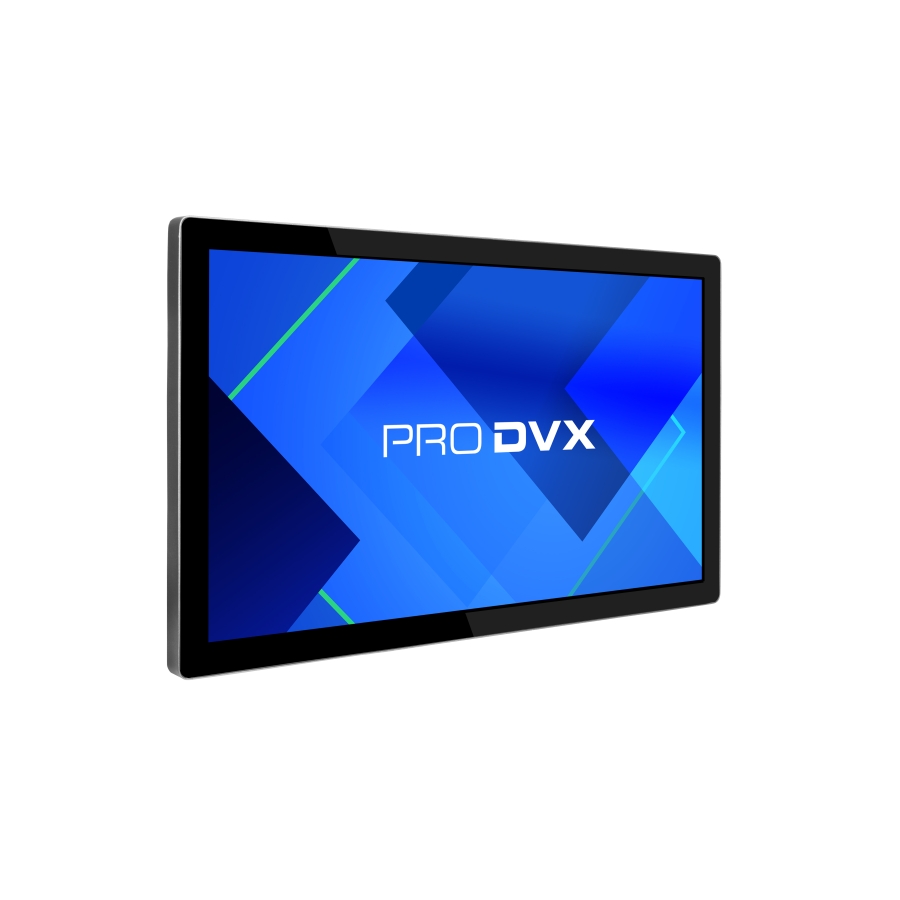

ProDVX APPC-24X-R23 Black 23.6″ RK3399 Android Panel PC with 250nit Brightness and PCAP Touch

Name: ProDVX APPC-24X-R23 Black 23.6" RK3399 Android Panel PC with 250nit Brightness and PCAP Touch
SKU: 5024200
Availability: InStock

ProDVX

ProDVX APPC-24X-R23 Black 23.6″ RK3399 Android Panel PC with 250nit Brightness and PCAP Touch

5024200

All-in-One tablet PC Black
Rockchip RK3399
Touchscreen 59.9 cm (23.6″) Full HD 1920 x 1080 IPS Matt
4 GB LPDDR4-SDRAM
16 GB eMMC Card reader integrated
ARM Mali-G52 2EE MC2
Wi-Fi 4 (802.11n) Ethernet LAN 10,100,1000 Mbit/s Bluetooth 5.2
Android 11

Product Code: 5024200

Categories: 21" to 30" Commercial Displays, 24" Commercial Displays, 2K Displays, ProDVX, Shop By Size, Small Displays, Specialist Displays, Touchscreen Android OS, Uncategorised

Range: ProDVX

Details

The APPC-24X-R23, featuring the latest Rockchip dual-processor and Mali-T860 GPU, is set to redefine performance standards. With 4GB of RAM and 16GB of storage, multitasking becomes a breeze. Operating on Android 11, it boasts one of the most flexible and secure operating systems available. The APPC-24X-R23 achieves a maximum brightness of 250 cd/m2. Paired with a 10-point touch-enabled panel treated for anti-glare, this Android Panel PC ensures an optimal user experience. Tailored for interactive kiosks, the APPC-24X-R23 comes with a VESA mounting frame for easy installation. Its array of I/O ports ensures compatibility with a wide range of peripheral devices, making it a versatile solution for your needs.

Downloads

5024200 Leaflet (PDF)

0.69MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	59.9 cm (23.6″)
Display resolution	1920 x 1080 pixels
Touchscreen	Yes
HD type	Full HD
Touch technology	Multi-touch
Native aspect ratio	16:9
Display brightness	250 cd/m²
Display surface	Matt
Panel type	IPS
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Rockchip
Processor family	Rockchip
Processor model	RK3399
Processor cores	4
Memory
Internal memory	4 GB
Internal memory type	LPDDR4-SDRAM
Storage
Total storage capacity	16 GB
Storage media	eMMC
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	ARM
On-board graphics card model	ARM Mali-G52 2EE MC2
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	6 W
Network
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

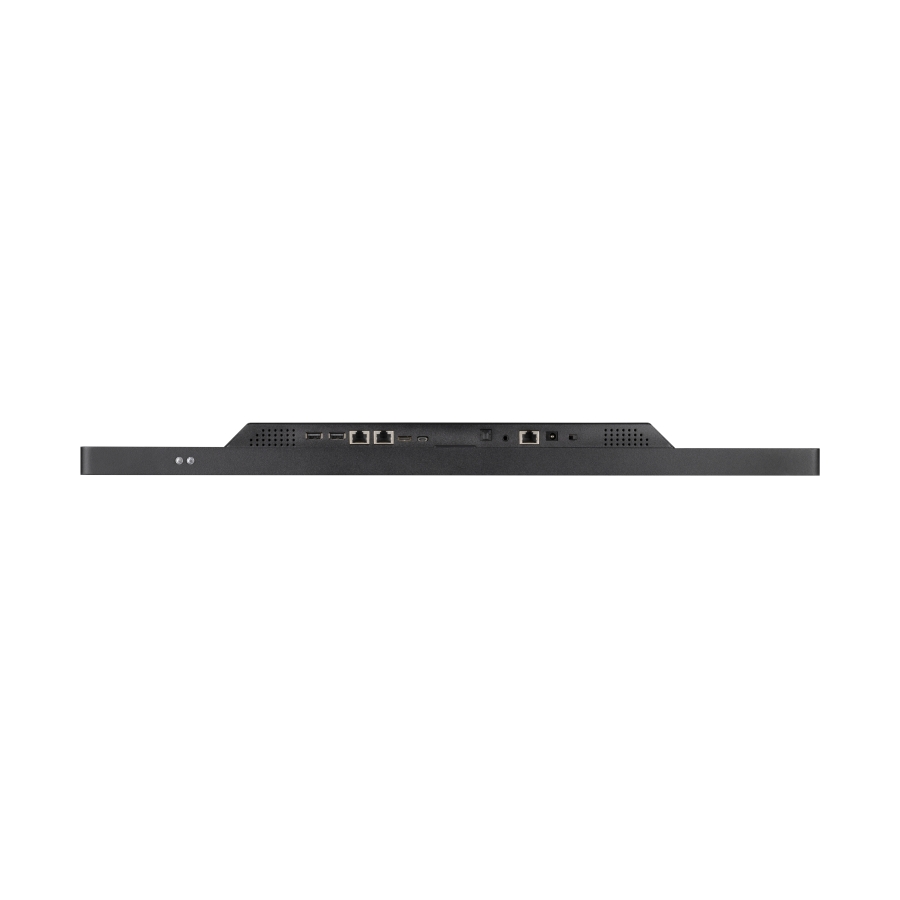

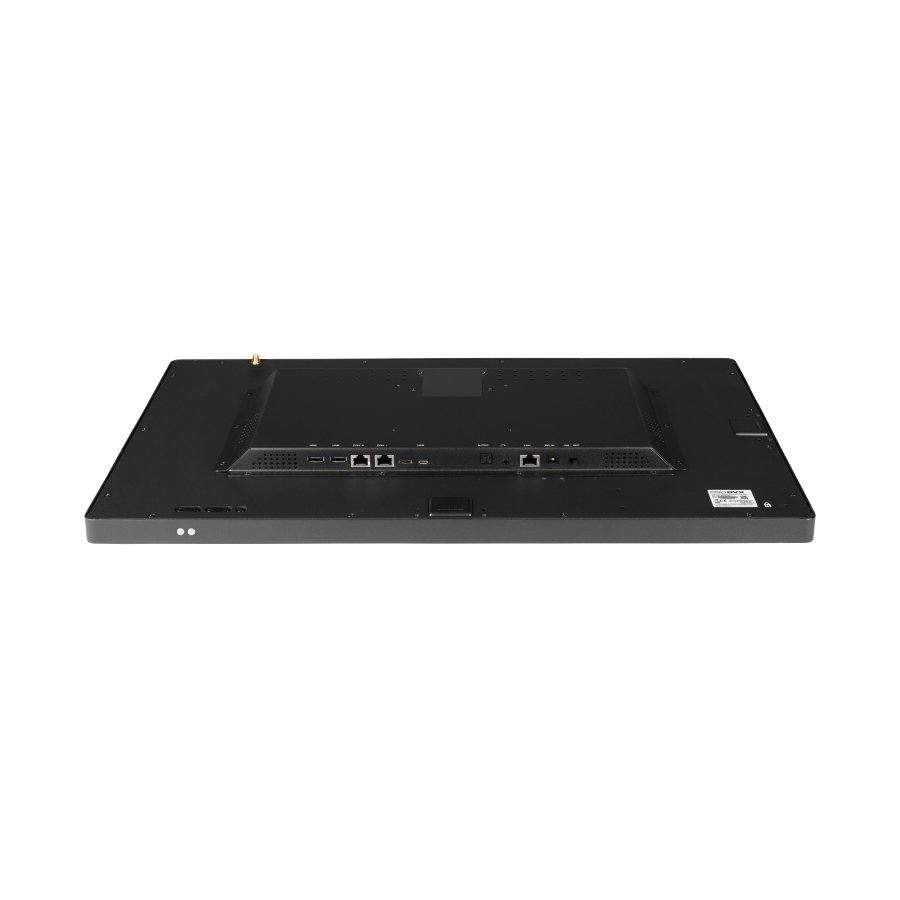

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	2
HDMI output ports quantity	1
Audio output	Yes
DC-in jack	Yes
Micro-USB ports quantity	1
S/PDIF out port	Yes
Design
Housing material	Metal
Product colour	Black
Cable lock slot type	Kensington
Wall mountable	Yes
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Android 11
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	575.8 mm
Depth (without stand)	44 mm
Height (without stand)	344.8 mm
Weight (without stand)	7.21 kg
Weight	7.21 kg
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	10 – 90%
Certificates
Compliance certificates	Federal Communications Commission (FCC), UKCA, CE, REACH, RoHS
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	84713000
Other features
Mean time between failures (MTBF)	50000 h
COM ports quantity	2
Mini HDMI ports quantity	1
Backlight type	Edge LED
Backlight	Yes

Screen Size	23.6"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	250nit
Glass Type	Anti-Glare
Viewing Angle	178/178 (H/V)
Touch Technology	PCAP
Speaker	Yes
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	ARM
GPU	Yes
RAM	4GB
LAN	Yes
Wi-Fi	Yes
OS	Android
