ProDVX UW-24

Name: ProDVX UW-24
SKU: 5524105
Availability: InStock

ProDVX Commercial Displays

ProDVX UW-24

5524105

Black
61 cm (24″) 1920 x 360 pixels 300 cd/m²
Ethernet LAN Wi-Fi

Product Code: 5524105

Categories: 2K Resolution Displays, Commercial Displays, ProDVX Commercial Displays, Specialist Displays, Stretch Displays, Uncategorised

Range: ProDVX Commercial Displays

Details

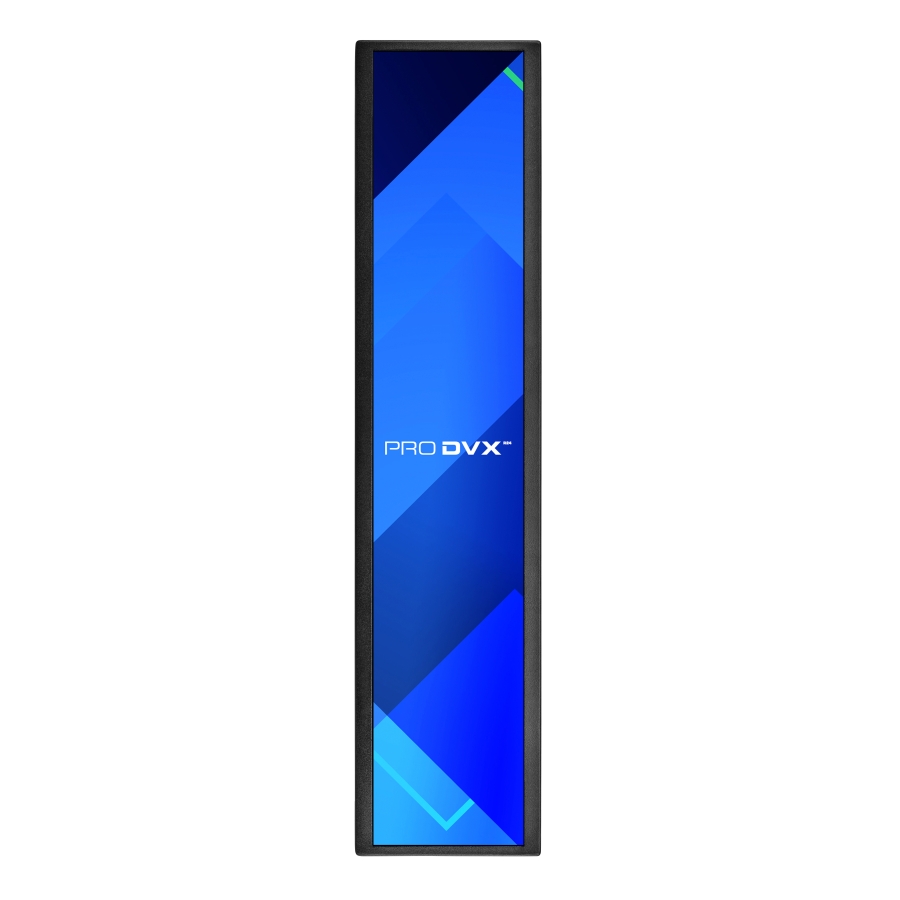

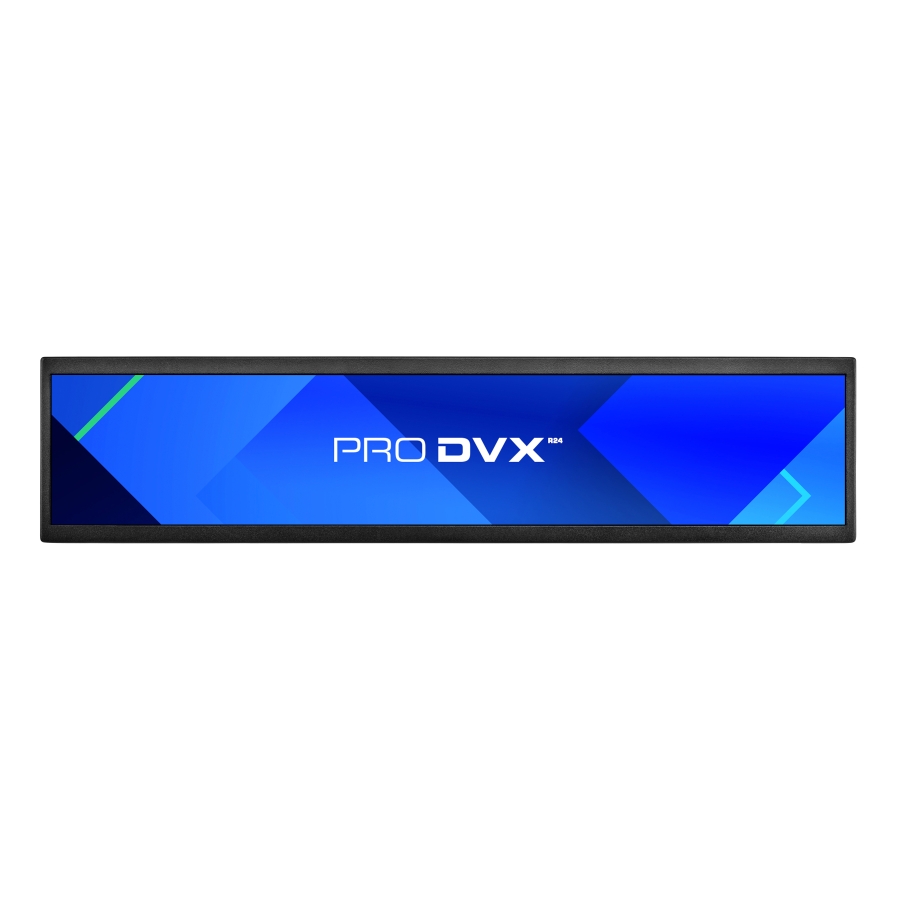

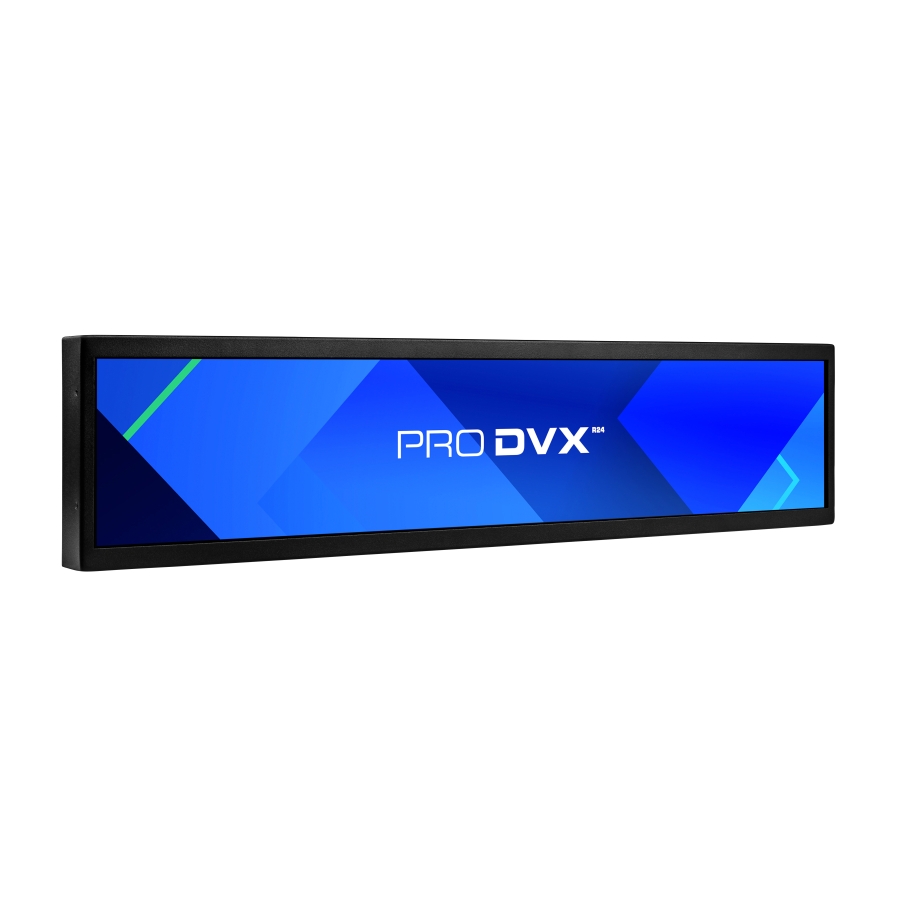

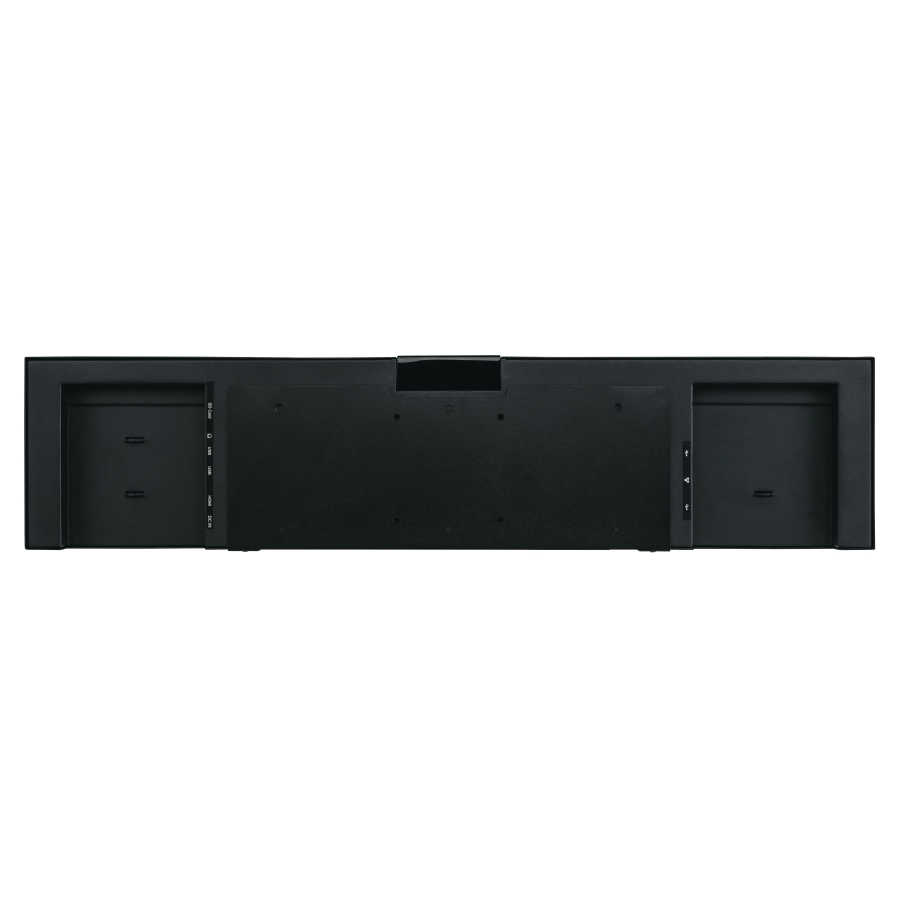

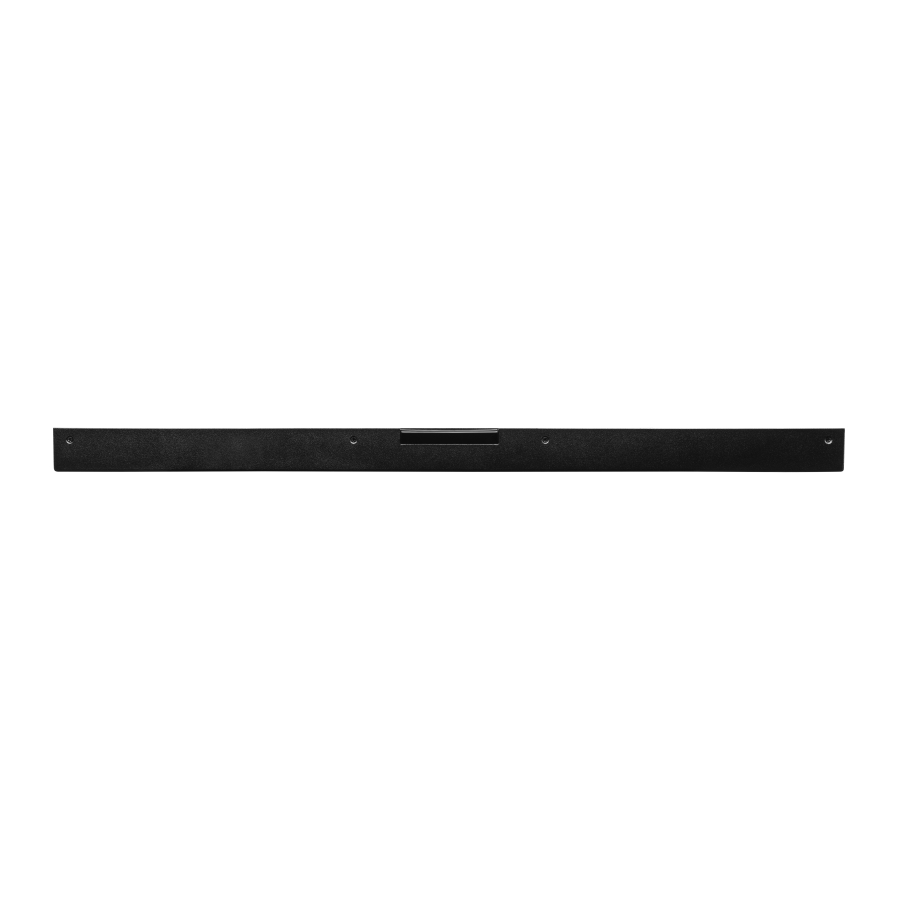

The ProDVX UW-24 (R24-5021) is an all-in-one Android SOC UltraWide Signage Display. The ProDVX UW-24 (R24-5021) comes with Android 12. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 24" all-in-one Android SOC UltraWide Signage Display comes with a special mounting plate and has metal housing.

Downloads

5524105 Leaflet (PDF)

0.61MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	61 cm (24″)
Display resolution	1920 x 360 pixels
Display brightness	300 cd/m²
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

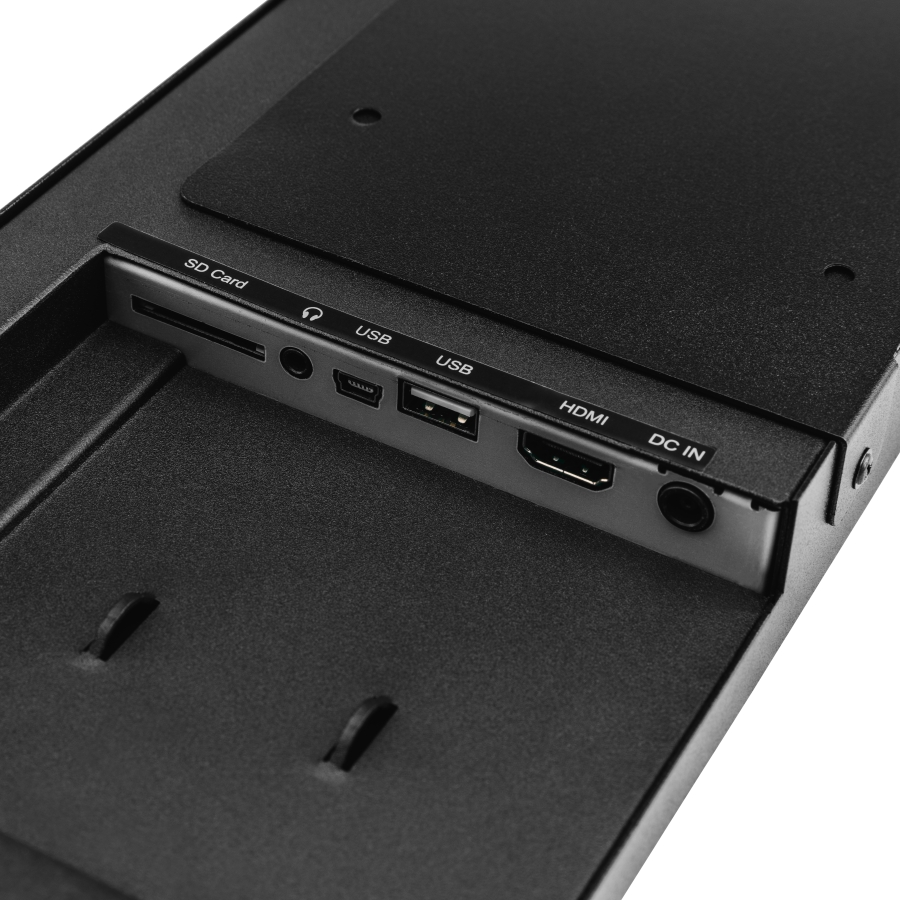

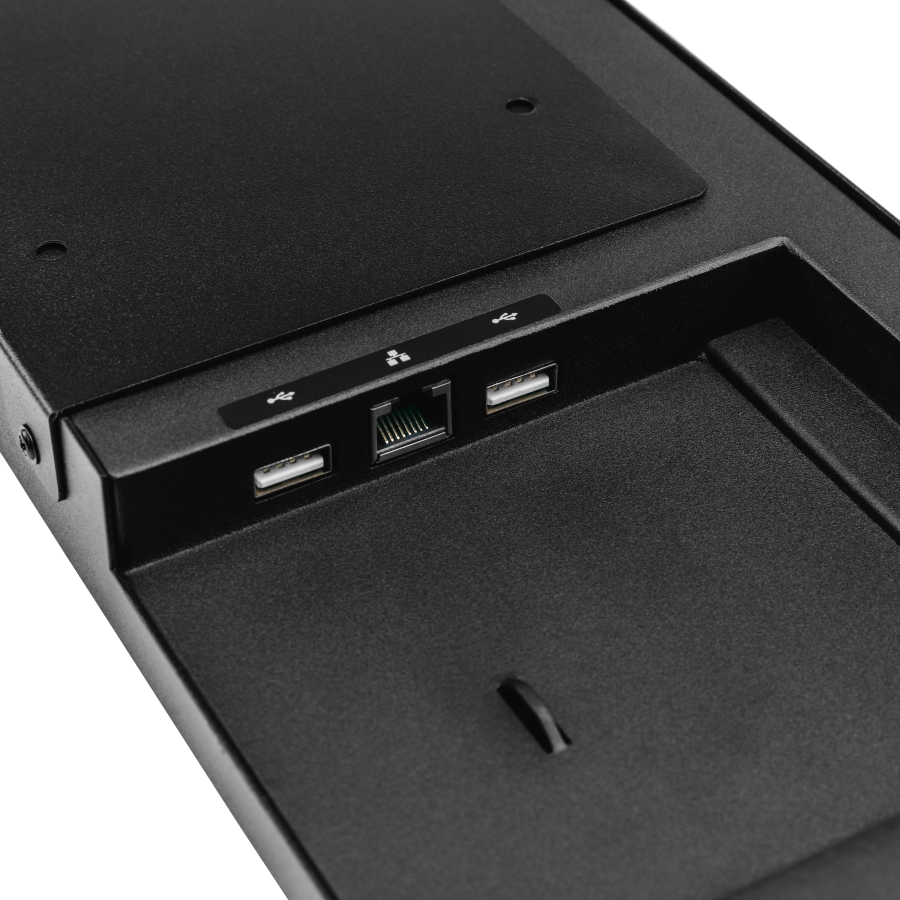

Ports & interfaces
HDMI ports quantity	1
DVI port	No
USB ports quantity	3
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Card reader integrated	Yes
Compatible memory cards	SD
DC-in jack	Yes
Design
Product colour	Black
VESA mounting	Yes
Performance
Mean time between failures (MTBF)	40000 h
Computer system
Processor manufacturer	Rockchip
Processor model	RK3568
Processor frequency	2 GHz
Processor cores	4
Internal memory	2 GB
On-board graphics card model	ARM Mali-G52
Operating system installed	Android
Weight & dimensions
Weight	2.75 kg
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Operating relative humidity (H-H)	10 – 90%
Storage temperature (T-T)	-10 – 55 °C
Storage relative humidity (H-H)	10 – 90%
Certificates
Certification	FCC, CE, RoHS
Logistics data
Harmonized System (HS) code	85285210
Other features
Bluetooth	Yes
Bluetooth version	4.0
Height (without stand)	140.1 mm
Depth (without stand)	34 mm
Housing material	Metal

Screen Size	24"
Resolution	1920x360
Brightness	300nit
Glass Type	Anti-Glare
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	HDMI
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
CPU	ARM
GPU	Yes
Wi-Fi	Yes
OS	Android
