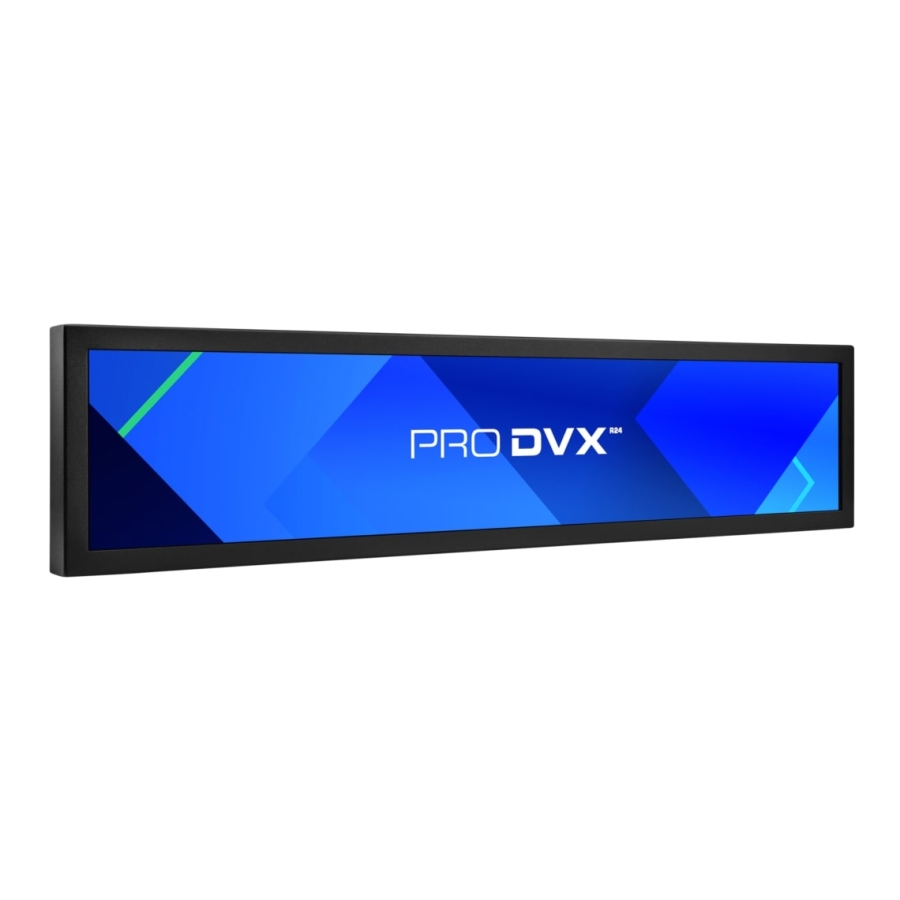

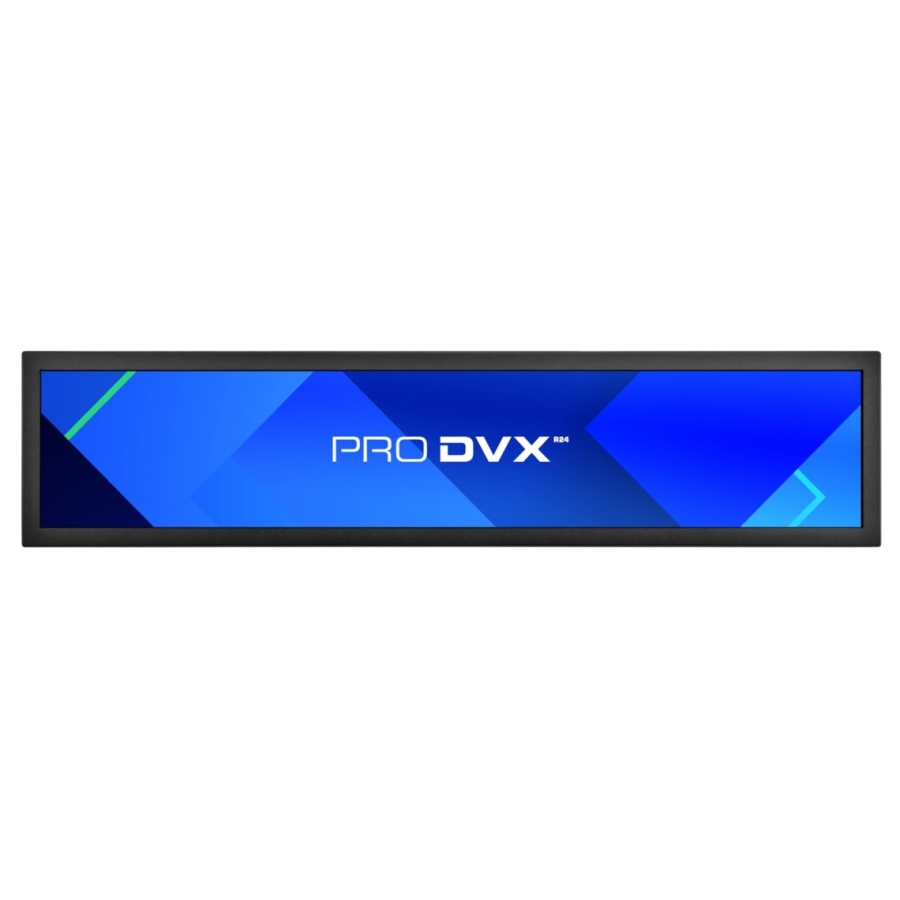

ProDVX UW-28 28″ RK3568 Cortex-A55 Ultra-Wide Stretch Display with 700nit Brightness
ProDVX UW-28 28″ RK3568 Cortex-A55 Ultra-Wide Stretch Display with 700nit Brightness
5528105
- Indoor Black
- 71.1 cm (28″) 1920 x 360 pixels LCD 700 cd/m²
- Edge-LED
- Ethernet LAN Wi-Fi
Details
The ProDVX UW-28 (R24-5001) is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-28 (R24-5001) comes with Android 12. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 28" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
| Display | |
|---|---|
| Panel type | IPS |
| LED backlight | Yes |
| LED backlighting type | Edge-LED |
| Display diagonal | 71.1 cm (28″) |
| Display technology | LCD |
| Display resolution | 1920 x 360 pixels |
| Display brightness | 700 cd/m² |
| Touchscreen | No |
| Native aspect ratio | 16:3 |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Ports & interfaces | |
| HDMI ports quantity | 1 |
| USB port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| DC-in jack | Yes |
| Audio | |
| Built-in speaker(s) | No |
| Design | |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Power | |
| Power consumption (typical) | 19 W |
| Computer system | |
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor architecture | ARM Cortex-A55 |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android |
| Operating system version | 12 |
| Video formats supported | 3GP, ASF, AVI, DAT, FLV, MKV, MOV, MP4, MPG, RM, TS, VOB, WMV |
| Audio formats supported | AAC, ASF, MP2, OGG, WAV, WMA |
| Image formats supported | BMP, GIF, JPEG, JPG, PNG |
| Weight & dimensions | |
| Display width | 735.1 mm |
| Display depth | 33 mm |
| Display height | 168.1 mm |
| Display weight | 4.55 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage temperature (T-T) | -10 – 55 °C |
| Storage relative humidity (H-H) | 10 – 90% |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Technical details | |
| Introduction year | 2024 |
| Warranty period | 2 year(s) |
| Other features | |
| Housing material | Metal |
| Screen Size | 28" |
|---|---|
| Aspect Ratio | 16:3 |
| Resolution | 1920x360 |
| Brightness | 700nit |
| Glass Type | Anti-Glare |
| Viewing Angle | 178/178 (H/V) |
| I/O | HDMI, USB |
| Mounting | VESA |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% |
| Built In Media Player | Yes |
| CPU | ARM |
| GPU | Yes |
| RAM | 4GB |
| LAN | Yes |
| Wi-Fi | Yes |
| OS | Android |
