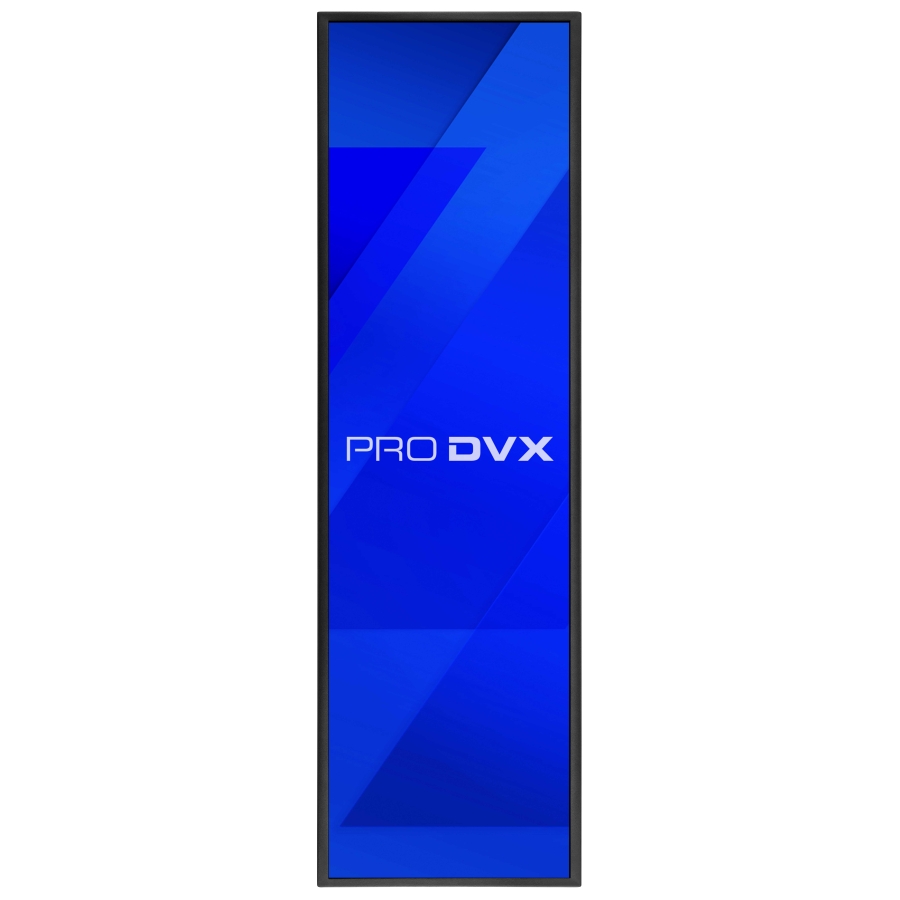

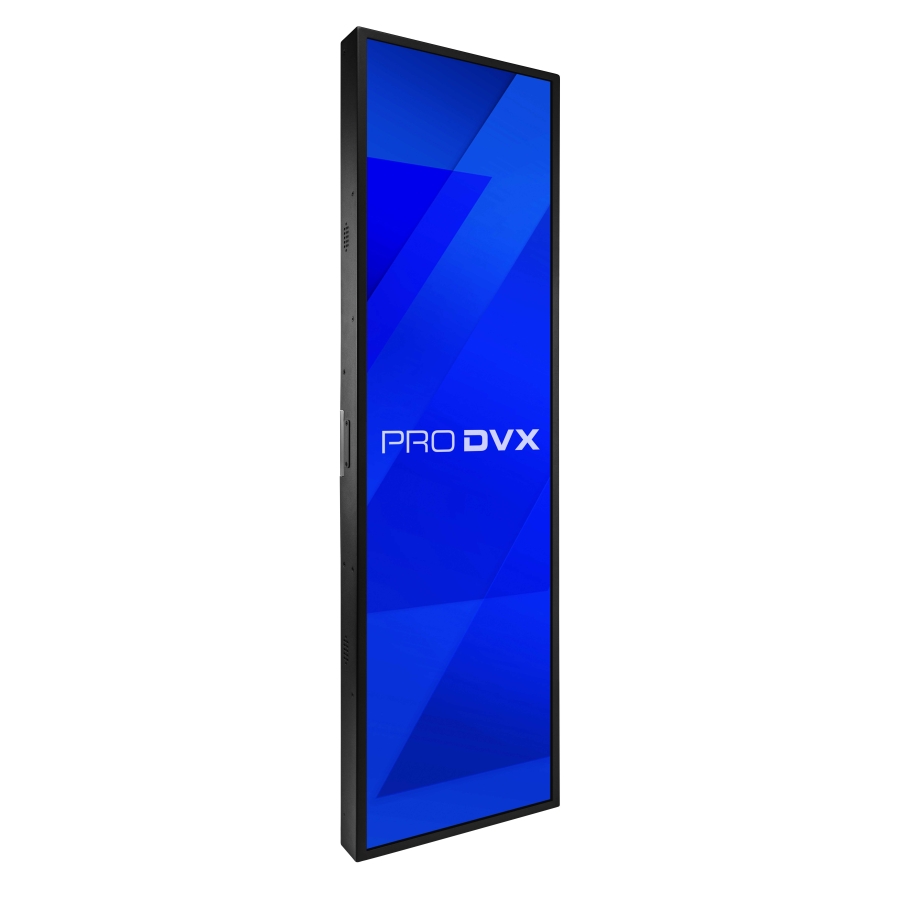

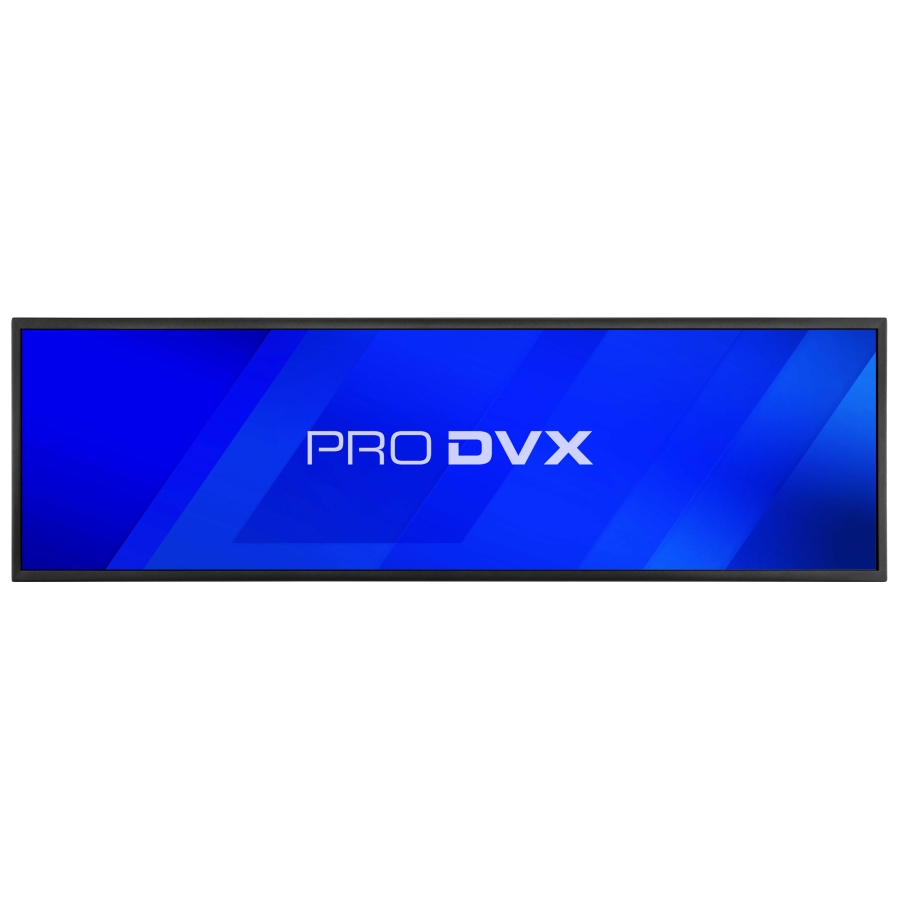

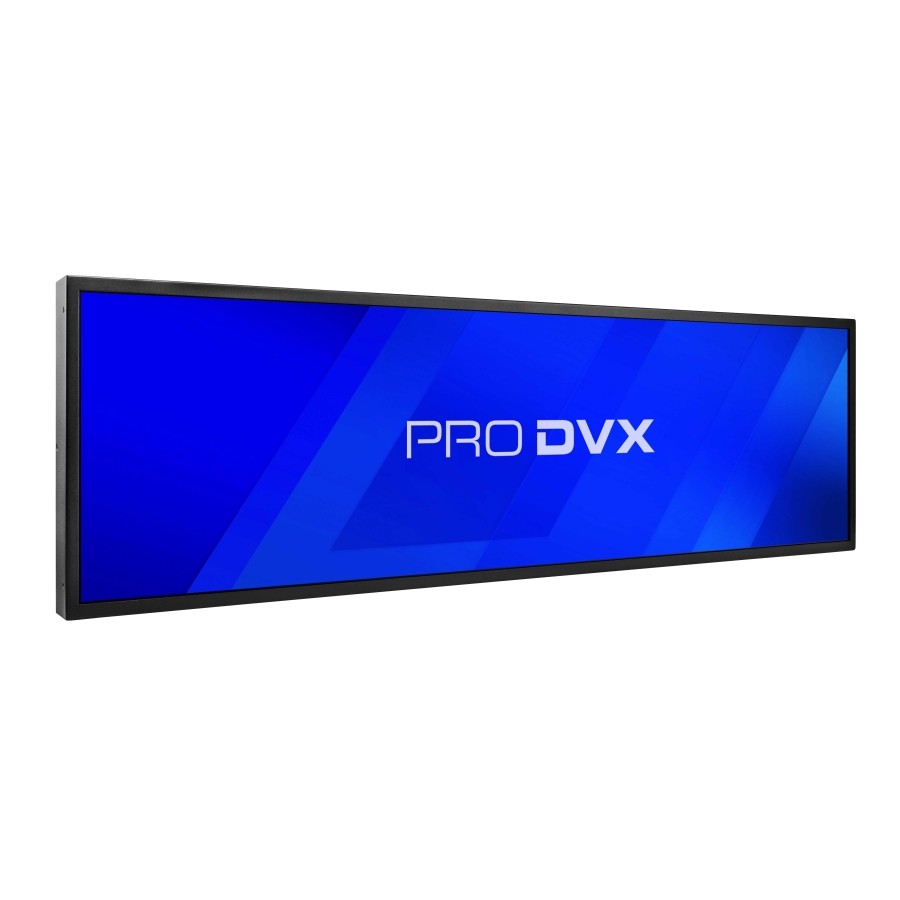

ProDVX UW-37 37″ RK3288 Cortex A17 Ultra-Wide Stretch Display with 700nit Brightness
ProDVX UW-37 37″ RK3288 Cortex A17 Ultra-Wide Stretch Display with 700nit Brightness
5537100
- Black
- ARM Rockchip RK3288 1.6 GHz
- 94 cm (37″) 1920 x 540
- 2 GB
- Card reader integrated
- ARM Mali-T764
- Ethernet LAN 10,100 Mbit/s Bluetooth 4.0
- Android 8.1
Details

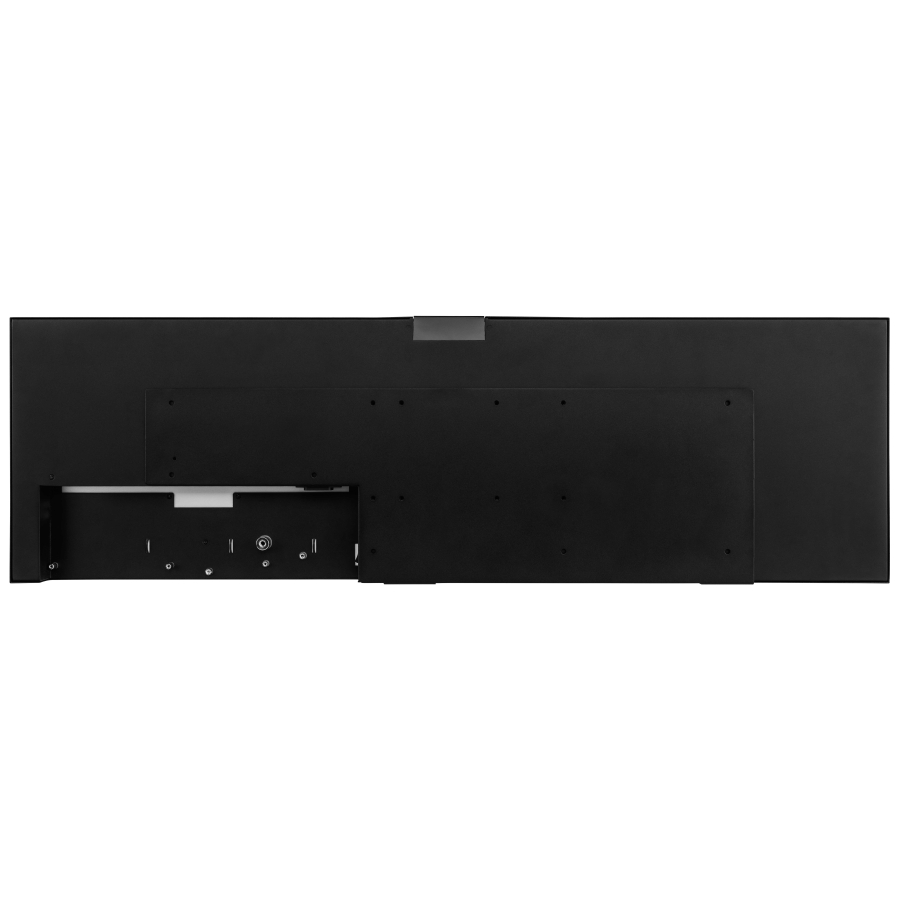

The ProDVX UW-37 is an all-in-one Android SOC UltraWide Stretch Display. The ProDVX UW-37 comes with Android 8.1. This device can be connected through RJ45 LAN, WiFi and Bluetooth. This 37" all-in-one Android SOC UltraWide Signage Stretch Display comes with a special mounting plate and has metal housing.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
| Display | |
|---|---|
| Display diagonal | 94 cm (37″) |
| Display resolution | 1920 x 540 pixels |
| Native aspect ratio | 32:9 |
| Display brightness | 700 cd/m² |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Processor | |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3288 |
| Processor cores | 4 |
| Processor frequency | 1.6 GHz |
| Memory | |
| Internal memory | 2 GB |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Graphics | |
| On-board GPU manufacturer | ARM |
| On-board graphics card model | ARM Mali-T764 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

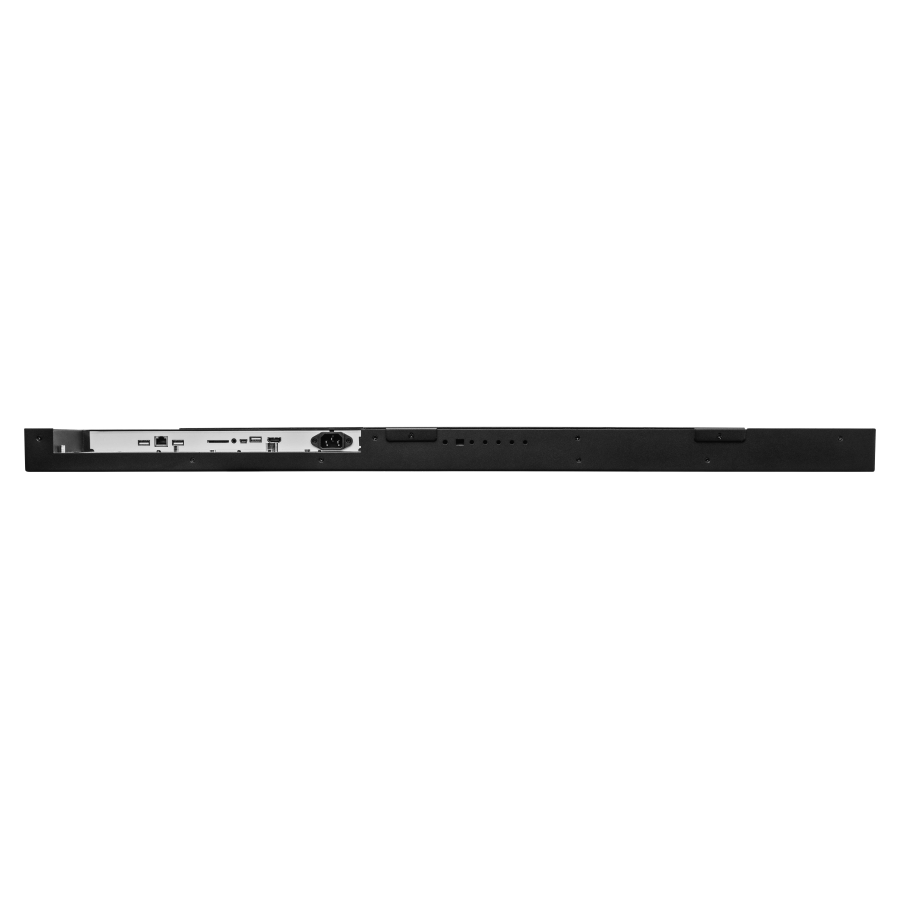

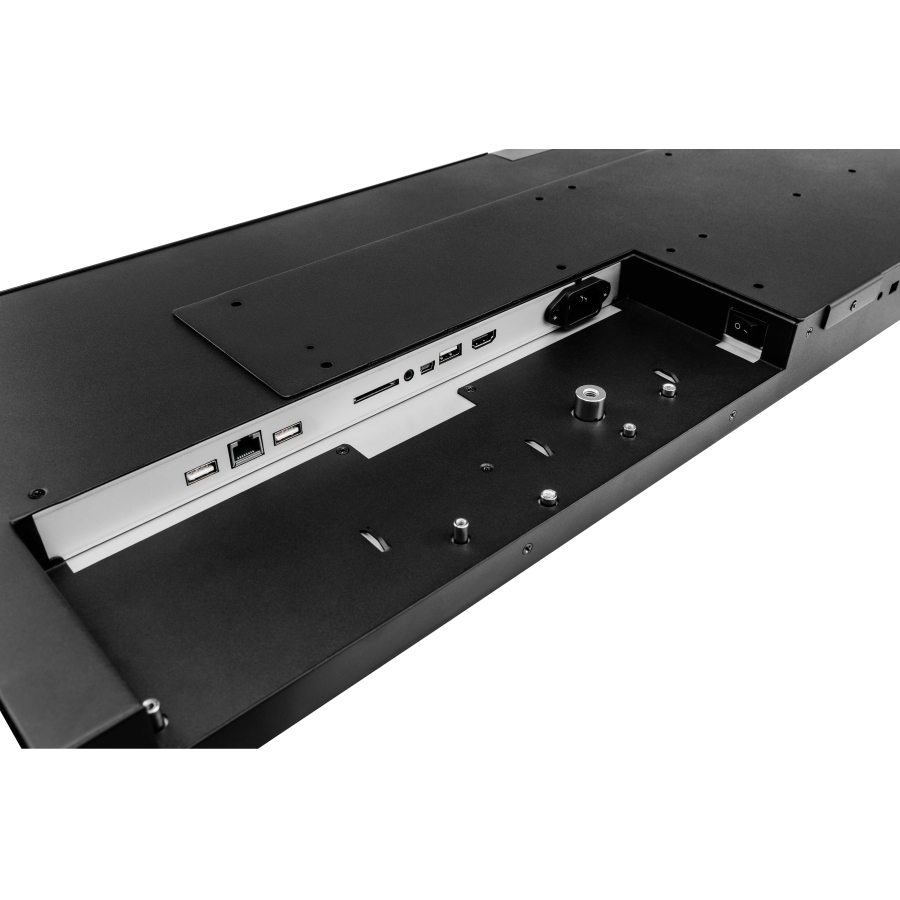

| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| Design | |
| Housing material | Metal |
| Product colour | Black |
| VESA mounting | Yes |
| Software | |
| Operating system installed | Android 8.1 |
| Weight & dimensions | |
| Width (without stand) | 926.4 mm |
| Depth (without stand) | 47.7 mm |
| Height (without stand) | 280.2 mm |
| Weight | 9.5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -10 – 55 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 10 – 90% |
| Certificates | |
| Certification | FCC, CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Other features | |
| Mean time between failures (MTBF) | 45000 h |
| USB ports quantity | 3 |
| Screen Size | 37" |
|---|---|
| Resolution | 1920x540 |
| Brightness | 700nit |
| Viewing Angle | 178/178 (H/V) |
| I/O | RJ45, USB |
| Mounting | VESA |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% to 90% |
| CPU | ARM |
| GPU | Yes |
| RAM | 2GB |
| LAN | Yes |
| Wi-Fi | Yes |
| OS | Android |
