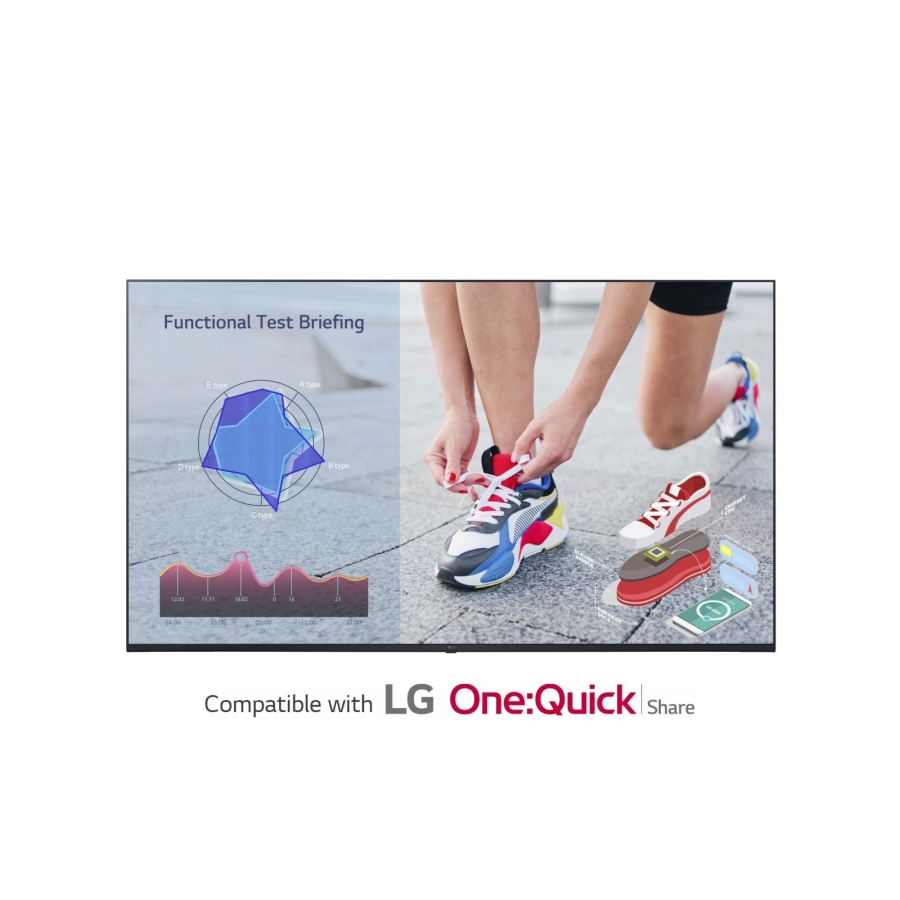

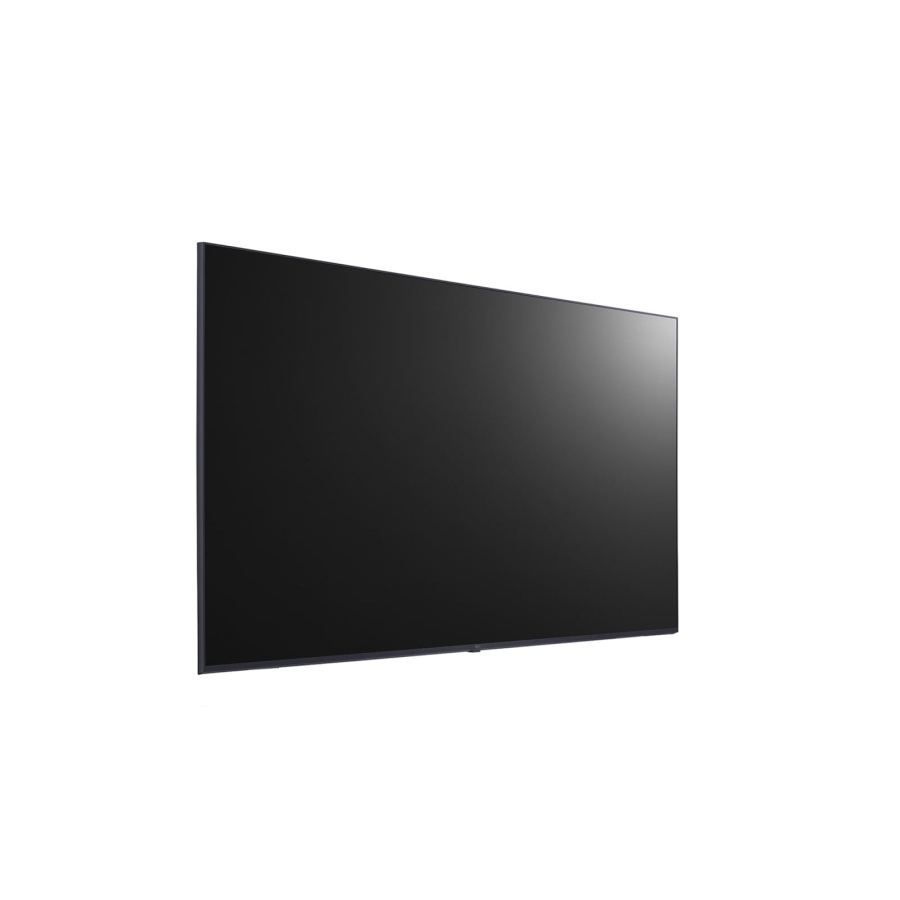

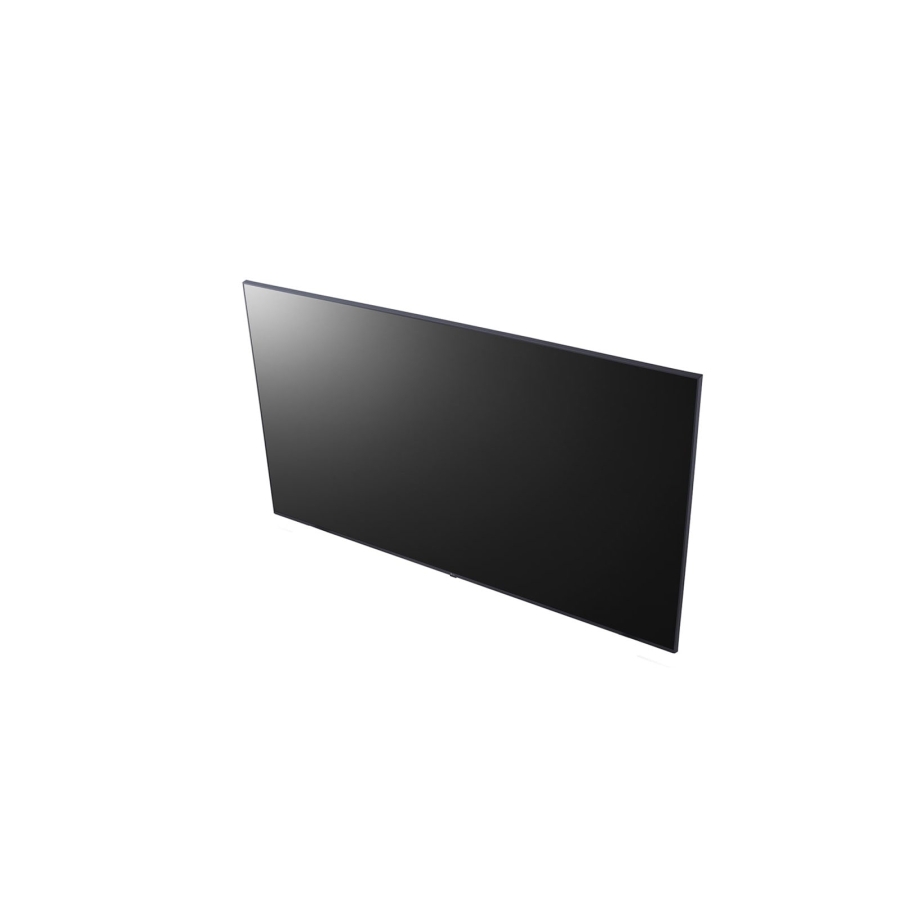

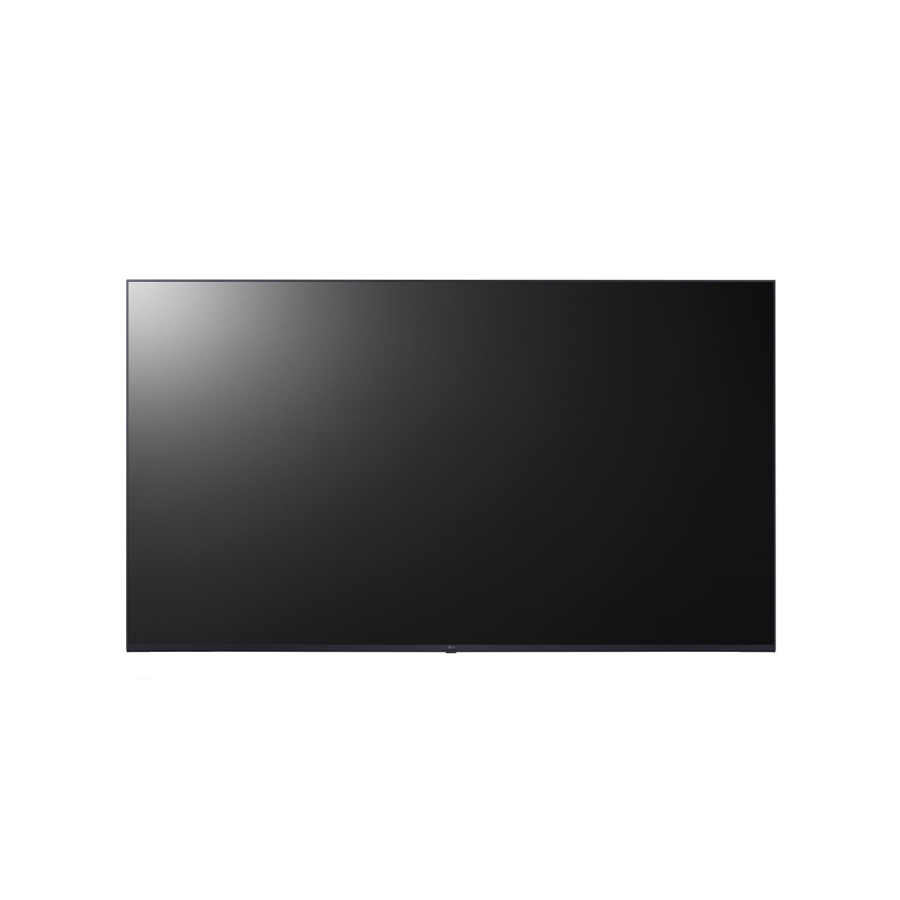

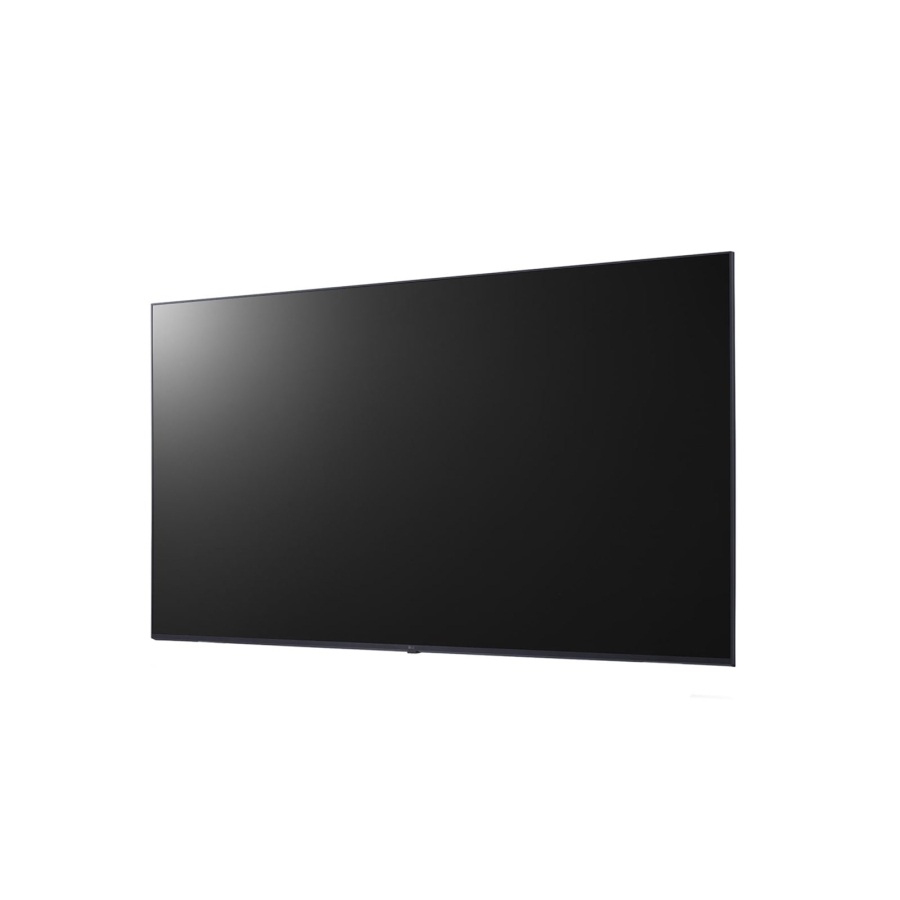

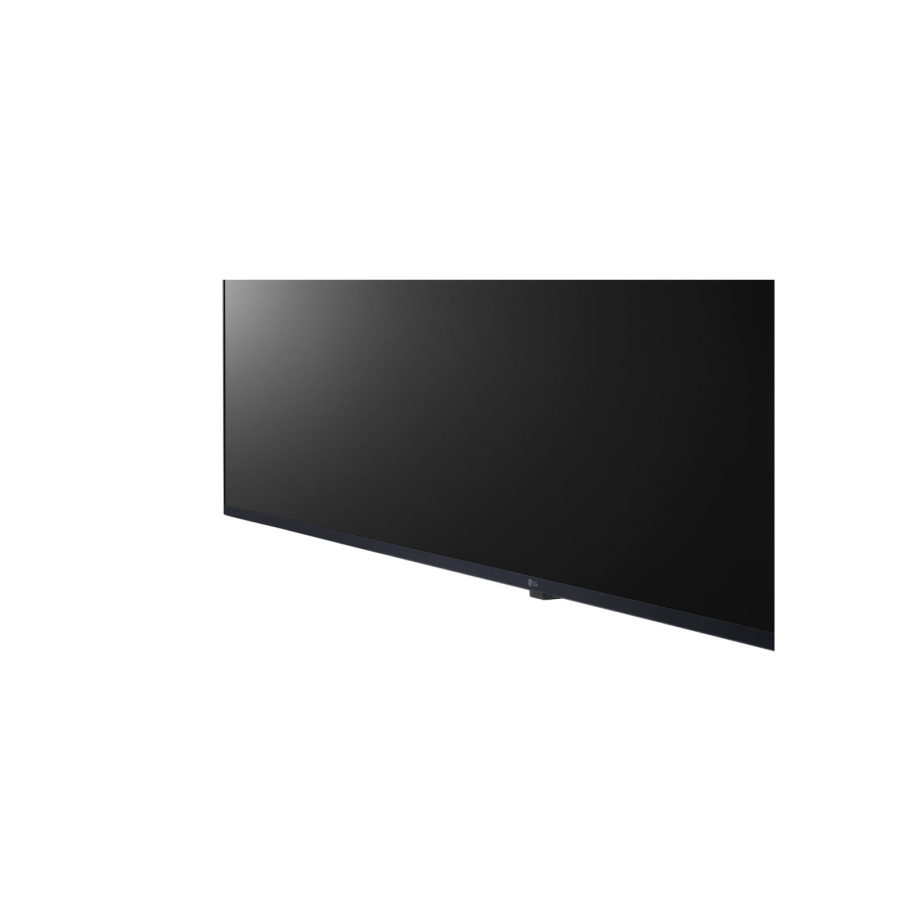

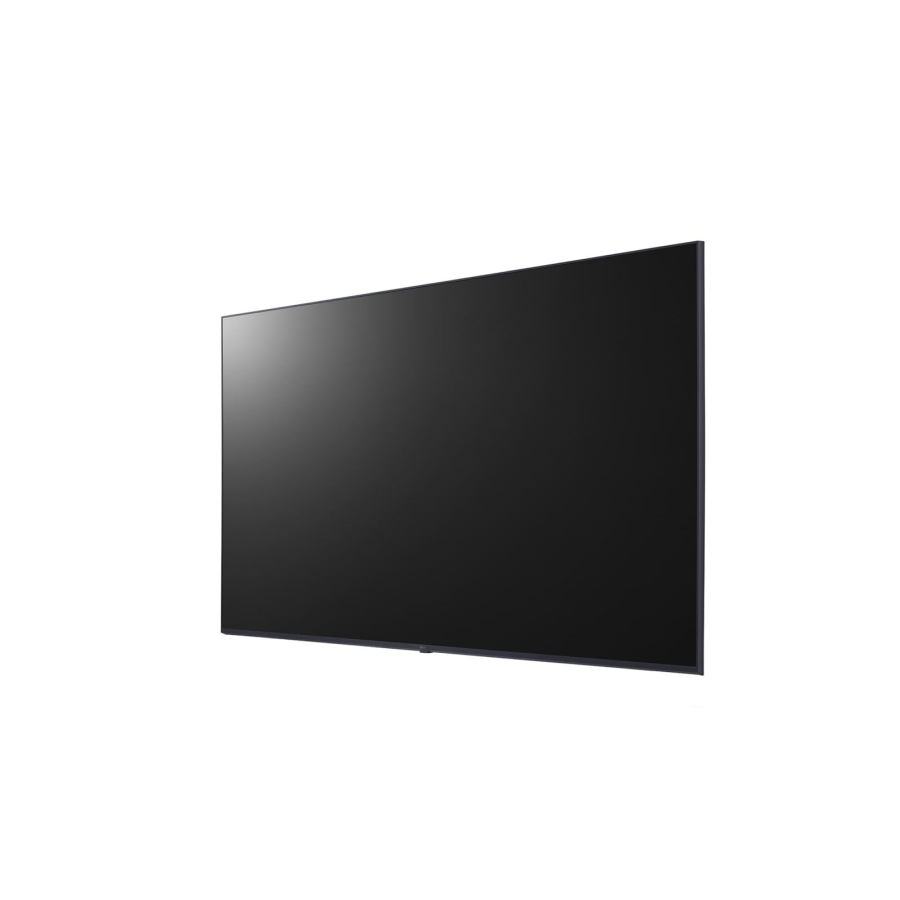

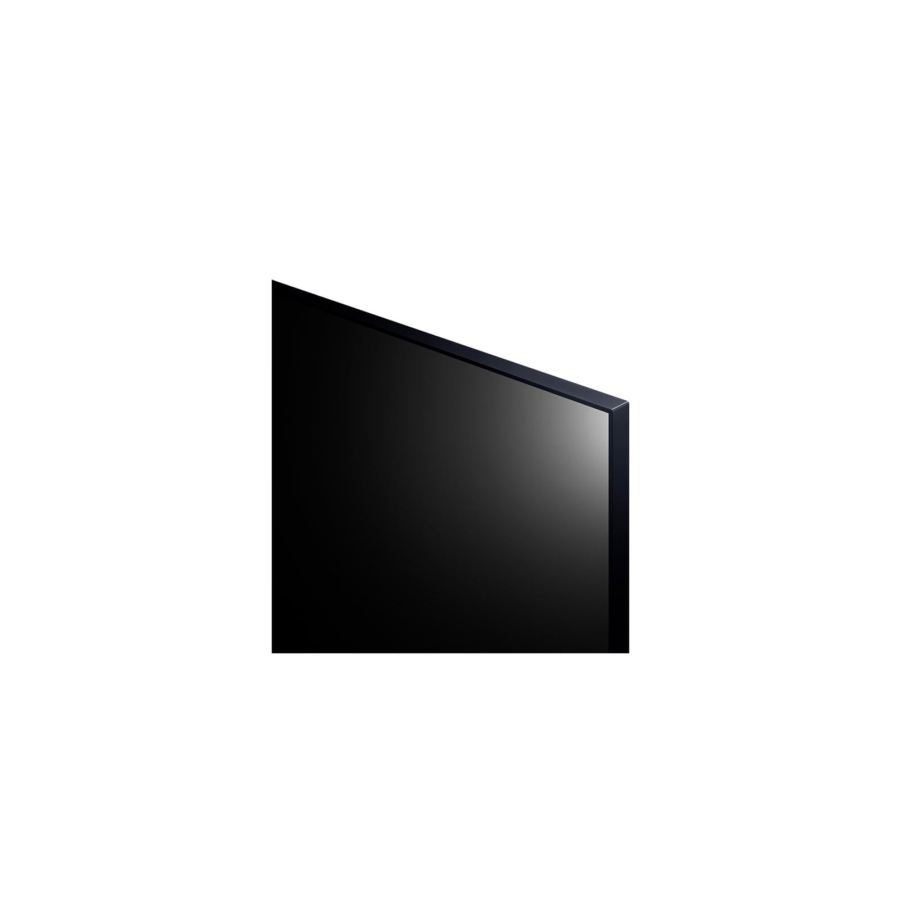

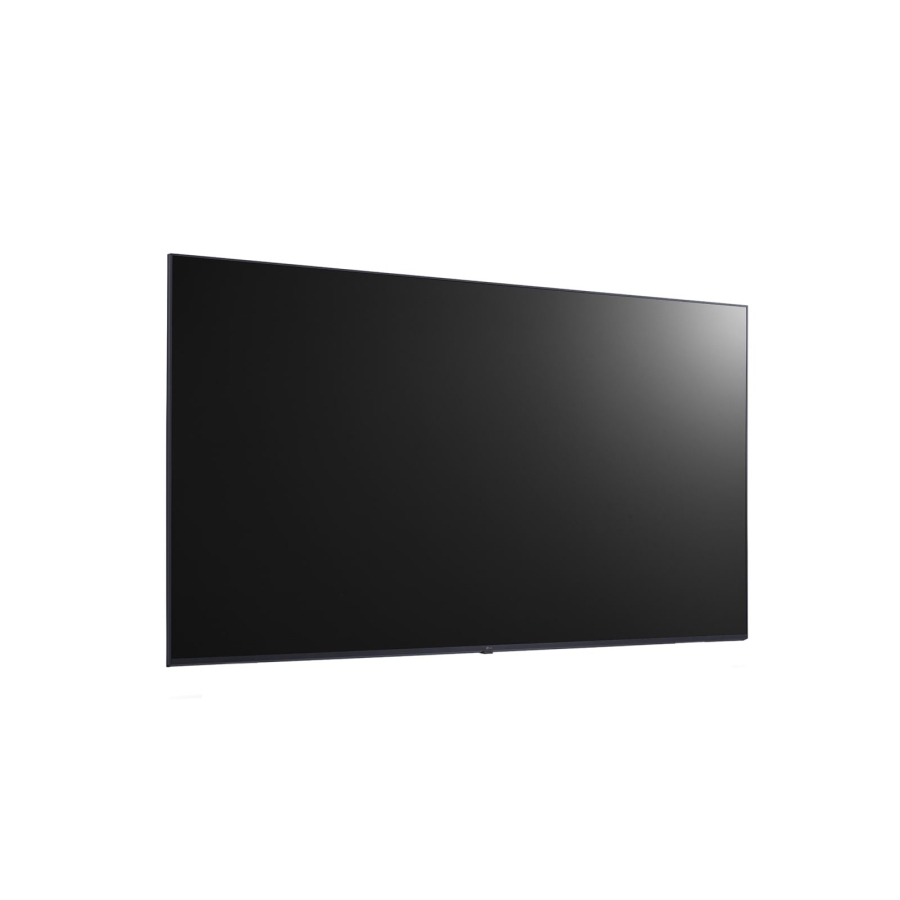

LG 55UL3J-E Digital signage flat panel 139.7 cm (55″) Wi-Fi 400 cd/m² UHD+ Blue WebOS 16/7

LG

LG 55UL3J-E Digital signage flat panel 139.7 cm (55″) Wi-Fi 400 cd/m² UHD+ Blue WebOS 16/7

55UL3J-E

  • Indoor Digital signage flat panel Blue
  • 139.7 cm (55″) 3840 x 2160 pixels 400 cd/m²
  • Direct-LED 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s)
-
+

Details

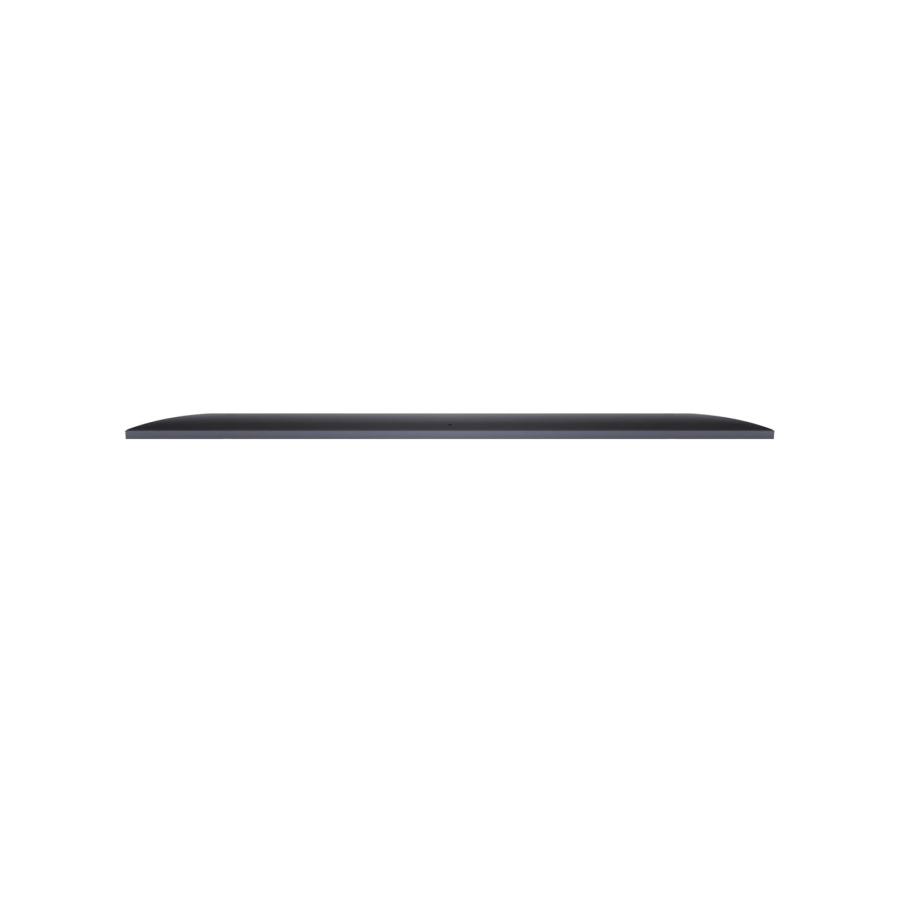

Superb Picture Quality with Ultra HD Resolution With the resolution of UHD, it makes the color and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents. Sophisticated Slim Design This series is thin in bezel size and thickness*, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed. High-Performance with LG webOS 6.0 LG webOS 6.0, upgraded in SoC* and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI. Various Sensor Connection LG webOS smart signage platform helps to easily provide value-added solutions* by supporting simple connections with external sensors** such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in. LG's Simple Advertisement Helper, Promota Using LG's Promota* application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry. LG’s Wireless Screen Sharing Solution, LG One:Quick Share LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi*, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode** helps you to display the agenda, note before the meeting starts. Remote Monitoring and Control This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time. Compatible with AV Control Systems The UL3J series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency. Compatible with Video Conference System For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control* for a smarter video conference. Easy Menu Setup for Vertical Needs UL3J series increases users' convenience by organizing frequently used menus* by industry. Built-in Speaker Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers. Easy Content Distribution & SW Update UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network. Wireless Access Point UL3J series operates as a virtual router which can be an wireless access point for mobile devices. Real-Time LG ConnectedCare Service Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses. EPEAT Registered The Electronic Product Environmental Assessment Tool (EPEAT) is a method for several layers of customers to evaluate the effect of a product on the environment. UL3J is EPEAT Bronzecertified* display which means that it meets all the required criteria in Computers and Displays category.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type IPS
LED backlighting type Direct-LED
Display diagonal 139.7 cm (55″)
Display resolution 3840 x 2160 pixels
Display brightness 400 cd/m²
HD type UHD+
Touchscreen No
Response time 8 ms
Contrast ratio (typical) 1300:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Display diagonal (metric) 139 cm
Panel life 30000 h
Native refresh rate 60 Hz
Haze rate 3%
RGB colour space DCI-P3
Ports & interfaces
HDMI ports quantity 3
HDMI version 2.2/1.4
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Audio (L/R) out 1
RS-232C Yes
Audio
Built-in speaker(s) Yes
Design
Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Blue
VESA mounting Yes
Panel mounting interface 300 x 300 mm
Performance
Purpose Universal
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Arabic, Simplified Chinese, Traditional Chinese, Czech, Danish, Dutch, English, Spanish, Finnish, French, Greek, Italian, Japanese, Korean, Norwegian, Polish, Russian, Swedish, Turkish
Operating hours (hours/days) 16/7
Power
Power consumption (typical) 105 W
Power consumption (off) 0.5 W
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 102 kWh
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Heat dissipation 358.274 BTU/h
Computer system
Internal memory 8 GB
Operating system installed WebOS
Weight & dimensions
Width 1235 mm
Depth 57.5 mm
Height 715 mm
Weight 14 kg
Packaging data
Package width 1360 mm
Package depth 162 mm
Package height 810 mm
Package weight 18.8 kg
Packaging content
Remote control included Yes
Batteries included Yes
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 80%
Certificates
Certification CB / NRTL FCC Class “A” / CE
Logistics data
Harmonized System (HS) code 85285210
Technical details
Sustainability certificates ENERGY STAR, ErP
Screen Size 55"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 400nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O HDMI Input, RS232, USB
Mounting VESA, Wall Mount
Operating Temperature 0°C to 40°C
Built In Media Player Yes
LAN Yes
Wi-Fi Yes
