ProDVX IPPC-10SLB 10.1″ Intel Celeron N50 Panel PC with 500nit Brightness and PCAP Touch

Name: ProDVX IPPC-10SLB 10.1" Intel Celeron N50 Panel PC with 500nit Brightness and PCAP Touch
SKU: 6010370
Availability: InStock

ProDVX

ProDVX IPPC-10SLB 10.1″ Intel Celeron N50 Panel PC with 500nit Brightness and PCAP Touch

6010370

All-in-One tablet PC Black
Intel Celeron N N50 3.4 GHz
Touchscreen 25.6 cm (10.1″) HD 1280 x 800 IPS
8 GB DDR4-SDRAM
128 GB SSD Card reader integrated
Intel UHD Graphics
Ethernet LAN
Windows 10

Product Code: 6010370

Categories: 1" to 10" Commercial Displays, 10" Commercial Displays, Commercial Displays, ProDVX, Resolutions, Shop By Size, Small Displays, Specialist Displays, Touchscreen, Touchscreen Windows OS, Uncategorised

Range: ProDVX

Details

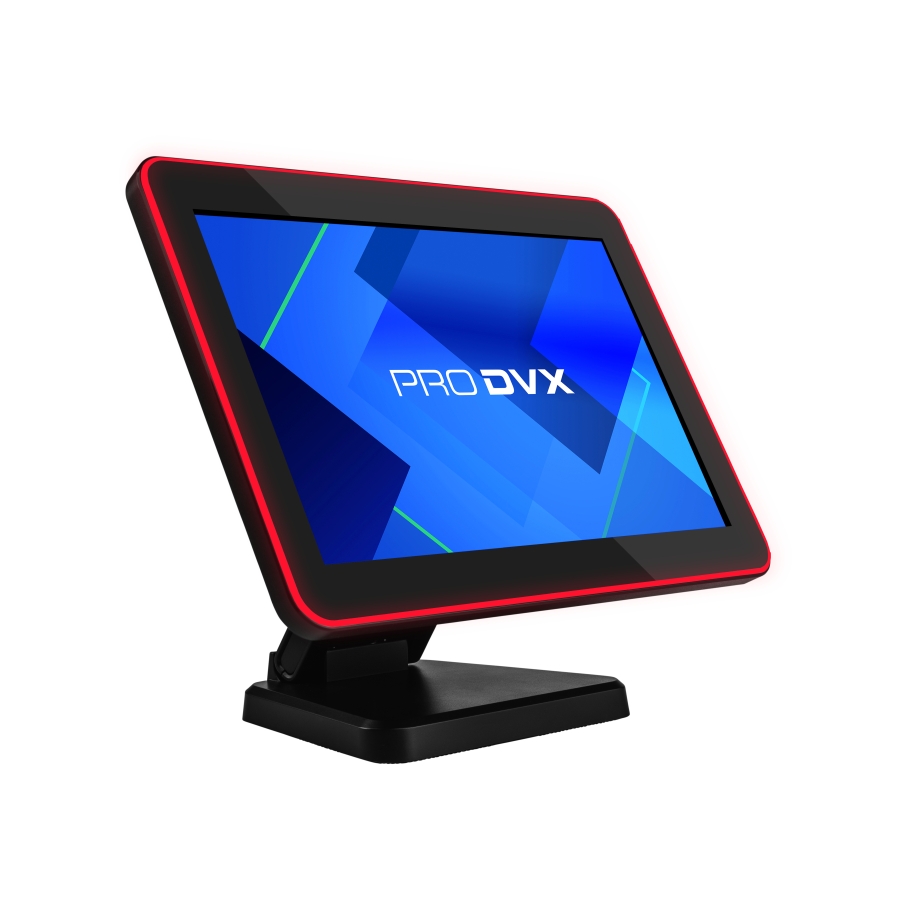

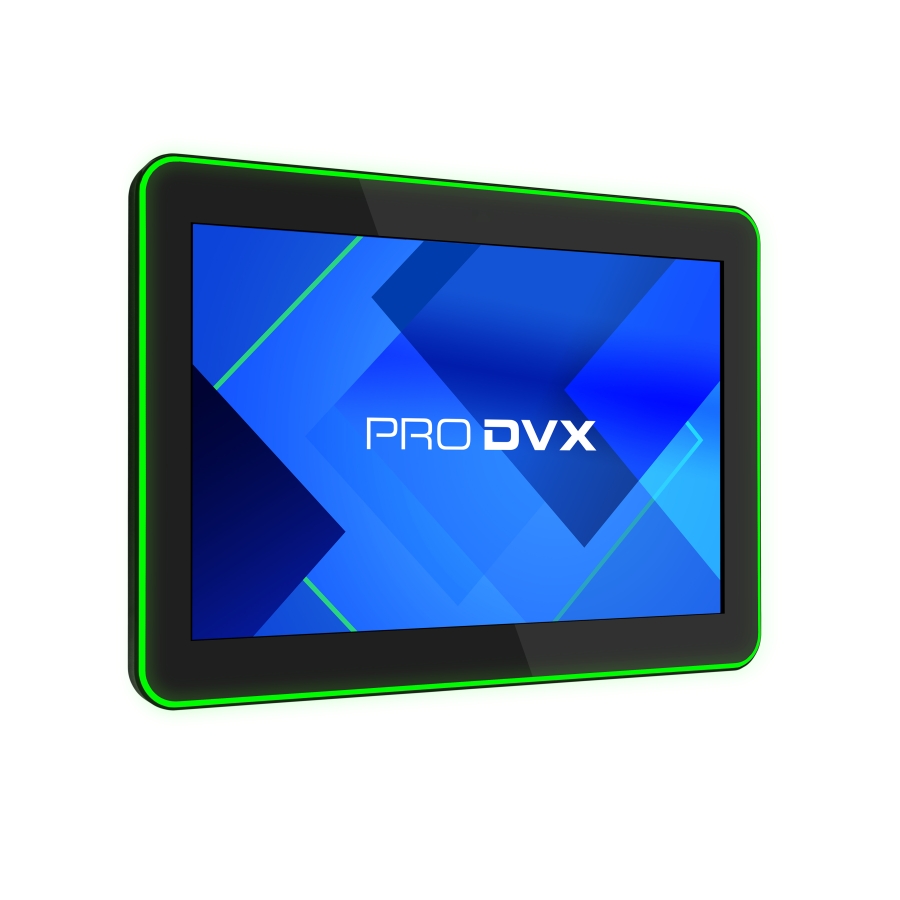

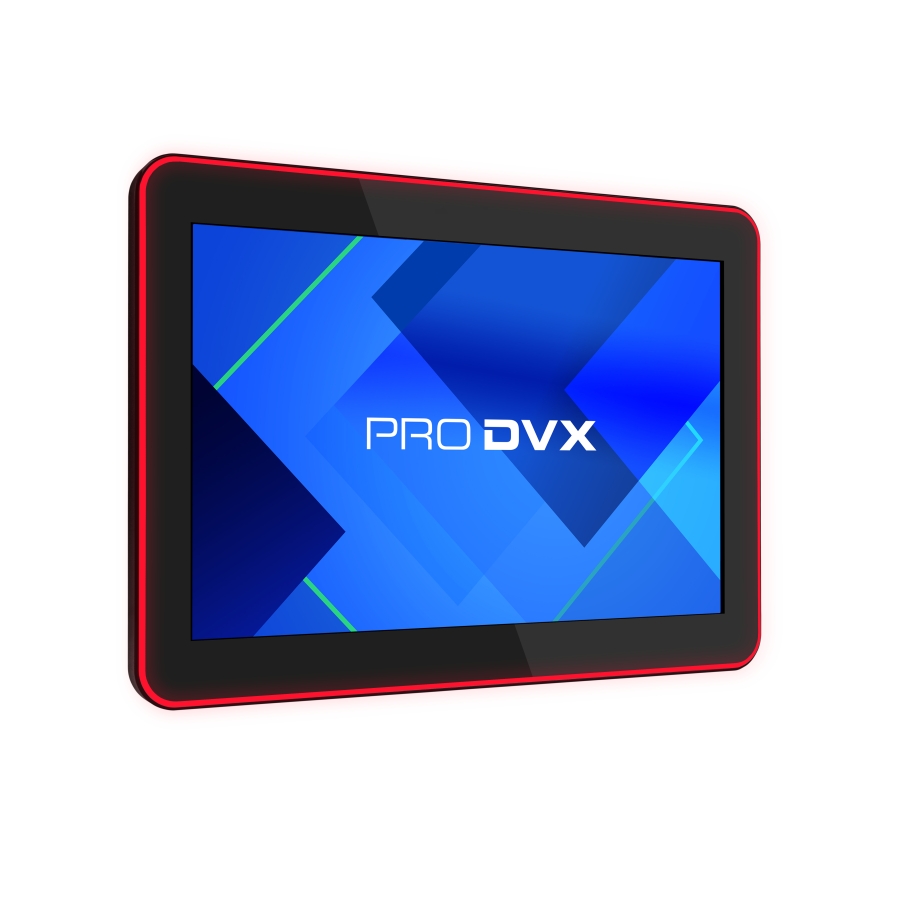

The IPPC-10SLB (R24-6702) is our latest 10-inch Intel Panel PC. Powered by the Intel N50 processor and with 8GB of memory, it is designed for superior performance. Running Windows 10 IoT, the IPPC-10SLB (R24-6702) integrates seamlessly into your existing IT ecosystem. Installation of the IPPC-10SLB (R24-6702) is made easy thanks to its low power consumption and PoE+ capability, removing the need for complex cabling plans by providing both power and data over one cable. Additionally, the VESA mounting frame ensures the device is compliant with most stands and mounts. The IPPC-10SLB (R24-6702) comes with our iconic full RGB surround LED bar to signal status updates or room availability. The touch panel supports 10-point touch functionality, reaches a brightness up to 500 cd/m2 and receives a non-glare treatment. This makes it our most powerful Intel Panel PC to date, and will provide the best user experience there is.

Downloads

6010370 Leaflet (PDF)

0.48MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	25.6 cm (10.1″)
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	HD
Touch technology	Multi-touch
Native aspect ratio	16:10
Display brightness	500 cd/m²
Panel type	IPS
Contrast ratio (typical)	800:1
Viewing angle, horizontal	160°
Viewing angle, vertical	160°
Multi-touch	Yes
Anti-glare screen	Yes
Processor
Processor manufacturer	Intel
Processor family	Intel® Celeron® N
Processor model	N50
Processor cores	2
Processor frequency	3.4 GHz
Processor cache	2 MB
Conflict-Free processor	Yes
Memory
Internal memory	8 GB
Internal memory type	DDR4-SDRAM
Storage
Total storage capacity	128 GB
Storage media	SSD
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD
Graphics
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics
Audio
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Camera
Built-in camera	No
Network
Wi-Fi	No
Ethernet LAN	Yes
Bluetooth	No

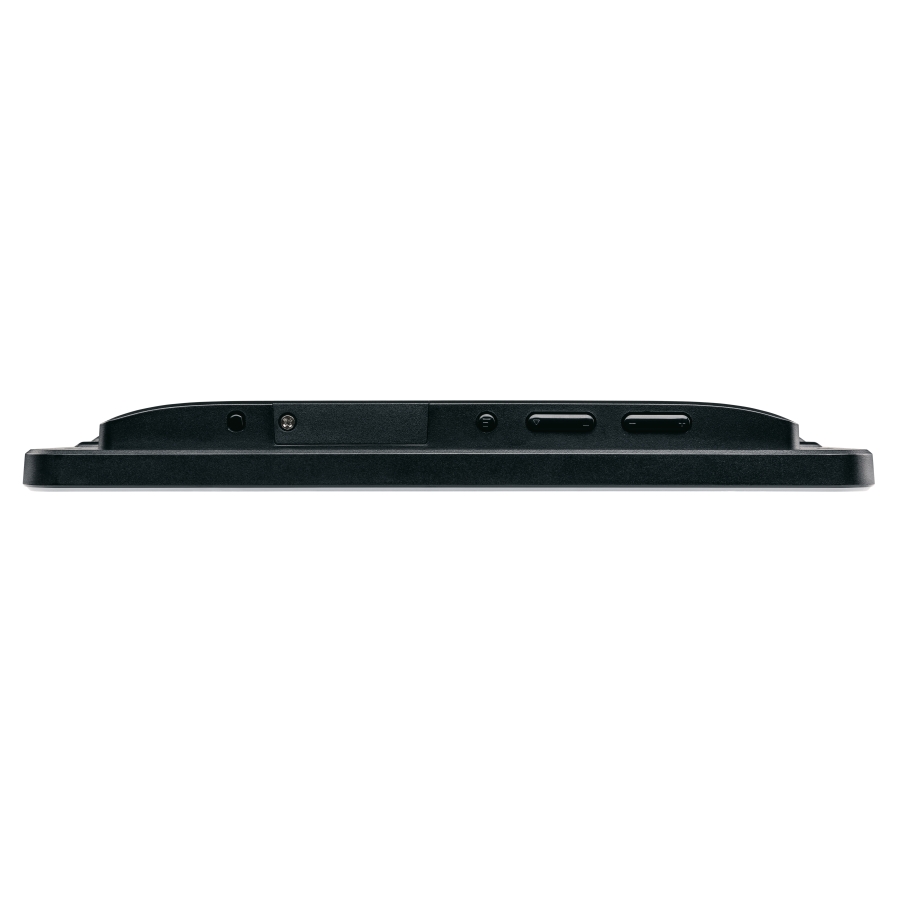

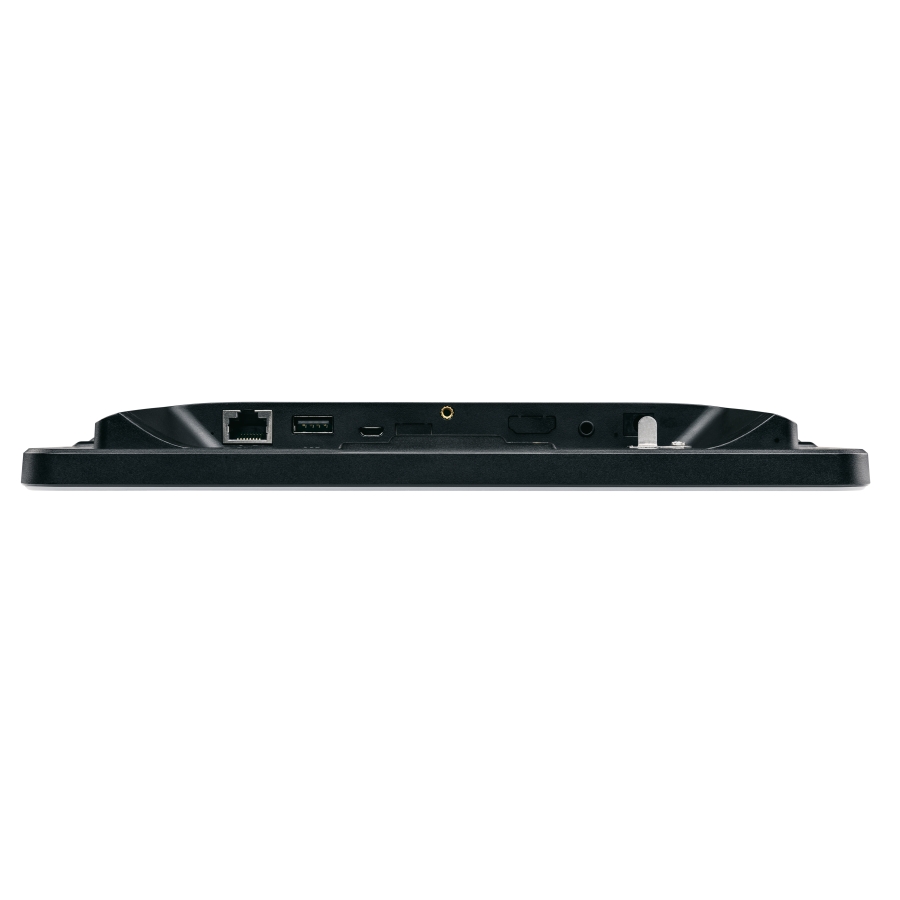

Ports & interfaces
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
HDMI ports quantity	1
Audio output	Yes
DC-in jack	Yes
Micro-USB ports quantity	1
Design
Housing material	Plastic
Product colour	Black
Wall mountable	Yes

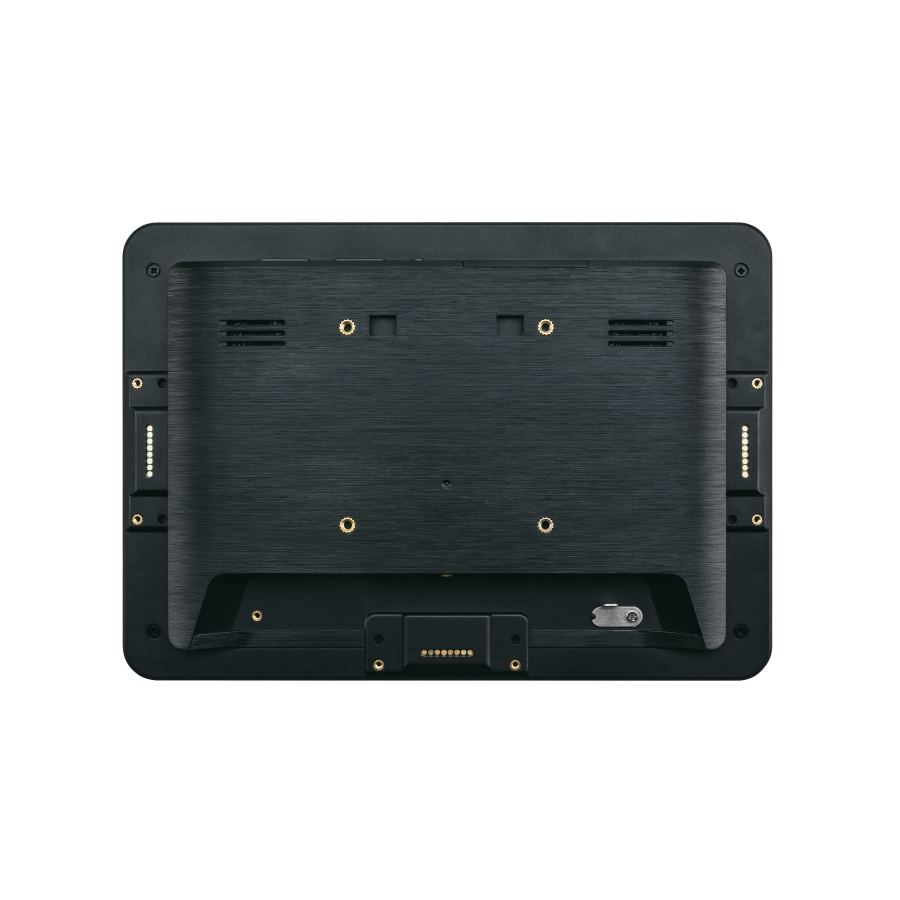

VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Performance
Product type	All-in-One tablet PC
Software
Operating system installed	Windows 10
Processor special features
Intel Stable Image Platform Program (SIPP)	No
Intel 64	Yes
Embedded options available	No
Intel Secure Boot	Yes
Intel Identity Protection Technology version	1.00
Intel Smart Idle Technology version	1.00
Intel Virtualization Technology (VT-x)	Yes
Power
AC adapter output voltage	12 V
Weight & dimensions
Width (without stand)	255.3 mm
Depth (without stand)	26.7 mm
Height (without stand)	181 mm
Weight (without stand)	650 g
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-10 – 55 °C
Operating relative humidity (H-H)	10 – 90%
Storage relative humidity (H-H)	10 – 90%
Certificates
Certification	UKCA, CE, FCC, RoHS, REACH
Packaging content
Quick start guide	Yes
Cables included	No
Other features
Mean time between failures (MTBF)	45000 h
Backlight type	Edge LED
Backlight	Yes

Screen Size	10.1"
Aspect Ratio	16:10
Resolution	1280x800
Brightness	500nit
Glass Type	Anti-Glare
Viewing Angle	160/160 (H/V)
Touch Technology	PCAP
Speaker	Yes
I/O	HDMI, RJ45
Mounting	VESA
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90%
Built In Media Player	Yes
CPU	Intel
GPU	Yes
LAN	Yes
Wi-Fi	Yes
OS	Windows
