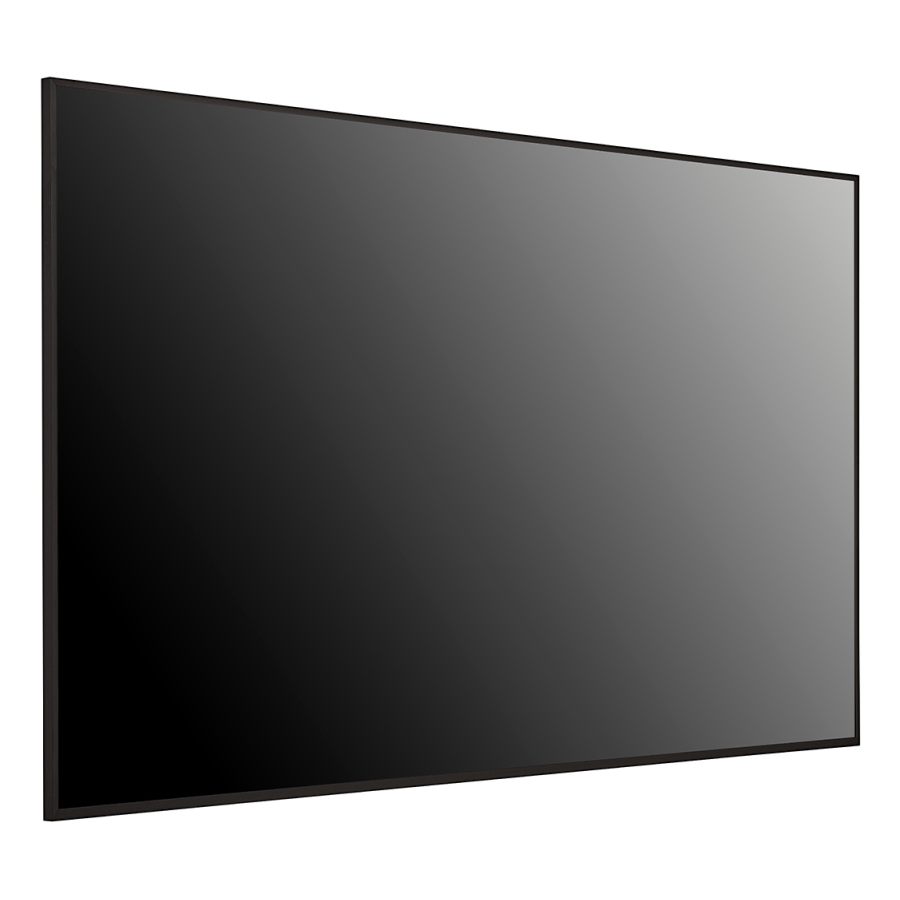

LG 65UH5N-E Digital signage flat panel 165.1 cm (65″) LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

LG

LG 65UH5N-E Digital signage flat panel 165.1 cm (65″) LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

65UH5N-E

  • Indoor Digital signage flat panel Black
  • 165.1 cm (65″) 3840 x 2160 pixels LCD 500 cd/m²
  • Edge-LED 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s)
-
+

Details

UHD Signage Display with LG webOS Platform and Advanced Security High Resolution Display It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen. Convenient webOS Platform The UH5N-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment. Durability that Provides Reliability Optimized for business environments, the UH5N-E is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x, 30-degree tilting and Shock Monitoring, provide both reliability and satisfaction. Design for Space Utilization Designed with thin bezels and simple cable management, the UH5N-E saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket. Bezels accessories can also be used to convert it into an art frame, making it a stylish interior element that matches customers' interior spaces. Enhanced Security Features The UH5N-E provides security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified. Sustainability With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type IPS
LED backlight Yes
LED backlighting type Edge-LED
Display diagonal 165.1 cm (65″)
Display technology LCD
Display resolution 3840 x 2160 pixels
Display brightness 500 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1100:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Panel life 50000 h
Colour depth 10 bit
Native refresh rate 60 Hz
Haze rate 28%
Colour gamut 95%
Ports & interfaces
HDMI ports quantity 4
HDMI input ports quantity 3
HDMI output ports quantity 1
DVI port No
DisplayPorts quantity 1
USB port Yes
USB ports quantity 1
USB version 2.0
USB connector type USB Type-A
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
RS-232C Yes
Remote (IR) input 1
Audio
Built-in speaker(s) Yes
Design
Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Black
VESA mounting Yes
Panel mounting interface 300 x 300 mm
Bezel width (bottom) 1.29 cm
Bezel width (side) 8.9 mm
Bezel width (top) 8.9 mm
Performance
Purpose Universal
Picture-in-Picture Yes
On Screen Display (OSD) Yes
Operating hours (hours/days) 24/7
HDCP Yes
Automatic brightness control Yes
International Protection (IP) code IP5X
HDCP version 1.4/2.2/2.3
Power
Power consumption (typical) 145 W
Power consumption (standby) 0.5 W
Power consumption (max) 200 W
Energy efficiency class (SDR) G
AC input voltage 100-240 V
AC input frequency 50-60 Hz
Computer system
Computer system Yes
Computer system type System on Chip (SoC)
Internal memory 16 GB
Operating system installed WebOS
Operating system version 6.0
Weight & dimensions
Display width 1450.3 mm
Display depth 29.7 mm
Display height 830.3 mm
Display weight 24.2 kg
Packaging data
Package width 1600 mm
Package depth 172 mm
Package height 970 mm
Package weight 30.4 kg
Packaging content
Remote control included Yes
Batteries included Yes
Cables included AC, Phone
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 80%
Technical details
Real Time Clock (RTC) Yes
Other features
Audio output 1
Power consumption (PowerSave) 101.5 W
Plug and Play Yes
Screen Size 65"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 500nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O DP, HDMI Input, LAN, RJ45, RS232, USB
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 80%
Built In Media Player Yes
LAN Yes
Wi-Fi Yes
