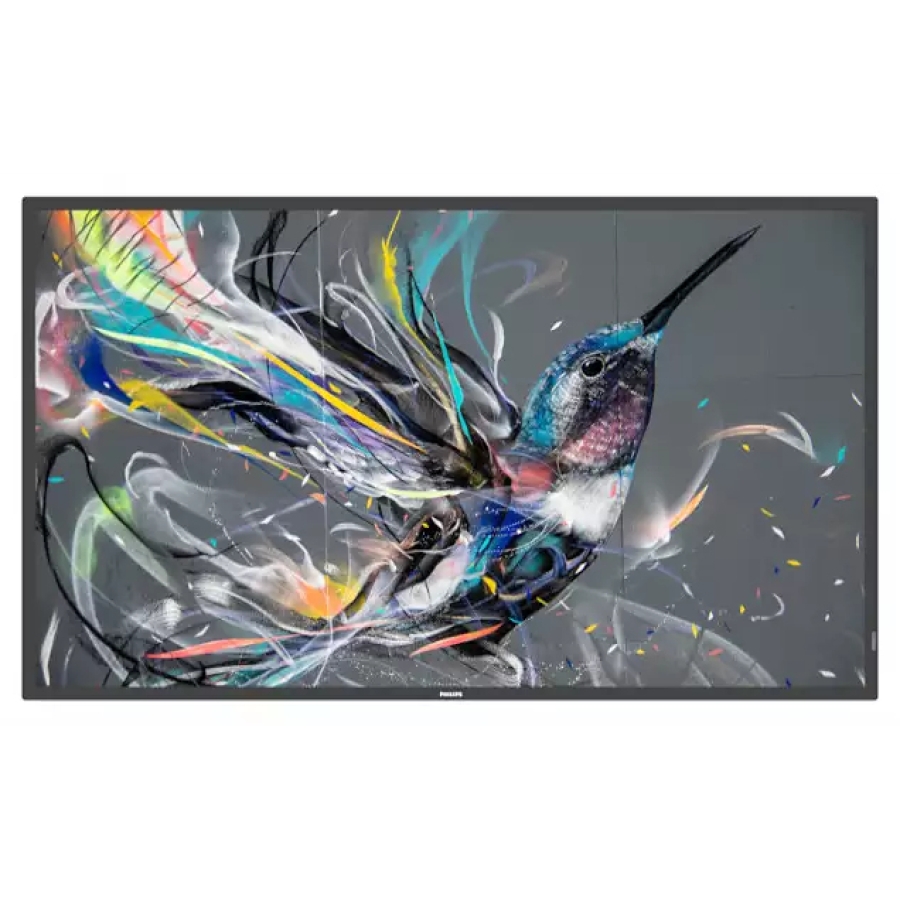

Philips 75BDL3511Q/00 75″ Digital Signage Flat Panel Display with 400nit Brightness and 4K Ultra HD Black

Philips 75BDL3511Q/00 75″ Digital Signage Flat Panel Display with 400nit Brightness and 4K Ultra HD Black

75BDL3511Q/00

  • Indoor Digital signage flat panel Black
  • 190.5 cm (75″) 3840 x 2160 pixels IPS 400 cd/m²
  • Direct-lit LED 60 Hz 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
-
+

Details

Philips Signage Solutions 75BDL3511Q/00. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display technology: IPS, Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Product colour: Black

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
LED backlighting type Direct-lit LED
Display diagonal 190.5 cm (75″)
Display technology IPS
Display resolution 3840 x 2160 pixels
Display brightness 400 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 500000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Pixel pitch 0.4296 x 0.4296 mm
Display diagonal (metric) 189.3 cm
Native refresh rate 60 Hz
Haze rate 1%
Ports & interfaces
HDMI ports quantity 3
HDMI version 2.0
HDMI input ports quantity 3
DVI port Yes
DVI-I ports quantity 1
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi No
RS-232C Yes
OPS module slot Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Black
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Performance
Purpose Universal
On Screen Display (OSD) Yes
Number of OSD languages 12
On Screen Display (OSD) languages Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish
Mean time between failures (MTBF) 50000 h
Power
Power consumption (typical) 180 W
Power consumption (standby) 0.5 W
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 181 kWh
AC input voltage 100/240 V
AC input frequency 50 – 60 Hz
Energy efficiency scale A to G
Computer system
Computer system No
Built-in processor No
Video formats supported H.264, MPEG, WMV3
Audio formats supported AAC, AAC HE, WMA
Image formats supported BMP, JPEG, PNG
Weight & dimensions
Display width 1683.5 mm
Display depth 69.5 mm
Display height 961.7 mm
Display weight 37.3 kg
Packaging content
Batteries included Yes
Power adapter model AC,IR sensor,RS-232
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 20 – 80%
Storage temperature (T-T) -20 – 60 °C
Storage relative humidity (H-H) 5 – 95%
Certificates
Certification FCC, Class A CB BSMI VCCI CU ETL EMF PSB
Features
Wall mountable Yes
Other features
Maximum refresh rate 60 Hz
Screen Size 75"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 400nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O DVI, HDMI, LAN, RJ45, RS232
Mounting VESA
Operating Temperature 0°C to 40°C
Operating Humidity 20% to 80%
LAN Yes
