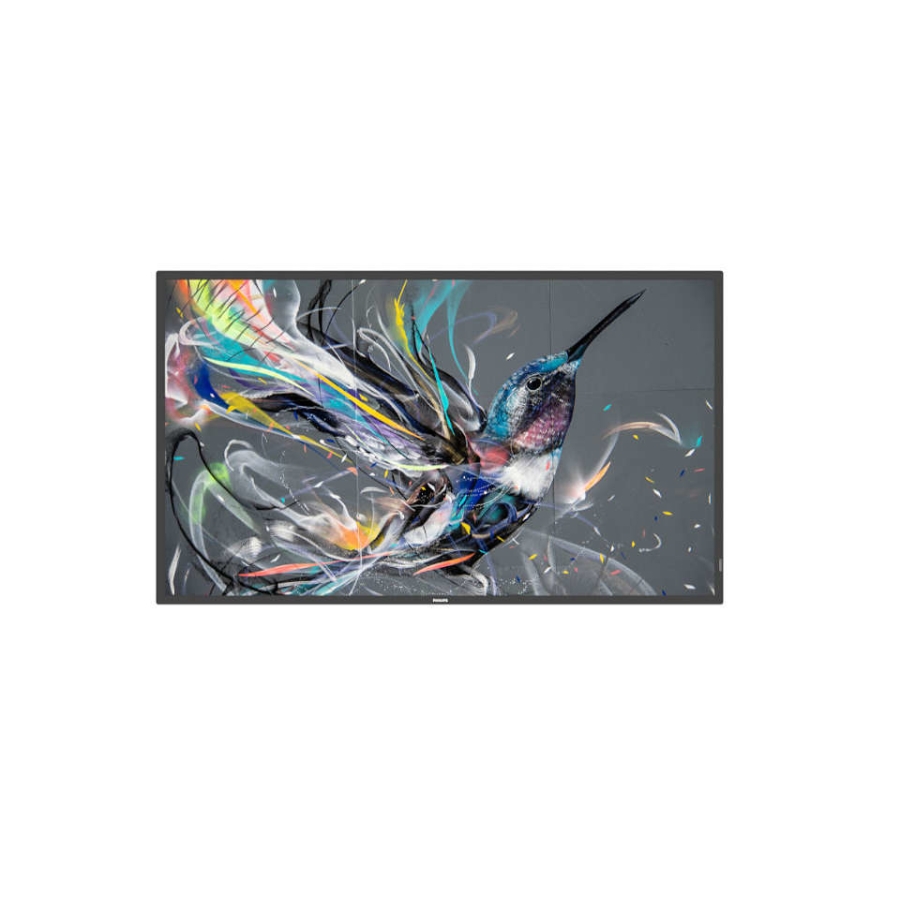

Philips 86BDL3511Q/00 86″ Public Display Digital Flat Panel with 400nit Brightness and 4K Ultra HD Black
Philips 86BDL3511Q/00 86″ Public Display Digital Flat Panel with 400nit Brightness and 4K Ultra HD Black
86BDL3511Q/00
- Indoor Digital signage flat panel Black
- 2.18 m (86″) 3840 x 2160 pixels IPS 400 cd/m²
- 8 ms
- Ethernet LAN
- Built-in speaker(s) 10 W
Details
Operate, monitor and maintain with CMND and Control Run your display network over a local (LAN) connection. CMND and Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. FailOver ensures that content is always playing From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs, ensuring that content keeps playing even if the primary source goes down. Simply set a list of alternative inputs to be sure your business is always on. OPS slot allows for PC embedding without cabling Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply. Schedule what you want, when you want with SmartPlayer Turn your USB into a true cost-effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display. Create your playlist and schedule your content via the on-screen menu, and enjoy your own playlists anytime, anywhere. Integrated media player. Easily schedule USB content Easily schedule content to play from USB. Your Philips Professional Display will wake from standby to play the content you want, and then return to standby once playback has finished.System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Display diagonal | 2.18 m (86″) |
Display technology | IPS |
Display resolution | 3840 x 2160 pixels |
Display brightness | 400 cd/m² |
HD type | 4K Ultra HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
Response time | 8 ms |
Contrast ratio (typical) | 1200:1 |
Contrast ratio (dynamic) | 500000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 1.07 billion colours |
Pixel pitch | 0.4935 x 0.4935 mm |
Display diagonal (metric) | 217.4 cm |
Ports & interfaces | |
HDMI ports quantity | 3 |
HDMI version | 2.0 |
DVI port | Yes |
DVI-I ports quantity | 1 |
USB port | Yes |
USB ports quantity | 2 |
USB version | 2.0 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
RS-232C | Yes |
Infrared data port | Yes |
OPS module slot | Yes |
Audio | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 10 W |
Design | |
Product design | Digital signage flat panel |
Placement supported | Indoor |
Product colour | Black |
VESA mounting | Yes |
Panel mounting interface | 600 x 400 mm |
Bezel width (top) | 1.55 cm |
Performance | |
Purpose | Universal |
On Screen Display (OSD) | Yes |
Number of OSD languages | 12 |
On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Turkish |
Power | |
Power consumption (typical) | 360 W |
Power consumption (standby) | 0.5 W |
Energy efficiency class (SDR) | G |
Energy consumption (SDR) per 1000 hours | 355 kWh |
AC input voltage | 100–240 |
AC input frequency | 50 – 60 Hz |
Energy efficiency scale | A to G |
Computer system | |
Video formats supported | H.264, M-JPEG, WMV3 |
Audio formats supported | AAC, HE-AAC, WMA |
Image formats supported | BMP, JPEG, PNG |
Weight & dimensions | |
Display width | 1929 mm |
Display depth | 69.5 mm |
Display height | 1100 mm |
Display weight | 49.5 kg |
Packaging content | |
Cables included | AC, RS-232 |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Storage relative humidity (H-H) | 5 – 95% |
Certificates | |
Certification | CEosd FCC, Class A CB BSMI VCCI CU ETL EMF PSB |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Screen Size | 86" |
---|---|
Aspect Ratio | 16:9 |
Resolution | 3840x2160 |
Brightness | 400nit |
Viewing Angle | 178/178 (H/V) |
I/O | DVI-I, HDMI, LAN, RJ45, RS232, USB |
Mounting | VESA |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 20% to 80% |
LAN | Yes |
