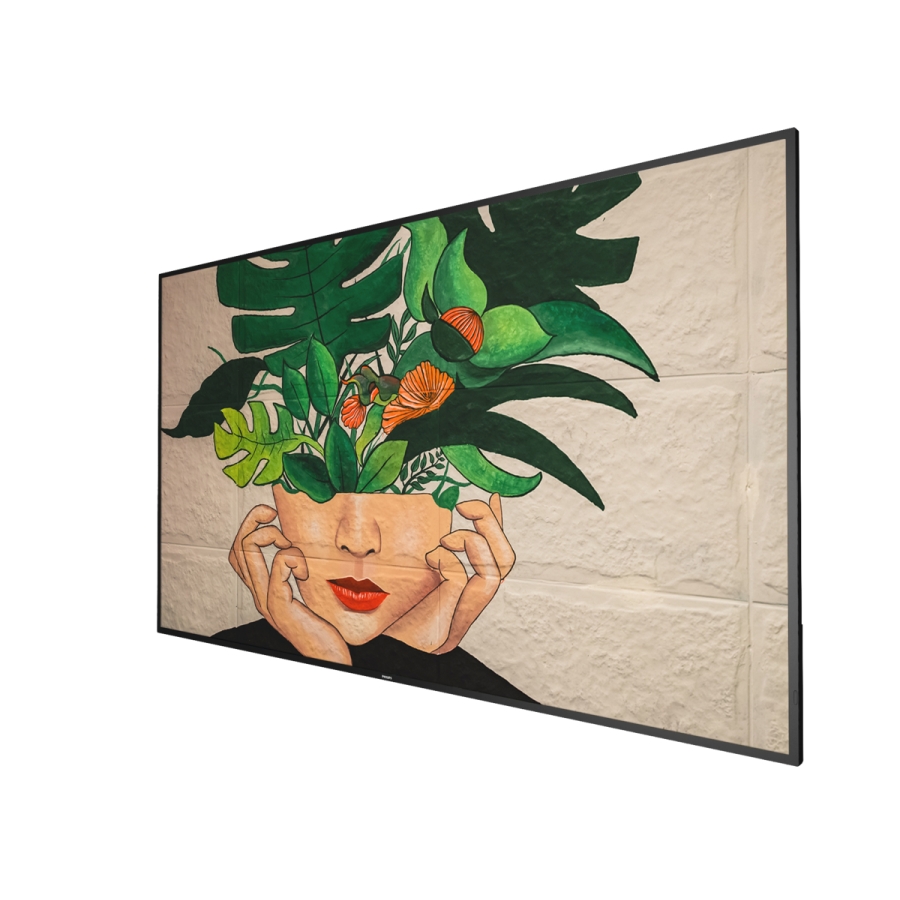

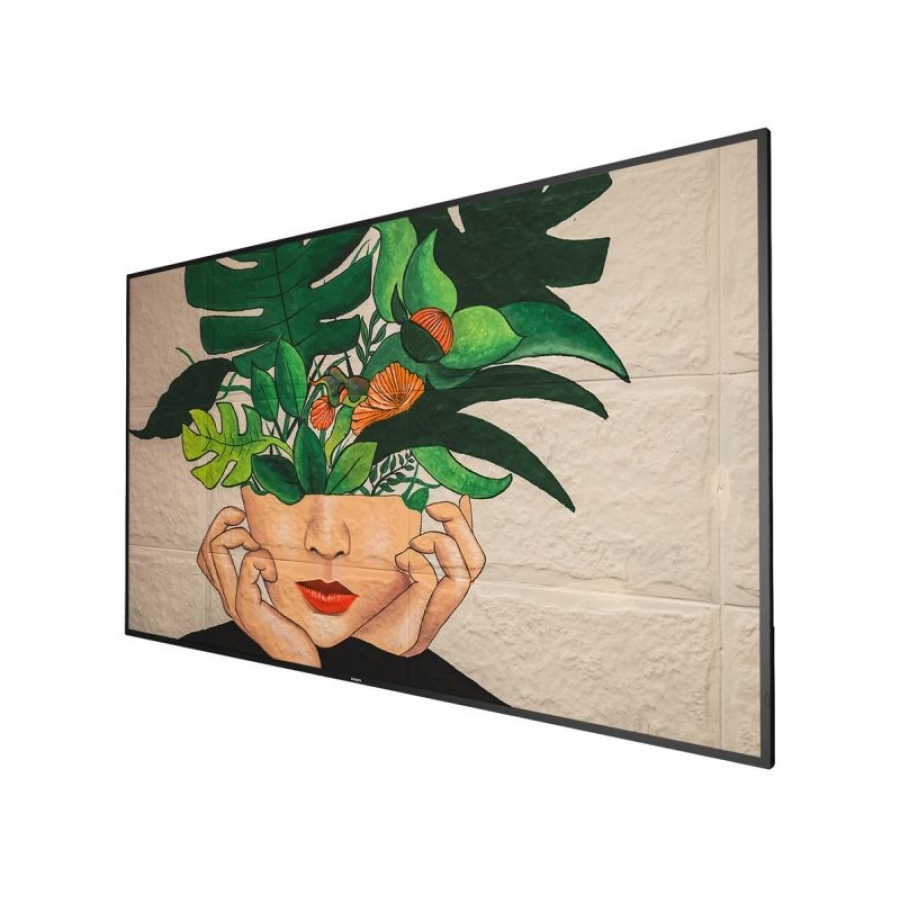

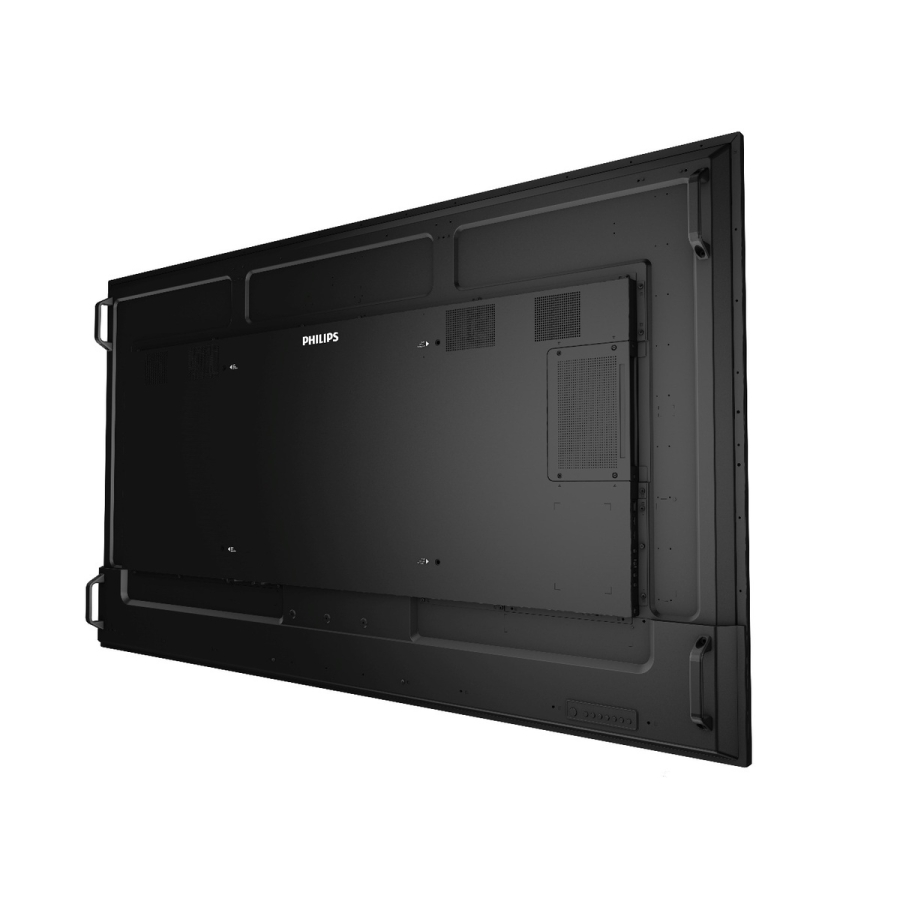

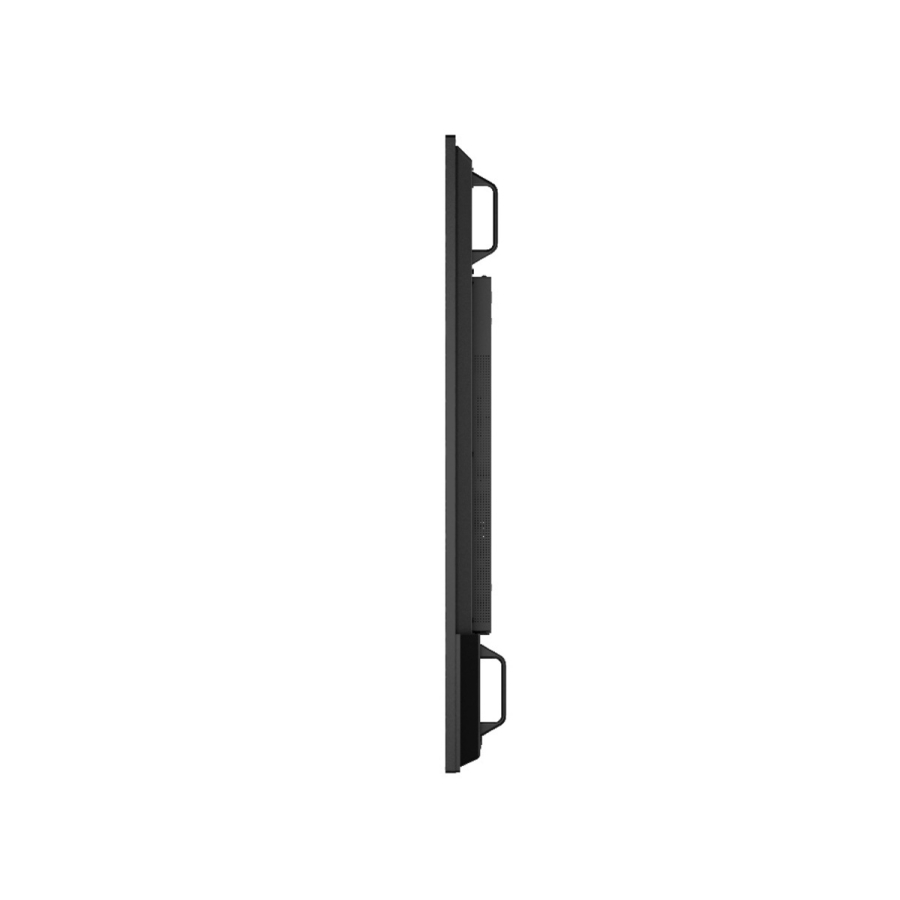

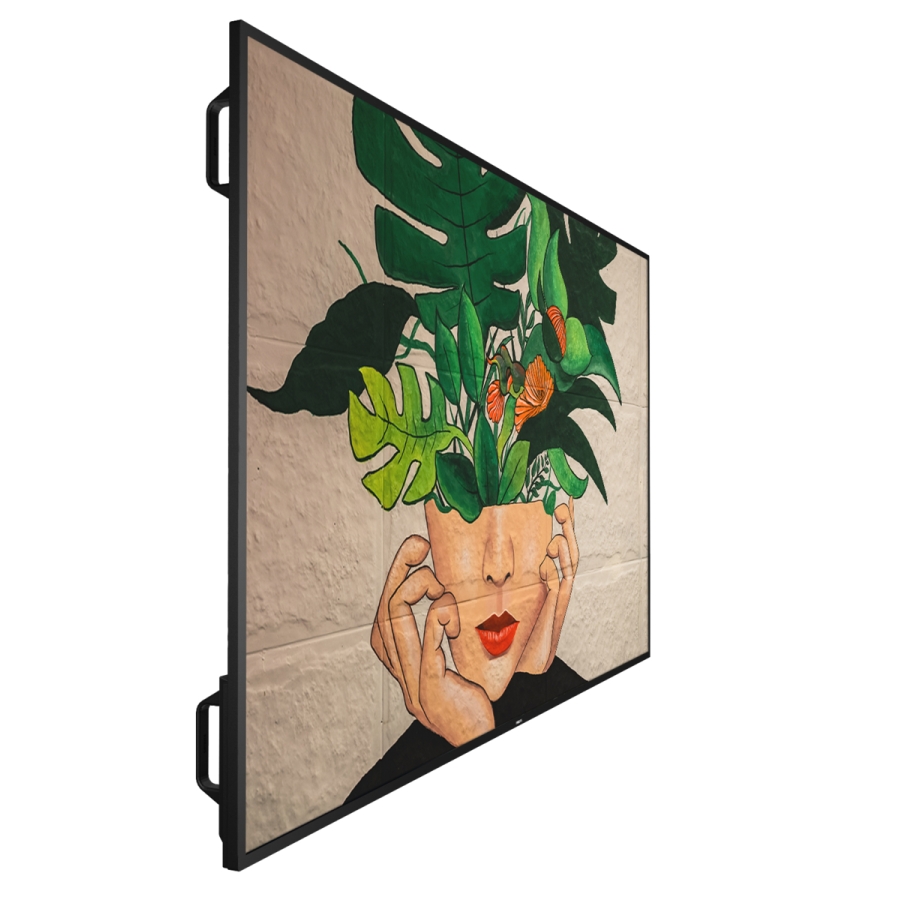

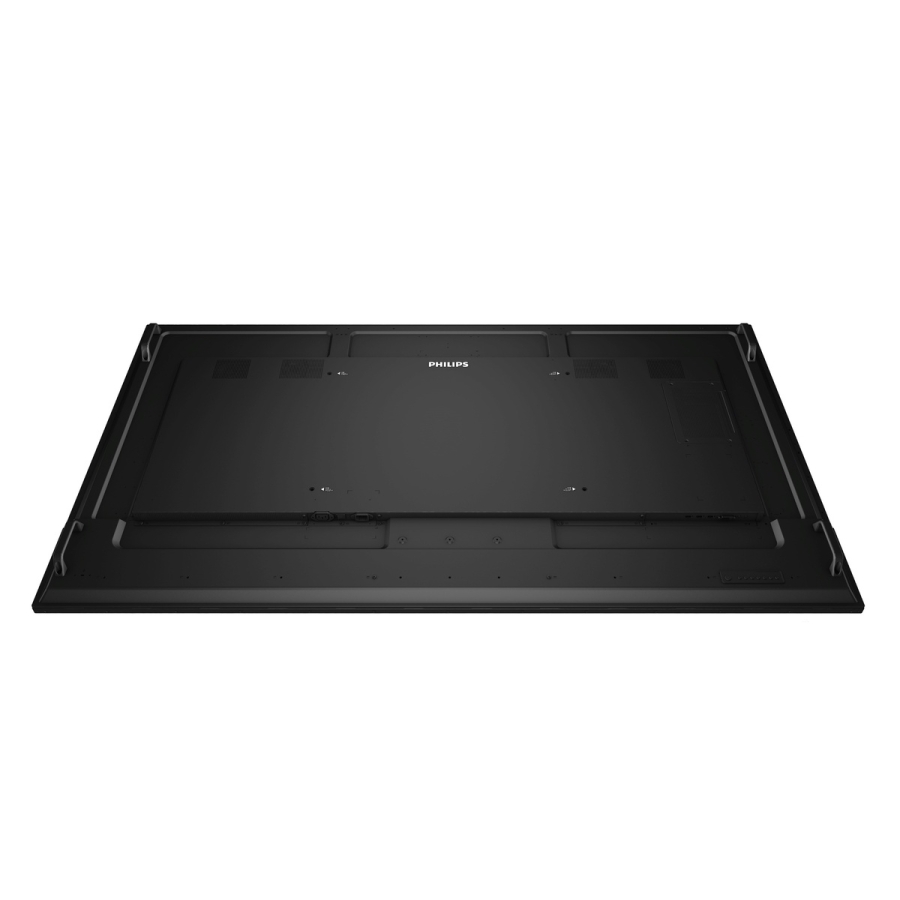

Philips 86BDL4511D/00 86″ Signage Digital A-board Display with 500nit Brightness and 4K Ultra HD Black 24/7
Philips 86BDL4511D/00 86″ Signage Digital A-board Display with 500nit Brightness and 4K Ultra HD Black 24/7
86BDL4511D/00
- Indoor Digital A-board Black
- 2.18 m (86″) 3840 x 2160 pixels 500 cd/m²
- 8 ms
- Built-in speaker(s) 20 W
86BDL4511D/00
4K Displays, 81" to 90" Commercial Displays, 86" Commercial Displays, Airport Digital Signage, Car Dealership, DOOH, Food and Drink, Gym and Fitness, Healthcare, Hotel, Kiosk, Philips, Professional Monitors, Resolutions, Retail / POS Digital Signage, Shop by Sector, Shop By Size, Transport, Uncategorised
Details
Operate, monitor and maintain with CMND & Control Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100. FailOver ensures content is always playing From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on. SmartPower for energy saving The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs. Schedule what you want, when you want with SmartPlayer Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere. Optional OPS Slot Open Pluggable Specification is an industry standard slot in to which you can add an OPS-compatible media player. This gives you the ability to upgrade or change your hardware whenever you need. Turning your display in to an all-in-one digital signage solution has become simplicity personified.System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Panel type | IPS |
Display diagonal | 2.18 m (86″) |
Display resolution | 3840 x 2160 pixels |
Display brightness | 500 cd/m² |
HD type | 4K Ultra HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
Response time | 8 ms |
Contrast ratio (typical) | 1200:1 |
Contrast ratio (dynamic) | 500000:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 1.07 billion colours |
Pixel pitch | 0.4935 x 0.4935 mm |
Display diagonal (metric) | 217.4 cm |
Panel life | 50000 h |
Haze rate | 3% |
Ports & interfaces | |
HDMI ports quantity | 3 |
HDMI version | 2.0 |
HDMI input ports quantity | 3 |
DVI port | Yes |
DVI-I ports quantity | 1 |
DisplayPorts quantity | 2 |
DisplayPorts in | 1 |
DisplayPorts out | 1 |
USB port | Yes |
USB ports quantity | 2 |
USB version | 2.0 |
Audio (L/R) in | 1 |
Audio (L/R) out | 1 |
RS-232C | Yes |
Remote (IR) input | 1 |
Remote (IR) output | 1 |
OPS module slot | Yes |
Audio | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 20 W |
Design | |
Product design | Digital A-board |
Placement supported | Indoor |
Product colour | Black |
VESA mounting | Yes |
Panel mounting interface | 400 x 400 mm |
Bezel width (bottom) | 1.55 cm |
Bezel width (side) | 1.55 cm |
Bezel width (top) | 1.55 cm |
Performance | |
Purpose | Commercial |
On Screen Display (OSD) | Yes |
On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Danish, Dutch, English, Finnish, French, Italian, Japanese, Norwegian, Polish, Portuguese, Russian, Swedish, Turkish |
Operating hours (hours/days) | 24/7 |
Power | |
Power consumption (typical) | 355 W |
Power consumption (standby) | 0.5 W |
Energy efficiency class (SDR) | G |
Energy consumption (SDR) per 1000 hours | 351 kWh |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Energy efficiency scale | A to G |
Computer system | |
Video formats supported | H.263, H.264, H.265, MPEG |
Audio formats supported | AAC, HE-AAC |
Image formats supported | BMP, JPEG, PNG |
Weight & dimensions | |
Display width | 1929 mm |
Display depth | 69.5 mm |
Display height | 1100 mm |
Display weight | 50.2 kg |
Packaging content | |
Cables included | AC, IR sensor, RS-232, USB |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | 20 – 80% |
Storage temperature (T-T) | -20 – 60 °C |
Storage relative humidity (H-H) | 5 – 95% |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Technical details | |
Compliance certificates | RoHS |
Screen Size | 86" |
---|---|
Aspect Ratio | 16:9 |
Resolution | 3840x2160 |
Brightness | 500nit |
Viewing Angle | 178/178 (H/V) |
Speaker | Yes |
I/O | DisplayPort, DVI-I, HDMI, RJ45, RS232, USB |
Mounting | Wall Mount |
Operating Temperature | 0°C to 40°C |
Operating Humidity | 20% to 80% |
LAN | Yes |
