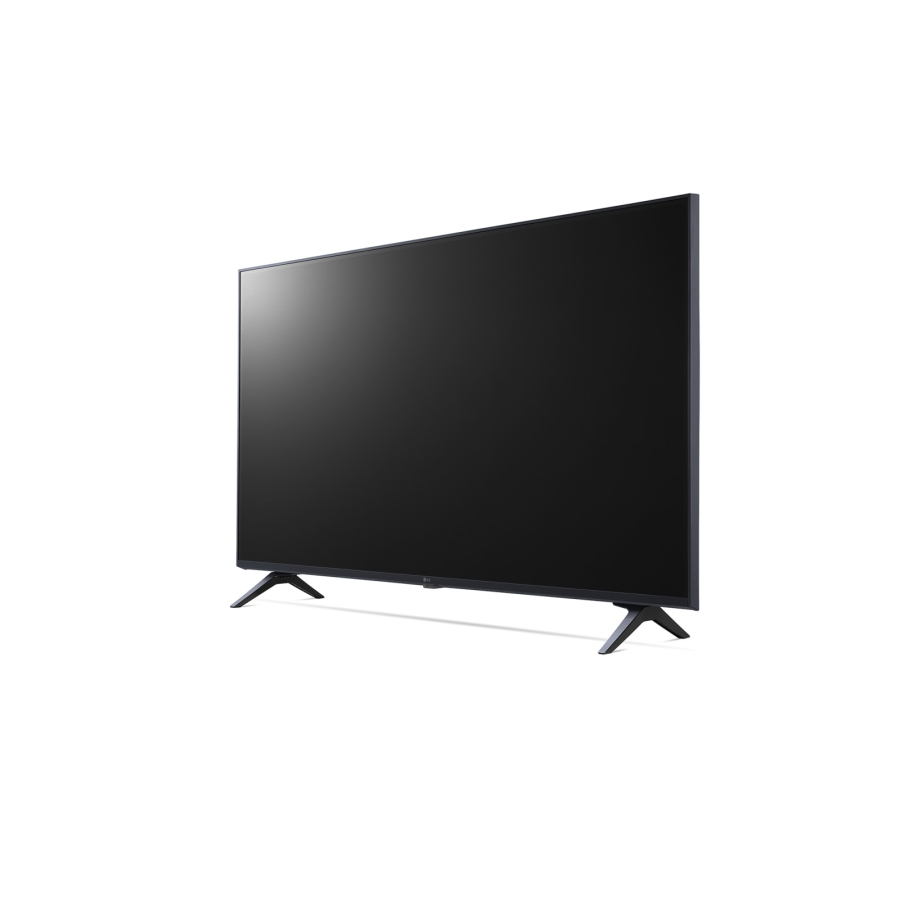

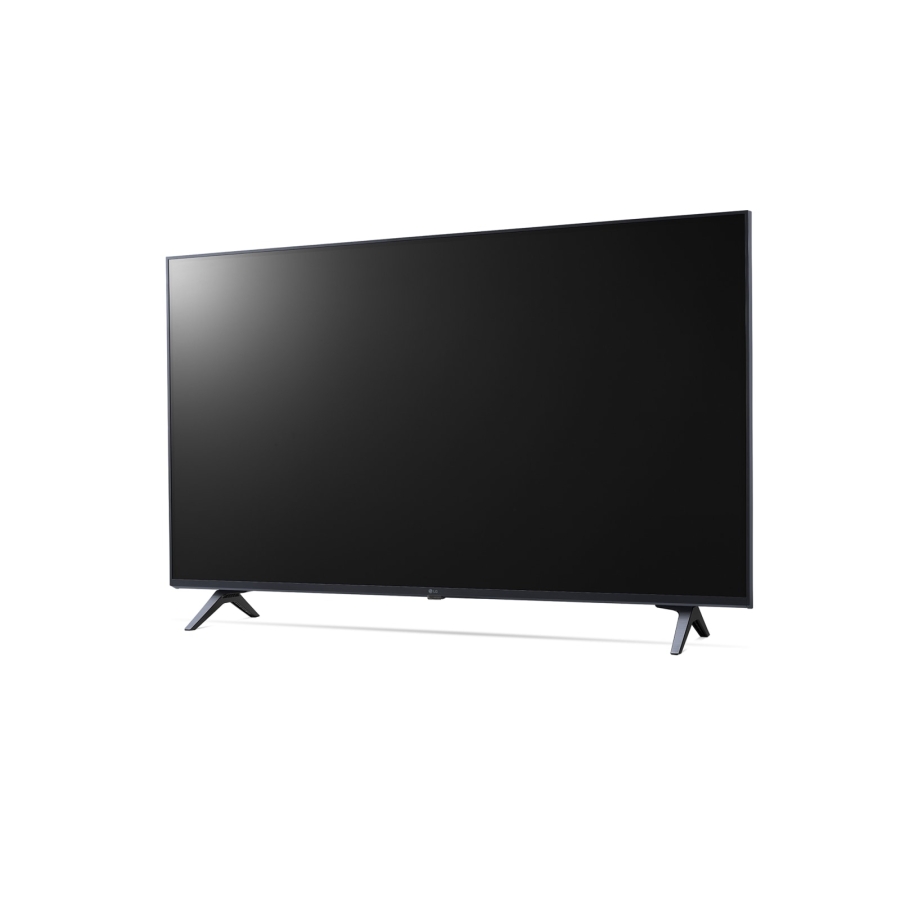

LG 86UN640S 86″ 4K Signage Display 300 cd/m²
LG 86UN640S 86″ 4K Signage Display 300 cd/m²
86UN640S
- Indoor Digital signage flat panel Blue
- 2.18 m (86″) 3840 x 2160 pixels 300 cd/m²
- High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG)
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 20 W
86UN640S
4K Displays, 81" to 90" Commercial Displays, 86" Commercial Displays, Commercial Displays, Corporate, Digital Menu Boards, Digital Signage, Food and Drink, Hotel, LG, Professional Displays, Professional Displays and Monitors, Resolutions, Retail / POS Digital Signage, Shop By Size, Uncategorised
Details
Superb Picture Quality with Ultra HD Resolution With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. Improved Design with Slim Depth This series is thinner than LG conventional* model to save space and enable easy installation. In addition, its sophisticated ahsed blue color improves the décor of the space where the product is installed. High-Performance with LG webOS22 LG webOS22, with an upgraded SoC* and web engine, is available on the UN640S series for the easy execution of several tasks. The LG webOS smart signage platform enhances user convenience with an intuitive GUI. Embedded Content & Group Management The embedded Content and Group Management System allows you to edit and play content, schedule playlists and groups, and control signage via remote control, mouse and mobile phone without the use of separate PC or software. This makes content management easy and user-friendly. Versatile Content Management with LG SuperSign CMS LG SuperSign CMS is integrated management program supporting creation and management of digital media and content deployment, optimized for LG signage. With its simple and intuitive menus and layout options, it enhances efficiency for content creation and editing, scheduling and distribution, improving user experience. In addition, it supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices. Easy Group Control The UN640S series supports SuperSign Control+ Free version which can manage up to 100 displays through a single account and server. Power, volume, and scheduling can be remotely adjusted, and firmware updates supported. Compatible with AV Control Systems The UN640S series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency. Display Power Management Support Display Power Management (DPM) can be configured to be on only when there is a TV signal present to manage power more efficiently. Real-Time LG ConnectedCare Service Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Display diagonal | 2.18 m (86″) |
Display resolution | 3840 x 2160 pixels |
Display brightness | 300 cd/m² |
HD type | 4K Ultra HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
High Dynamic Range (HDR) supported | Yes |
High Dynamic Range (HDR) technology | High Dynamic Range 10 Pro (HDR10 Pro), Hybrid Log-Gamma (HLG) |
Ports & interfaces | |
HDMI ports quantity | 3 |
HDMI version | 2.0 |
USB port | Yes |
USB ports quantity | 1 |
USB version | 2.0 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wi-Fi | Yes |
Number of speaker outputs | 1 |
RS-232C | Yes |
Audio Return Channel (ARC) | Yes |
RF input | 2 |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 20 W |
Design | |
Product design | Digital signage flat panel |
Placement supported | Indoor |
Product colour | Blue |
VESA mounting | Yes |
Panel mounting interface | 600 x 400 mm |

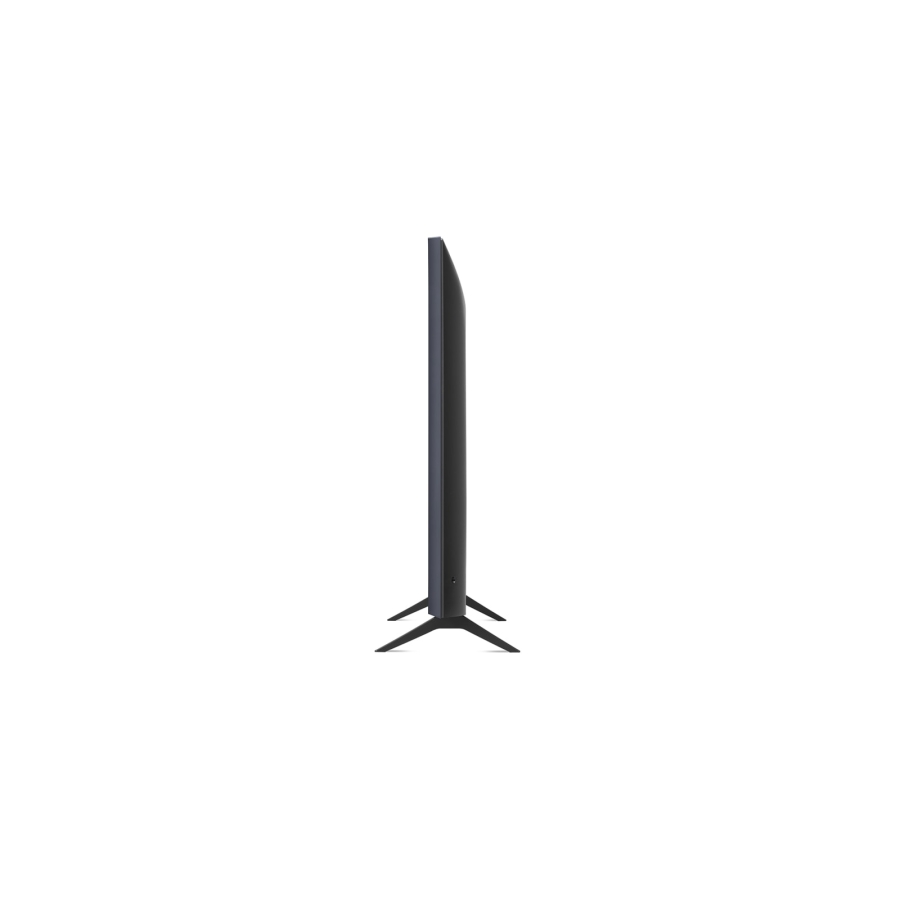

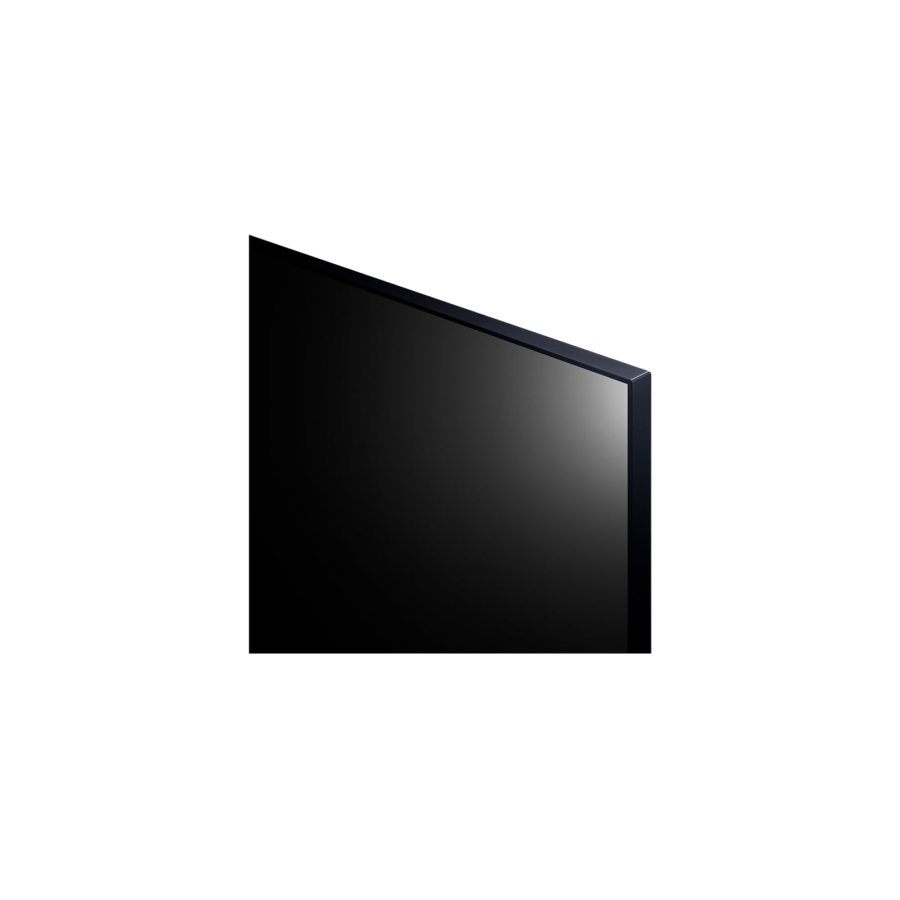

Bezel width (bottom) | 1.99 cm |
Bezel width (side) | 1.59 cm |
Bezel width (top) | 1.59 cm |

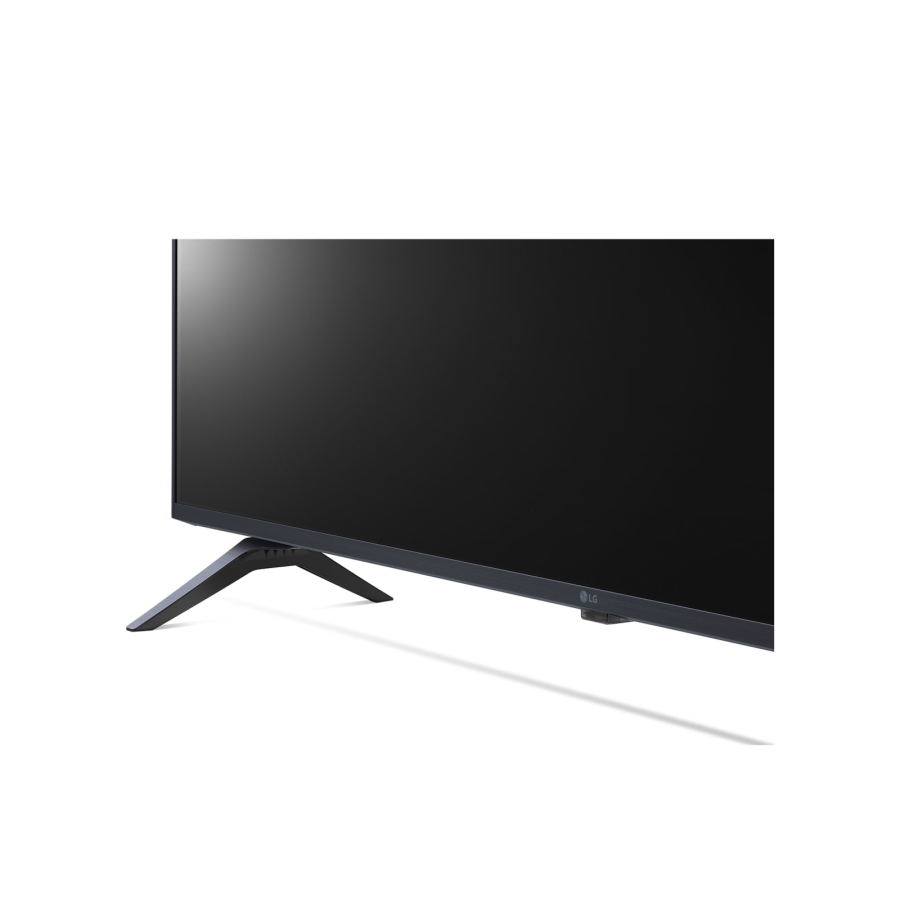

Stand type | Legs stand |
Performance | |
Purpose | Universal |
TV tuner integrated | Yes |
Analog signal format system | PAL, SECAM |
Digital signal format system | DVB-C, DVB-S2, DVB-T2 |
Browsing | Yes |
Power | |
Power consumption (typical) | 202 W |
Power consumption (standby) | 0.5 W |
Power consumption (max) | 228 W |
Energy efficiency class (SDR) | G |
Energy efficiency class (HDR) | G |
Energy consumption (SDR) per 1000 hours | 133 kWh |
Energy consumption (HDR) per 1000 hours | 167 kWh |
AC input voltage | 100 – 240 V |
AC input frequency | 50 – 60 Hz |
Computer system | |
Operating system installed | WebOS |
Operating system version | webOS 22 |
Weight & dimensions | |
Display width | 1927 mm |
Display depth | 59.9 mm |
Display height | 1104 mm |
Display weight | 45.2 kg |
Width (with stand) | 1927 mm |
Depth (with stand) | 362 mm |
Height (with stand) | 1167 mm |
Weight (with stand) | 45.9 kg |
Packaging data | |
Package width | 2115 mm |
Package depth | 228 mm |
Package height | 1215 mm |
Package weight | 58.4 kg |
Packaging content | |
Stand included | Yes |
Remote control included | Yes |
Remote control type | S-con |
Cables included | Power |
Other features | |
Bluetooth | Yes |
Cable lock slot type | Kensington |
Teletext function | Yes |
Hotel mode | Yes |
Bluetooth Low Energy (BLE) | Yes |
Screen Size | 86" |
---|---|
Aspect Ratio | 16:9 |
Resolution | 3840x2160 |
Brightness | 300nit |
Speaker | Yes |
I/O | HDMI Input, LAN, RS232, USB |
Mounting | VESA |
Built In Media Player | Yes |
LAN | Yes |
Wi-Fi | Yes |
