Arbor Technology IEC-3904 Intel Core 11th Gen Digital Signage Player 4 x USB

Name: Arbor Technology IEC-3904 Intel Core 11th Gen Digital Signage Player 4 x USB
SKU: IEC-3904
Availability: InStock

Arbor

Arbor Technology IEC-3904 Intel Core 11th Gen Digital Signage Player 4 x USB

IEC-3904

Intel 11th Generation Core i7/i5/i3/ Celeron processor
Support 2 x HDMI with independent video outputs
Support 1 x COM, 4 x USB3.0, 1 x GbE port
Support Intel vPro & AMT
Extended operating temperature: -20 ~ 70ºC

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: IEC-3904

Categories: Arbor, Digital Signage Computers, Digital Signage Players

Range: Arbor

Details

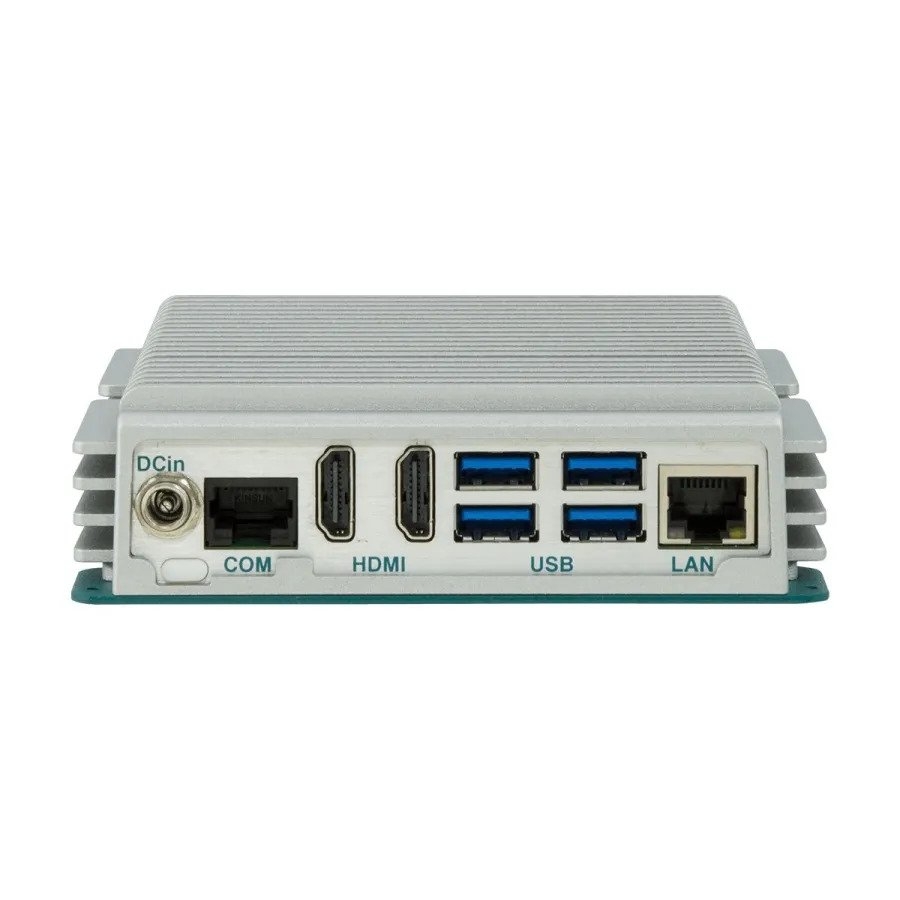

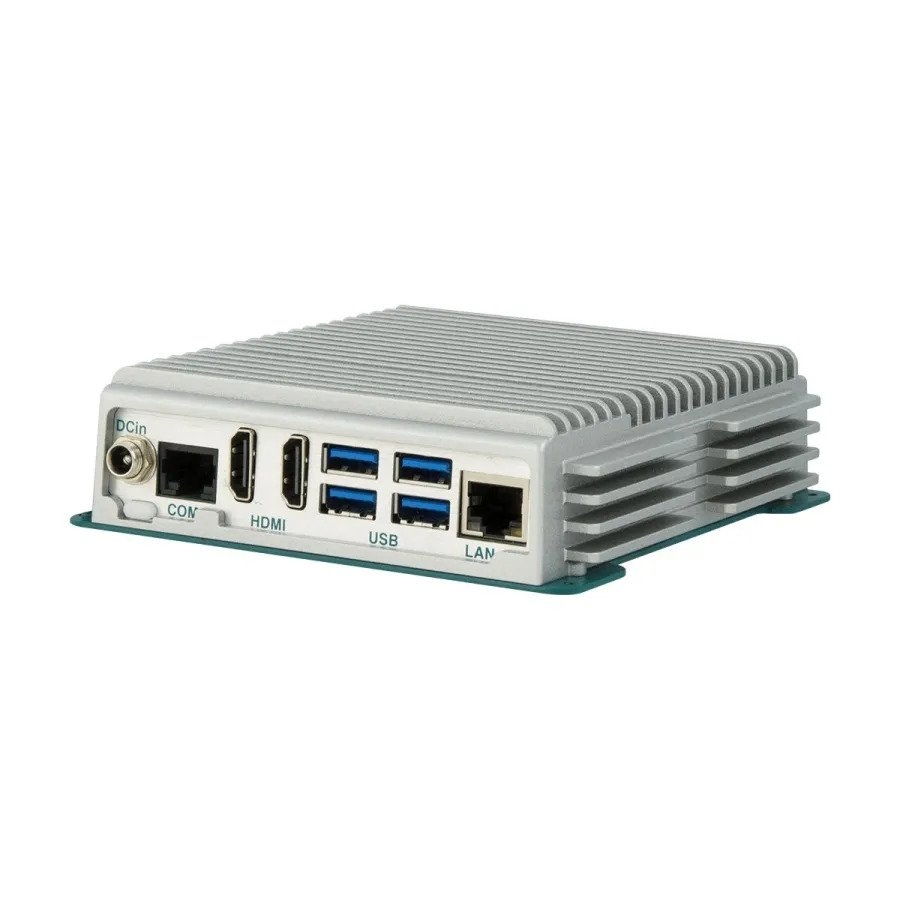

Arbor’s IEC-3904 Digital Signage Player can be powered by Intel i7-1185G7E 1.8GHz (Base)/ 4.4GHz (Turbo); i5-1145G7E 1.5GHz (Base)/ 4.1GHz (Turbo); i3-1115G4E 2.2GHz (Base)/ 3.9GHz (Turbo);Celeron 6305E 1.8GHz Processor, soldered onboard, with an Integrated Intel Iris Xe / UHD Graphics (Depends on CPU SKU) and I?O coming in the form of 1 x RS-232 port with RJ-45 connector, USB Port 4 x USB 3.0 ports, LAN 1 x RJ-45 ports for GbE, Video Port 2 x HDMI video outputs, supporting 4K/60Hz on both HDMI ports simultaneously.

Ordering Info

Model
IEC-3904-1145G7E	Digital Signage Player with Intel Core i5-1145G7E, w/ 2xHDMI, 60W power adapter, 8GB RAM, 120G SSD
OEM Request
IEC-3904-1185G7E	Digital Signage Player with Intel Core i7-1185G7E, w/ 2xHDMI, 60W power adapter
IEC-3904-1185G4E	Digital Signage Player with Intel Core i3-1115G4E, w/ 2xHDMI, 60W power adapter
IEC-3904-6305E	Digital Signage Player with Intel Celeron 6305E, w/ 2xHDMI, 60W power adapter

Downloads

Datasheet (IEC-3904) (PDF)

0.7MB
