Arbor Technology ELIT-1060 Intel Celeron N6210 2.6 GHz Digital Signage Player

Name: Arbor Technology ELIT-1060 Intel Celeron N6210 2.6 GHz Digital Signage Player
SKU: ELIT-1060
Availability: InStock

Arbor

Arbor Technology ELIT-1060 Intel Celeron N6210 2.6 GHz Digital Signage Player

ELIT-1060

Fanless design
Intel Celeron N6210 (1.5M Cache, up to 2.60 GHz)
Fanless and Ultra Compact Design
Support Triple Display: 2 x HDMI, 1 x DisplayPort
Onboard 32GB eMMC
Dual 2.5Gb ethernet & Support TPM 2.0
1 x COM, 2 x USB3.2 (Gen.1), 3 x USB2.0, 2 x USB Type-C
1 x M.2 M-key, (2260/2280), 1 x M.2 E-key (2230)
Supports Windows 10 and Windows 11

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: ELIT-1060

Categories: Arbor, Digital Signage Computers, Digital Signage Players

Range: Arbor

Details

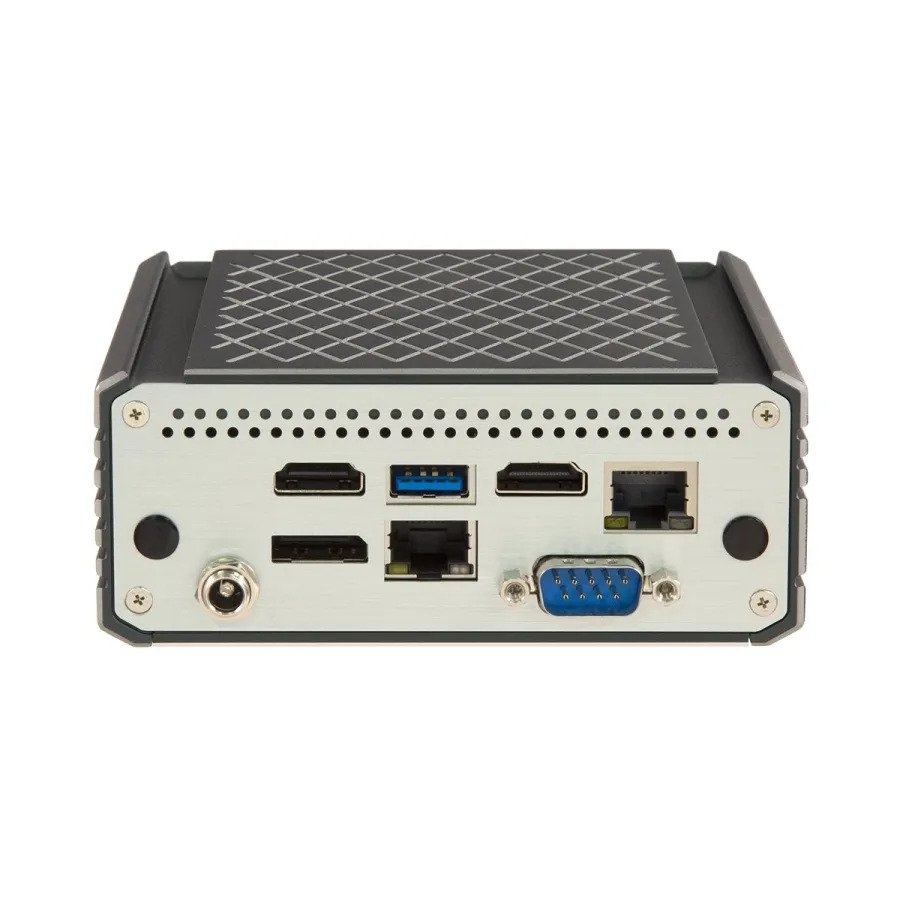

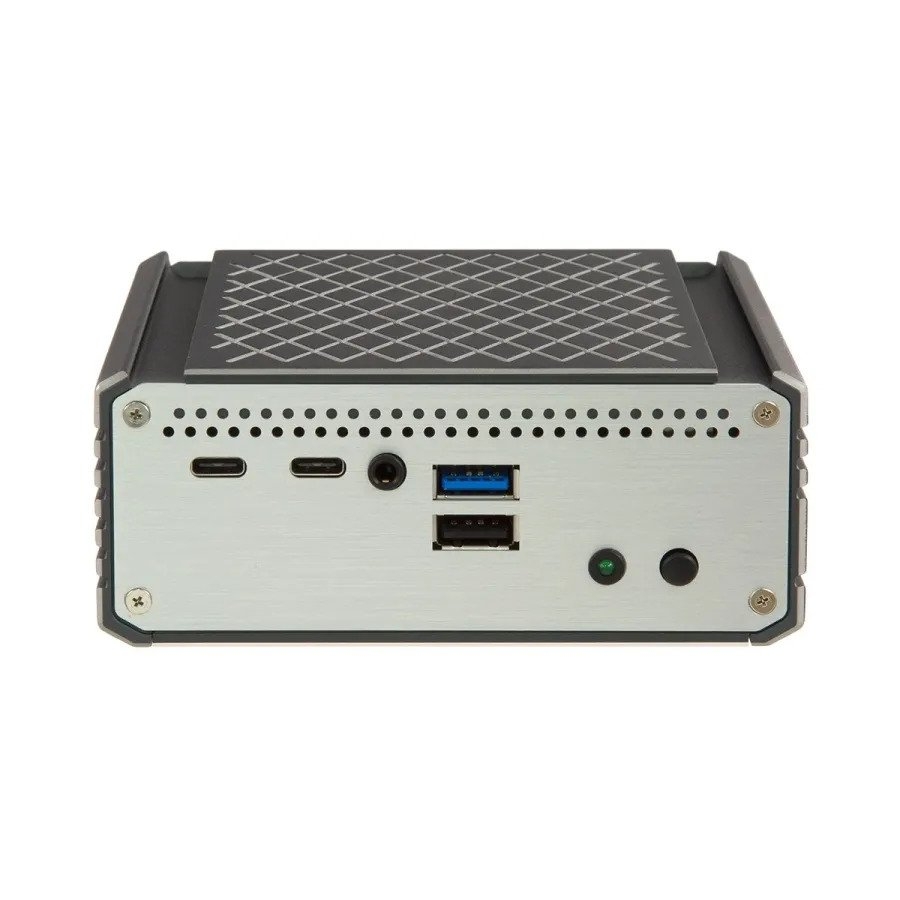

The Arbor Technology ELIT-1060 is a Fanless Digital Signage Player powered by onboard Intel Celeron N6210, 1.20GHz processor with up to 16GB RAM via 1 x 260 Pin DDR4 SO-DIMM socket. The ELIT-1060 provides storage via onboard 32GB eMMC flash memory, 1 x mSATA and 1 x MicroSD socket, that can be outside accessible, along with multiple I/O options including 2 x Type-A USB 3.2 (Gen 1),1 x Type-A USB 2.0, 2 x Type-C USB 3.2 (Gen 1), 1 x DB-9 connectors for RS232/422/485 and 2x LAN ports for 2.5 GbE. The unit also ships with 1 x DisplayPort offering a max resolution of 4096×2160@60Hz and 2 x HDMI 2.0 with a max resolution of 4096×2160@60Hz.

Ordering Info

ELIT-1060

Ultra Compact Controller by Intel Celeron N6210 w/32GB eMMC

Downloads

Datasheet (ELIT-1060) (PDF)

0.38MB
