Axiomtek OPS300-310 Intel OPS System with Celeron N3350 Processor

Name: Axiomtek OPS300-310 Intel OPS System with Celeron N3350 Processor
SKU: OPS300-310
Availability: InStock

Axiomtek

Axiomtek OPS300-310 Intel OPS System with Celeron N3350 Processor

OPS300-310

Intel Celeron processor N3350, up to 2.4 GHz CPU
1 x full size PCIe Mini Card slot
OPS standard for easy installation
High graphics performance
Size: 200mm (W) x 119mm (D) x 30mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: OPS300-310

Categories: Axiomtek, Digital Signage Computers, Digital Signage Players, Intel OPS PCs, PC's

Range: Axiomtek

Details

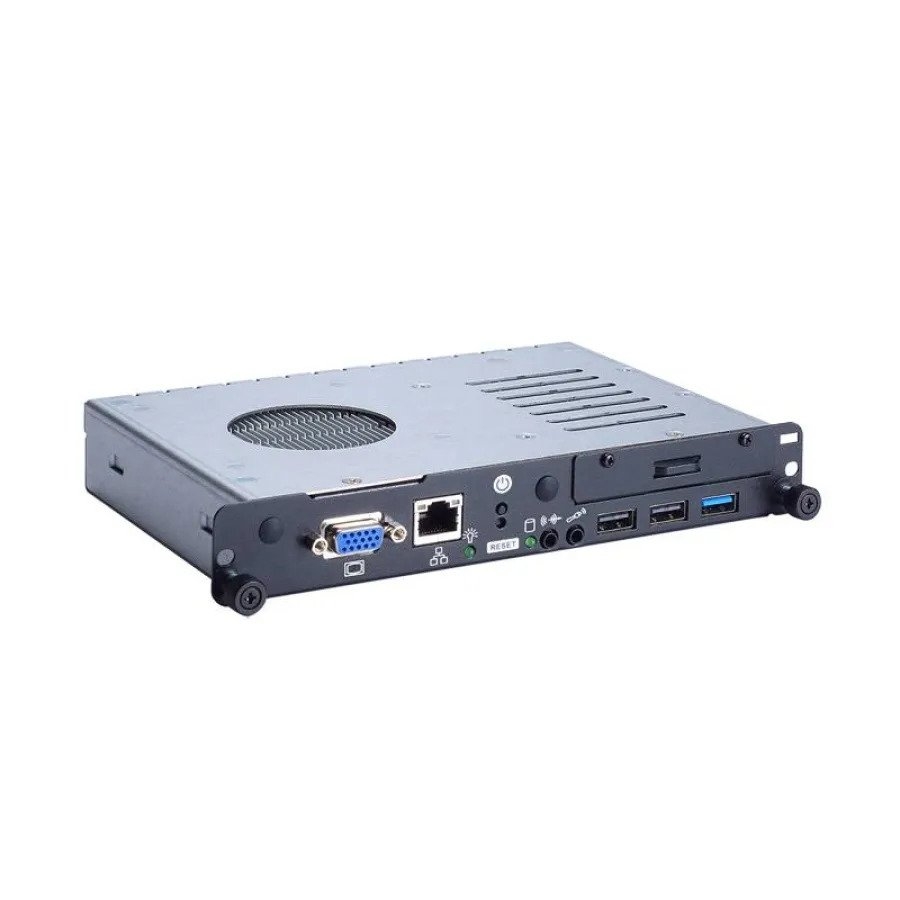

Axiomtek present the OPS300-310 Open Pluggable Specification digital signage player that can support triple independent displays. The OPS player is built around the Intel Celeron N3350 (Apollo Lake) processor (up to 2.4GHz), memory is up to 8GB and storage is through 1 x 2.5″ SATA HDD tray and 1 x mSATA (option). I/O on the OPS300-310 includes 2 x USB 2.0, 1 x USB 3.0, 1 x LAN, 1 x VGA, 1 x Audio in, 1 x Audio out plus the OPS connector. The OPS connector assimilates 1 x Display Port, 1 x HDMI, 2 x USB 2.0, 1 x USB 3.0, 1 x Audio and 1 x UART. This digital signage player also has 1 x SIM slot and the opportunity for expansion via 1 x full size PCIe Mini Card and 1 x M.2 E key card slot.

Downloads

Datasheet (OPS300-310) (PDF)

0.28MB
