Axiomtek OPS500-520-H OPS Media Player
Axiomtek OPS500-520-H OPS Media Player
OPS500-520-H
- Intel Open Pluggable Specification
- 8th gen Intel Core i7/i5/i3 & Celeron Coffee Lake Processors
- 2 x DDR4-2400 SO-DIMM for up to 32GB of memory
- 1 x M.2 Key M for SATA storage
- 1 x M.2 Key E for Wi-Fi solution
- USB 3.1 Gen1 supported
- Supports Trusted Platform Module (TPM) 2.0
- Easy installation and maintenance
OPS500-520-H
Axiomtek, Digital Signage Computers, Digital Signage Players, Intel OPS PCs, PC's
Details

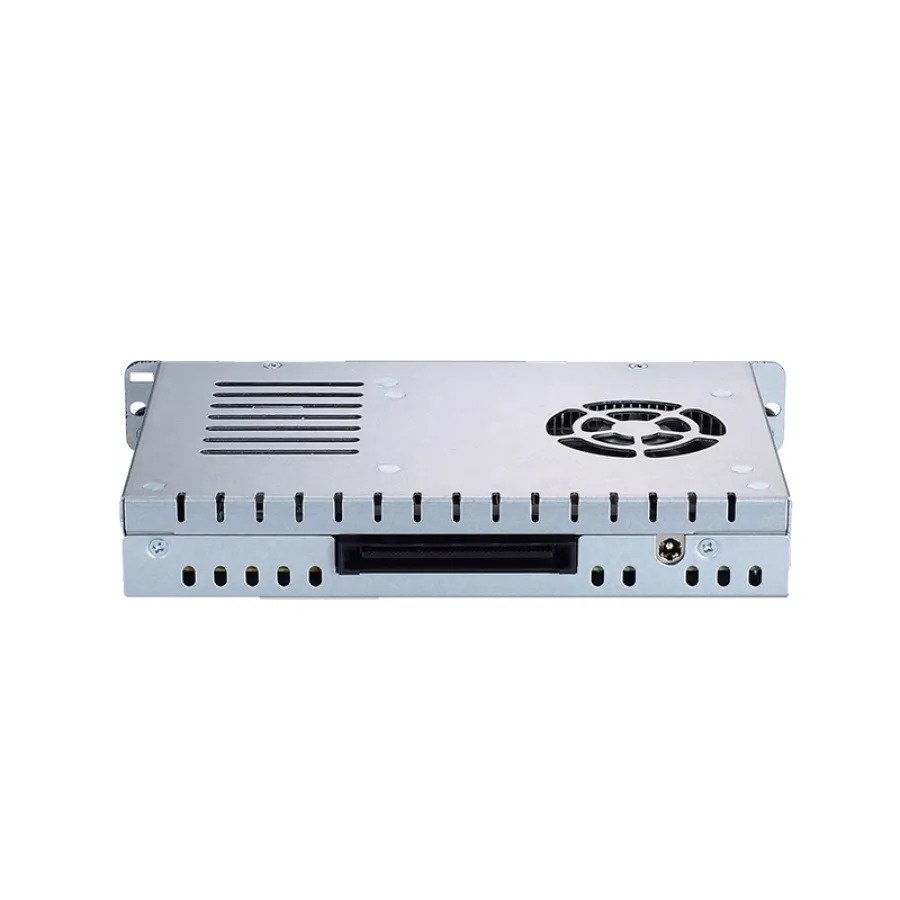

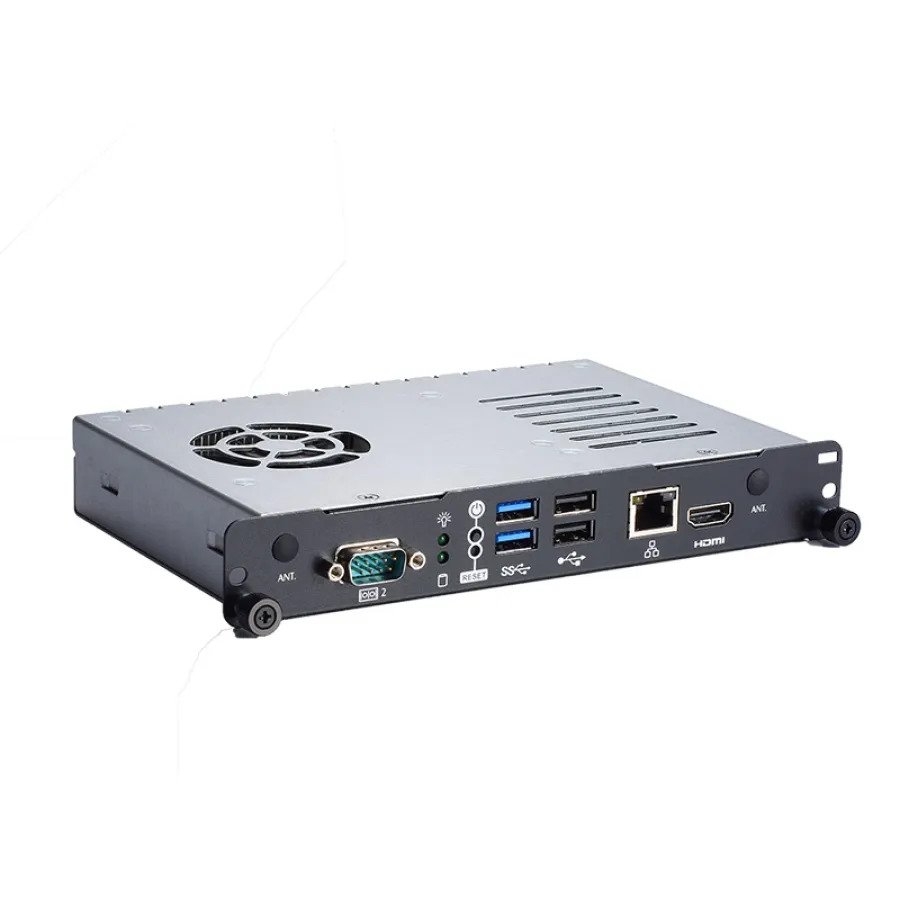

Axiomtek OPS500-520-H OPS Media Players are powered by the newest 8th generation Intel Core i7/i5/i3 and Celeron Coffee Lake processors with the Intel H310 chipset. The smart cableless digital signage module has two DDR4-2400 SO-DIMMs for up to 32GB of system memory. Axiomtek’s OPS500-520-H supports the LGA1151 socket-type processors offering greater flexibility for CPU selections, which is easily configured to meet various performance requirements. The OPS signage module is connected to OPS-compliant display via a standardized JAE TX-25A plug connector interface which supports DisplayPort, HDMI 2.0, USB 2.0, USB 3.1, audio and UART signals. It also has one M.2 Key E for Wi-Fi modules and one M.2 Key M supporting PCIe, SATA and SSD interfaces for storage. We believe that this new smart cableless open pluggable signage module with simplified installation, maintenance and upgrade can help you develop creative display solutions that increase your sales and improve your customers’ experiences. With the enhanced multimedia performance, the Intel Coffee Lake S-based OPS500-520-H is well suited for a wide range of digital signage applications in retail, transport, entertainment, education, and more.Ordering Info
| OPS500-520-H | OPS digital signage player with LGA1151 socket Intel® Core™ i7/i5/i3 & Celeron® processor, Intel® H310 and TPM 2.0 |
| AX93190 | OPS docking board with 4K @ 60Hz resolution |
| WLAN Kit | Wi-Fi module and antenna |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
| Processor Type | Intel Core |
|---|---|
| Memory Capacity | Up to 32GB |
| Serial Ports (COM) | 1 Port, 1 Port, Any COM Type, RS-232 |
| USB Ports | 2 Ports, 2 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.2 |
| Ethernet Ports (LAN) | 1 Port, 1 Port, 1G, Any LAN Speed |
| Wireless | Wi-Fi |
| Video Ports | 1 Port, 1 Port, Any Video Type, HDMI |
| Storage Type | 1, 1, Any Storage Type, M.2 SATA |
| Expansion Type | 1, 1, Any Expansion Type, M.2 |
| Input Voltage | 12-19 VDC |
| Operating Temperature | 0°C to 45°C, Standard |
| Market Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 10 IoT, Windows 10 Pro |
