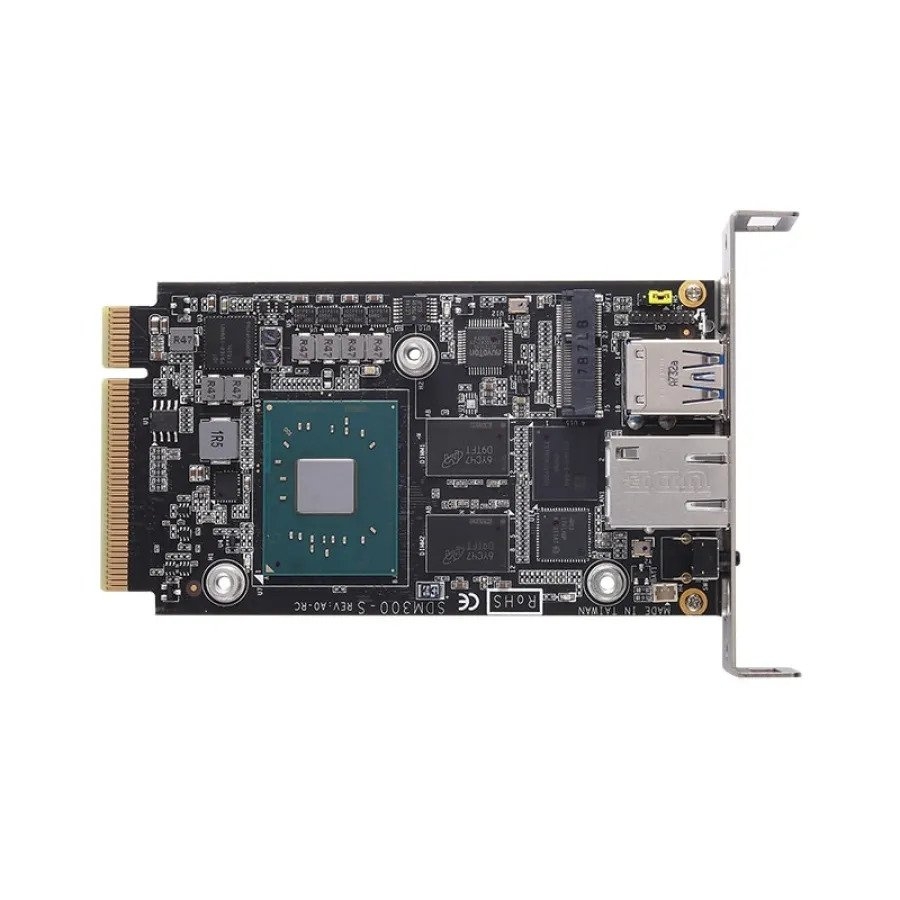

Axiomtek SDM300S Intel Smart Display Module w/ Pentium N4200 or Celeron N3350

Axiomtek SDM300S Intel Smart Display Module w/ Pentium N4200 or Celeron N3350

SDM300S

  • Intel Smart Display Module (Intel SDM) specification
  • Intel Pentium processor N4200 & Celeron processor N3350 (Apollo Lake)
  • LPDDR4 4GB memory onboard (8GB optional)
  • Onboard 32/64GB eMMC
  • One M.2 Key E 2230 slot
  • Two USB 3.0, one GbE LAN
  • Easily integrates into slim designs
  • Optimized for digital signage, public kiosks, professional monitors, point-of-sale
  • Projections for magic mirrors, beside terminals, hospitality, and more

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

Axiomtek SDM300S smart display modules are powered by the onboard Intel Pentium processor N4200 and Celeron processor N3350 (code name: Apollo Lake) with the Intel HD Graphics 505 or 500 chipset. The sleekest all-in-one display module measures only 100 x 60mm (roughly the size of a credit card), which makes for a thinner display. The SDM300S can be easily connected to an SDM-compliant display via a high-speed PCIe edge connector – which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 1.4, DisplayPort 1.2, Serial TX/RX and I2C signals. Nearly a third the size of Open Pluggable Specification (OPS), the design of the SDM300S omits housing so it is well suited for space-constricting applications.

Ordering Info

SDM300S-N4200-4GB  SDM-S module with Intel Pentium processor N4200
SDM300S-N3350-4GB  SDM-S module with Intel Celeron processor N3350
SDB100 SDM-S evaluation board
