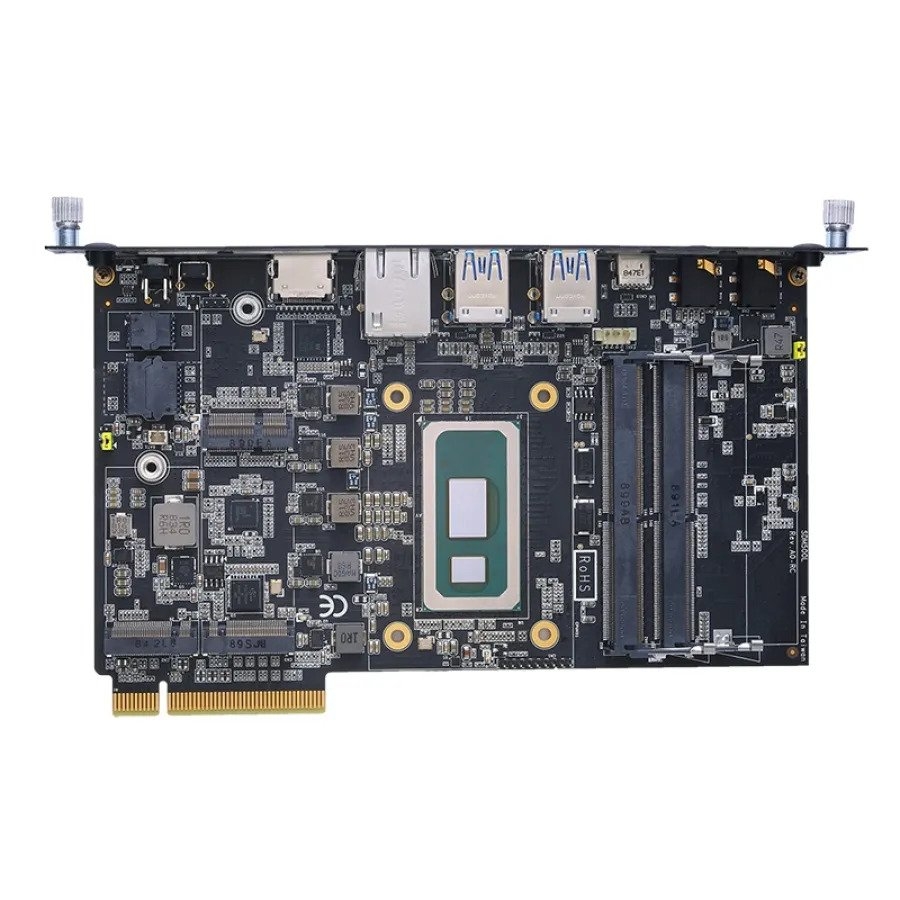

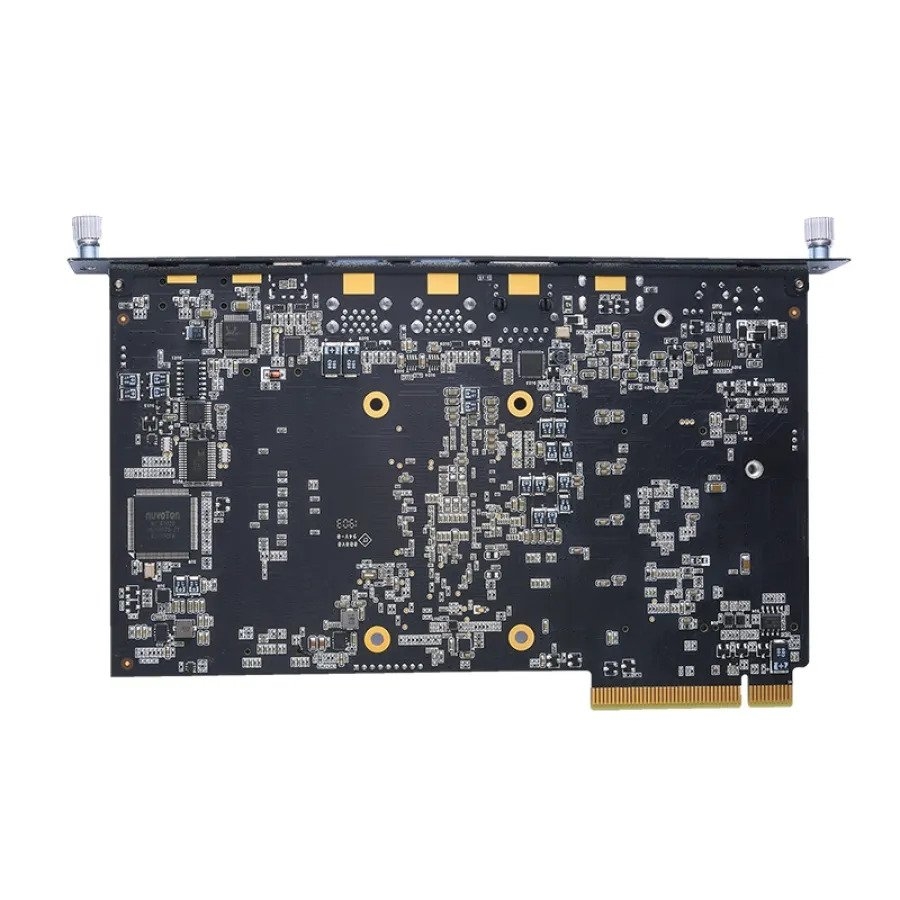

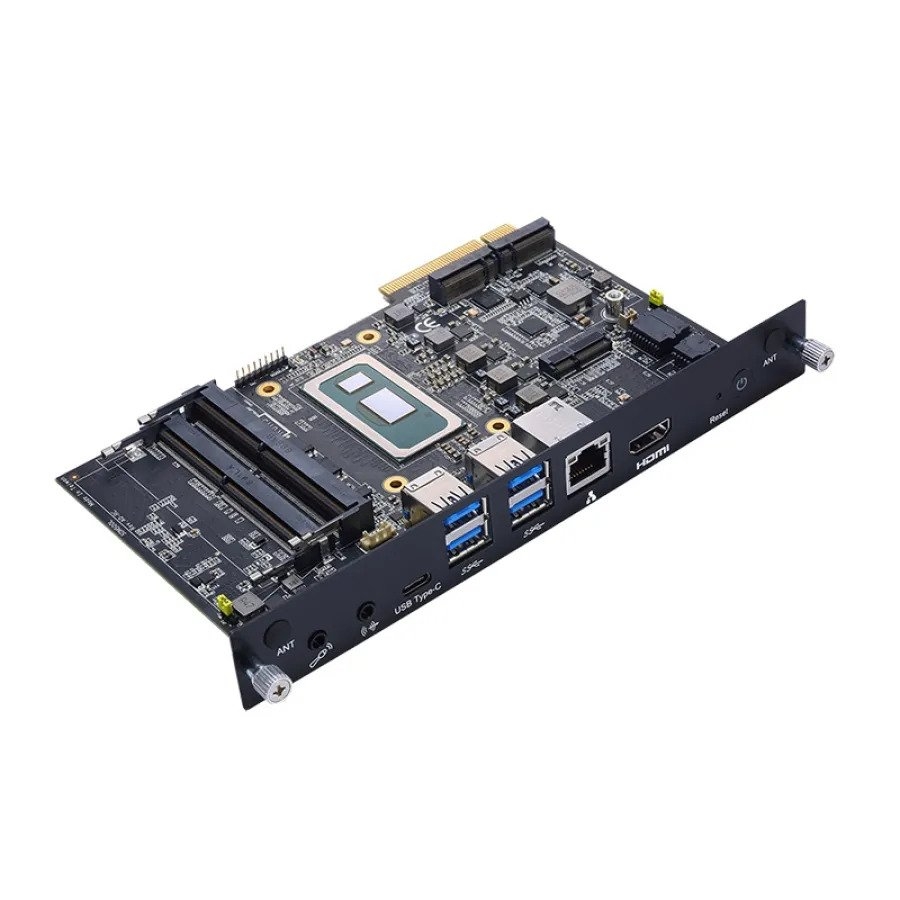

Axiomtek SDM500L Intel Smart Display Module w/ Intel Core i7/i5/i3 Processor

SDM500L

8th gen Intel Core i7/i5/i3 processor (Whiskey Lake-U)
2 DDR4-2400 SO-DIMM for up to 32G of memory
M.2 Key E expansion slot
M.2 Key M expansion slot
M.2 Key B expansion slot
One HDMI, four USB 3.0, one USB type C and LAN
Supports Intel® AMT 12

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: SDM500L

Categories: Digital Signage Computers, Digital Signage Players, Intel SDM Smart Display Modules, PC's

Details

The Axiomtek SDM500L is powered by the onboard 8th generation Intel Core i7/i5/i3 processor with the Intel Generation 9 HD Graphics chipset. The Intel Smart Display Module-Large (Intel SDM-L) measures just 175 x 100 mm and a maximum z-height of 1.6 mm, which is well-suited for ultra-slim displays. It can be easily connected to an SDM-compliant display via a high-speed PCIe x8 edge connector – which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 2.0, DisplayPort 1.2, Serial TX/RX and I2C signals. With its excellent graphics performance and installation flexibility, the incredible signage module can satisfy diverse industry requirements and support a wide range of digital signage applications such as bedside terminals for hospital patients or factory automation solutions.

Ordering Info

SDM500L-i5	SDM-L Module with Intel Core i5 processor
SDB100	SDM PIB Board

Downloads

Datasheet (SDM500L) (PDF)

0.26MB
