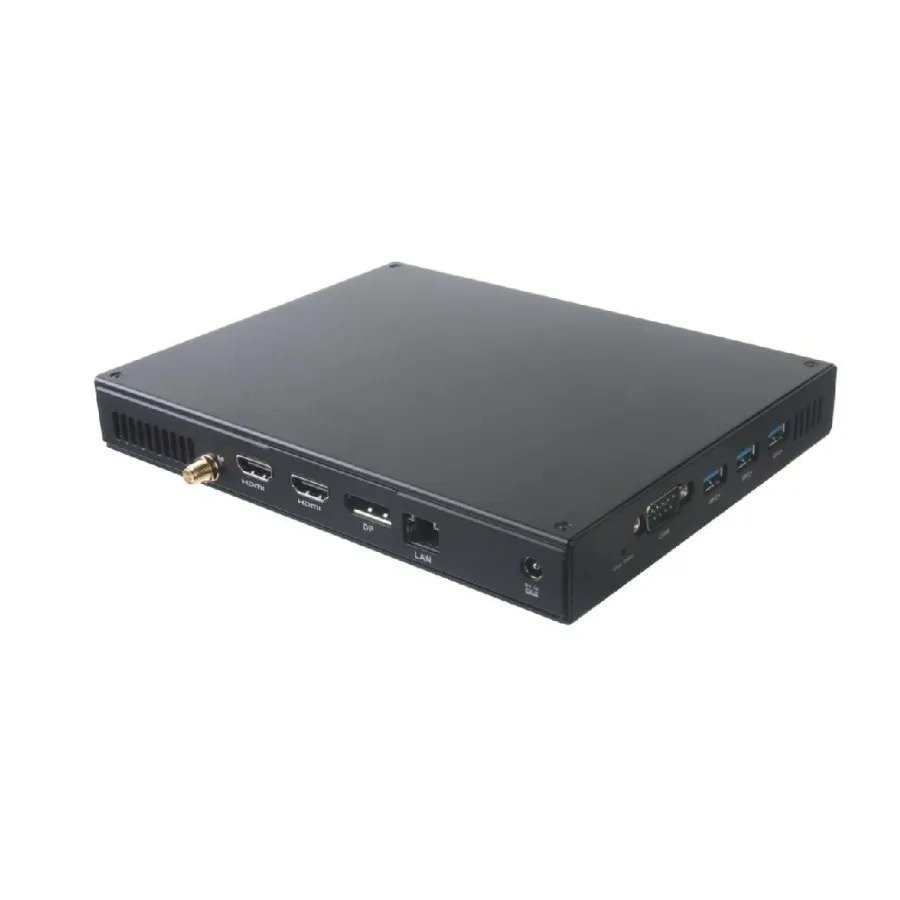

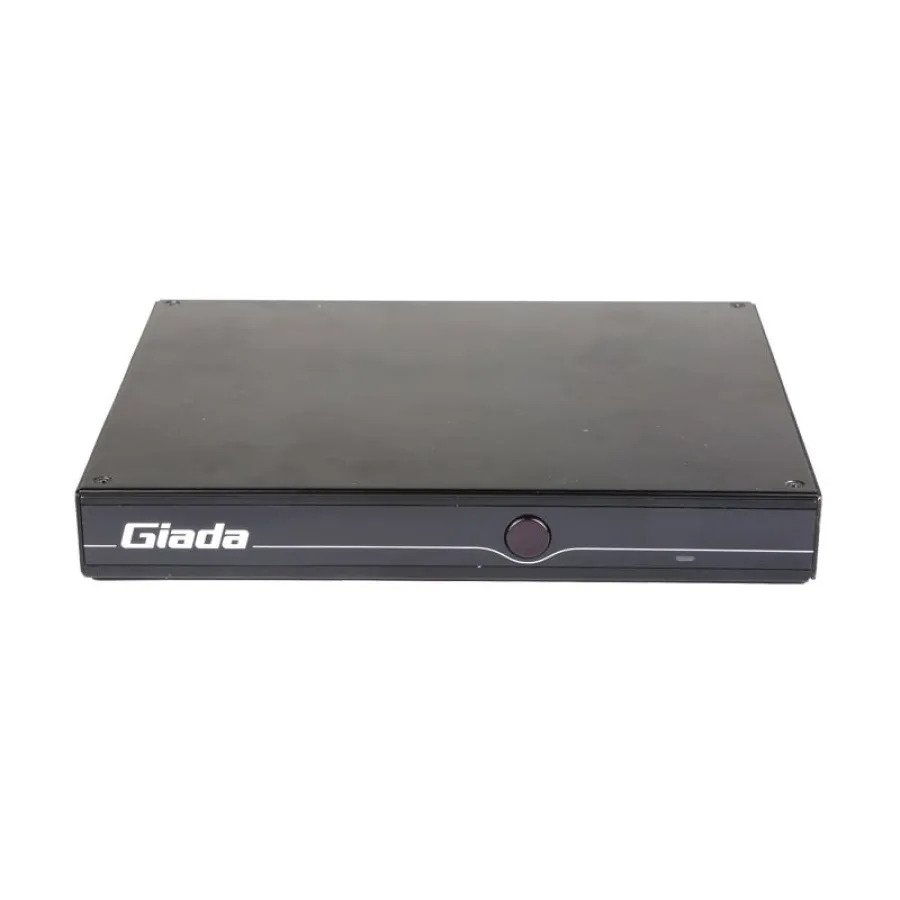

Giada D610 Intel Core i3/i5 High-end 4K Digital Signage Player
Giada D610 Intel Core i3/i5 High-end 4K Digital Signage Player
D610

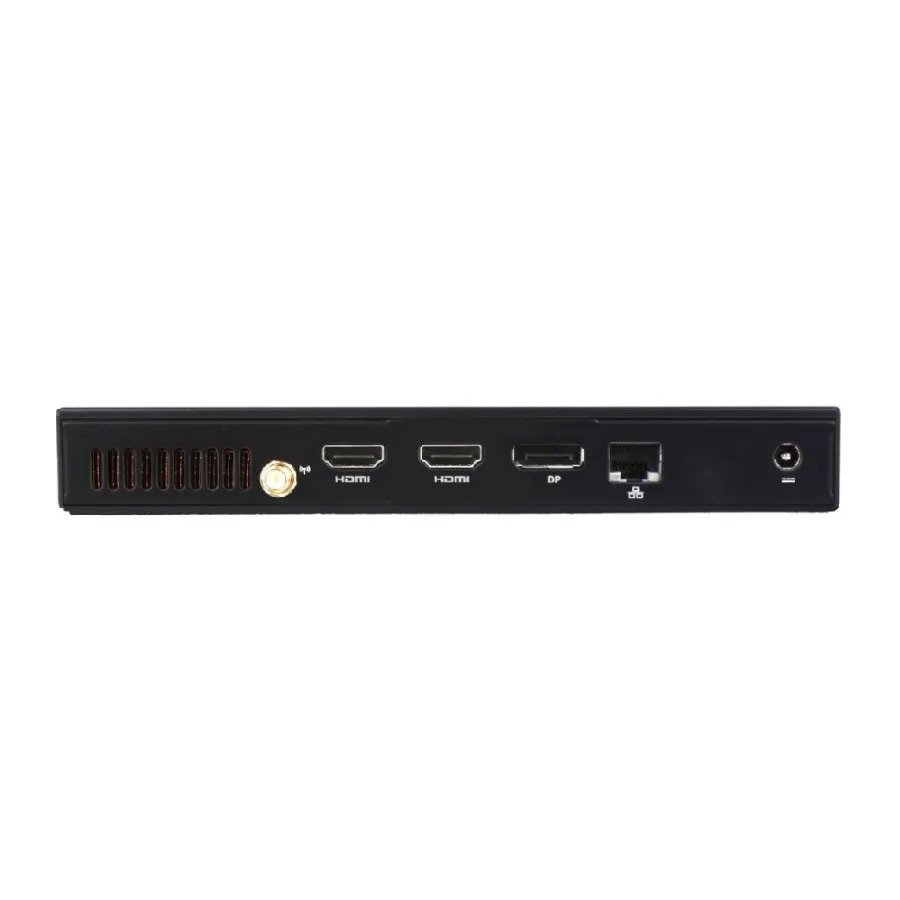

- 1 x DP, 1 x HDMI, Supporting 4K Display
- 2 x SO-DIMM DDR4 Memory, Up to 32GB
- 1 x M-key M.2 (2242/2280) for SATA/NVMe
- 1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
Details
The Giada D610 Comet Lake High End Digital Signage Display can fully support 4K Display via 1 x Display Port and 2 x HDMI ports, driven by its Intel Core i3/i5 Processor with Intel 10th Gen, UHD Graphics with 2 x SO-DIMM up to 32GB Memory. It ships with multiple I/O including 5 x USB 3.2 Gen2 (10Gbps), 1 x RS232 and 1 x Full-Size Mini-PCIe for mSATA/Wifi/3G/4G.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
| Processor Type | 4 Cores, Intel Core |
|---|---|
| Memory Capacity | Up to 32GB |
| Serial Ports (COM) | 1 Port, 1 Port, Any COM Type, RS-232 |
| USB Ports | 5 Ports, 5 Ports, Any USB Speed, USB 3.2 |
| Ethernet Ports (LAN) | 1 Port, 1 Port, 1G, Any LAN Speed |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1 Port, 2 Ports, 3 Ports, Any Video Type, DisplayPort, HDMI |
| Audio | Yes |
| Storage Type | 1, 1, Any Storage Type, M.2 |
| Expansion Type | 1, 1, 2, Any Expansion Type, M.2, Mini PCI Express |
| Input Voltage | 12-19 VDC |
| Mounting Options | VESA-mount |
| Operating Temperature | 0°C to 40°C, Standard |
| Market Certifications | CE/FCC |
| OS Support | Windows 10, Windows 10 IoT, Windows 10 Pro |
