Giada D612 12th Gen Intel Core i3-1215U/i5-1235U 4K Display Digital Signage Player

Giada D612 12th Gen Intel Core i3-1215U/i5-1235U 4K Display Digital Signage Player

D612

  • 4 x HDMI, Supporting 4K Display
  • 2 x SO-DIMM DDR4-3200 MHz Memory, Up to 64GB
  • 1 x M-key M.2 2280 for PCIe SSD
  • Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G Ethernet Access, 1x SIM Slot

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

12th Gen. Alder Lake Processors High Computing Performance Giada D612 houses Intel 12th-Gen processors of i3-1215U, i5-1235U, which deliver 19 percent more performance than today’s 11th-gen “Rocket Lake”. At the same time, it can support Intel 12th-Gen Alder Lake-P processors (optional). D612 has the Intel vPro and TPM 2.0 features to deliver increased productivity, remote manageability and data security. Four Display Outputs Supporting 4K Video Playback The player adopts Intel integrated Iris Xe GPU (Core i5), which has 50% graphic performance improvement compared with the last generation. It can deliver up to 4 x 4K displays (4096 x 2304@60Hz) via 4 x HDMI2.0 ports. Intel vPro Technology Intel Hardware Shield delivers integrated hardware-based PC protection, which includes below-the-OS security, application and data protection, and advanced threat detection. Support 5G Mobile Network 5G provides game-changing benefits like speeds up to 10 times faster than 4G LTE speeds, a safer alternative to public Wi-Fi, low latency and massive capacity. The Quectel-RM50XQ 5G module was certified to be compatible with D612.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type 10 Cores, Intel Core
GPU Integrated GPU
Memory Capacity Up to 64GB
Serial Ports (COM) 1 Port, 1 Port, Any COM Type, RS-232
USB Ports 2 Ports, 2 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.2
Ethernet Ports (LAN) 1 Port, 1 Port, 1G, Any LAN Speed
Wireless Cellular, Wi-Fi
Video Ports 4 Ports, 4 Ports, Any Video Type, HDMI
Audio Yes
Storage Type 1, 1, Any Storage Type, M.2 PCIe
Input Voltage 19 VDC

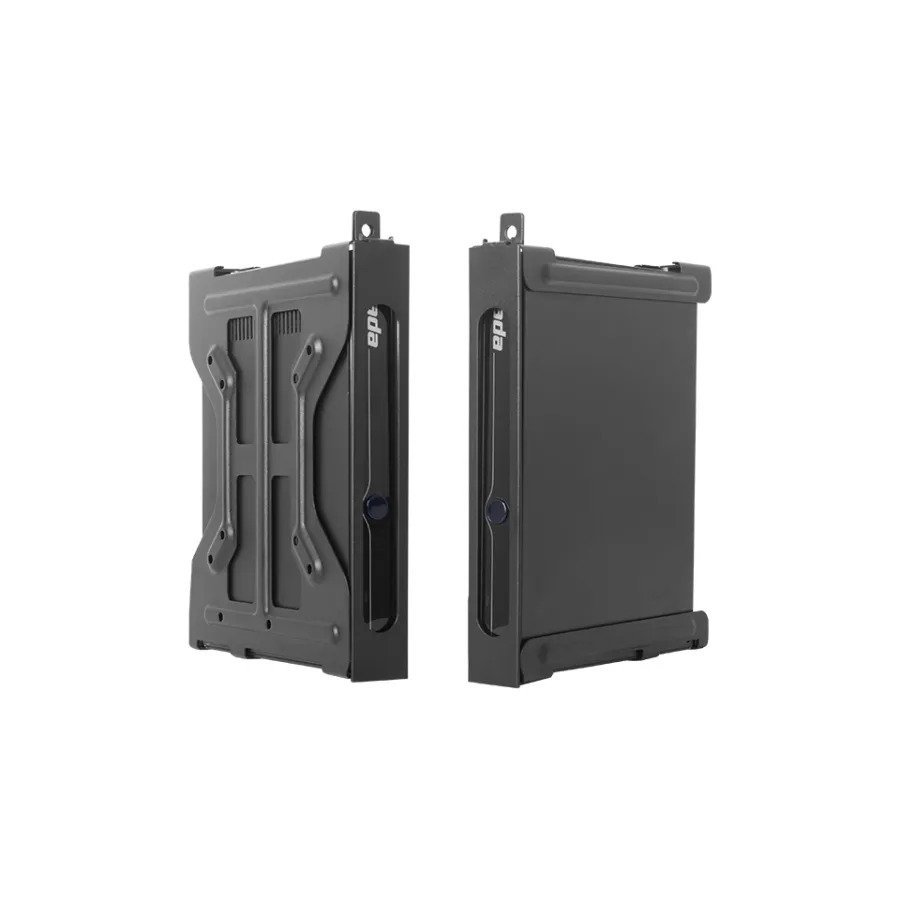

Mounting Options VESA-mount
Operating Temperature 0°C to 45°C, Standard
Market Certifications CE/FCC
OS Support Linux, Windows 11, Windows 11 IoT, Windows 11 Pro
