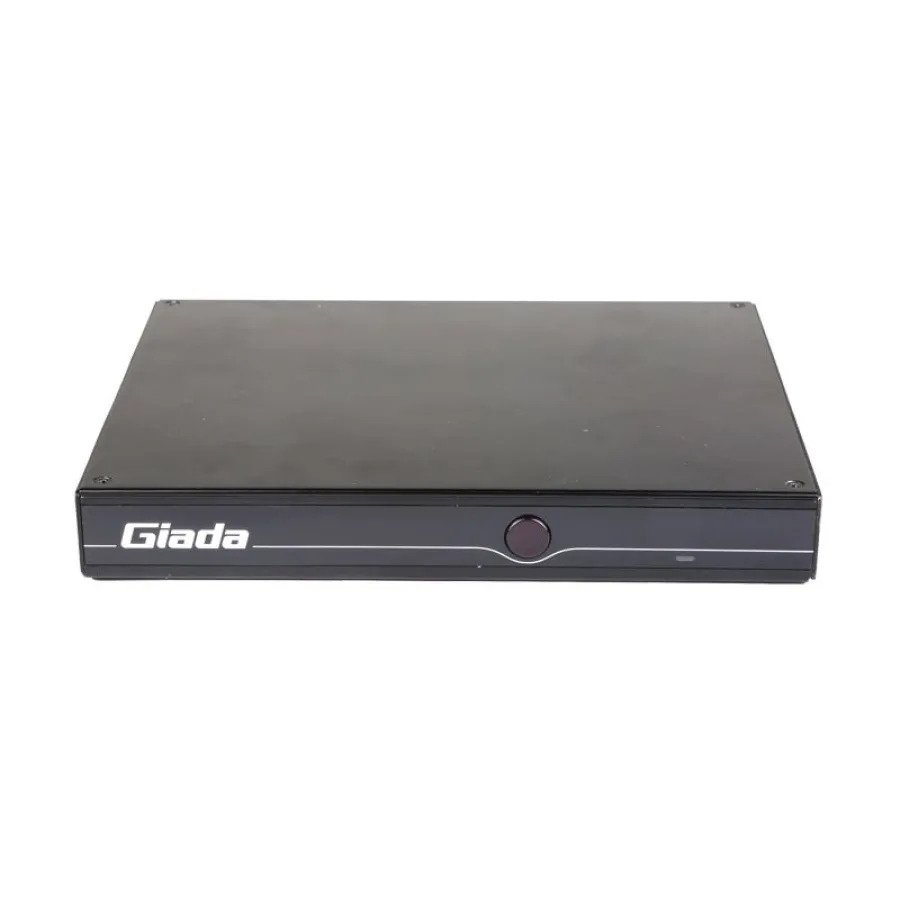

Giada D68 Digital Signage PC with 8th Gen Intel Core Processors

D68

Intel 8 th Generation Core Processors
2 x SO-DIMM DDR4, Up to 32GB

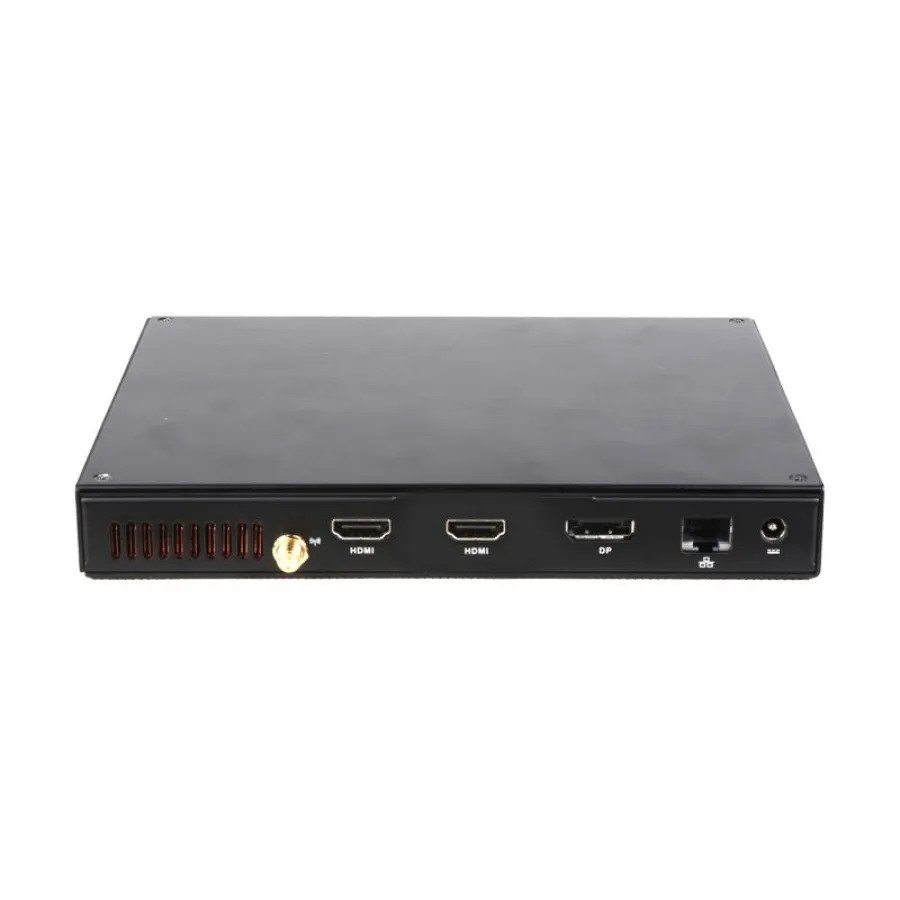

1 x DP, 2 x HDMI, Supporting 4K Display
1 x mSATA(Optional), 1 x M.2(2242/2280) for SSD
5 x USB3.1, 1 x RS232
1 x RJ45, 1 x Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: D68

Categories: Digital Signage Computers, Digital Signage Players, Giada, PC's

Range: Giada

Details

Giada D68, Giadas latest book-sized PC, is ideal for signage player applications in hospitality, retail, commercial, service and advertising roles. This device brings organizations all the performance and efficiency of Intel Whiskey Lake CPUs, plus independent outputs to multiple 4K displays, plus the ease of use and rapid employee and client uptake offered by intuitive touch screen support.

Downloads

Datasheet (D68) (PDF)

0.42MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type	4 Cores, Intel Core
Memory Capacity	Up to 32GB
Serial Ports (COM)	1 Port, 1 Port, Any COM Type, RS-232
USB Ports	5 Ports, 5 Ports, Any USB Speed, USB 3.1
Ethernet Ports (LAN)	1 Port, 1 Port, 1G, Any LAN Speed
Wireless	Cellular, Wi-Fi
Video Ports	1 Port, 2 Ports, 3 Ports, Any Video Type, DisplayPort, HDMI
Audio	Yes
Storage Type	1, 1, 2, Any Storage Type, M.2, mSATA
Expansion Type	1, 2, 3, Any Expansion Type, M.2, Mini PCI Express
Input Voltage	19 VDC
Mounting Options	Desk-mount, VESA-mount, Wall-mount
Operating Temperature	0°C to 40°C, Standard
Market Certifications	CE/FCC
OS Support	Windows 10, Windows 10 IoT, Windows 10 Pro
