Giada DN72 Ultra-compact ARM-based Media Player for Digital Signage

Giada DN72 Ultra-compact ARM-based Media Player for Digital Signage

DN72

  • Brand: Giada
  • ARM based RK3288 Quad Core A17 CPU
  • Cost effective
  • Android 5.1 OS
  • 3 x USB 2.0, 1 x USB 2.0 OTG, 1 x HDMI
  • Size: 116.6mm (W) x 107.2mm (D) x 30mm (H)
-
+

Details

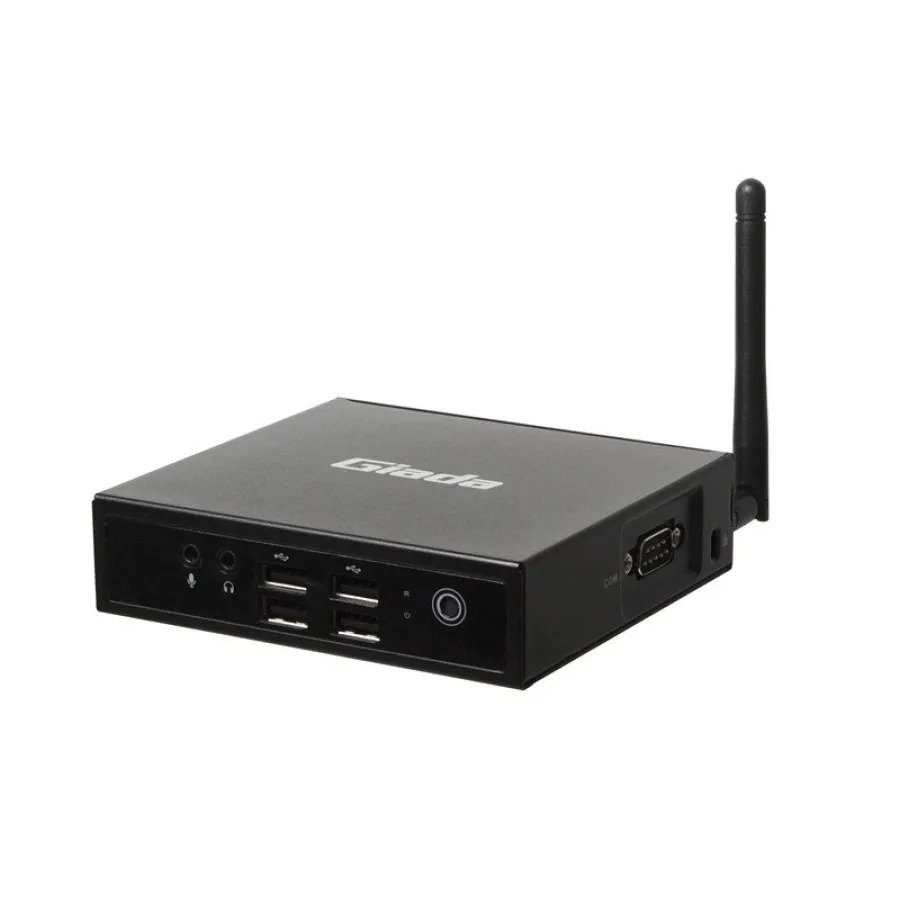

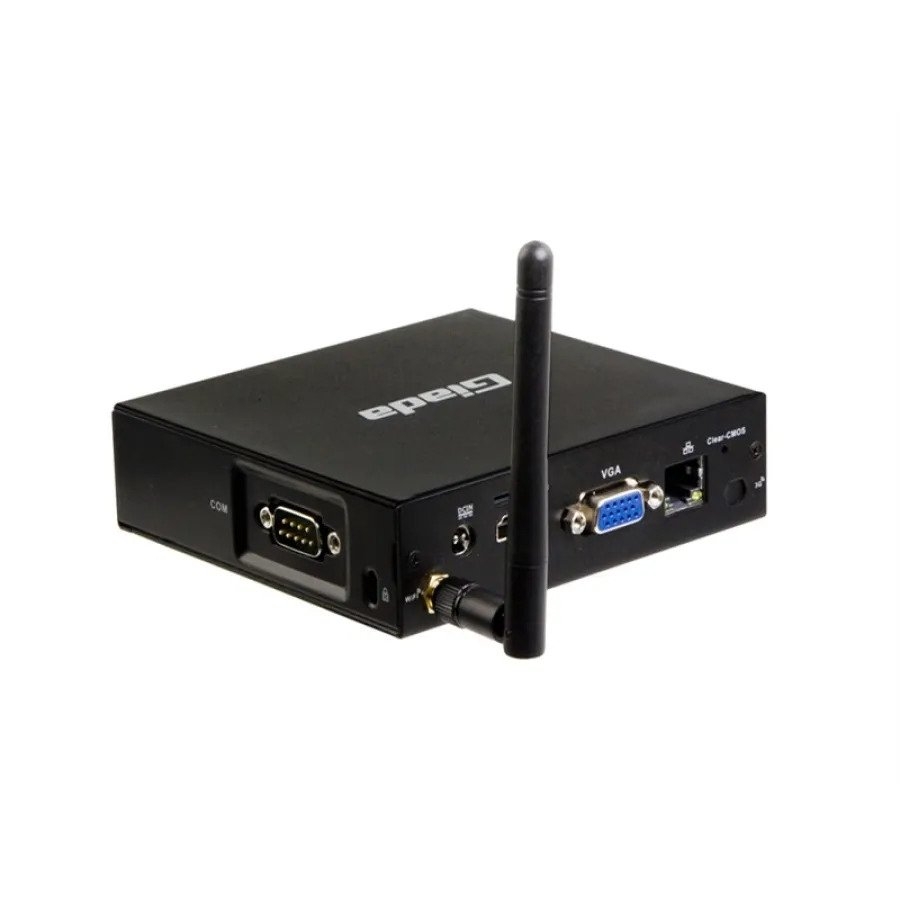

The Giada DN72 is a cost-effective fanless media player, powered by the RK3288 Quad Core A17 ARM processor. The system is designed primarily for digital signage with the Android 5.1 operating system installed. This 4K supporting player will be another entry-level digital signage success for Giada. I/O on the DN72 includes 1 x HDMI, 1 x LAN, 3 x USB 2.0, 1 x USB 2.0 OTG and an RS232 serial port. Expansion is available for WiFI/BT/3G/4G via 1 x full size Mini-PCIe and there is a SIM slot also for 3G/4G.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type 4 Cores, RISC
Memory Capacity Up to 2GB
Cooling Type Fanless
Serial Ports (COM) 1 Port, 1 Port, Any COM Type, RS-232
USB Ports 4 Ports, 4 Ports, Any USB Speed, USB 2.0
Ethernet Ports (LAN) 1 Port, 1 Port, 1G, Any LAN Speed
Wireless Cellular, Wi-Fi
Video Ports 1 Port, 1 Port, Any Video Type, HDMI
Audio Yes
Storage Type 1, 1, Any Storage Type, eMMC
Expansion Type 1, 1, Any Expansion Type, Mini PCI Express
Input Voltage 12 VDC
Mounting Options Desk-mount, VESA-mount, Wall-mount
Operating Temperature 0°C to 40°C, Standard
Market Certifications CE/FCC
OS Support Android
