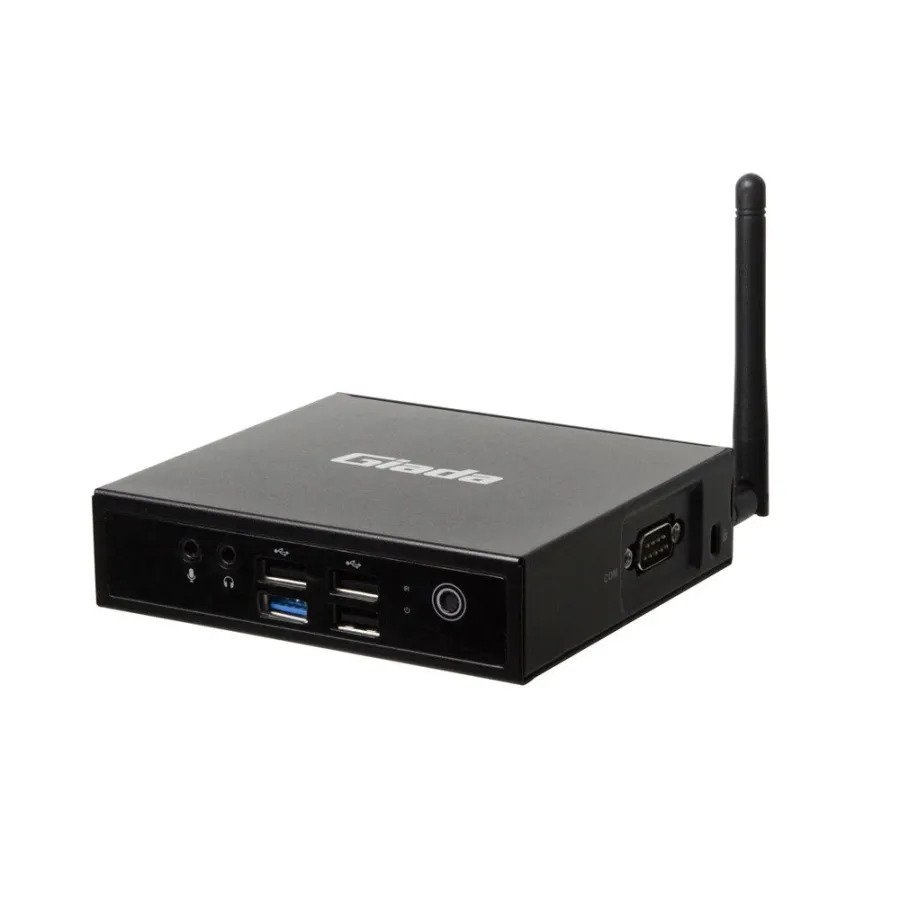

Giada DN73 ARM Cortex 4K Digital Media Player, 1 HDMI, 1 x SIM 3G/4G
Giada DN73 ARM Cortex 4K Digital Media Player, 1 HDMI, 1 x SIM 3G/4G
DN73
- RK3328 Quad-core ARM Cortex-A53 up to 1.5GHz
- Onboard 1GB DDR3L Memory (Optional: 2GB）
- 1 x HDMI, Supporting 4K 60HZ Display
- eMMC Onboard 16GB
- 1 x USB3.0, 2 x USB2.0, 1 x USB2.0 OTG, 1 x RS232
- 1 x RJ45, 1 x Mini-PCIe for 3G/4G, 1 x SIM Slot
Details
Giada DN73 entry-level digital media players are a low cost solution for driving 4K media to your displays via the HDMI port. SIM slots onboard make for simple content updates via 3G or 4G cellular networks. Running Android OS, Assured Systems can preinstall your content management system.Ordering Info
| DN73-F1-3328R31E4 | RK3328 Quad-core ARM Cortex-A53 CPU, 2GB Onboard DDR3L-1333MHz RAM, 16GB Storage (Optional: 8GB /32GB/ 64GB), Onboard WiFi Module |
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
| Processor Type | 4 Cores, RISC |
|---|---|
| Memory Capacity | Up to 2GB |
| Serial Ports (COM) | 1 Port, 1 Port, Any COM Type, RS-232 |
| USB Ports | 1 Port, 3 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.0 |
| Ethernet Ports (LAN) | 1 Port, 1 Port, 1G, Any LAN Speed |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1 Port, 1 Port, Any Video Type, HDMI |
| Audio | Yes |
| Storage Type | 1, 1, Any Storage Type, eMMC |
| Expansion Type | 1, 1, Any Expansion Type, Mini PCI Express |
| Input Voltage | 12 VDC |
| Mounting Options | Desk-mount, VESA-mount, Wall-mount |
| Operating Temperature | 0°C to 40°C, Standard |
| Market Certifications | CE/FCC |
| OS Support | Android |
