Giada DN76 Android 11 Rockchip RK3568 Fanless Digital Signage Computer 2GB RAM

Name: Giada DN76 Android 11 Rockchip RK3568 Fanless Digital Signage Computer 2GB RAM
SKU: DN76
Availability: InStock

Giada

Giada DN76 Android 11 Rockchip RK3568 Fanless Digital Signage Computer 2GB RAM

DN76

Rockchip RK3568 CPU
Quad-core Cortex-A55 up to 2.0GHz processor.
Dual Channels DDR4 RAM, eMMC5.1 storage and dual band Wi-Fi, Bluetooth 4.2
Dual Display Outputs that supports UHD (4K) Video Playback
Rockchip’s integrated Mali-G52 GPU
Supports two different video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440 @30 Hz).
Fanless Design via its Passive Thermal Cooling System

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: DN76

Categories: Android Media Players, Digital Signage Computers, Digital Signage Players, Giada

Range: Giada

Details

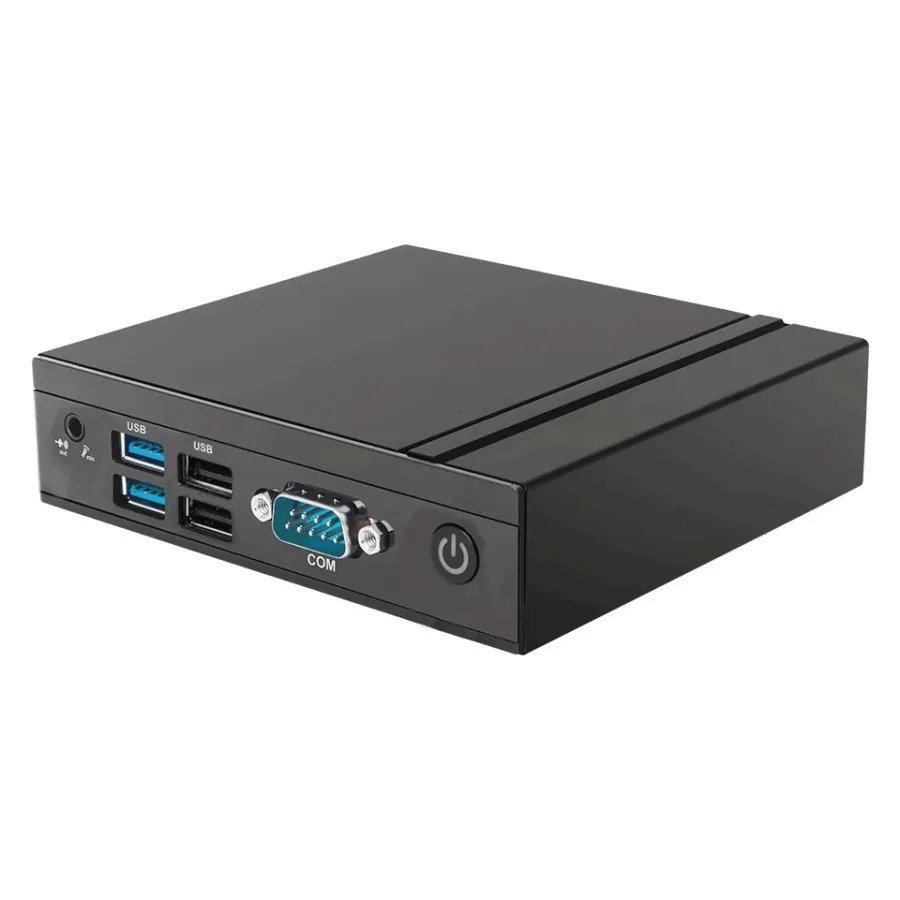

The Giada DN76 Fanless Digital Signage Computer is powered by Rockchip’s RK3568 processor with this ultra-compact Android player being equipped with a Quad-core Cortex-A55 up to 2.0GHz processor. It supports onboard dual channels DDR4 RAM, eMMC5.1 storage and dual band Wi-Fi, Bluetooth 4.2, shipping with Dual Display Outputs that supports UHD (4K) Video Playback. The player adopts Rockchip’s integrated Mali-G52 GPU, with the player supporting two different video outputs via 1 x HDMI 2.0 (4096 x 2304@60Hz) and 1 x HDMI 1.4a (2560 x 1440 @30 Hz). With its passive thermal cooling system, the fanless design reduces the failure rate and makes the device running with noise-free and dustproof. It enables this Giada device applicable in mission critical applications.

Downloads

Datasheet (DN76) (PDF)

0.88MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type	4 Cores, RISC
Memory Capacity	Up to 2GB
Serial Ports (COM)	1 Port, 1 Port, Any COM Type, RS-232
USB Ports	2 Ports, 2 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.2
Ethernet Ports (LAN)	1 Port, 1 Port, 1G, Any LAN Speed
Wireless	Cellular, Wi-Fi
Video Ports	2 Ports, 2 Ports, Any Video Type, HDMI
Audio	Yes
Storage Type	1, 1, Any Storage Type, eMMC
Expansion Type	1, 1, Any Expansion Type, Mini PCI Express
Input Voltage	12 VDC
Mounting Options	VESA-mount
Operating Temperature	0°C to 45°C, Standard
Market Certifications	CE/FCC
OS Support	Android
