Giada F106D Intel Celeron N5095/N5100 4K Display Book-size Digital Signage Player
Giada F106D Intel Celeron N5095/N5100 4K Display Book-size Digital Signage Player
F106D

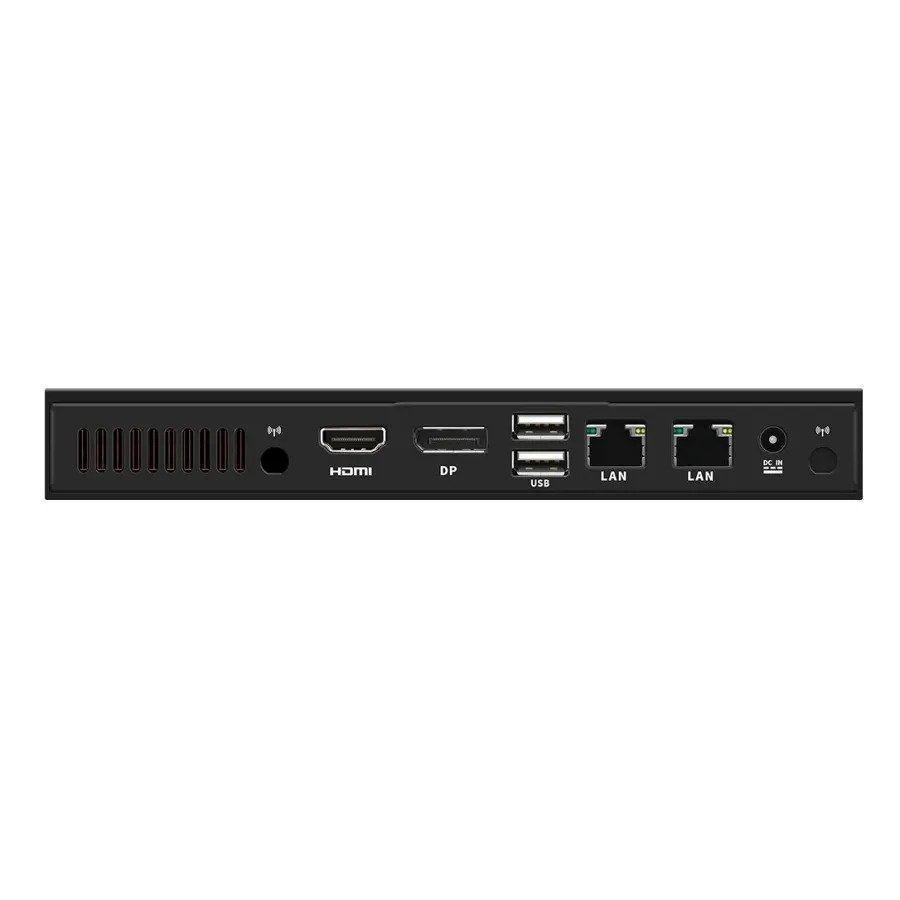

- 1 x DP, 1 x HDMI, Supporting 4K Display
- Onboard LPDDR4 4GB, 2 Channels (Optional: 8GB)
- 2 x RJ45
- 1 x M-key M.2 (2242/2280) for SSD
- 1 x Full-size Mini-PCIe for MSATA or 3G/4G
Details
The Giada F106D Jasper Lake Book-size Digital Signage Player is driven by Intel Celeron N5095 Processor with Intel UHD Graphics 630 supporting 4K Display via 1 x HDMI and 1 x DP ports, shipping with multiple I/O including 2 x USB3.2 Gen2, 4 x USB2.0 and 1 x RS232.Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
| Processor Type | 4 Cores, Intel Celeron |
|---|---|
| GPU | Integrated GPU |
| Memory Capacity | Up to 8GB |
| Serial Ports (COM) | 1 Port, 1 Port, Any COM Type, RS-232 |
| USB Ports | 2 Ports, 4 Ports, 6 Ports, Any USB Speed, USB 2.0, USB 3.2 |
| Ethernet Ports (LAN) | 1 Port, 1 Port, 1G, Any LAN Speed |
| Wireless | Cellular, Wi-Fi |
| Video Ports | 1 Port, 1 Port, 2 Ports, Any Video Type, DisplayPort, HDMI |
| Audio | Yes |
| Storage Type | 1, 1, 1, 3, Any Storage Type, eMMC, M.2, mSATA |
| Expansion Type | 1, 1, Any Expansion Type, M.2 |
| Input Voltage | 12-19 VDC |
| Mounting Options | VESA-mount |
| Operating Temperature | 0°C to 40°C, Standard |
| Market Certifications | CE/FCC |
| OS Support | Linux, Windows 10, Windows 10 IoT, Windows 10 Pro |
