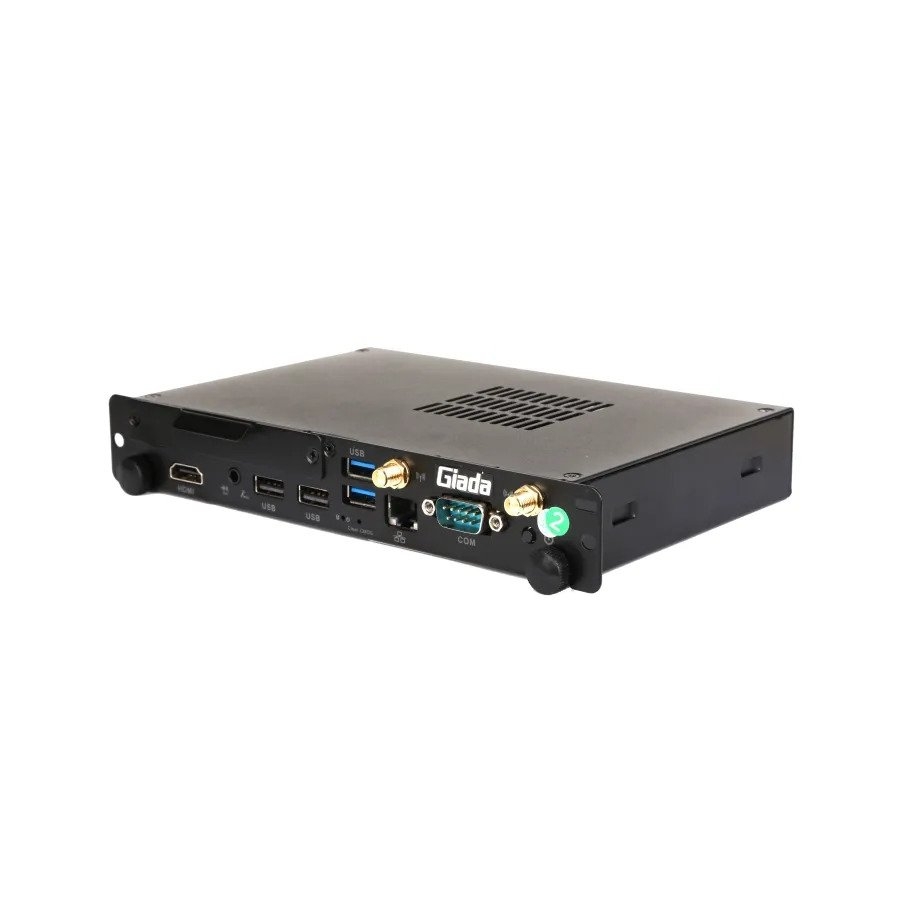

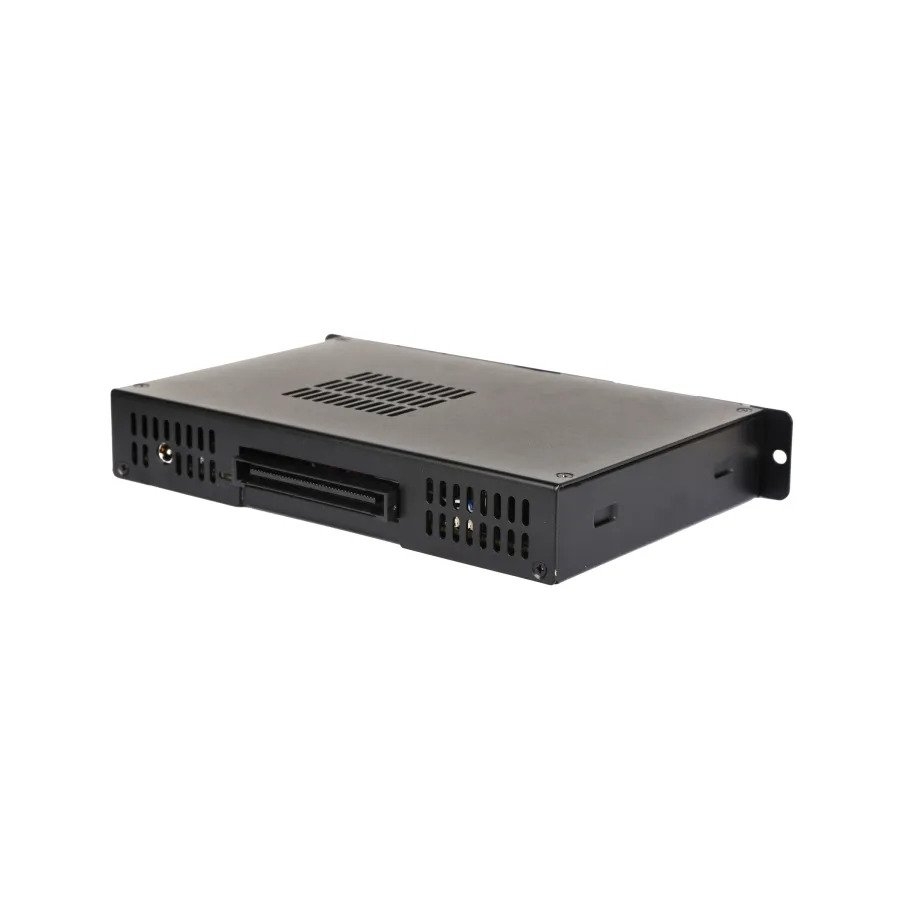

Giada PC25 Intel OPS Computer with Intel Pentium J5005 / Intel Celeron J4105

Name: Giada PC25 Intel OPS Computer with Intel Pentium J5005 / Intel Celeron J4105
SKU: PC25
Availability: InStock

Giada

Giada PC25 Intel OPS Computer with Intel Pentium J5005 / Intel Celeron J4105

PC25

Intel Gemini Lake Pentium/Celeron Processors
2 x SO-DIMM DDR4, Up to 8GB
1 x JAE (DP/HDMI), 1 x HDMI, Supporting Full 4K Display
1 x 2.5″ SATA, 1 x mSATA, 1 x M.2 (2242/2280)
2 x USB 3.0, 2 x USB 2.0, 1 x RS232
1 x RJ45, 1 x M.2 (2230) for WiFi/BT

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: PC25

Categories: Digital Signage Computers, Digital Signage Players, Giada, Intel OPS PCs, PC's

Range: Giada

Details

Giada PC25 is the latest product designed according to Intel OPS standard. It adopts Intel Gemini Lake CPU and supports full 4K video Output. It can support solutions of all-in-one touch PC, interactive whiteboard and collaboration.

Downloads

Datasheet (PC25) (PDF)

0.71MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type	4 Cores, 4 Cores, Intel Celeron, Intel Pentium
Memory Capacity	Up to 8GB
Serial Ports (COM)	1 Port, 1 Port, Any COM Type, RS-232
USB Ports	2 Ports, 2 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.0
Ethernet Ports (LAN)	1 Port, 1 Port, 1G, Any LAN Speed
Wireless	Wi-Fi
Video Ports	1 Port, 2 Ports, 3 Ports, Any Video Type, DisplayPort, HDMI
Audio	Yes
Storage Type	1, 1, 1, 2.5", 3, Any Storage Type, M.2, mSATA
Expansion Type	1, 2, 3, Any Expansion Type, M.2, Mini PCI Express
Input Voltage	19 VDC
Operating Temperature	0°C to 40°C, Standard
Market Certifications	CE/FCC
OS Support	Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
