Giada Q30 Fanless Compact Digital Signage Player w/ARM Cortex-A9 Quad Core SoC

Q30

Brand: Giada
Rockchip RK3188 Cortex-A9 Quad core up to 1.6GHz CPU
Cost effective
Supports Android OS

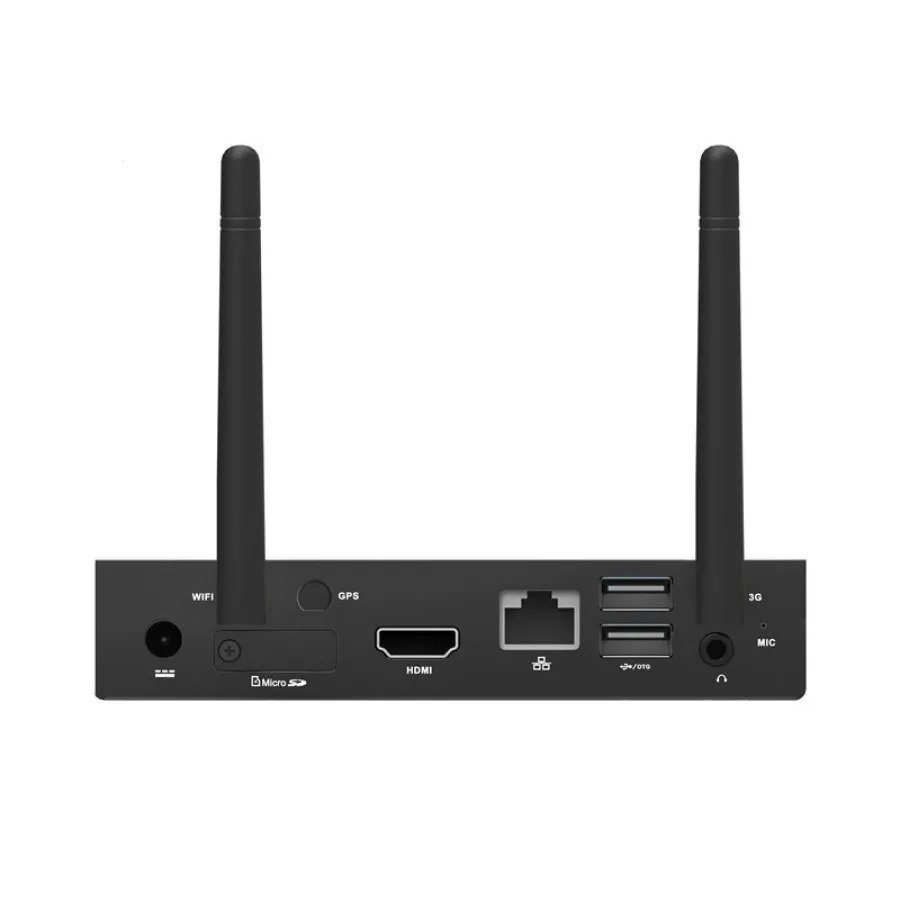

3x USB 2.0, 1 x RJ45, 1 x HDMI
Size: 130mm (W) x 128.5mm (D) x 26mm (H)

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

I require customisation *
Please share some background information on your project to help us ensure we’re proposing the best solution *
What processing level is required? *
How much RAM do you require? *
How much storage is required? *
What is the project timeline? *
What operating system would you like to use? *
Do you need any Wi-Fi or Cellular? *
- Wi-Fi
- Cellular
Do you need wide-temperature components? *
- Yes
- No
Do you need a mounting kit? *
Do you need an AC-DC power supply? *
Do you need any additional expansion modules? *

Product Code: Q30

Categories: Android Media Players, Digital Signage Computers, Digital Signage Players, Giada, PC's

Range: Giada

Details

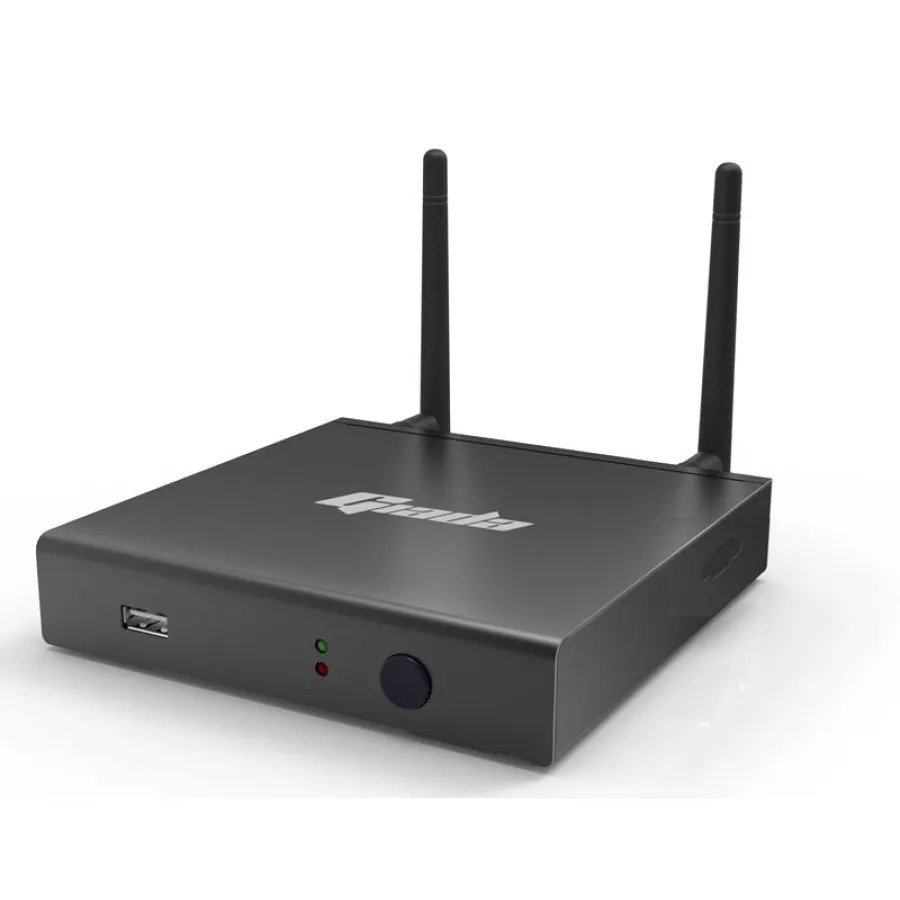

The Q30 is a fanless embedded digital signage player based around the Quad-Core ARM Cortex-A9 RockChip RK3188 1.6GHz. The Q30 is a low cost option which is easily capable of supporting HD-rich graphics in applications such as public realm wayfinding or hotel and leisure signage. The unit is housed in a smart black metal chassis and features 1x 2 GB DDR3 RAM, Android 4.2 OS (upgradable to v4.4), 8GB Nand Flash drive, 1x TF Card Reader (up to 32GB), WiFi/Bluetooth and optional 3G via 1x Mini PCI-e slot. I/O ports include 1x HDMI, 1x Audio Jack (3.5mm), 1x 100Mbps (RJ45) plus 3 x USB2.0 (1 x OTG). The Q30 also comes with a handy operational timer which can be set to boot up content and turn off automatically.

Ordering Info

Q30 Compact Digital Signage Player w/ARM Cortex-A9 Quad Core RockChip RK3188 CPU

Downloads

Datasheet (Q30) (PDF)

0.09MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type	4 Cores, RISC
Memory Capacity	Up to 2GB
Cooling Type	Fanless
USB Ports	3 Ports, 3 Ports, Any USB Speed, USB 2.0
Wireless	Cellular, Wi-Fi
Video Ports	1 Port, 1 Port, Any Video Type, HDMI
Audio	Yes
Expansion Type	1, 1, Any Expansion Type, Mini PCI Express
Input Voltage	12 VDC
Operating Temperature	0°C to 40°C, Standard
Market Certifications	CE/FCC
OS Support	Android
