Giada VM23 Ultra-compact Fanless Digital Signage PC with Intel Celeron CPU

Giada VM23 Ultra-compact Fanless Digital Signage PC with Intel Celeron CPU

VM23

  • Brand: Giada
  • Intel Celeron N3350 / Intel Celeron N3450
  • Supports dual independent displays
  • 4 x USB
  • Intel Gen 9 Graphics engine
  • Size: 116mm x 107.2mm x 30mm

Customisation Service

We can configure this device for you to your exact specification. So we can provide you with the best possible service, please let us know a little about your project if you need this service.

-
+

Details

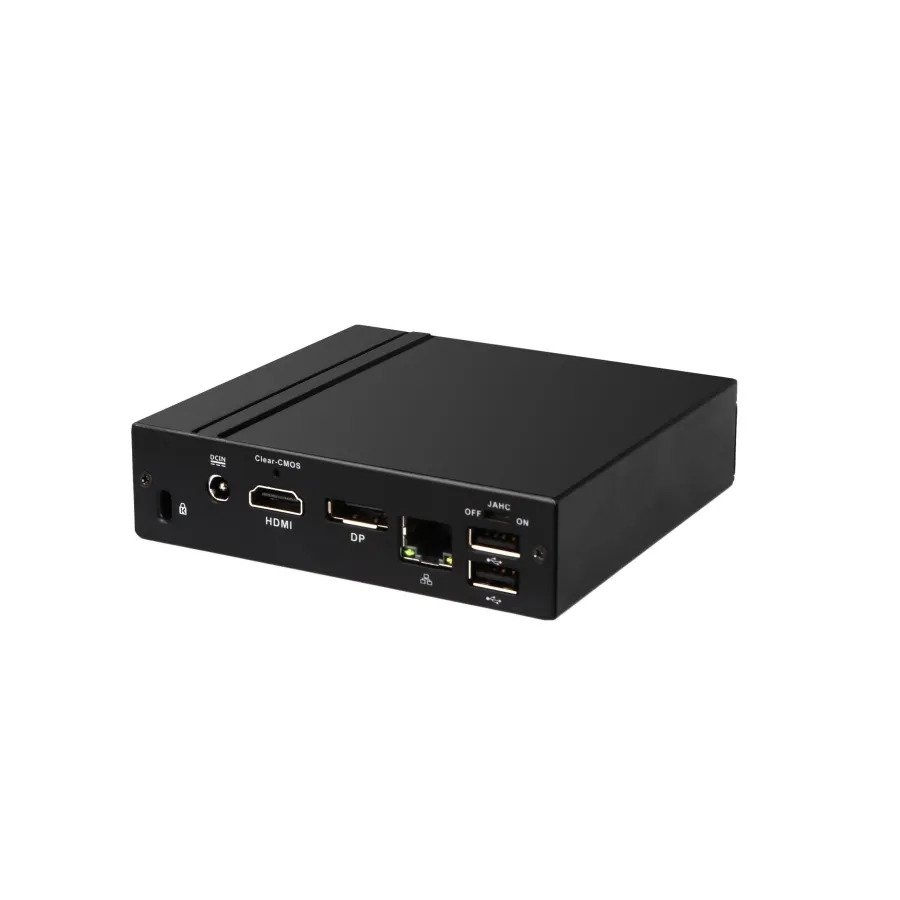

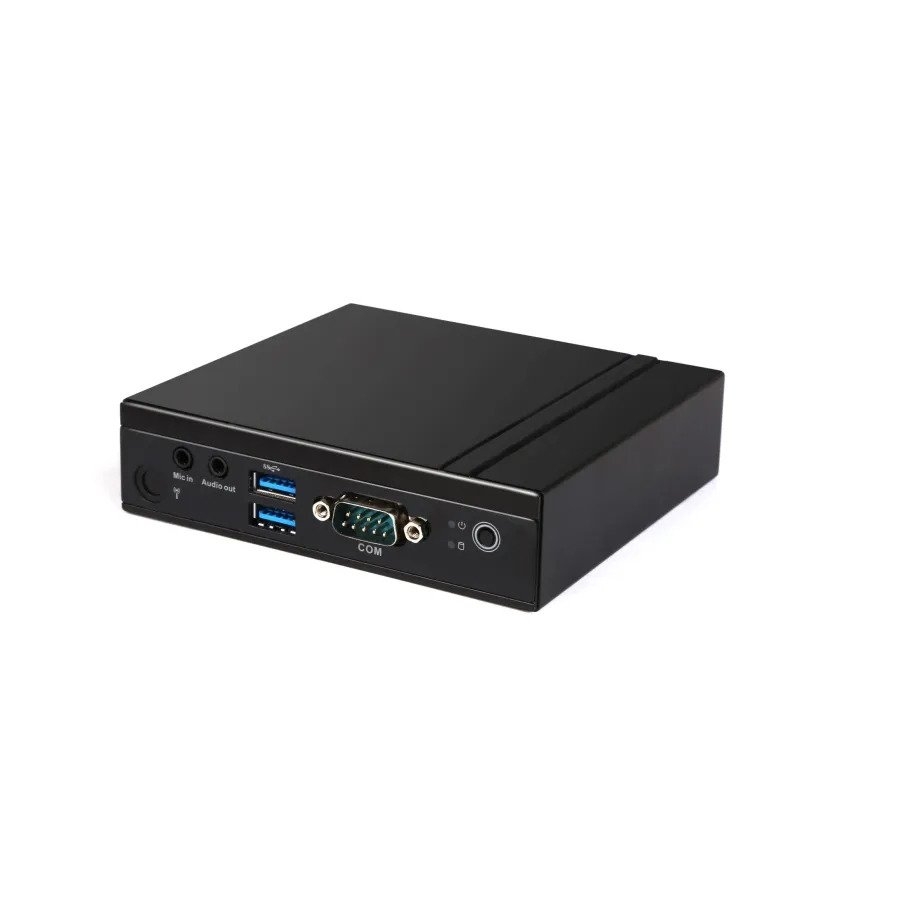

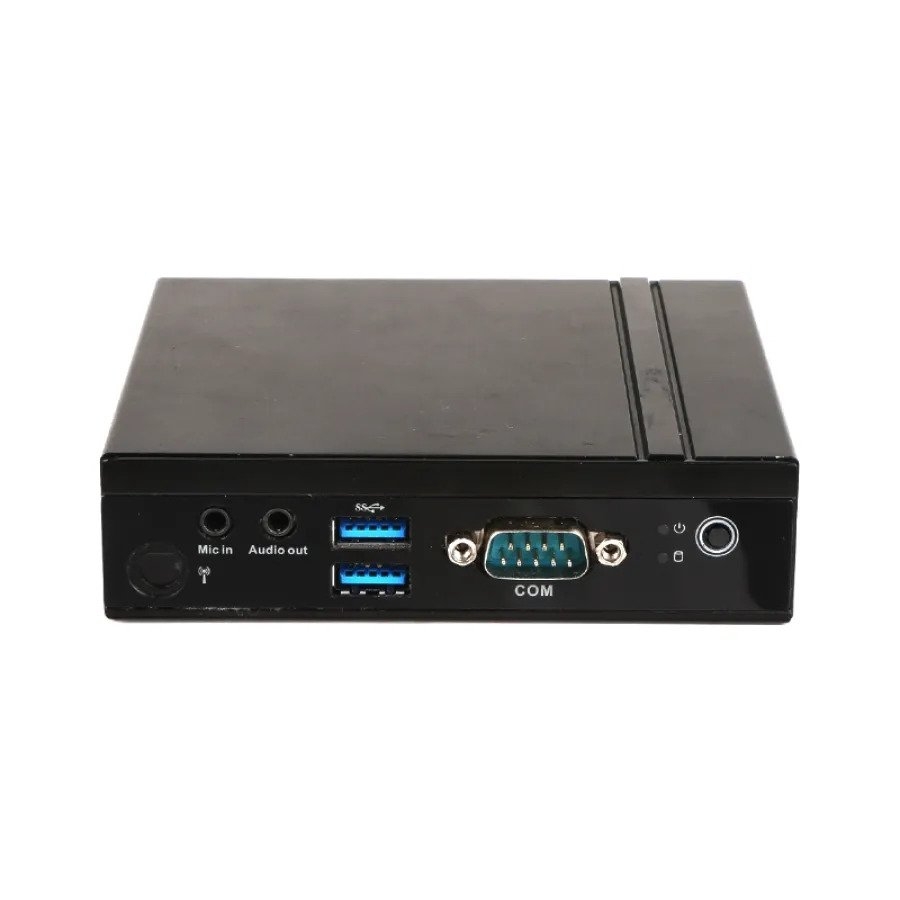

The Giada VM23 is an ultra-compact, fanless digital signage player which can also be used as a thin client cloud terminal. The unit is powered by a choice of 2 Intel Celeron ‘Apollo Lake’ processors, the dual core N3350 and quad core N3450. The VM23 is housed in a super compact chassis measuring only 116mm x 107.2mm x 30mm making it perfect for space critical applications. The system features dual display outputs 1 x DP1.2, 1 x HDMI1.4b and further I/O includes 1 x RJ45 LAN, 1 x RS232 Serial Port, 2 x USB 3.0, 2 x USB 2.0 and 1 x RJ45 interface. There is 1 x Mini-PCIe for a Full-length mSATA and 32GB onboard EMMC for storage and 1 x M.2 (2230) for WiFI or Bluetooth connection.

Ordering Info

VM23-F1-N335031E5G-GIA Ultra-compact Fanless Digital Signage PC with Intel Dual Core Celeron Processor N3350 1.1GHz (Up to 2.4 GHz)
VM23-F1-N345032E5G-GIA Ultra-compact Fanless Digital Signage PC with Intel Quad Core Celeron Processor N3450 1.1GHz (Up to 2.2 GHz)

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Processor Type 4 Cores, Intel Celeron
Memory Capacity Up to 4GB
Cooling Type Fanless
Serial Ports (COM) 1 Port, 1 Port, Any COM Type, RS-232
USB Ports 2 Ports, 2 Ports, 4 Ports, Any USB Speed, USB 2.0, USB 3.0
Ethernet Ports (LAN) 1 Port, 1 Port, 1G, Any LAN Speed
Wireless Wi-Fi
Video Ports 1 Port, 1 Port, 2 Ports, Any Video Type, DisplayPort, HDMI
Audio Yes
Storage Type 1, 1, 1, Any Storage Type, eMMC, mSATA
Expansion Type 1, 1, 2, Any Expansion Type, M.2, Mini PCI Express
Input Voltage 12 VDC
Mounting Options Desk-mount, VESA-mount
Operating Temperature 0°C to 40°C, Standard
Market Certifications CE/FCC
OS Support Linux, Windows 10, Windows 10 IoT, Windows 10 Pro
