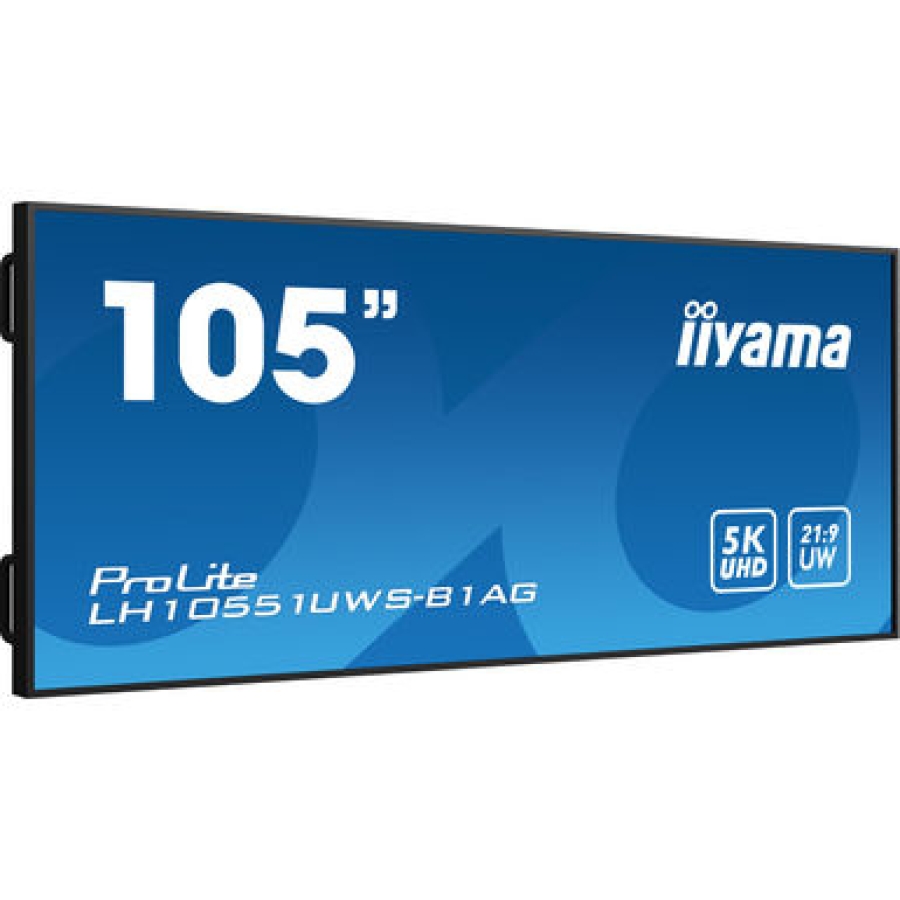

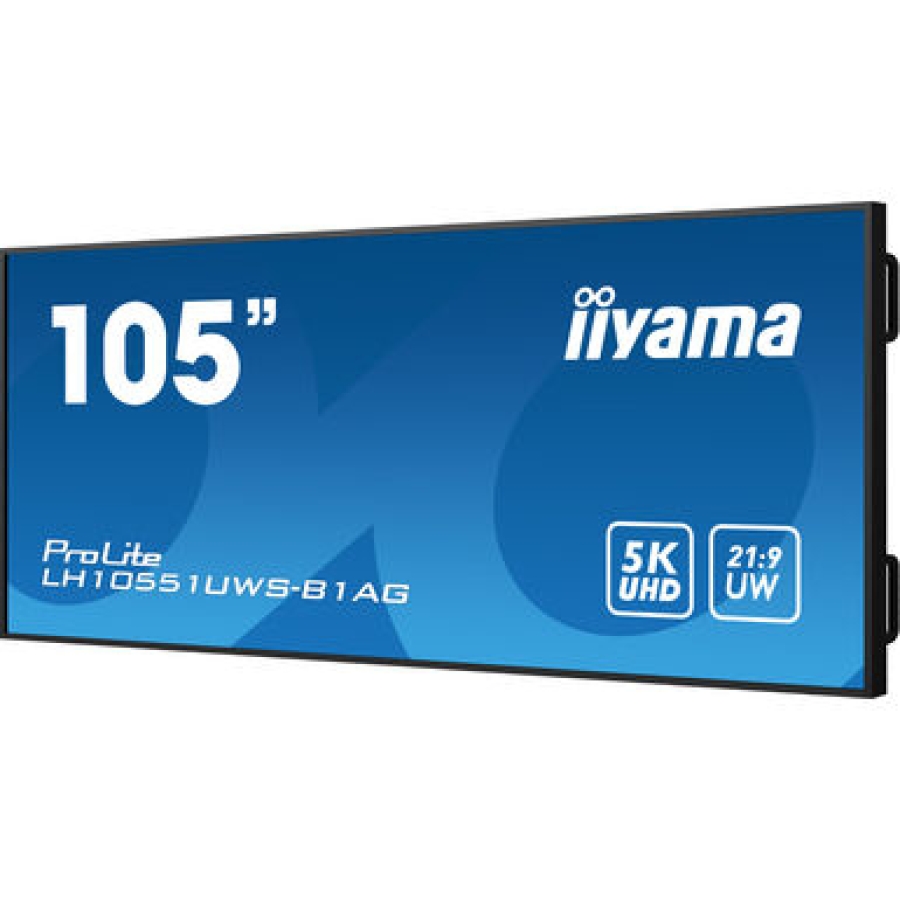

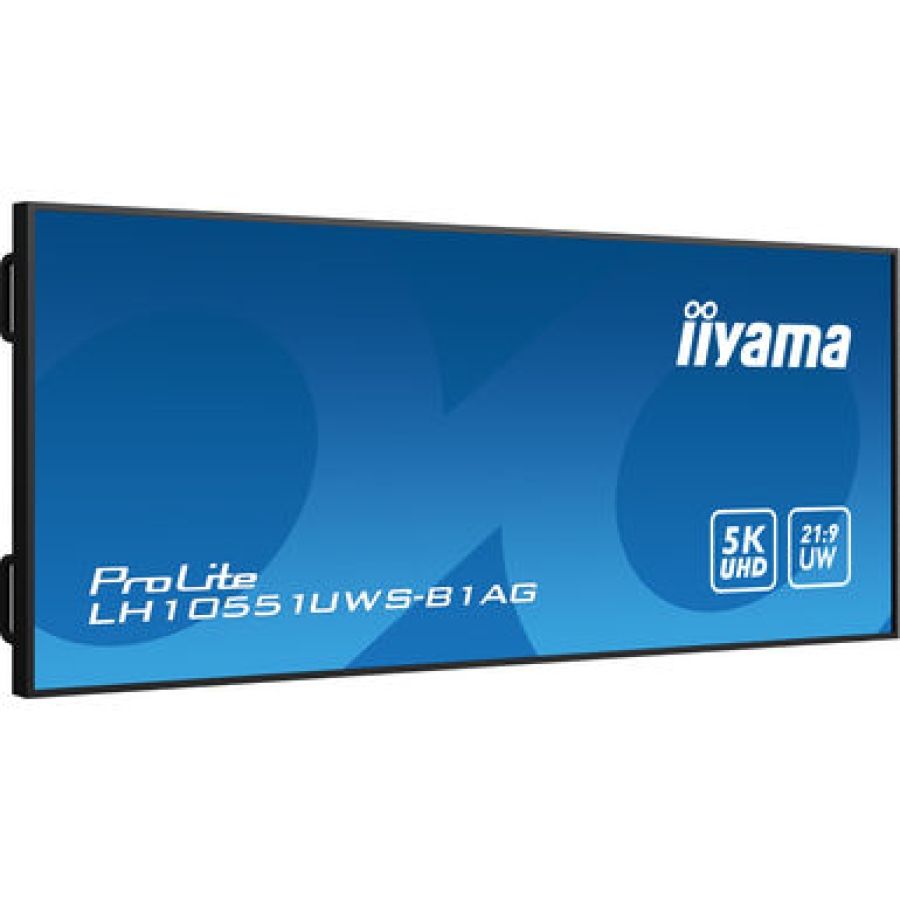

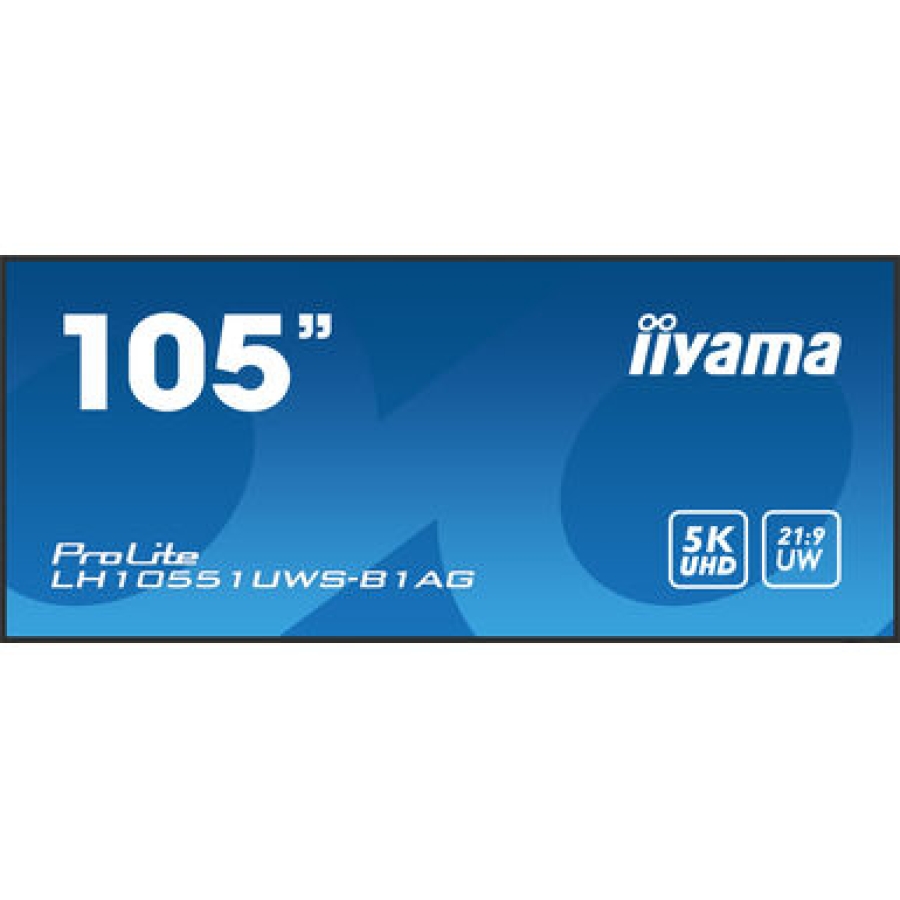

iiyama LH10551UWS-B1AG 104.7″ Black Digital Signage Flat Panel Display with 500nit Brightness and UltraWide Full HD

iiyama LH10551UWS-B1AG 104.7″ Black Digital Signage Flat Panel Display with 500nit Brightness and UltraWide Full HD

LH10551UWS-B1AG

  • Indoor Digital signage flat panel Black
  • 2.66 m (104.7″) 5120 x 2160 pixels LED 500 cd/m²
  • 8 ms
  • Ethernet LAN
  • Built-in speaker(s) 20 W
-
+

Details

105” Professional 5KUW Display for specialised 21:9 panoramic commercial signage Experience a true 21:9 Panoramic Ultra-Wide view for all your content with the jaw dropping 105” displays of iiyama. This super sleek thin bezel design display shows vibrant and larger than life imagery and videos using 5KUW resolution to make the difference. Whether installed in mission critical control room facilities or vibrant digital signage for high end retail spaces, this iiyama 105” large format display offers businesses an easy and effective solution to help capture their audience's attention. Designed to perform in continual, around the clock environments, the LH10551UWS-B1AG can be installed and utilised in landscape and portrait orientation to create the most stimulating imagery in any space. Flexible Orientation The ability to position the displays in landscape or portrait orientation means you can make the most of any space and bring your messaging, advertisements, videos and safety information to your audience. 21:9 Ultra-Wide Screen With an ultra-wide aspect ratio, this professional display provides an expansive canvas to accommodate panoramic commercial signage. The 21:9 Ultra Wide format is also the perfect optimisation for your content capabilities, enhancing our messages and simultaneously attracting your audience on a larger scale. 5K - 11 Mega Pixels Experience stunning visuals on this IPS panel with 5KUW resolution (5120x2160), offering crisp and clear images for a truly immersive viewing experience. USB-C Connection Delivers the latest in video, audio and Touch signal, all through one port. Standalone Solution Unlock all of the security and flexibility of Windows IoT with the optional OPS Slot PC. Speakers The built-in speakers offer high-quality sound, ensuring crystal-clear audio during presentations, video conferences, or multimedia playback.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type IPS
Display diagonal 2.66 m (104.7″)
Display technology LED
Display resolution 5120 x 2160 pixels
Display brightness 500 cd/m²
HD type UltraWide Full HD
Native aspect ratio 21:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Pixel pitch 0.479 x 0.479 mm
Active display area (W x H) 2450 x 1033.6 mm
Display diagonal (metric) 265.9 cm
Horizontal scan range 30 – 140 kHz
Ports & interfaces
HDMI ports quantity 1
HDMI version 2.0
HDMI input ports quantity 1
DisplayPorts quantity 1
USB port Yes
USB ports quantity 4
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Audio (L/R) in 1
Audio (L/R) out 1
RS-232C Yes
OPS module slot Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Digital signage flat panel
Placement supported Indoor

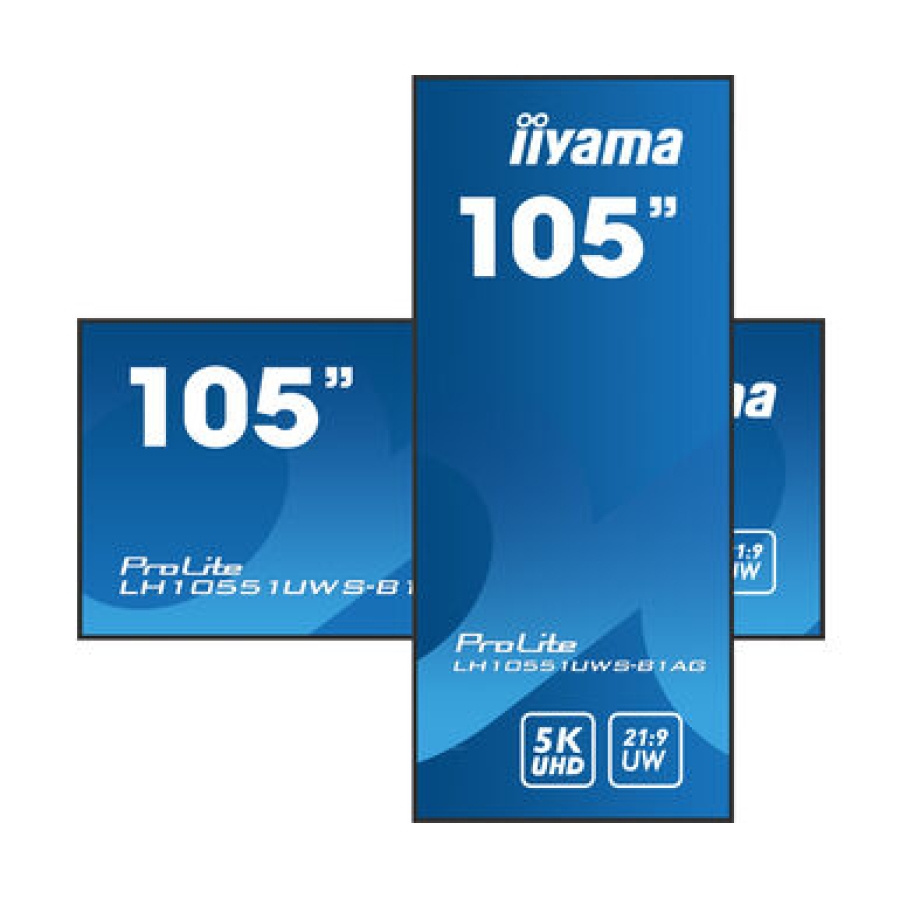

Orientation Horizontal/Vertical
Product colour Black
Screen shape Flat
Performance
Purpose Universal
On Screen Display (OSD) Yes
On Screen Display (OSD) languages Traditional Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days) 24/7
HDCP Yes
HDCP version 2.2
Mean time between failures (MTBF) 50000 h
Power
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 247 kWh
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Energy efficiency scale A to G
Weight & dimensions
Display width 2487.4 mm

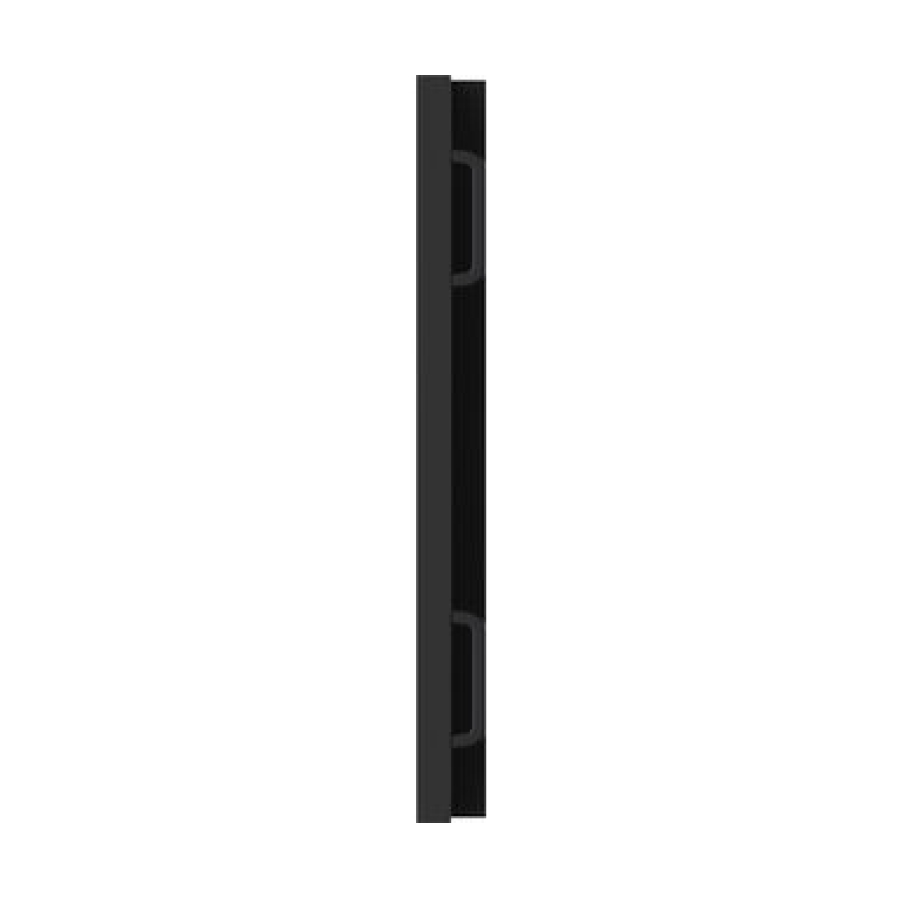

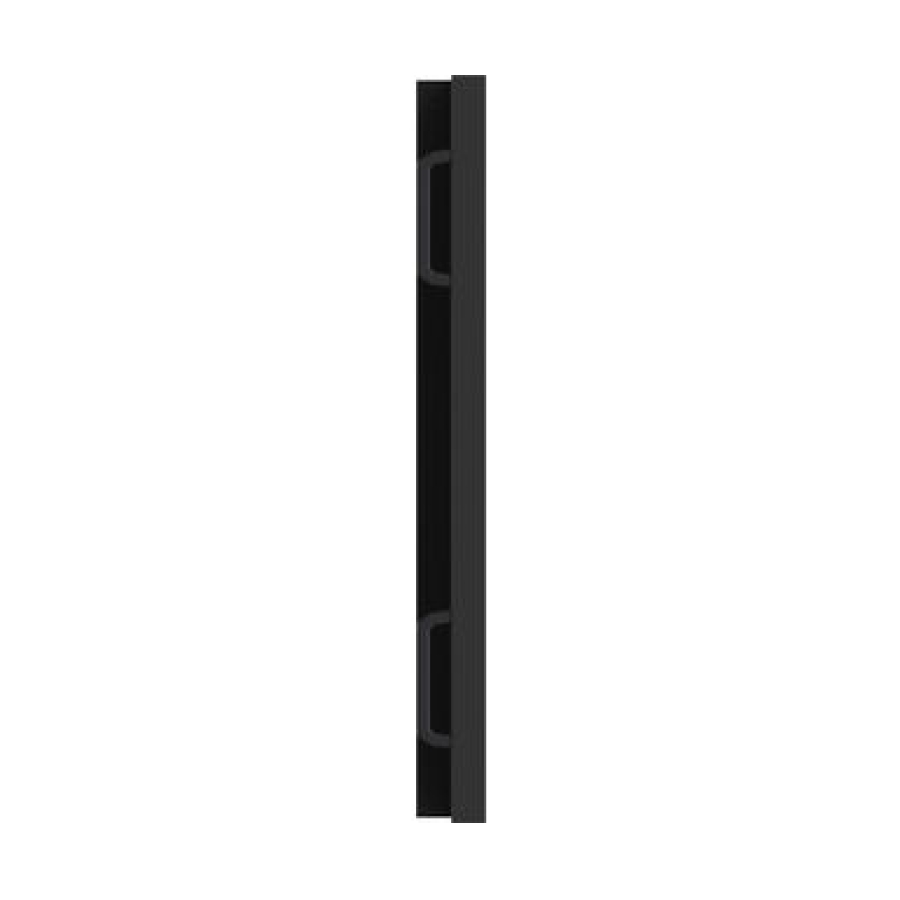

Display depth 99.1 mm
Display height 1070.6 mm
Display weight 60.1 kg
Packaging data
Package width 2683 mm
Package depth 339 mm
Package height 1407 mm
Package weight 88.7 kg
Packaging content
Remote control included Yes
Batteries included Yes
Cables included AC, HDMI
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Technical details
Sustainability certificates ErP
Compliance certificates CB, CE, EAC, REACH, RoHS, UKCA, WEEE
Other features
Quick start guide Yes
Plug and Play Yes
Brightness 500nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O DisplayPort, HDMI, LAN, RS232
Operating Temperature 0°C to 40°C
LAN Yes
