Samsung OH24B 24″ Professional Outdoor Signage 1500 cd/m² FHD 24/7
Samsung OH24B 24″ Professional Outdoor Signage 1500 cd/m² FHD 24/7
LH24OHBEBGBXEN
- Outdoor Digital signage flat panel Black
- 61 cm (24″) 1920 x 1080 pixels LCD 1500 cd/m²
- 14 ms
- Ethernet LAN Wi-Fi
Details
Deliver bright and brilliant messages, built for the outdoors When it comes to providing concise communication for customers, Samsung’s OH46B features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the OH24B is packed with robust hardware, ensuring longevity and flexibility. Clear and vivid anytime, anywhere The OH24B is UL verified for outdoor visibility, with brightness levels over 3,500nits, delivering crisp content 24/7 and using a built-in auto brightness sensor adapts to external lighting. The screen uses a polarization technology to ensure viewing capability while wearing polarised lenses. Bright and vivid colours for accurate communication and delivery The OH24B delivers advanced color accuracy and brightness, creating vivid content through enhanced colour reproduction of all red, green and blue shades. With crisp content being what customers now expect, the OH24B’s uncompromised picture quality will be sure to capture customer attention. Enhanced visibility with anti-reflection technology Samsung OH24B is enhanced by Magic Protection Glass, which utilises advanced anti-reflection technology. This innovative solution ensures much better visibility when watching in broad daylight, with a significantly low total reflection rate, ensuring clearer images and text for every viewer. Optimised protection in a variety of outdoor conditions With certified IP56-rated protection, OH24B delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimized operation in a variety of outdoor conditions for consistent performance. Prevent humidity for optimal performance with newly added fans With four newly added, hidden fans in the downside of the display, the OH24B reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation. Robust durability for screen safety Fitted with tempered Magic Protection Glass, the Samsung OH24B provides durability that is IK10-rated, ensuring advanced safety and protection against external impact. This ensures the product is safe against unexpected damage, giving store manager better peace of mind. Powerful performance with slim design A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection, anti-reflection technology, damage defense and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame. Smooth and seamless content playback The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers. Powerful, protective security The OH24B uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimisation of security attacks.System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Panel type | IPS |
Display diagonal | 61 cm (24″) |
Display technology | LCD |
Display resolution | 1920 x 1080 pixels |
Display brightness | 1500 cd/m² |
HD type | Full HD |
Touchscreen | No |
Response time | 14 ms |
Contrast ratio (typical) | 1000:1 |
Dynamic contrast ratio marketing name | Mega Contrast |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Pixel pitch | 0.2745 x 0.2745 mm |
Horizontal scan range | 15 – 135 kHz |
Vertical scan range | 24 – 75 Hz |
Haze rate | 25% |
Pixel frequency (max) | 594 MHz |
Glass thickness | 3 mm |
Glass film | AG/AR Film |
RGB colour space | NTSC |
Colour gamut | 72% |

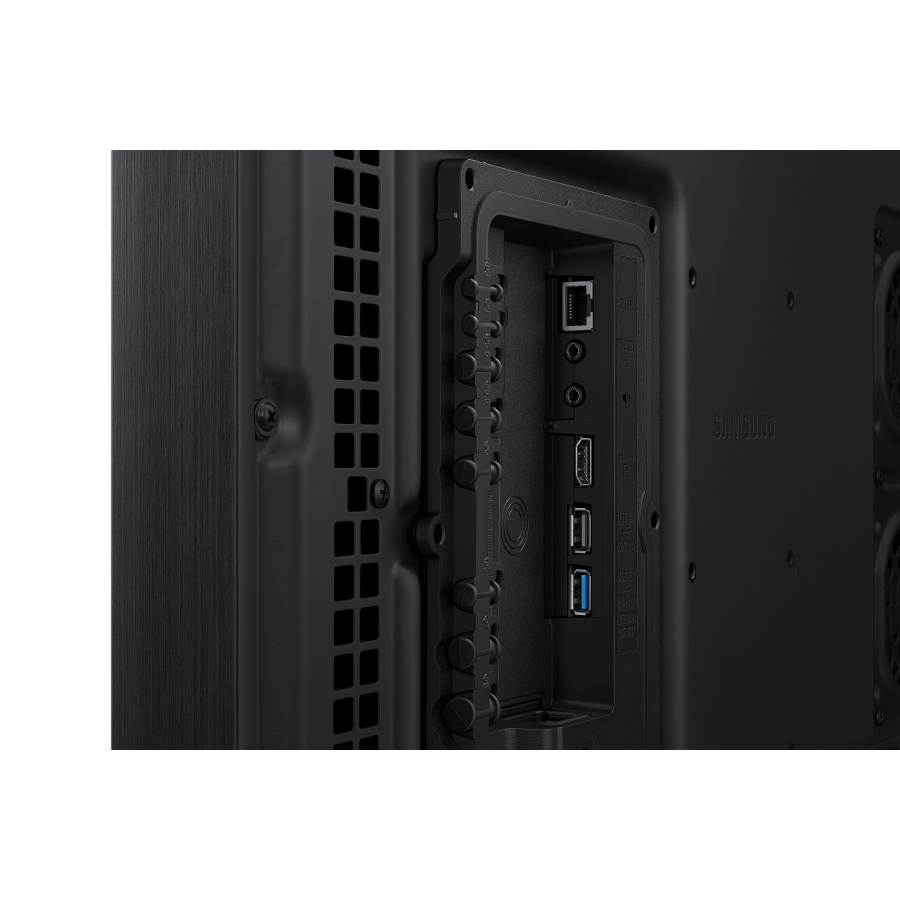

Ports & interfaces | |
HDMI ports quantity | 1 |
HDMI version | 2.0a |
HDMI input ports quantity | 1 |
DVI port | No |
USB port | Yes |
USB ports quantity | 2 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wi-Fi | Yes |
Audio (L/R) out | 1 |
RS-232 interface | Yes |
Design | |
Product design | Digital signage flat panel |
Placement supported | Outdoor |
Orientation | Horizontal/Vertical |
Product colour | Black |
Screen shape | Flat |
VESA mounting | Yes |
Panel mounting interface | 100 x 100 mm |
Bezel width (bottom) | 2.19 cm |
Bezel width (side) | 2.19 cm |
Bezel width (top) | 2.19 cm |
Performance | |
Purpose | Universal |
Operating hours (hours/days) | 24/7 |
HDCP | Yes |
HDCP version | 2.2 |
Power | |
Power consumption (typical) | 90 W |
Power consumption (sleep) | 0.5 W |
AC input voltage | 100 – 240 V |
AC input frequency | 50/60 Hz |
Computer system | |
Computer system | Yes |
Computer system type | System on Chip (SoC) |
Built-in processor | Yes |
Operating system installed | Tizen 6.5 |
Weight & dimensions | |
Display width | 573 mm |
Display depth | 59.8 mm |
Display height | 342.4 mm |
Display weight | 8.4 kg |
Packaging data | |
Package width | 730 mm |
Package depth | 140 mm |
Package height | 438 mm |
Package weight | 10 kg |
Operational conditions | |
Operating temperature (T-T) | -30 – 50 °C |
Operating relative humidity (H-H) | 10 – 80% |
Certificates | |
Certification | Class A 60950-1, 62368-1 |
Other features | |
Bluetooth | Yes |
Flash memory | 8000 MB |
Glass protection | Yes |
Screen Size | 24" |
---|---|
Aspect Ratio | 16:9 |
Resolution | 1920x1080 |
Brightness | 1500nit |
Glass Type | Anti-Glare, Anti-Reflective, Tempered |
I/O | HDMI Input, USB |
Mounting | VESA |
Operating Temperature | -30°C to 50°C |
Operating Humidity | 10% to 80% |
Built In Media Player | Yes |
LAN | Yes |
OS | Tizen |
