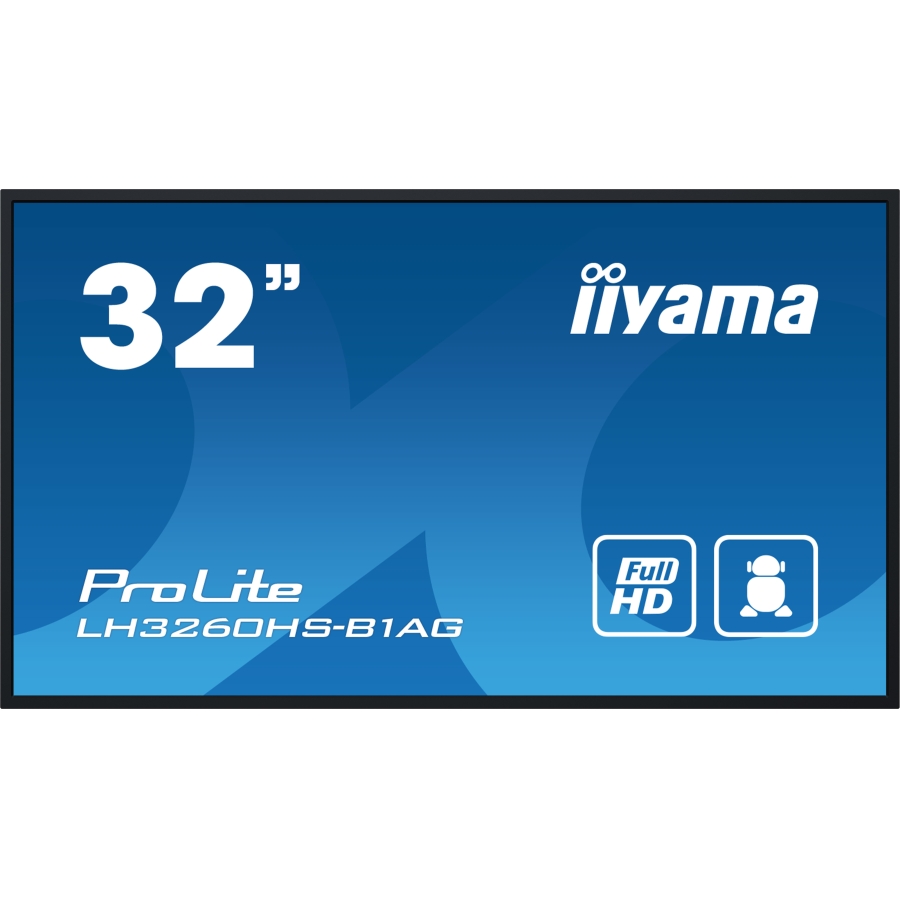

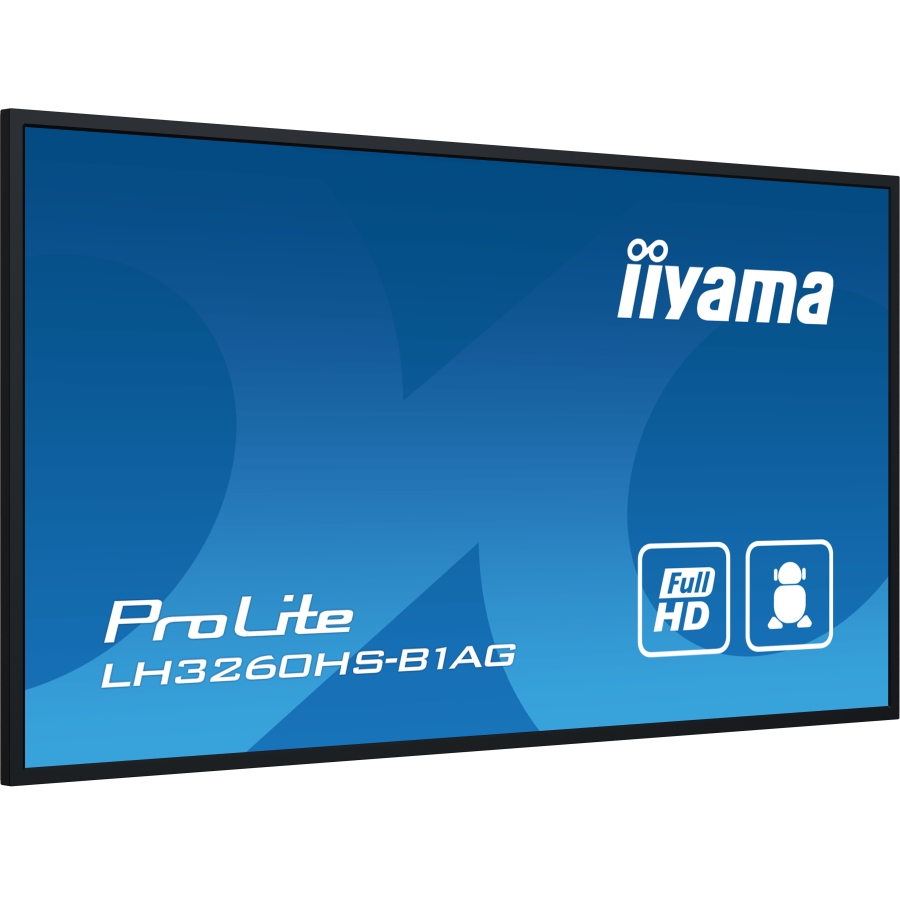

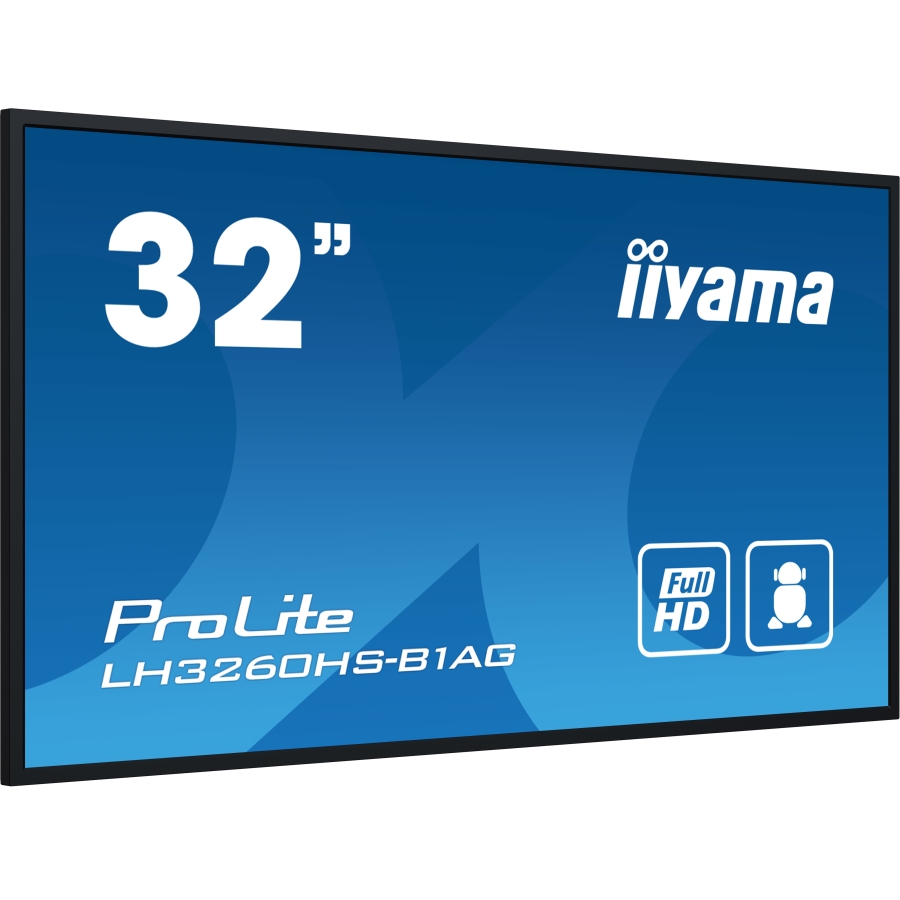

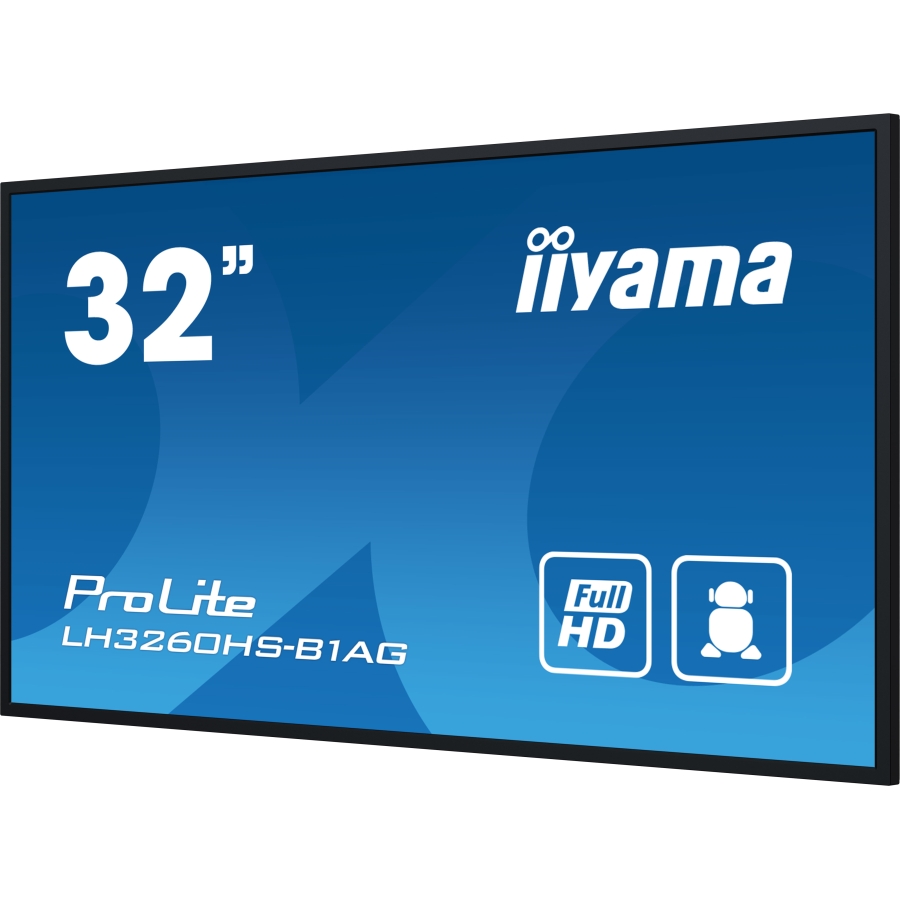

iiyama LH3260HS-B1AG 31.5″ Black Digital Signage Display with 500nit Brightness and Full HD

iiyama LH3260HS-B1AG 31.5″ Black Digital Signage Display with 500nit Brightness and Full HD

LH3260HS-B1AG

  • Indoor Digital A-board Black
  • 80 cm (31.5″) 1920 x 1080 pixels LED 500 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 10 W
-
+

Details

PROLITE LH3260HS-B1AG 32" Full HD professional digital signage display with advanced control and connectivity options Elevate your visual communication with the LH3260HS-B1AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH3260HS-B1AG will undoubtedly captivate your audience and leave a lasting impression. ANDROID OS Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it. IISIGNAGE iiSignage is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely. SIGNAL FAILOVER FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times. 4K UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image. MEDIA PLAYER Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type ELED
Display diagonal 80 cm (31.5″)
Display technology LED
Display resolution 1920 x 1080 pixels
Display brightness 500 cd/m²
HD type Full HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Active display area (W x H) 698.4 x 392.85 mm
Display diagonal (metric) 80 cm
Horizontal scan range 28 – 160 kHz
Native refresh rate 60 Hz

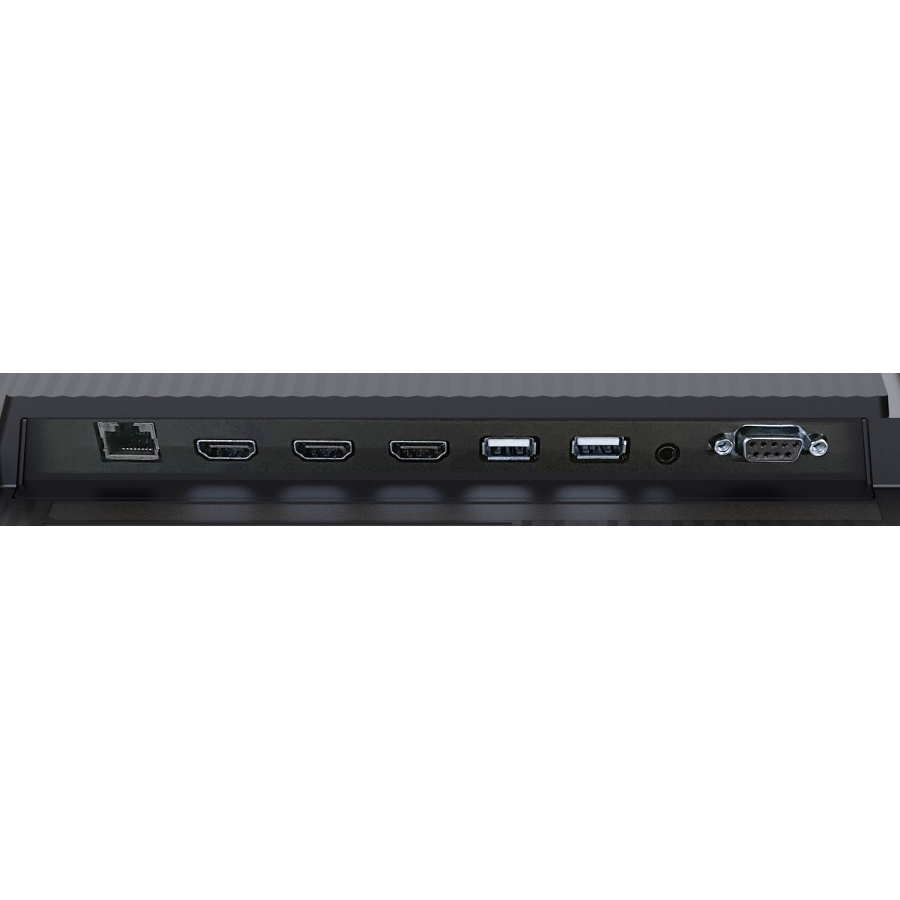

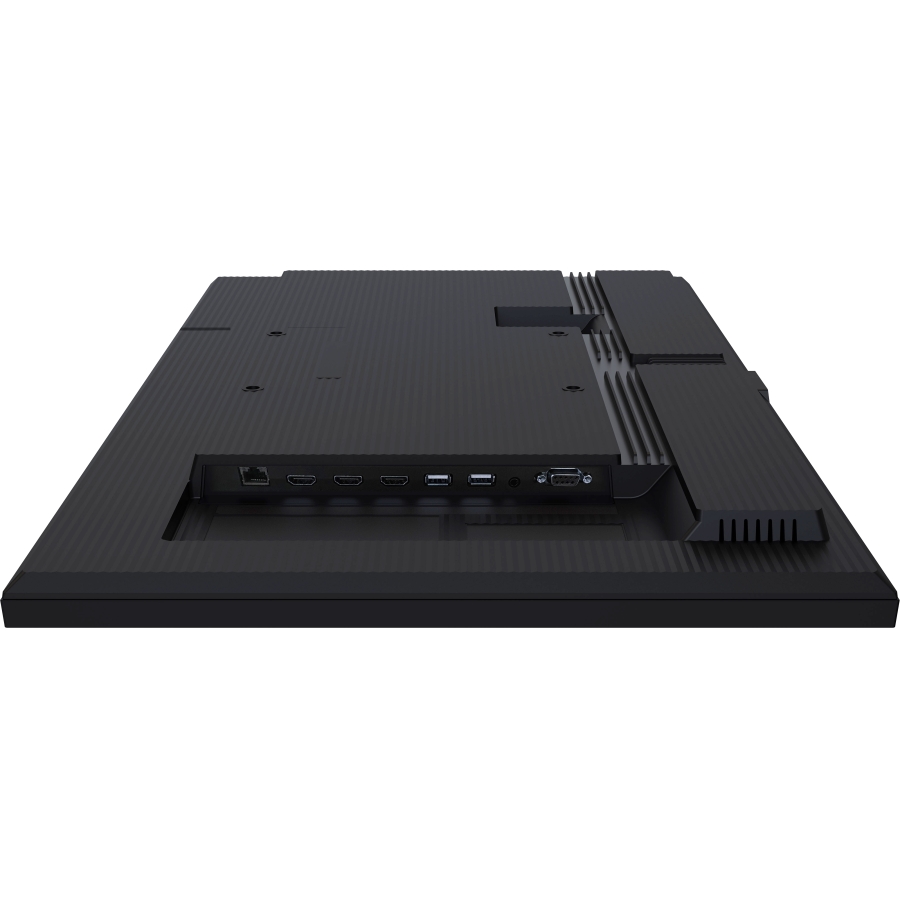

Ports & interfaces
HDMI ports quantity 3
HDMI version 2.0
DVI port No
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Audio (L/R) in 1
Audio (L/R) out 1
RS-232C Yes
Remote (IR) input 1
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 10 W
Design
Product design Digital A-board
Placement supported Indoor

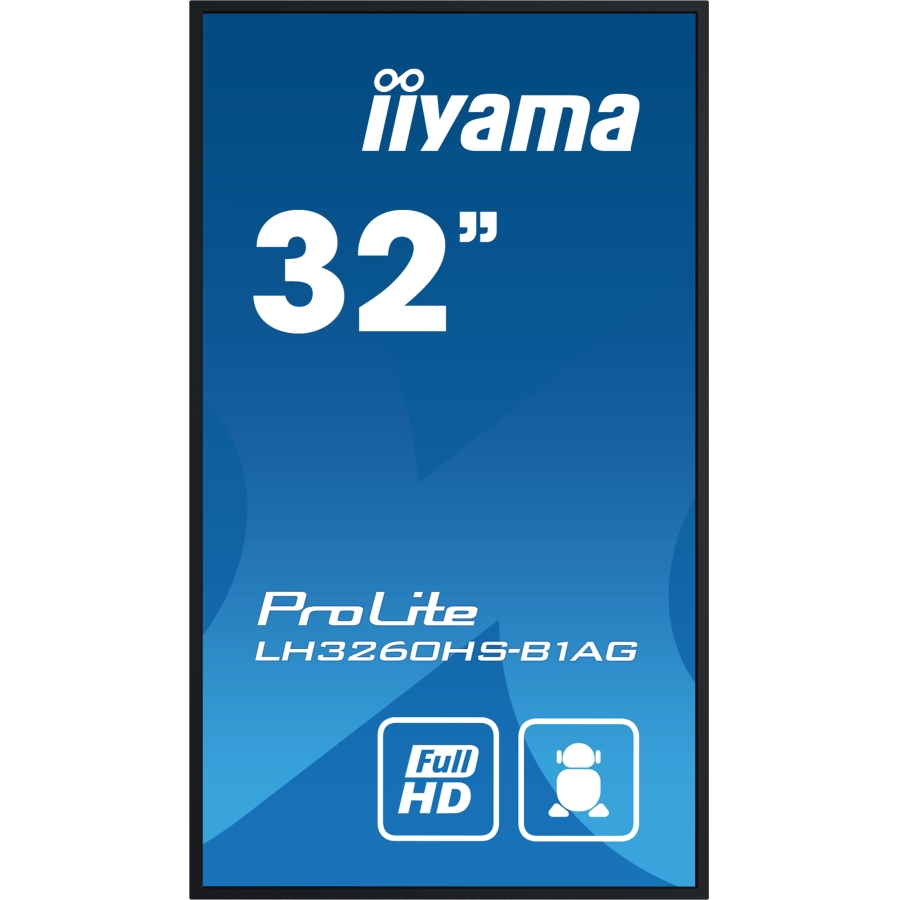

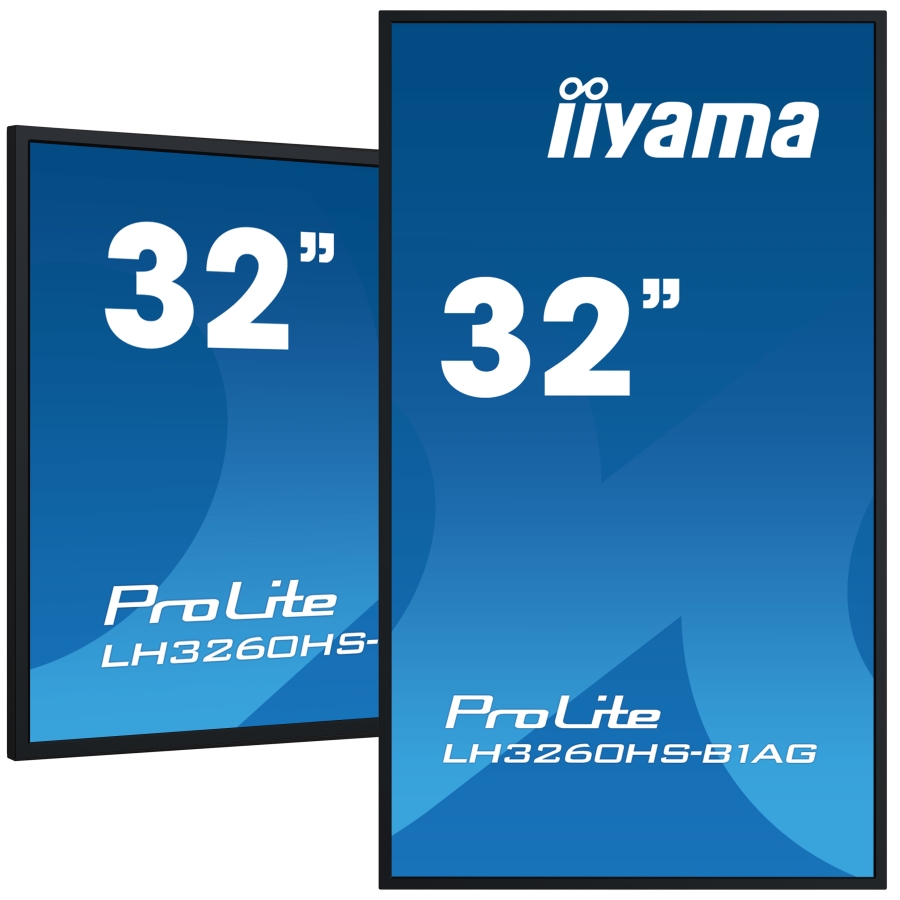

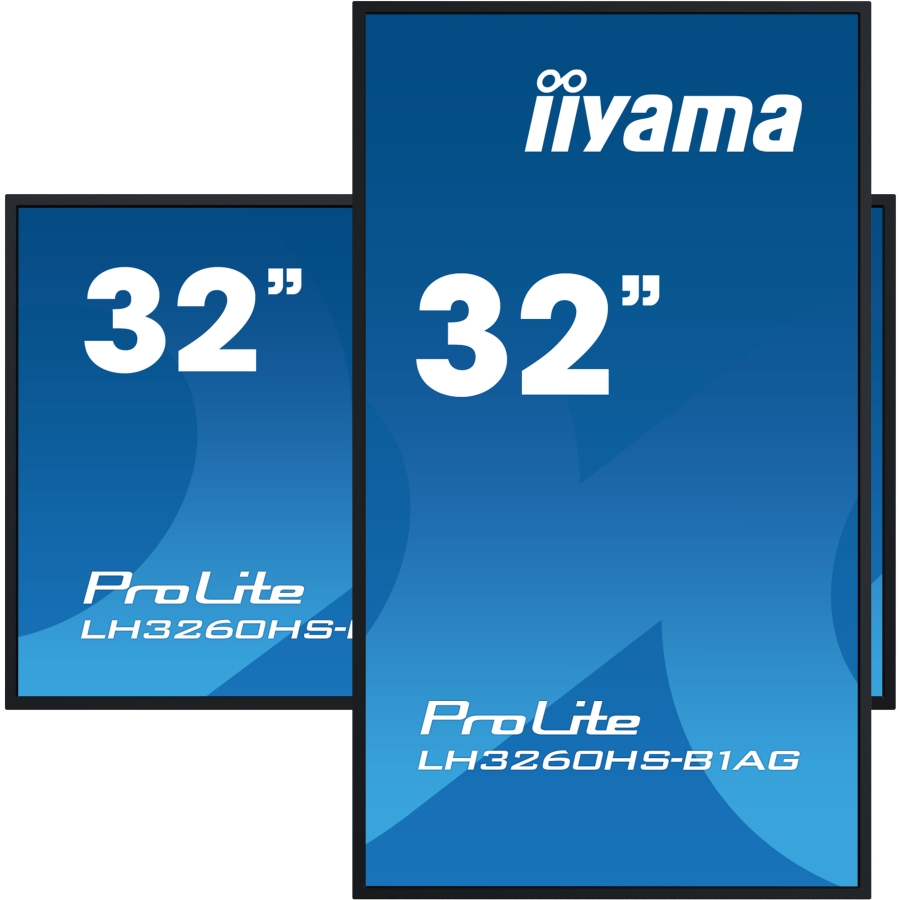

Orientation Horizontal/Vertical
Product colour Black

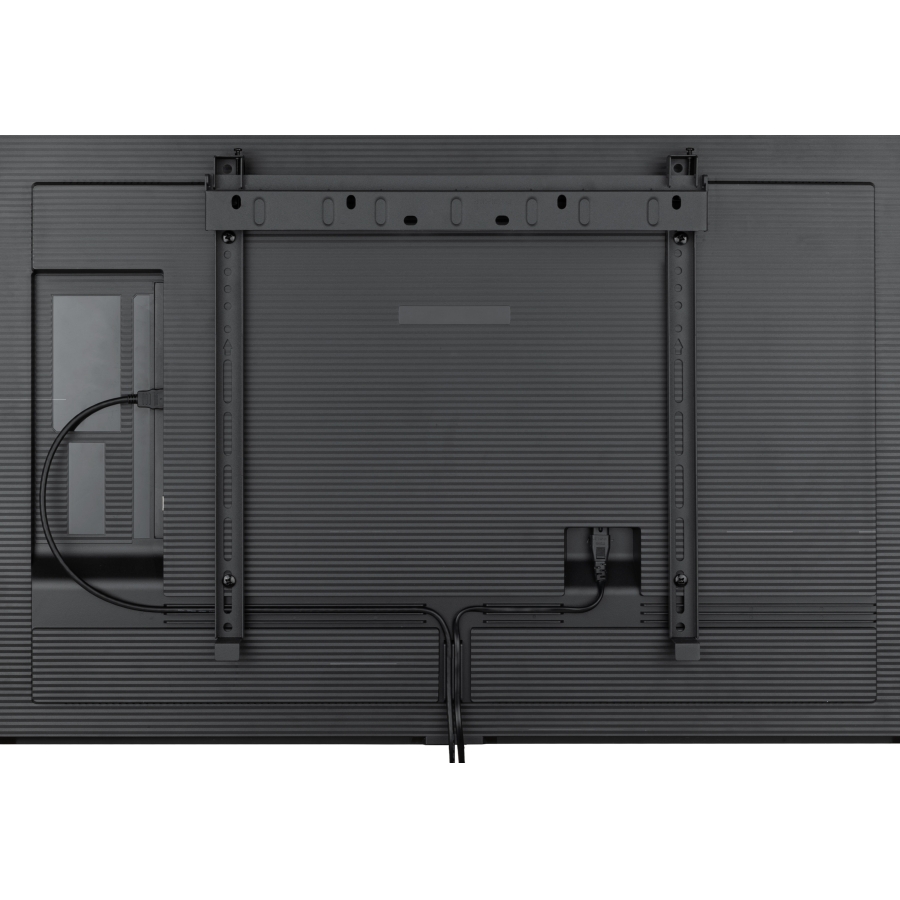

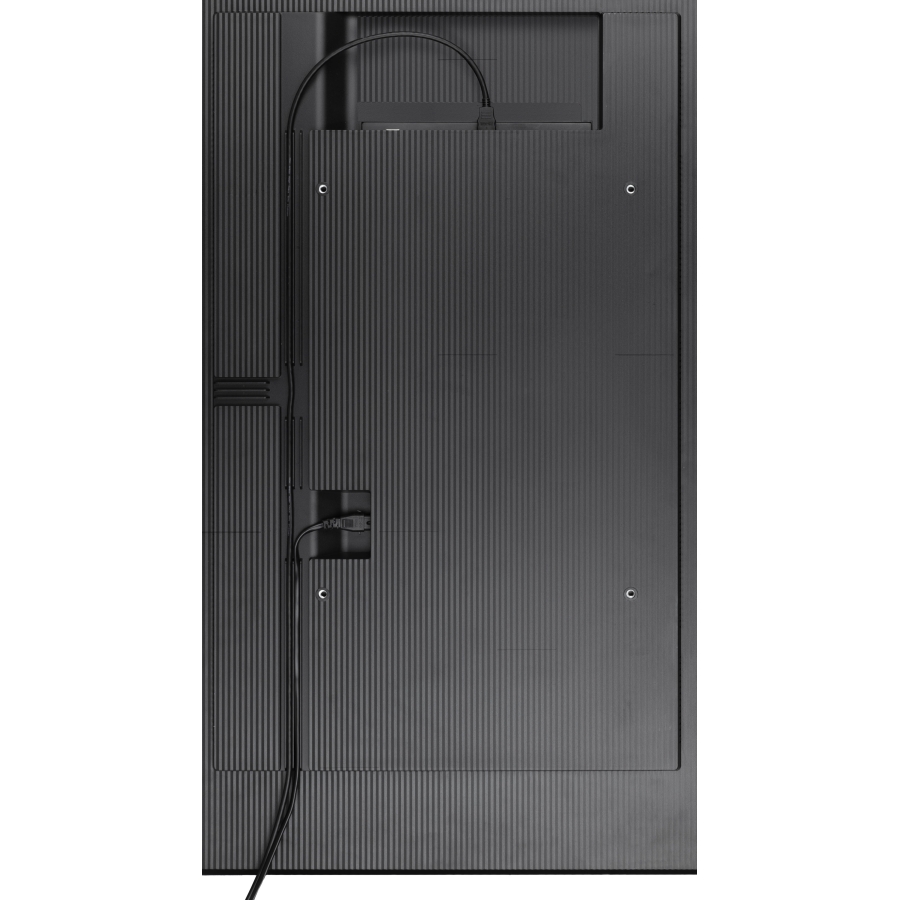

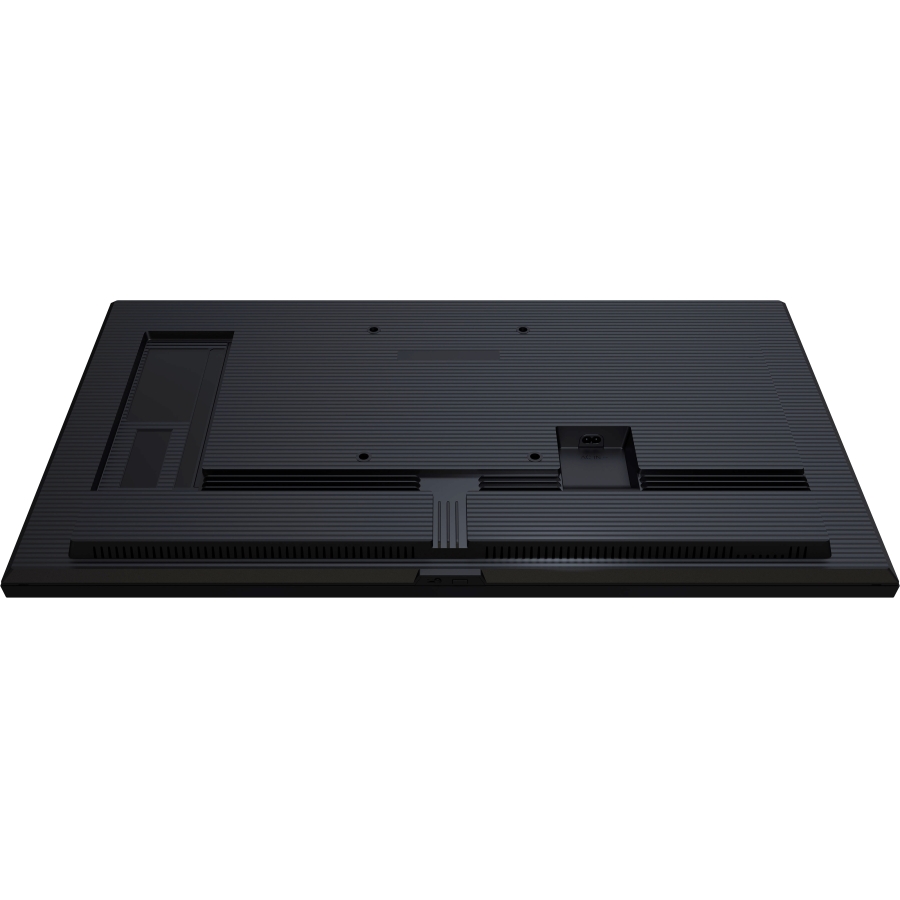

VESA mounting Yes
Panel mounting interface 200 x 150 mm
Bezel width (bottom) 9 mm
Bezel width (side) 9 mm
Bezel width (top) 9 mm
Performance
Purpose Universal
On Screen Display (OSD) languages Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days) 24/7
HDCP Yes
HDCP version 1.4/2.2
Mean time between failures (MTBF) 50000 h
Power
Power consumption (typical) 40 W
Power consumption (standby) 0.5 W
Energy efficiency class (SDR) G
AC input voltage 100 – 240 V
AC input frequency 50 Hz
Computer system
Computer system No
Built-in processor Yes
Processor manufacturer ARM
Processor family ARM Cortex
Processor model A53
Processor cores 4
Internal memory 2 GB
On-board graphics card model ARM Mali-G52
Internal storage capacity 16 GB
Operating system installed Android 11
Weight & dimensions
Display width 724.6 mm

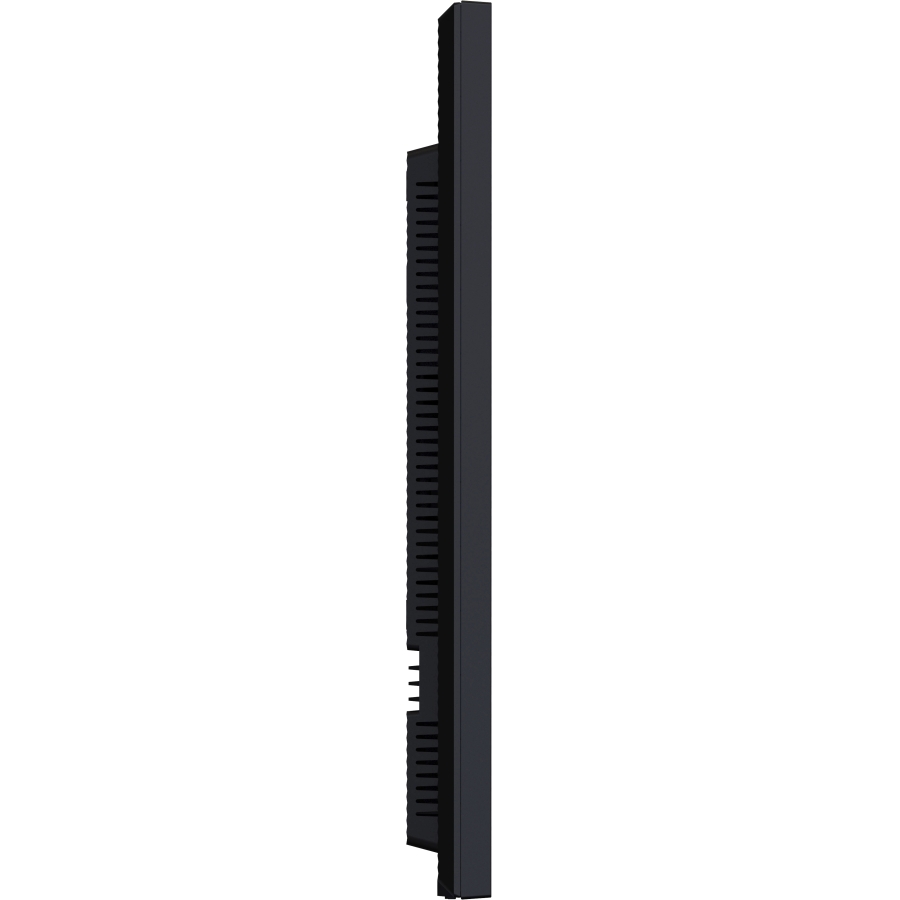

Display depth 40 mm
Display height 419.8 mm
Display weight 5.4 kg
Packaging data
Package width 795 mm
Package depth 115 mm
Package height 520 mm
Package weight 7.3 kg
Packaging content
Remote control included Yes
Batteries included Yes

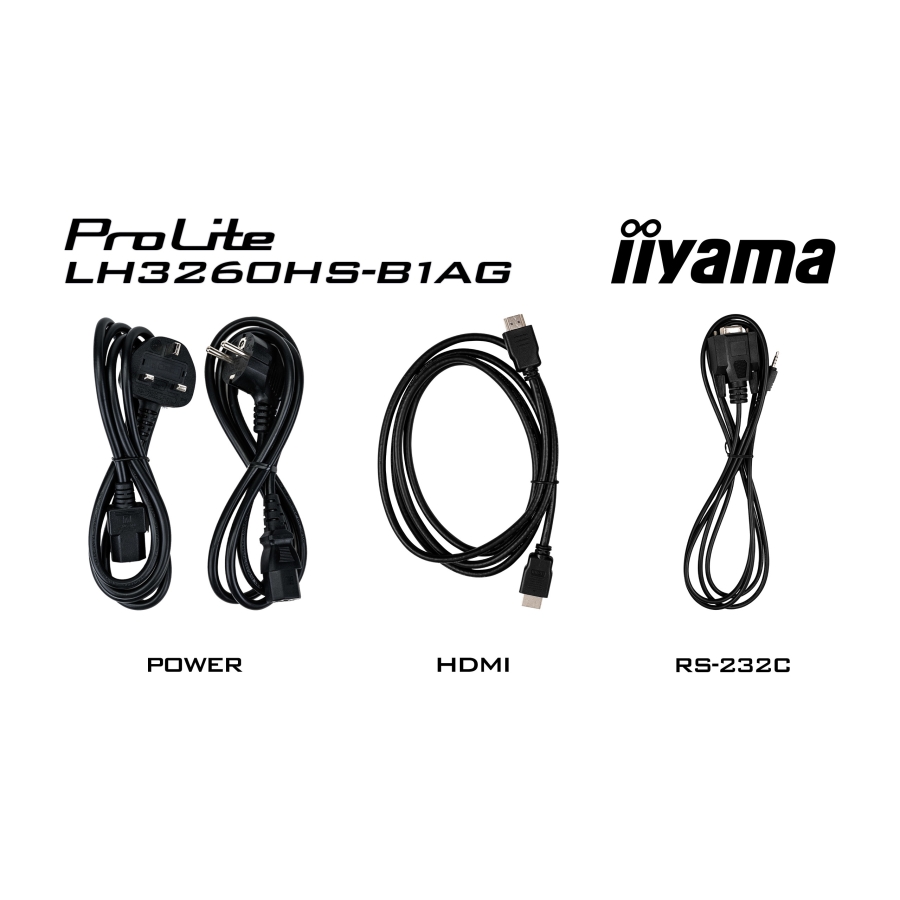

Cables included HDMI, Power, RS-232
Mounting kit Yes
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Certificates
Certification CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Screen Size 32"
Aspect Ratio 16:9
Resolution 1920x1080
Brightness 500nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O HDMI, RS232
Operating Temperature 0°C to 40°C
LAN Yes
Wi-Fi Yes
OS Android
