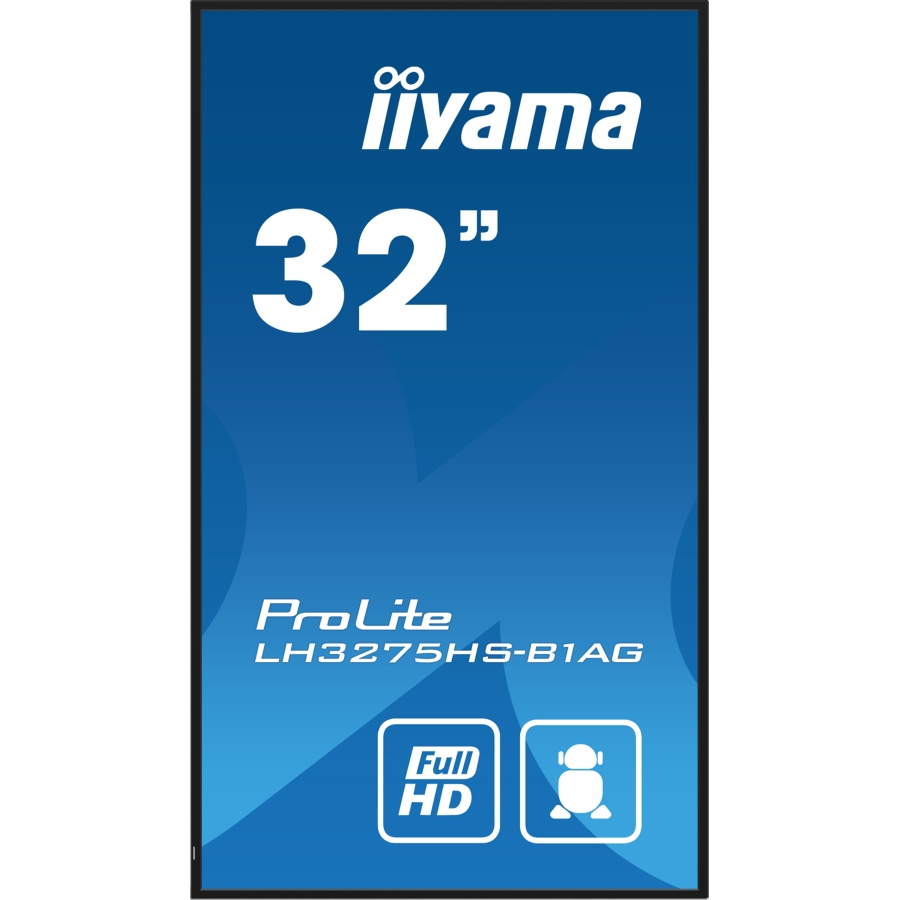

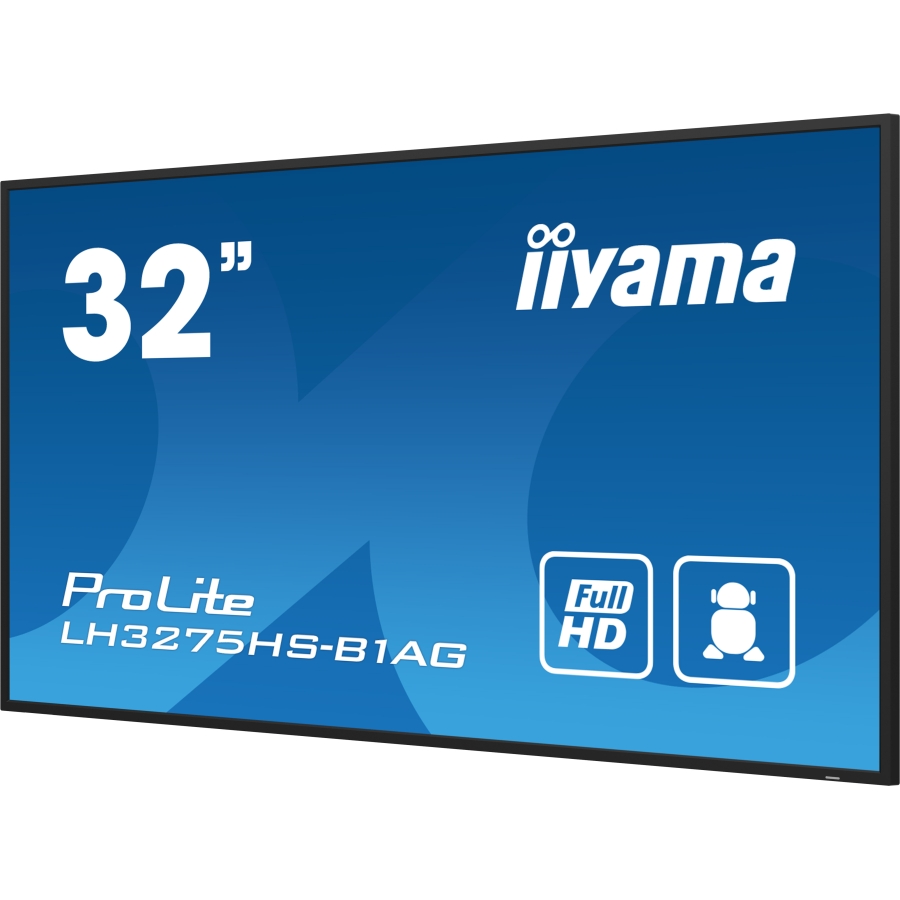

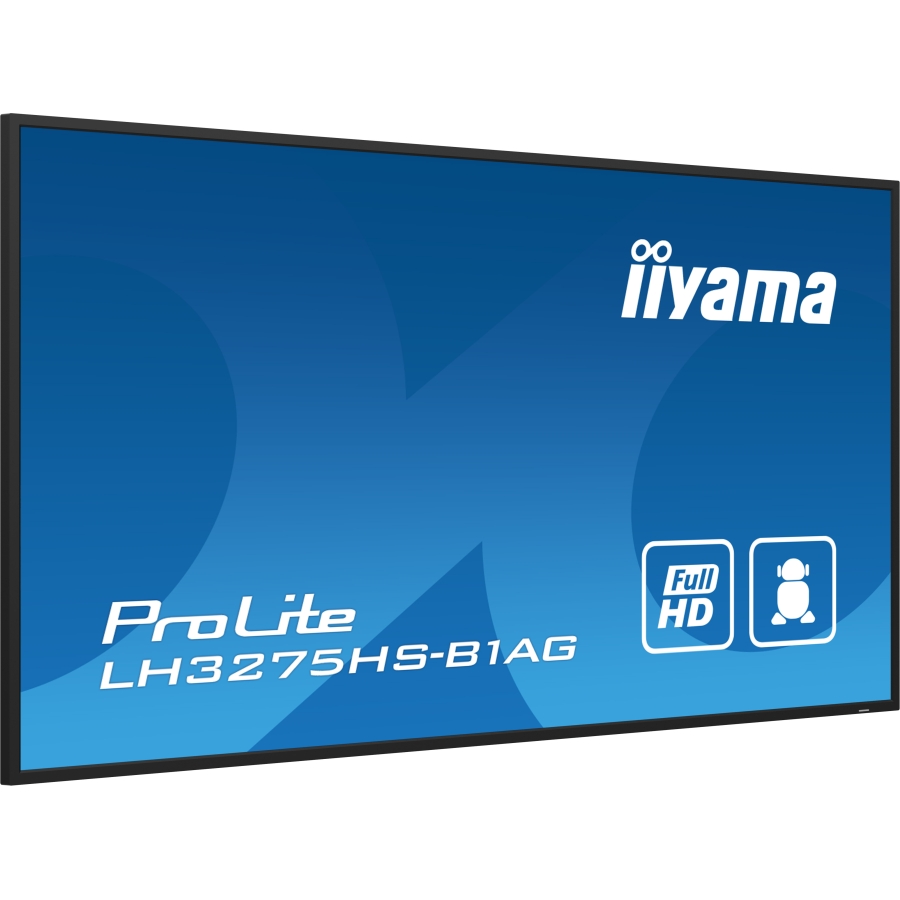

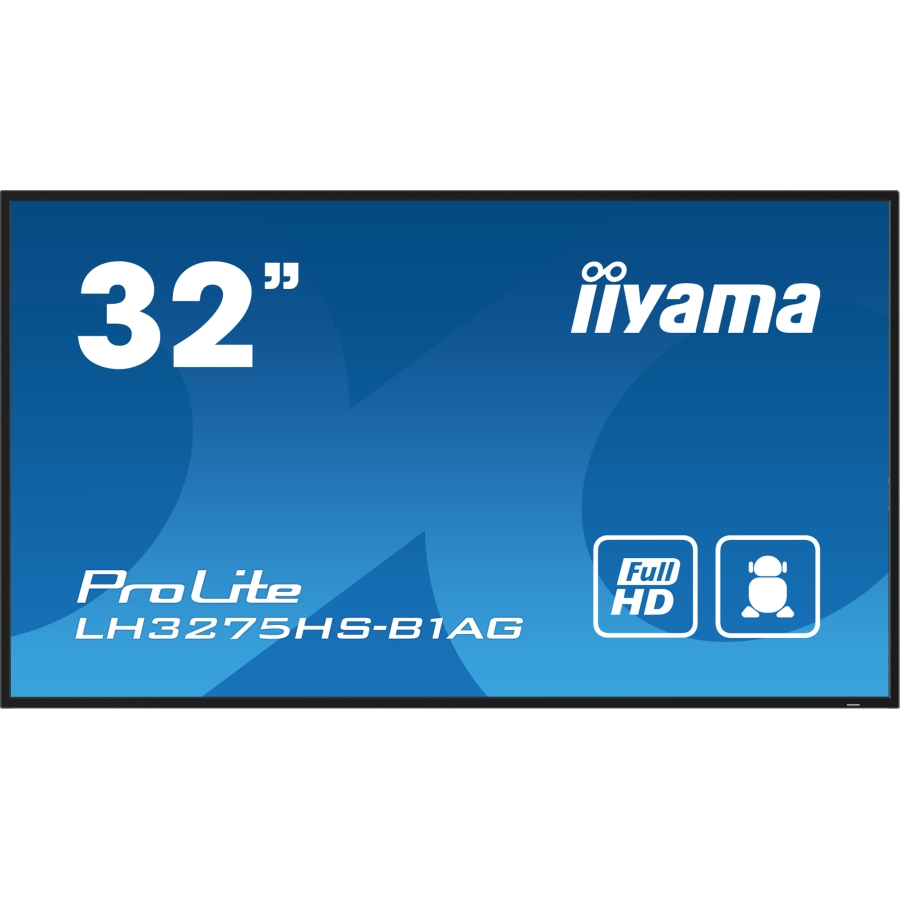

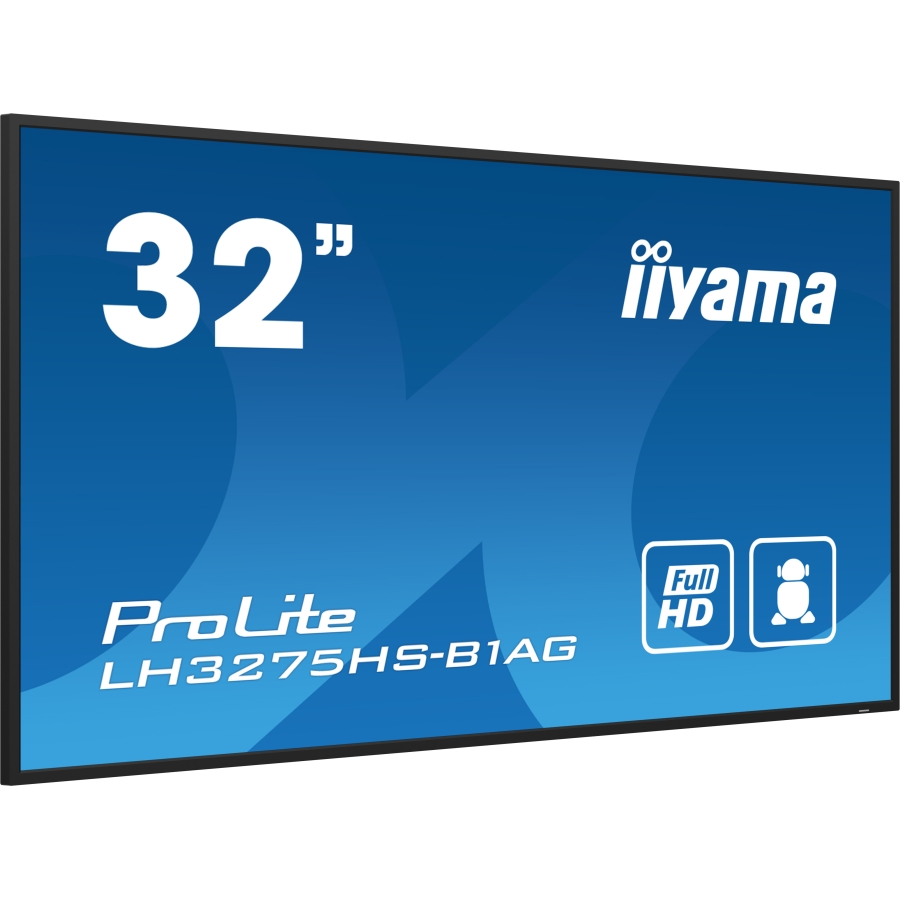

iiyama LH3275HS-B1AG 32″ Black Digital Signage Flat Panel Display with 500nit Brightness and Full HD

iiyama LH3275HS-B1AG 32″ Black Digital Signage Flat Panel Display with 500nit Brightness and Full HD

LH3275HS-B1AG

  • Indoor Digital signage flat panel Black
  • 81.3 cm (32″) 1920 x 1080 pixels LCD 500 cd/m²
  • 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
-
+

Details

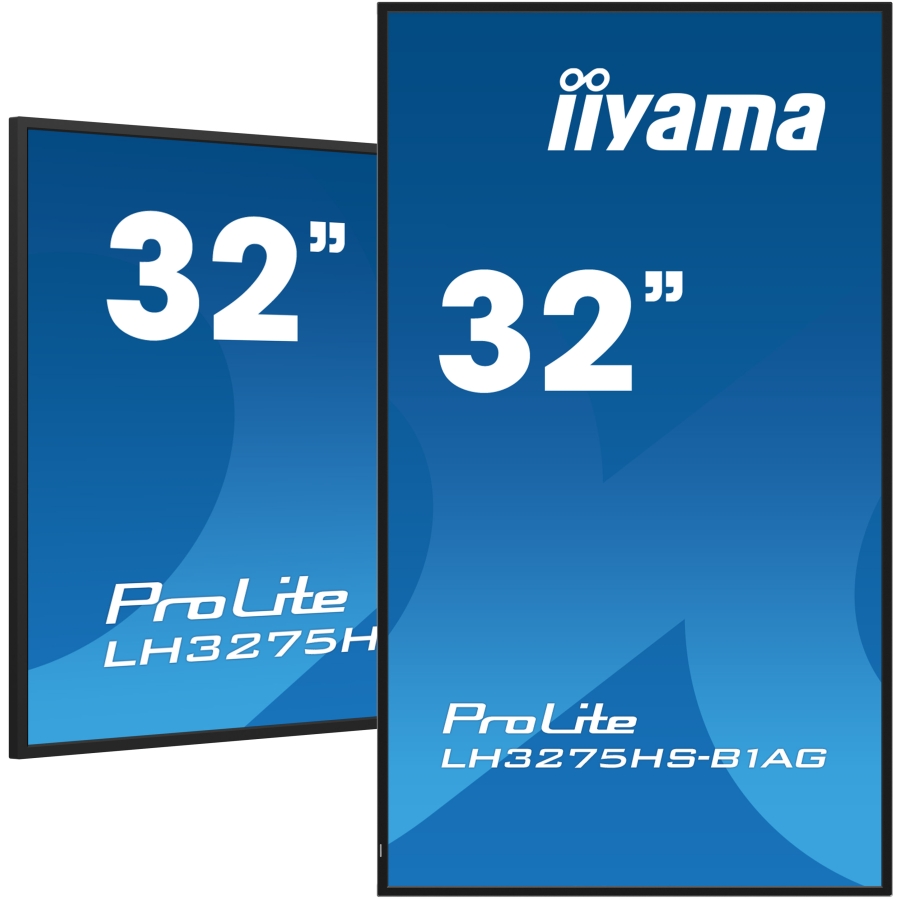

32" Full HD Professional Digital Signage 24/7 display featuring Android OS and FailOver Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3275HS from iiyama can be operated in landscape or portrait orientation in continual around the clock environments, 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and install applications directly to it. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The FailOver feature ensures your content is always actively displayed through your choice of inputs. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before. ANDROID OS Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it. IISIGNAGE iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely. SIGNAL FAILOVER FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times. MEDIA PLAYER Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or the internal memory with the built-in media player. FULL HD With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type IPS
Display diagonal 81.3 cm (32″)
Display technology LCD
Display resolution 1920 x 1080 pixels
Display brightness 500 cd/m²
HD type Full HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 16.7 million colours
Pixel pitch 0.364 x 0.364 mm
Active display area (W x H) 698.4 x 392.85 mm
Display diagonal (metric) 80 cm
Maximum frame rate 60 fps
Horizontal scan range 28 – 160 kHz
Haze rate 25%
RGB colour space sRGB

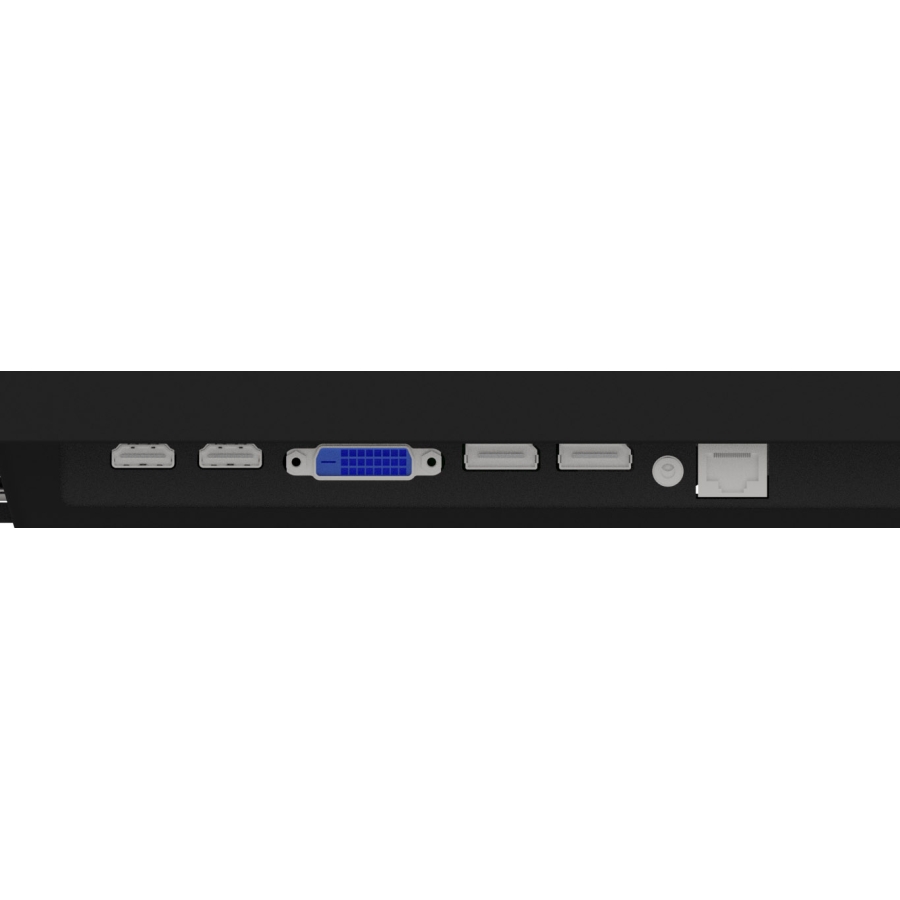

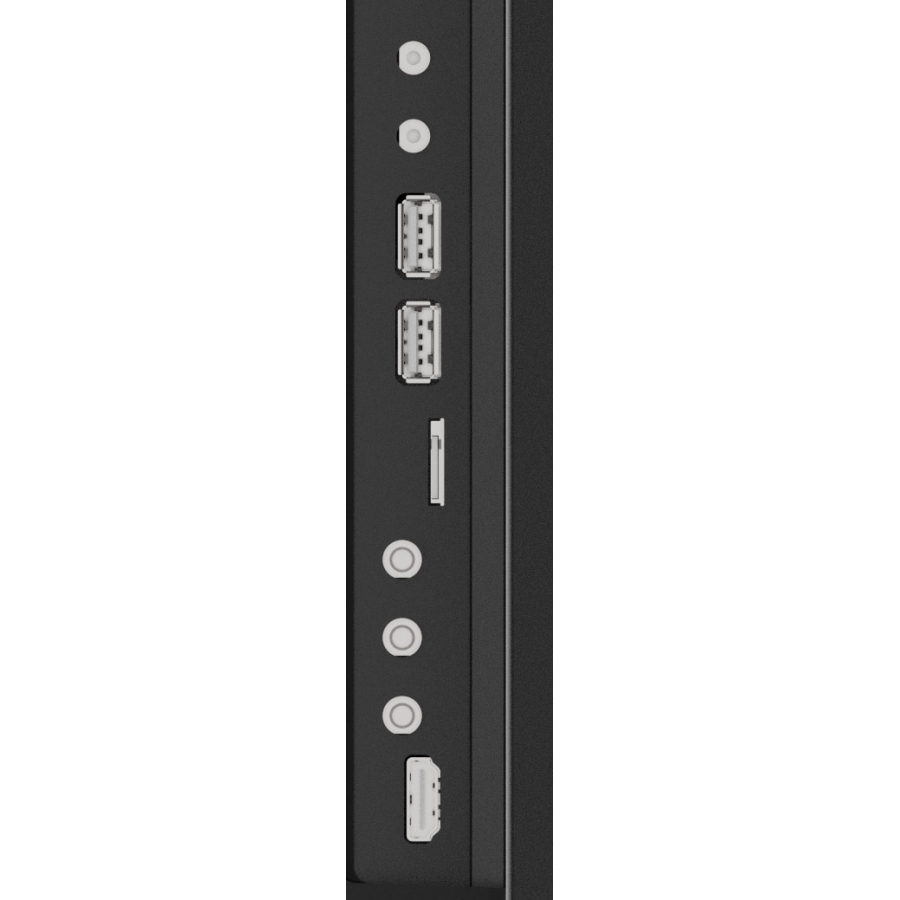

Ports & interfaces
HDMI ports quantity 2
HDMI version 2.0
DisplayPorts quantity 1
DisplayPort version 1.2
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Wi-Fi standards Wi-Fi 5 (802.11ac)
PC Audio in Yes
RS-232C Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Digital signage flat panel
Placement supported Indoor

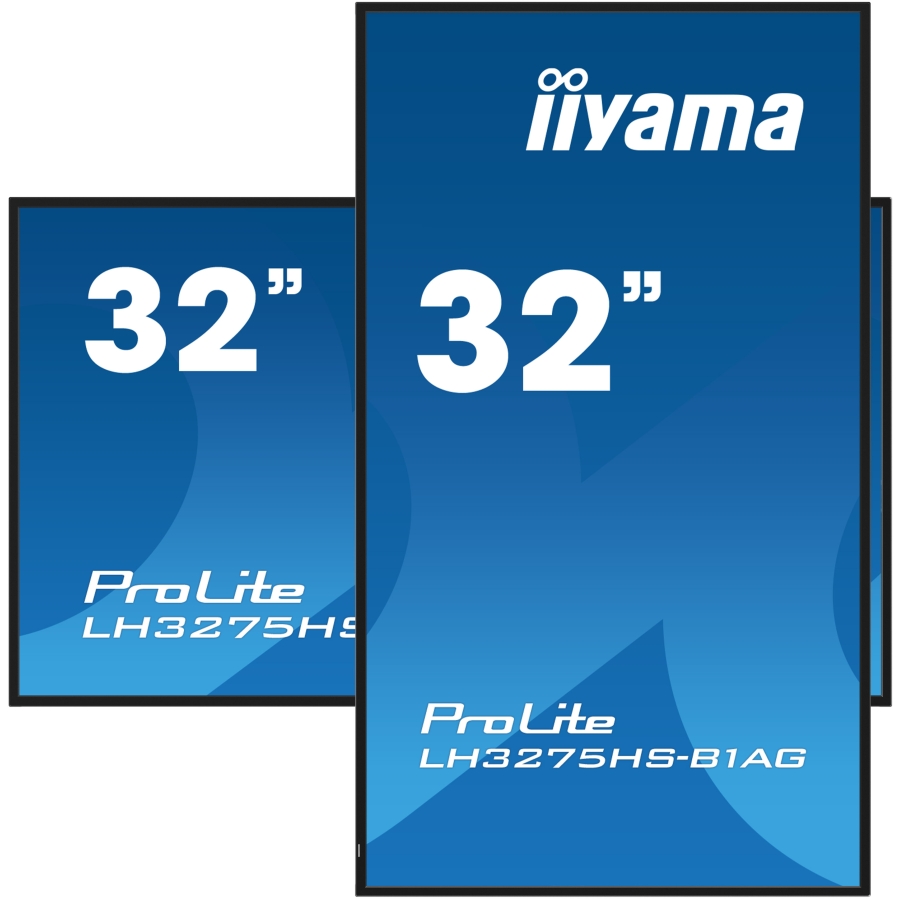

Orientation Horizontal/Vertical
Product colour Black
VESA mounting Yes
Panel mounting interface 200 x 200 mm
Bezel width (bottom) 1.19 cm
Bezel width (side) 1.19 cm
Bezel width (top) 1.19 cm
Performance
Purpose Universal
On Screen Display (OSD) Yes
Number of OSD languages 11
On Screen Display (OSD) languages Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days) 24/7
HDCP Yes
HDCP version 2.2
Mean time between failures (MTBF) 44000 h
Power
Power consumption (typical) 46 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
Energy efficiency class (SDR) G
Energy consumption (SDR) per 1000 hours 46 kWh
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Energy efficiency scale A to G
Computer system
Built-in processor Yes
Processor manufacturer ARM
Processor family ARM Cortex
Processor architecture ARM Cortex-A53+Cortex-A73
Processor cores 4
Internal memory 4 GB
Internal storage capacity 32 GB
Operating system installed Android 11
Weight & dimensions
Display width 725.5 mm
Display depth 54 mm
Display height 421.8 mm
Display weight 5.2 kg
Packaging data
Package width 824 mm
Package depth 119 mm
Package height 554 mm
Packaging content
Remote control included Yes
Batteries included Yes

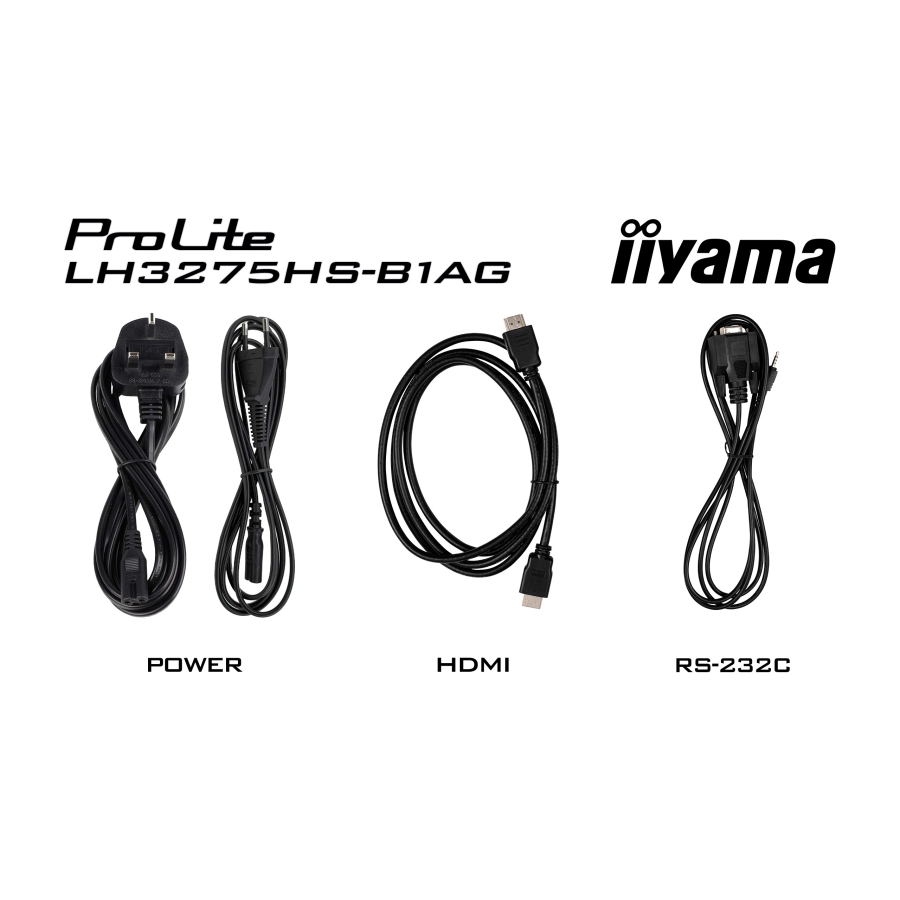

Cables included AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 60 °C
Certificates
Certification CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code 85285210
Technical details
Compliance certificates RoHS
Other features
Quick start guide Yes
Housing material Metal
Screen Size 32"
Aspect Ratio 16:9
Resolution 1920x1080
Brightness 500nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O HDMI, RS232
Mounting VESA
Operating Temperature 0°C to 40°C
CPU ARM
LAN Yes
Wi-Fi Yes
OS Android
