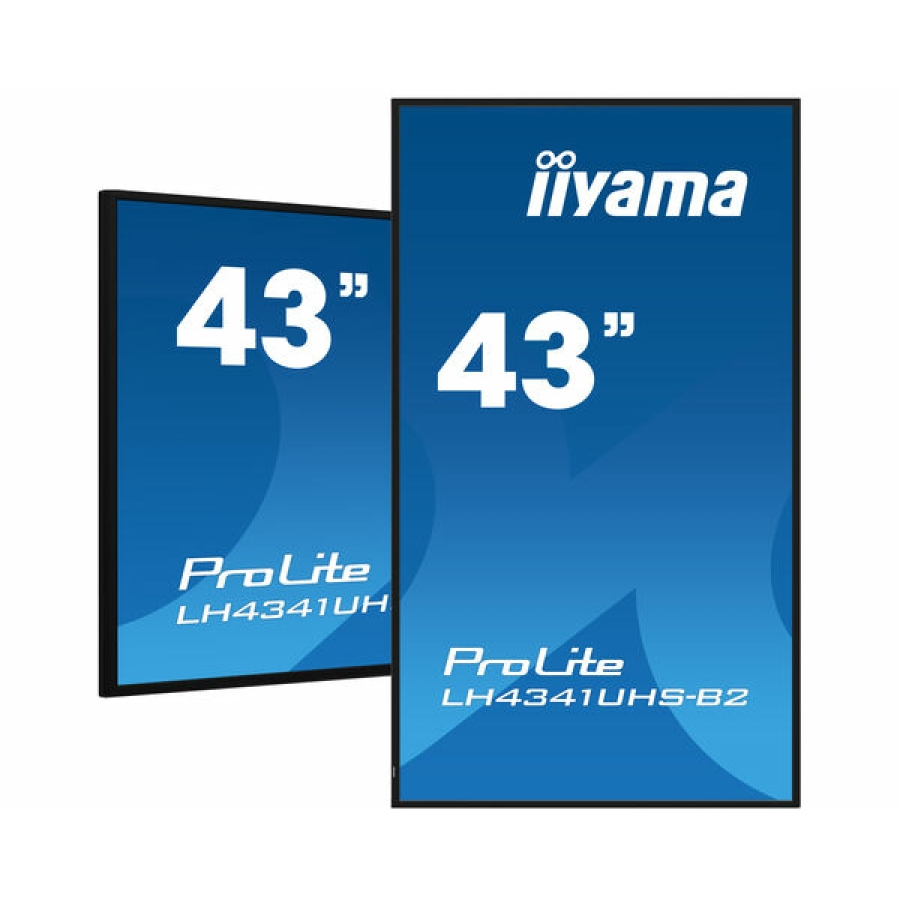

iiyama LH4341UHS-B2 42.5″ Digital Signage Display with 500nit Brightness and 4K Ultra HD

Name: iiyama LH4341UHS-B2 42.5" Digital Signage Display with 500nit Brightness and 4K Ultra HD
SKU: LH4341UHS-B2
Availability: InStock

Iiyama

iiyama LH4341UHS-B2 42.5″ Digital Signage Display with 500nit Brightness and 4K Ultra HD

LH4341UHS-B2

Indoor
108 cm (42.5″) 3840 x 2160 pixels LCD 500 cd/m²
8 ms
Ethernet LAN

Product Code: LH4341UHS-B2

Categories: 41" to 50" Commercial Displays, 43" Commercial Displays, 4K Displays, Airport Digital Signage, Car Dealership, DOOH, Food and Drink, Gym and Fitness, Healthcare, Hotel, Iiyama, Kiosk, Professional Displays, Professional Displays and Monitors, Resolutions, Retail / POS Digital Signage, Shop By Size, Transport, Uncategorised

Range: Iiyama

Details

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH7554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control.

Downloads

LH4341UHS-B2 Leaflet (PDF)

1.52MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type	IPS
Display diagonal	108 cm (42.5″)
Display technology	LCD
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.245 x 0.245 mm
Active display area (W x H)	941.2 x 529.4 mm
Display diagonal (metric)	108 cm
Horizontal scan range	30 – 80 kHz
Haze rate	1%
Ports & interfaces
HDMI ports quantity	3
DVI port	Yes
USB port	Yes
USB ports quantity	2
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	No
PC Audio in	Yes
RS-232C	Yes
Remote (IR) input	1
Remote (IR) output	1
Design
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Bezel width (bottom)	1.55 cm
Bezel width (side)	1.55 cm
Bezel width (top)	1.55 cm
Performance
Purpose	Universal
On Screen Display (OSD)	Yes
Number of OSD languages	11
On Screen Display (OSD) languages	Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days)	18/7
HDCP	Yes
Power
Power consumption (typical)	107 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
Energy efficiency class (SDR)	G
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Energy efficiency scale	A to G
Computer system
Computer system	Yes
Built-in processor	Yes
Processor model	V810
Internal memory	2 GB
Internal storage capacity	16 GB
Operating system installed	Android 8.0
Weight & dimensions
Display width	968 mm
Display depth	54 mm
Display height	557.5 mm
Display weight	8.9 kg
Width	1929 mm
Depth	69.5 mm
Height	1100 mm
Weight	63.8 kg
Packaging data
Package width	1075 mm
Package depth	683 mm
Package height	127 mm
Packaging content
Remote control included	Yes
Batteries included	Yes
Cables included	AC, HDMI, RS-232
Operational conditions
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-20 – 60 °C
Certificates
Certification	CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH
Logistics data
Harmonized System (HS) code	85285210
Technical details
Compliance certificates	RoHS
Other features
Quick start guide	Yes
Housing material	Metal

Screen Size	43"
Aspect Ratio	16:9
Resolution	3840x2160
Brightness	500nit
Viewing Angle	178/178 (H/V)
Speaker	Yes
I/O	HDMI, RS232
Mounting	VESA
Operating Temperature	0°C to 40°C
CPU	ARM
LAN	Yes
Wi-Fi	Yes
OS	Android
