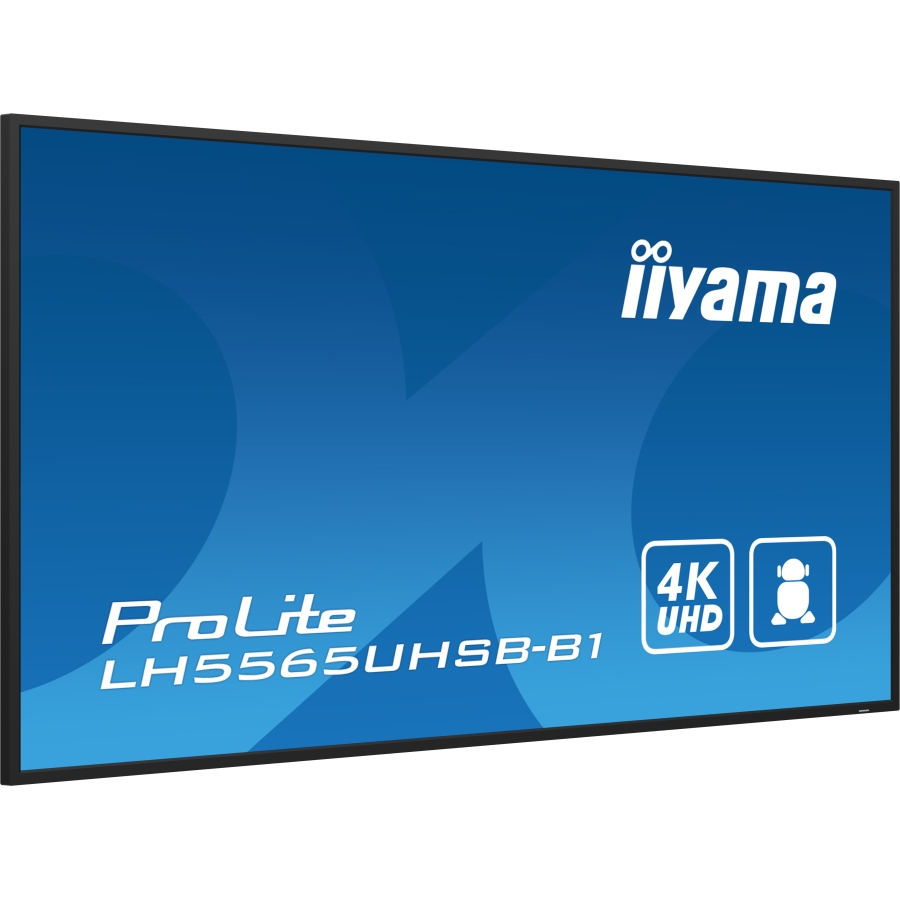

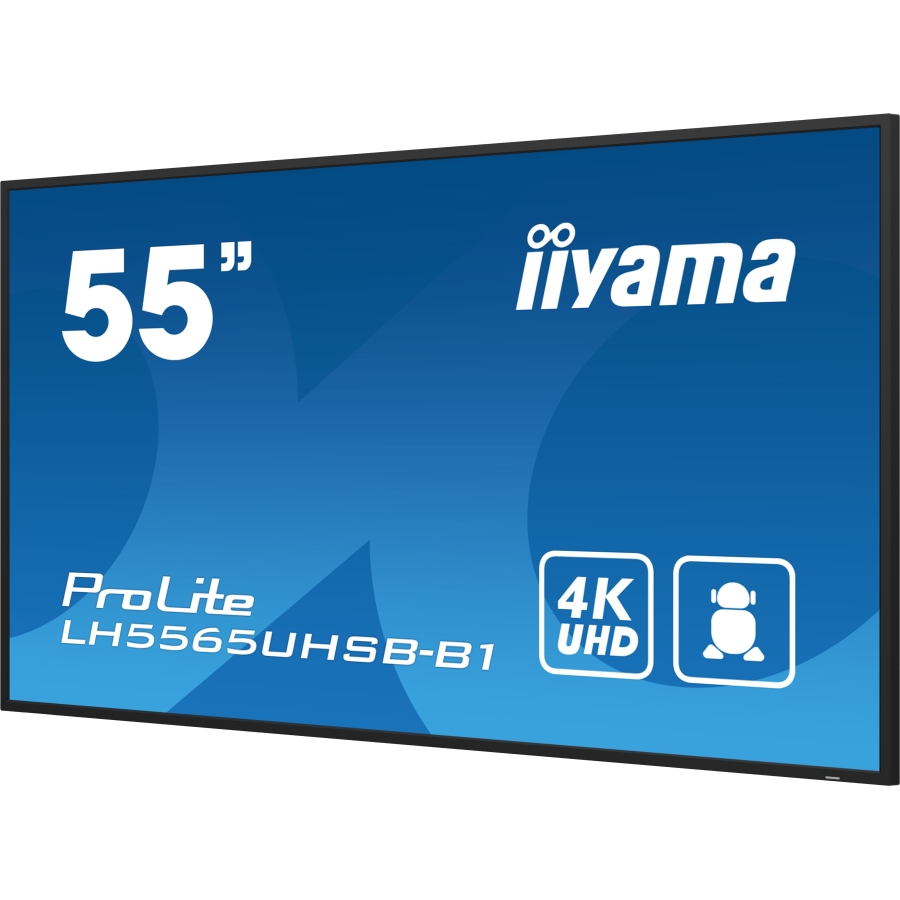

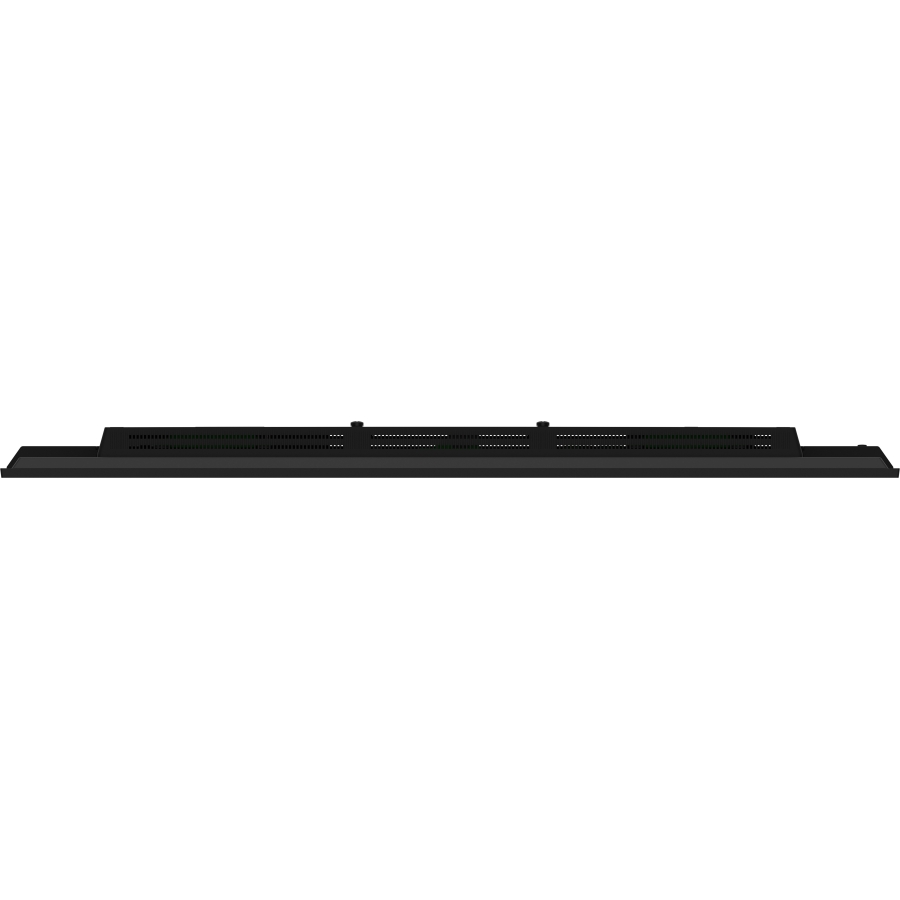

iiyama LH5565UHSB-B1 54.6″ Black Digital Signage Kiosk Design Display with 800nit Brightness 4K Ultra HD
iiyama LH5565UHSB-B1 54.6″ Black Digital Signage Kiosk Design Display with 800nit Brightness 4K Ultra HD
LH5565UHSB-B1
- Kiosk design Black
- 138.7 cm (54.6″) 3840 x 2160 pixels LED 800 cd/m²
- 60 Hz 8 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 20 W
LH5565UHSB-B1
4K Displays, 51" to 60" Commercial Displays, 55" Commercial Displays, Airport Digital Signage, Car Dealership, DOOH, Food and Drink, Gym and Fitness, Healthcare, Hotel, Iiyama, Professional Displays, Professional Displays and Monitors, Resolutions, Retail / POS Digital Signage, Shop by Sector, Shop By Size, Transport, Uncategorised
Details
iiyama LH5565UHSB-B1. Product design: Kiosk design. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: BlackSystem Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Specification
Display | |
---|---|
Panel type | IPS |
Display diagonal | 138.7 cm (54.6″) |
Display technology | LED |
Display resolution | 3840 x 2160 pixels |
Display brightness | 800 cd/m² |
HD type | 4K Ultra HD |
Touchscreen | No |
Native aspect ratio | 16:9 |
Response time | 8 ms |
Contrast ratio (typical) | 1200:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display number of colours | 1.07 billion colours |
Pixel pitch | 0.315 x 0.315 mm |
Active display area (W x H) | 1209.6 x 680.4 mm |
Display diagonal (metric) | 139 cm |
Horizontal scan range | 28 – 160 kHz |
Native refresh rate | 60 Hz |
Haze rate | 1% |
RGB colour space | NTSC |

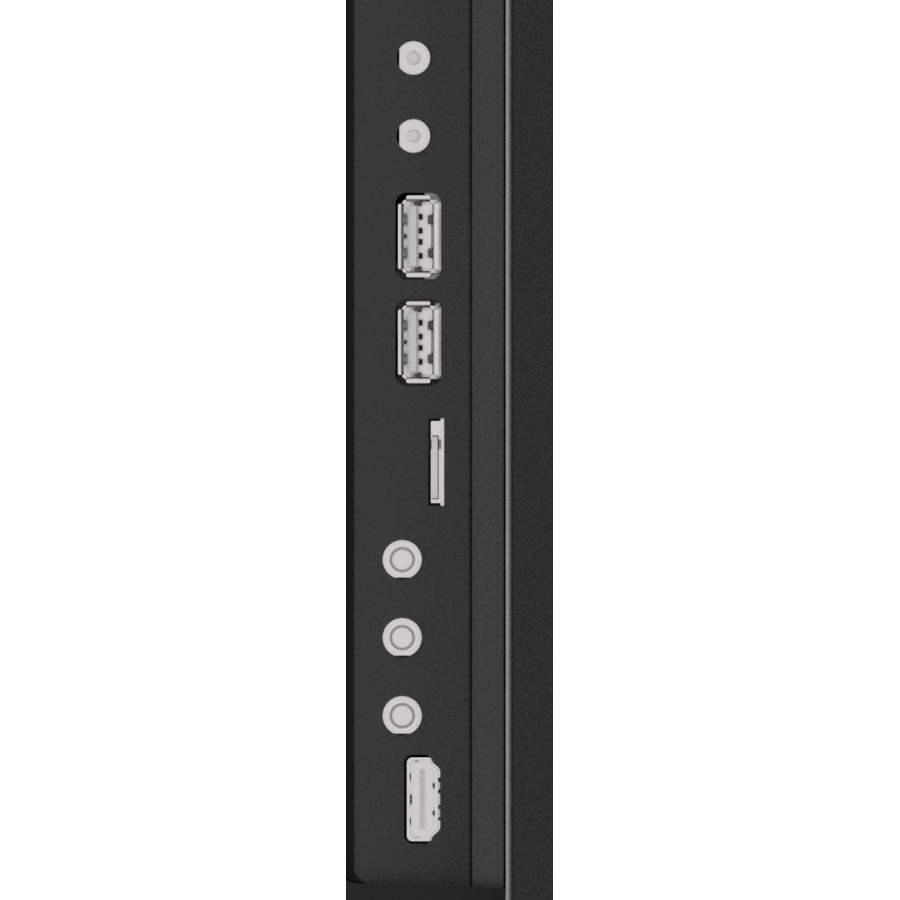

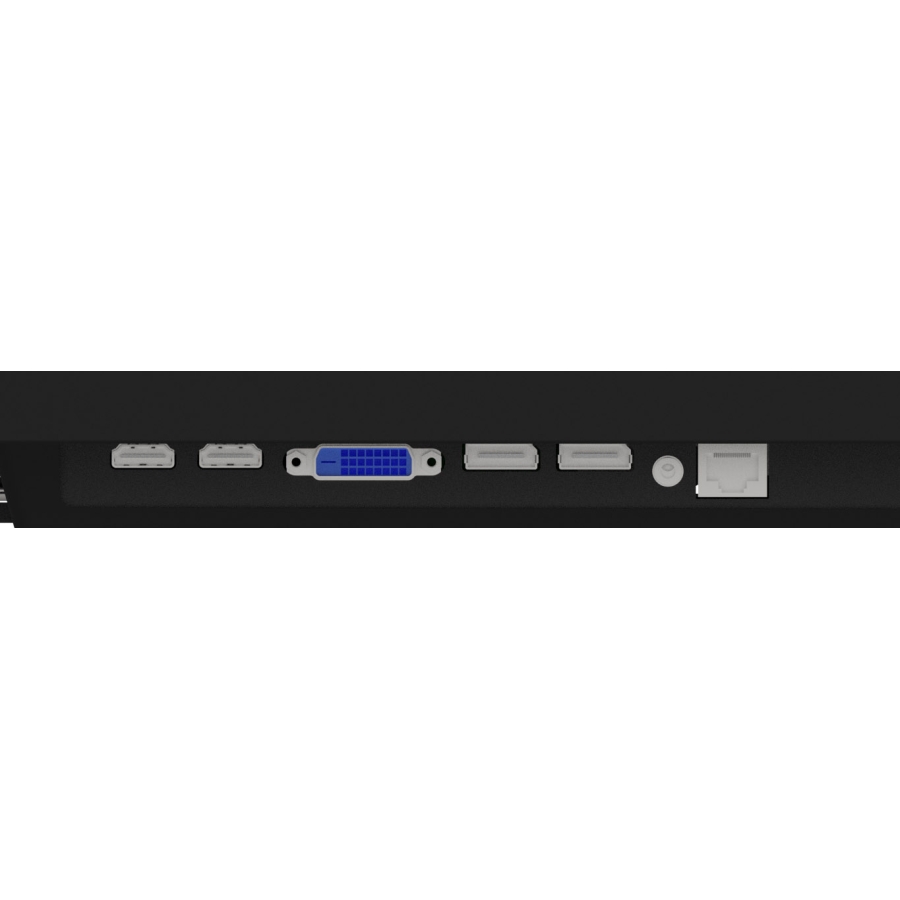

Ports & interfaces | |
HDMI ports quantity | 2 |
HDMI version | 2.0 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.2 |
USB port | Yes |
USB ports quantity | 2 |
USB version | 2.0 |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wi-Fi | Yes |
Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Audio (L/R) in | 1 |
RS-232 interface | Yes |
RS-232C | Yes |
Audio | |
Built-in speaker(s) | Yes |
Number of built-in speakers | 2 |
RMS rated power | 20 W |
Design | |
Product design | Kiosk design |

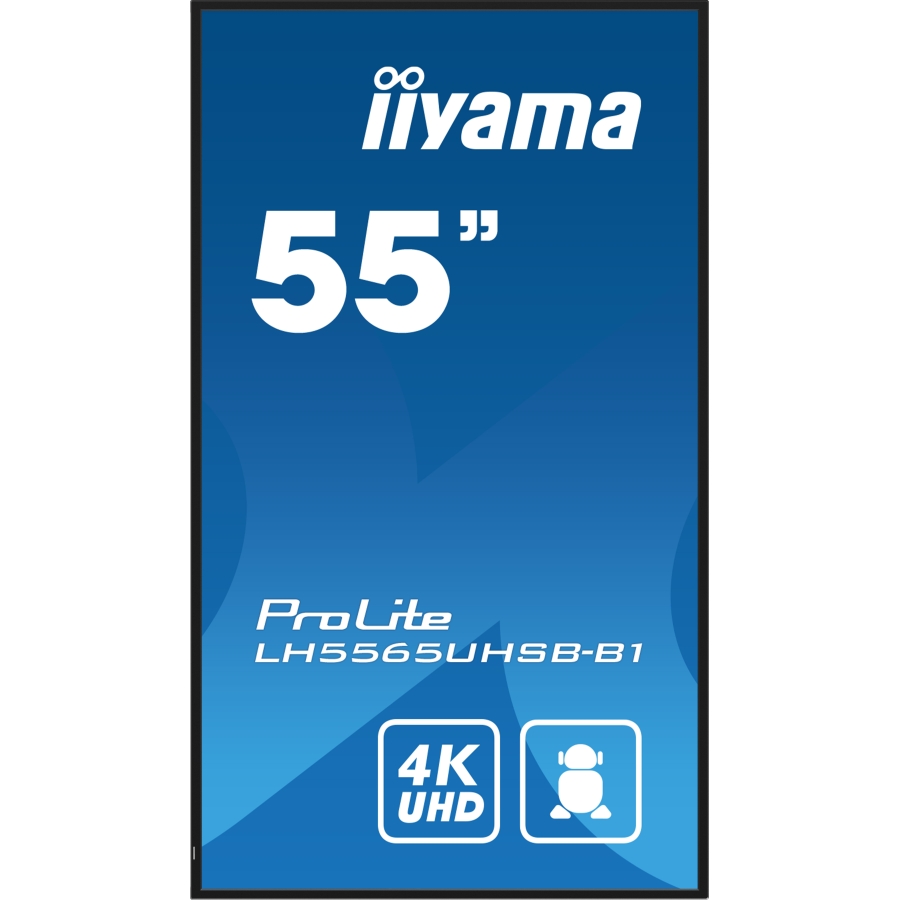

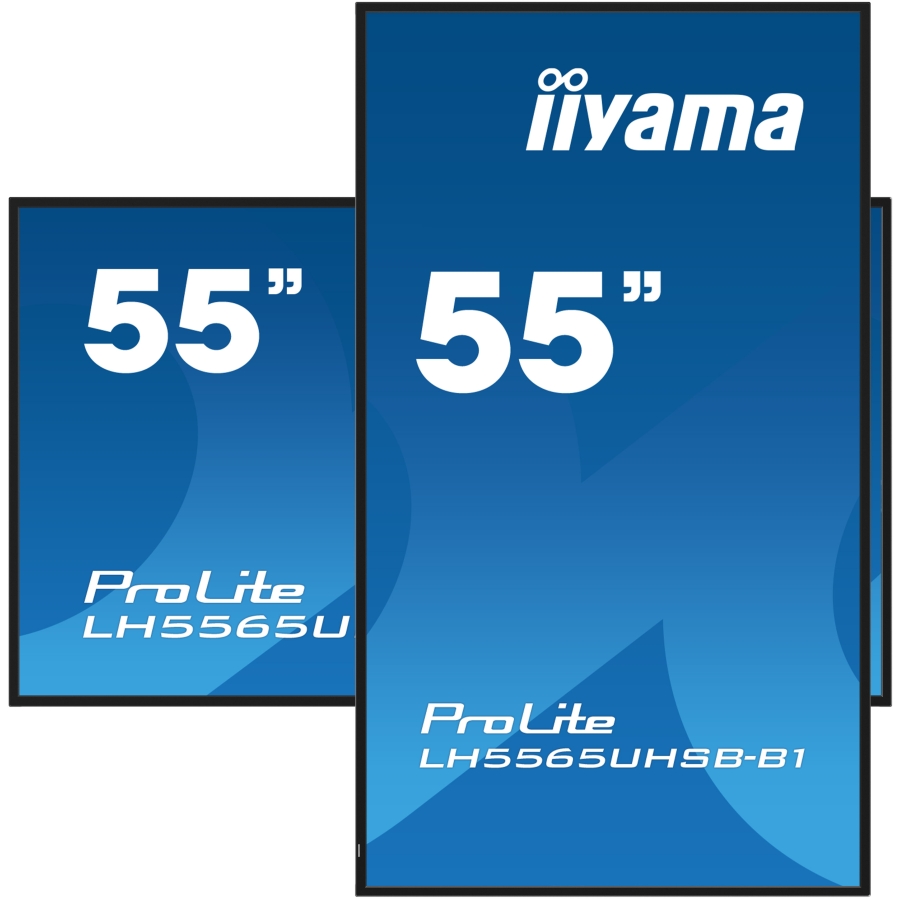

Orientation | Horizontal/Vertical |
Product colour | Black |

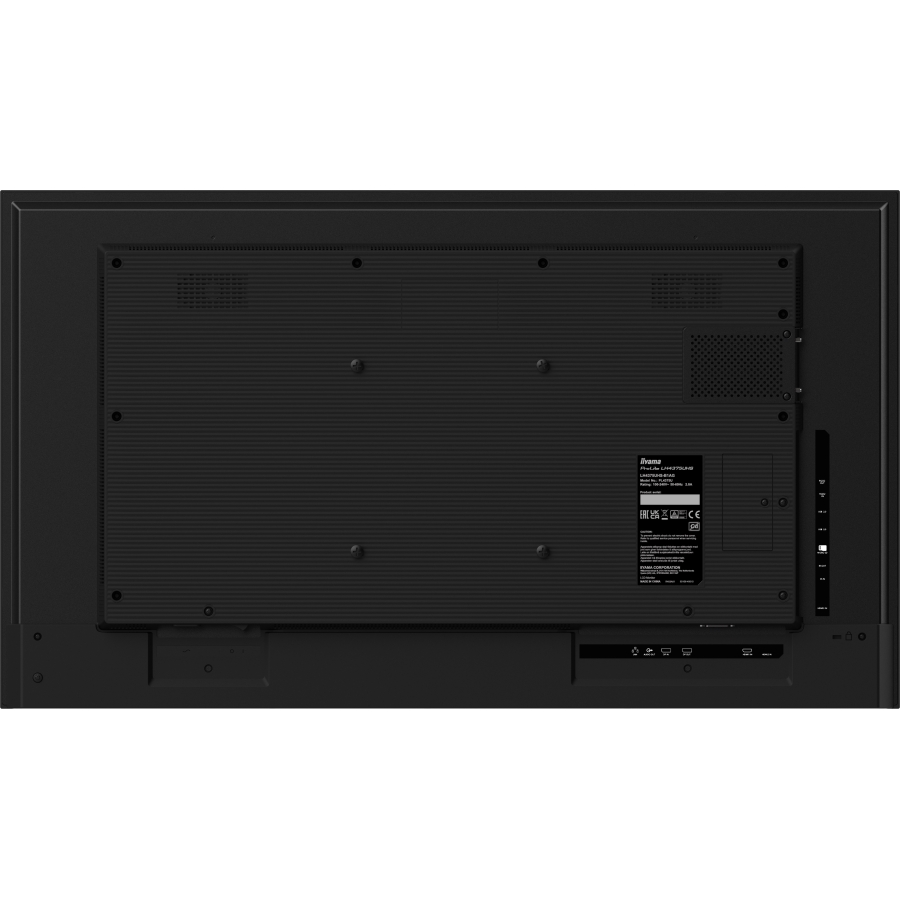

VESA mounting | Yes |
Panel mounting interface | 400 x 400 mm |
Bezel width (bottom) | 1.49 cm |
Bezel width (side) | 1.49 cm |
Bezel width (top) | 1.49 cm |
Bezel colour | black |
Performance | |
Purpose | Commercial |
Number of OSD languages | 8 |
On Screen Display (OSD) languages | Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian |
Operating hours (hours/days) | 24/7 |
HDCP | Yes |
HDCP version | 2.2 |
Mean time between failures (MTBF) | 50000 h |
Power | |
Power consumption (typical) | 78 W |
Power consumption (standby) | 0.5 W |
Power consumption (off) | 0.3 W |
Energy efficiency class (SDR) | E |
Energy consumption (SDR) per 1000 hours | 78 kWh |
AC input voltage | 100 – 240 V |
AC input frequency | 50/60 Hz |
Energy efficiency scale | A to G |
Computer system | |
Computer system | Yes |
Built-in processor | Yes |
Processor manufacturer | ARM |
Processor family | ARM Cortex |
Processor architecture | ARM Cortex-A53+Cortex-A73 |
Processor cores | 8 |
Internal memory | 4 GB |
On-board graphics card model | ARM Mali-G52 |
Internal storage capacity | 32 GB |
Operating system installed | Android 11 |
Weight & dimensions | |
Display width | 1237.5 mm |
Display depth | 55 mm |
Display height | 710 mm |
Display weight | 14.6 kg |
Packaging data | |
Package width | 1386 mm |
Package depth | 130 mm |
Package height | 845 mm |
Package weight | 19.8 kg |
Packaging content | |
Remote control included | Yes |

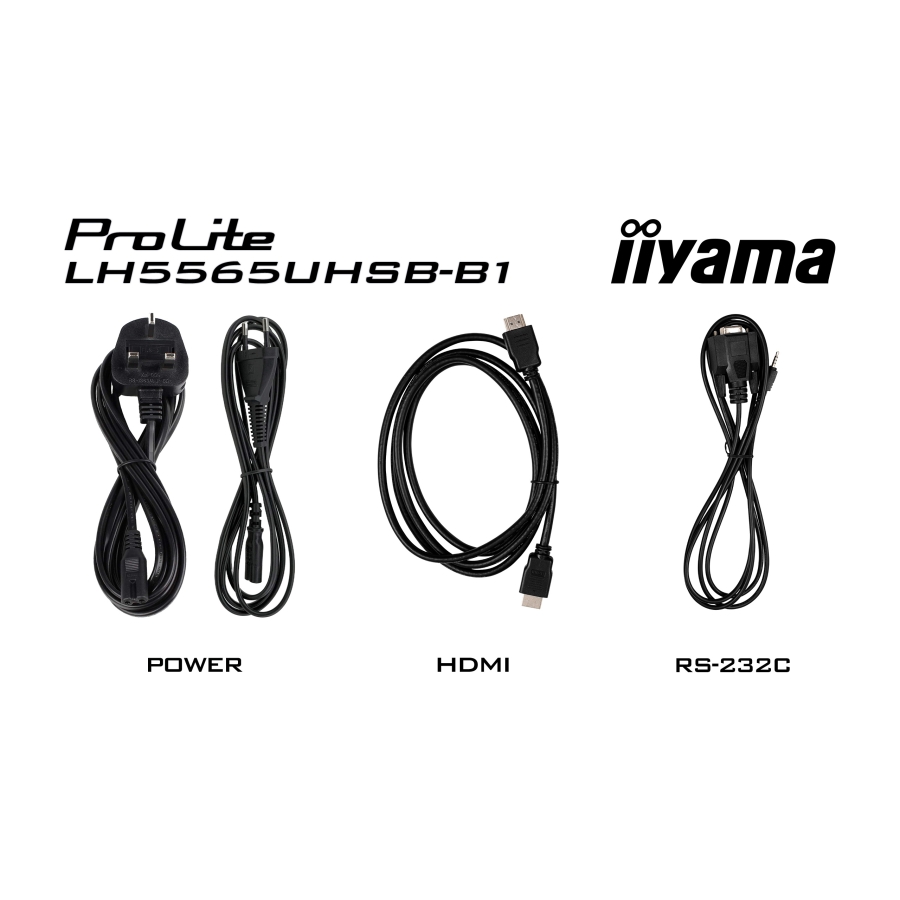

Cables included | HDMI, Power, RS-232 |
Operational conditions | |
Operating temperature (T-T) | 0 – 40 °C |
Operating relative humidity (H-H) | -20 – 60% |
Screen Size | 55" |
---|---|
Aspect Ratio | 16:9 |
Resolution | 3840x2160 |
Brightness | 800nit |
Viewing Angle | 178/178 (H/V) |
Speaker | Yes |
I/O | HDMI, RS232 |
Mounting | VESA |
Operating Temperature | 0°C to 40°C |
LAN | Yes |
Wi-Fi | Yes |
OS | Android |
