Samsung OH55A-S 55″ Professional Outdoor Signage 3500 cd/m² FHD 24/7

Name: Samsung OH55A-S 55" Professional Outdoor Signage 3500 cd/m² FHD 24/7
SKU: LH55OHAOSGBXEN
Availability: InStock

Samsung

Samsung OH55A-S 55″ Professional Outdoor Signage 3500 cd/m² FHD 24/7

LH55OHAOSGBXEN

Outdoor Digital signage flat panel Black
139.7 cm (55″) 1920 x 1080 pixels VA 3500 cd/m²
6 ms
Ethernet LAN

Product Code: LH55OHAOSGBXEN

Categories: 2K Displays, 51" to 60" Commercial Displays, 55" Commercial Displays, Airport Digital Signage, Bus Stop, Commercial Displays, DOOH, Food and Drink, Outdoor Digital Signage, Outdoor Displays, Resolutions, Samsung, Shop by Sector, Shop By Size, Transport, Uncategorised, Wall Mounted Displays

Range: Samsung

Details

Samsung OH55A-S. Product design: Digital signage flat panel. Display diagonal: 139.7 cm (55"), Display technology: VA, Display resolution: 1920 x 1080 pixels, Display brightness: 3500 cd/m², HD type: Full HD. Operating hours (hours/days): 24/7. Operating system installed: Tizen 5.0. Product colour: Black

Downloads

Samsung OHA series (PDF)

1.82MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Display diagonal	139.7 cm (55″)
Display technology	VA
Display resolution	1920 x 1080 pixels
Display brightness	3500 cd/m²
HD type	Full HD
Touchscreen	No
Response time	6 ms
Contrast ratio (typical)	6000:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.63 x 0.63 mm
Horizontal scan range	30 – 136 kHz
Vertical scan range	24 – 75 Hz
Colour gamut	72%

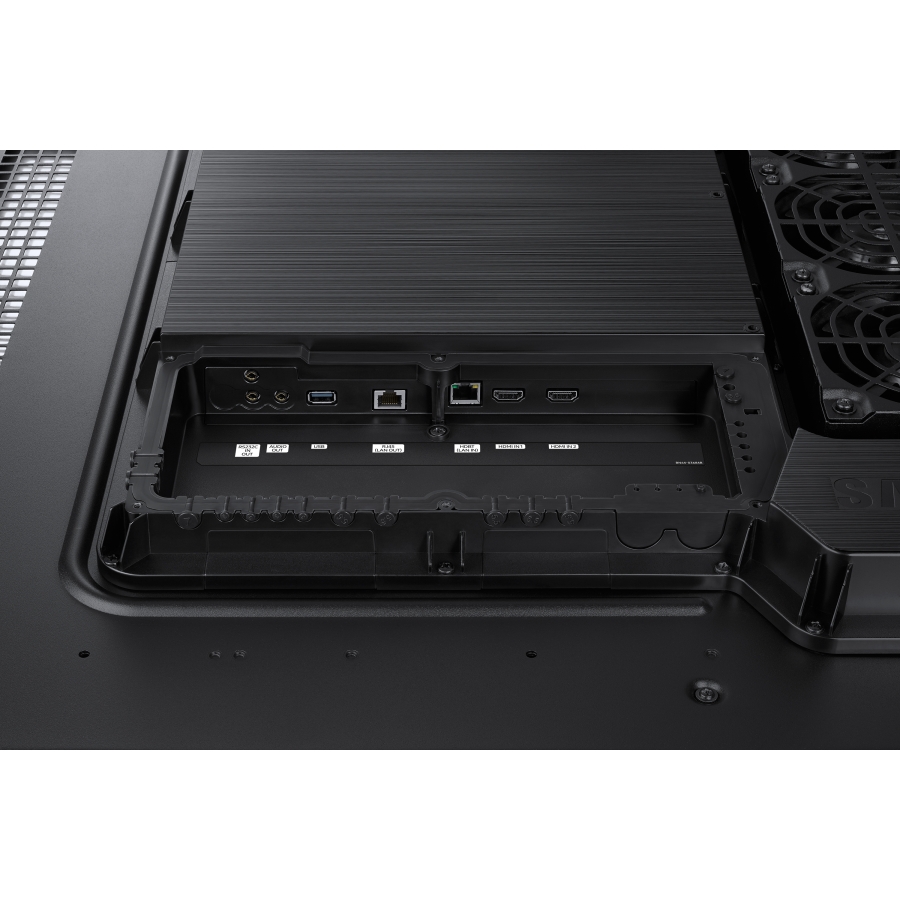

Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
DVI port	No
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	2
Wi-Fi	No
Audio (L/R) out	1
RS-232 interface	Yes
HDBaseT input ports	1
Audio
Built-in speaker(s)	No
Design
Product design	Digital signage flat panel
Placement supported	Outdoor
Orientation	Horizontal/Vertical
Product colour	Black
VESA mounting	Yes
Panel mounting interface	1186 x 560 mm
Bezel width (bottom)	2.49 cm
Bezel width (side)	2.49 cm
Bezel width (top)	2.49 cm
Performance
Purpose	Universal
Operating hours (hours/days)	24/7
HDCP	Yes
International Protection (IP) code	IP56
HDCP version	2.2
Power
Power consumption (typical)	530 W
Power consumption (sleep)	0.5 W
AC input voltage	100 – 240 V
AC input frequency	50 – 60 Hz
Computer system
Computer system	Yes
Computer system type	System on Chip (SoC)
Internal memory	8 GB
Operating system installed	Tizen 5.0
Weight & dimensions
Display width	1260.6 mm
Display depth	85 mm
Display height	731.4 mm
Display weight	46.1 kg
Packaging data
Package width	1358 mm
Package depth	230 mm
Package height	845 mm
Package weight	52.6 kg
Operational conditions
Operating temperature (T-T)	-30 – 50 °C
Operating relative humidity (H-H)	10 – 80%
Other features
Audio output	1
Flash memory	8000 MB
RS-232 input ports	1
RS-232 output ports	1
Glass protection	Yes

Screen Size	55"
Aspect Ratio	16:9
Resolution	1920x1080
Brightness	3500nit
Glass Type	Tempered
I/O	HDMI Input, RJ45, RS232, USB
Mounting	VESA
Operating Temperature	-30°C to 50°C
Operating Humidity	10% to 80%
Outdoor Rated	Yes
Built In Media Player	Yes
OS	Tizen
