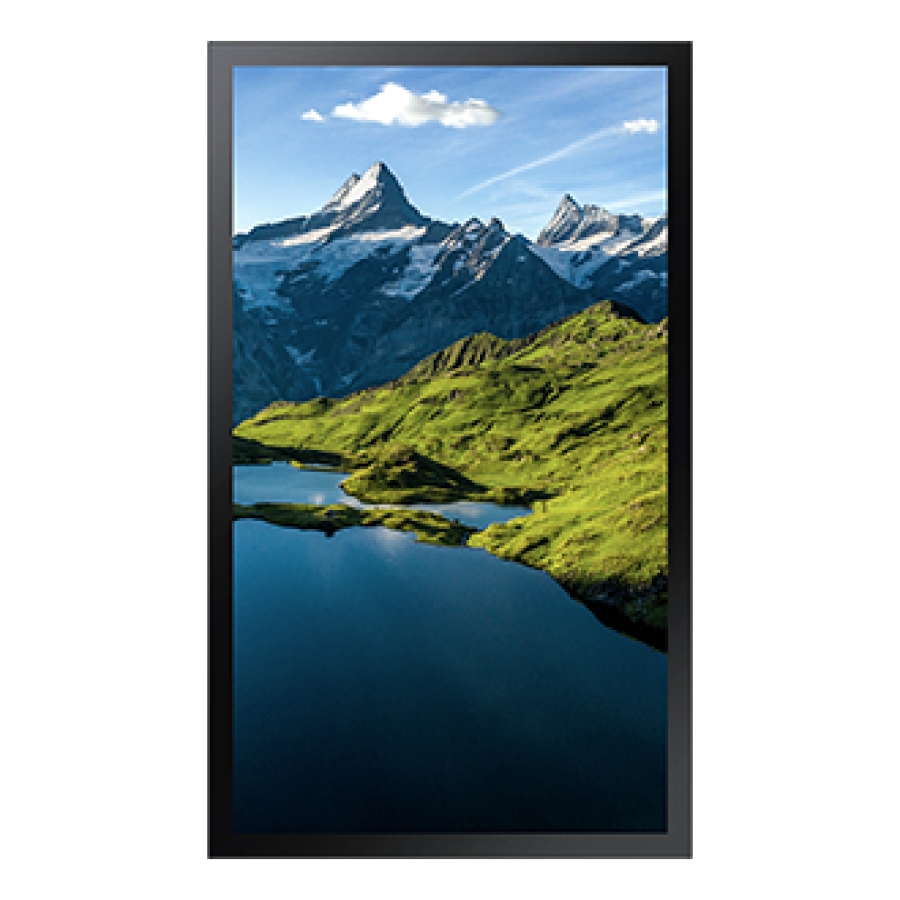

Samsung OH75A 75″ Professional Outdoor Signage 3500 cd/m² UHD 24/7

Name: Samsung OH75A 75" Professional Outdoor Signage 3500 cd/m² UHD 24/7
SKU: LH75OHAEBGBXEN
Availability: InStock

Samsung

Samsung OH75A 75″ Professional Outdoor Signage 3500 cd/m² UHD 24/7

LH75OHAEBGBXEN

Digital signage flat panel Black
190.5 cm (75″) 3840 x 2160 pixels 3500 cd/m²
14 ms
Ethernet LAN

Product Code: LH75OHAEBGBXEN

Categories: 4K Displays, 71" to 80" Commercial Displays, 75" Commercial Displays, Airport Digital Signage, Bus Stop, Commercial Displays, DOOH, Food and Drink, Outdoor Displays, Resolutions, Samsung, Shop By Size, Transport, Uncategorised, Wall Mounted Displays

Range: Samsung

Details

Samsung OH75A. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 3500 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

Downloads

Samsung OHA series (PDF)

1.82MB

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type	ADS
Display diagonal	190.5 cm (75″)
Display resolution	3840 x 2160 pixels
Display brightness	3500 cd/m²
HD type	4K Ultra HD
Response time	14 ms
Contrast ratio (typical)	1200:1
Dynamic contrast ratio marketing name	Mega Contrast
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	429.6 x 429.6 mm
Active display area (W x H)	927.94 x 1649.66 mm
Horizontal scan range	30 – 135 kHz
Vertical scan range	30 – 75 Hz
Haze rate	2.5%
Pixel frequency (max)	77 MHz
Glass thickness	5 mm
Glass film	SR Film
Colour gamut	72%
Ports & interfaces
HDMI ports quantity	2
HDMI version	2.0
DVI port	No
DisplayPorts quantity	1
DisplayPorts in	1
DisplayPort version	1.2
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Wi-Fi	No
PC Audio in	No
RS-232 interface	Yes
RS-232C	Yes
Infrared data port	No
PC Audio out	Yes
Power output	No
3G Dongle	No
Design
Product design	Digital signage flat panel
Product colour	Black
VESA mounting	No
Bezel width (bottom)	5.98 cm
Bezel colour	Black
Performance
Operating hours (hours/days)	24/7
HDCP	Yes
HDCP version	2.2
Power
Power consumption (typical)	1200 W
Power consumption (sleep)	0.5 W
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Computer system
Internal memory	8 GB
Weight & dimensions
Display width	1774.8 mm
Display depth	130 mm
Display height	1053.4 mm
Display weight	134 kg
Width	1774.8 mm
Depth	130 mm
Height	1053.4 mm
Weight	134 kg
Packaging data
Package width	1932 mm
Package depth	367 mm
Package height	1251 mm
Package weight	150 kg
Packaging content
Stand included	No
Remote control included	Yes
Cables included	AC
Operational conditions
Operating temperature (T-T)	-30 – 50 °C
Operating relative humidity (H-H)	10 – 80%
Logistics data
Harmonized System (HS) code	85285210
Features
Wall mountable	No
Other features
Aspect ratio	16:9
Audio input	N
Audio output	Y
Bluetooth	No
Video out	No
Response time	14 s
Housing material	Aluminium, Metal

Screen Size	75"
Aspect Ratio	16:9
Resolution	3840x2160
Brightness	3500nit
Glass Type	Tempered
I/O	DP, HDMI Input, RJ45, RS232
Mounting	VESA
Operating Temperature	-30°C to 50°C
Operating Humidity	10% to 80%
Outdoor Rated	Yes
Built In Media Player	Yes
LAN	Yes
OS	Tizen
