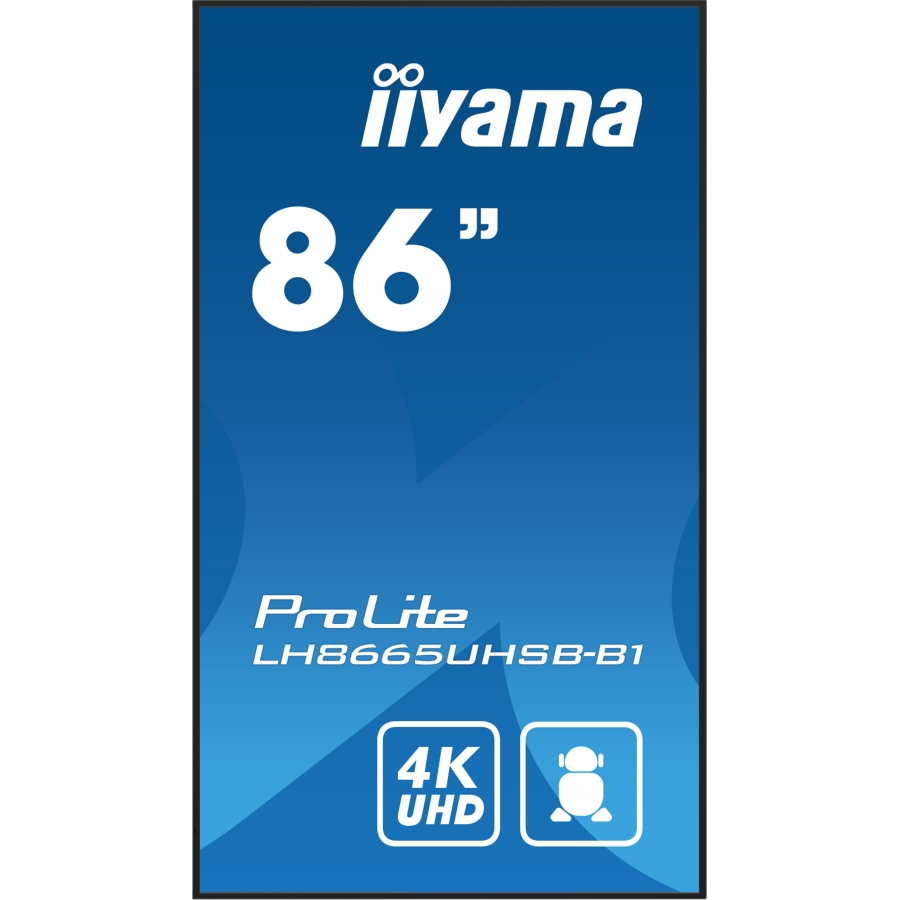

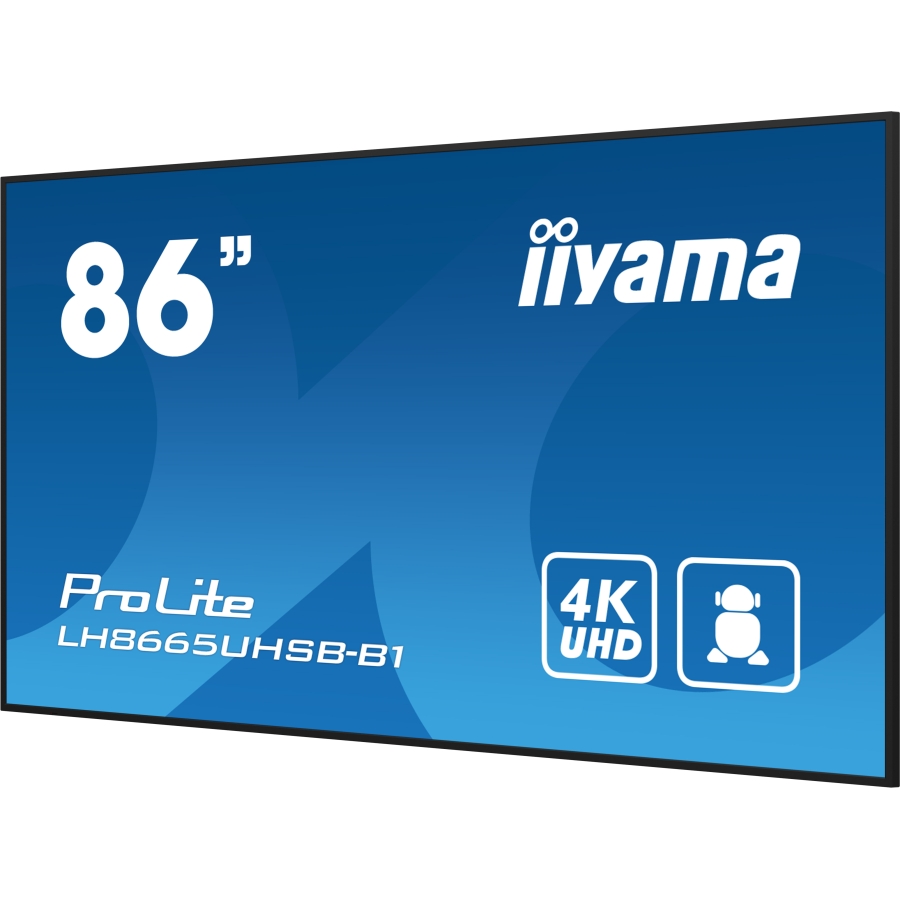

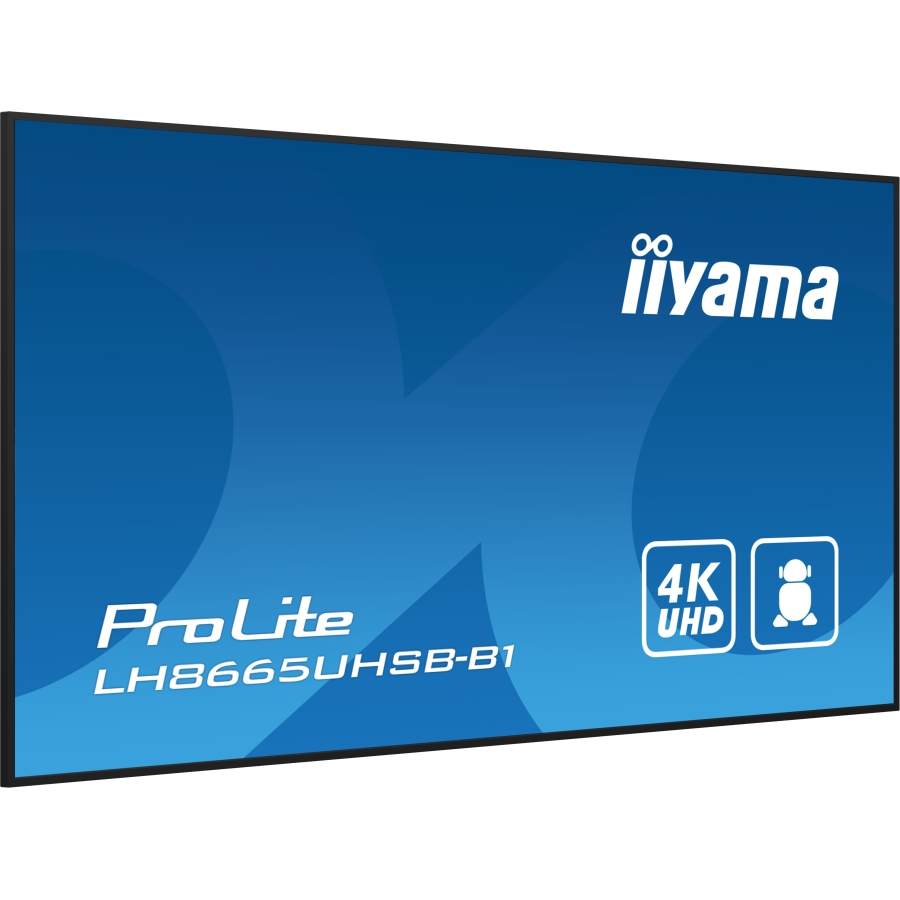

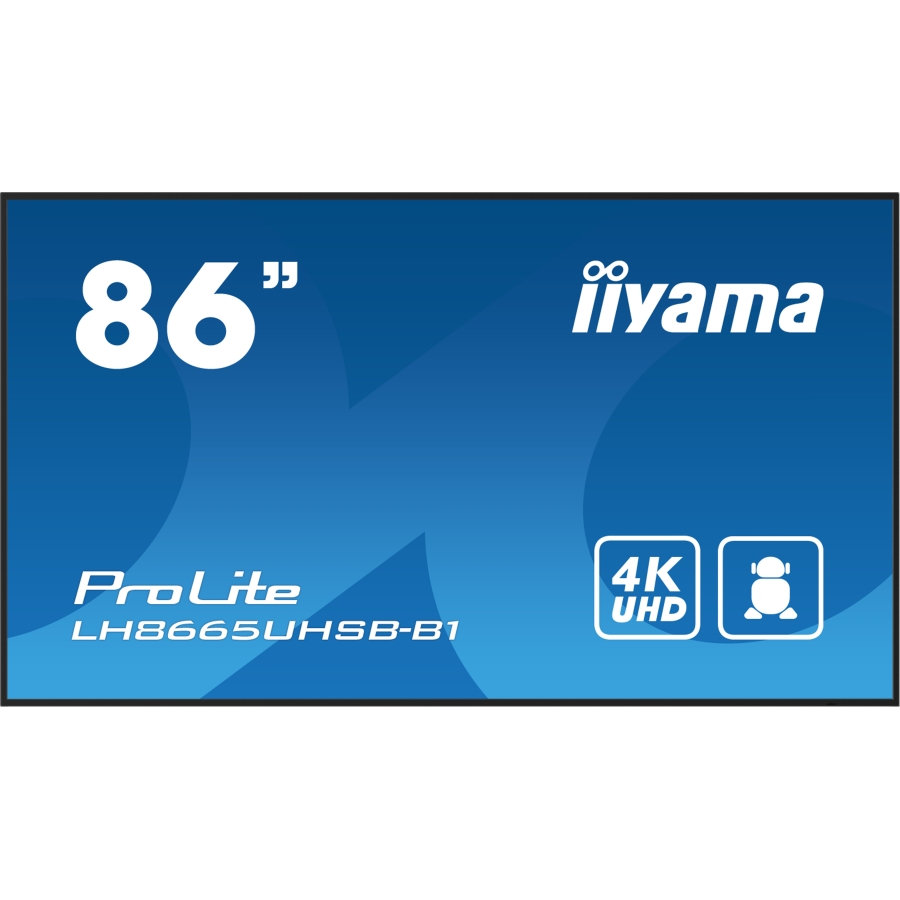

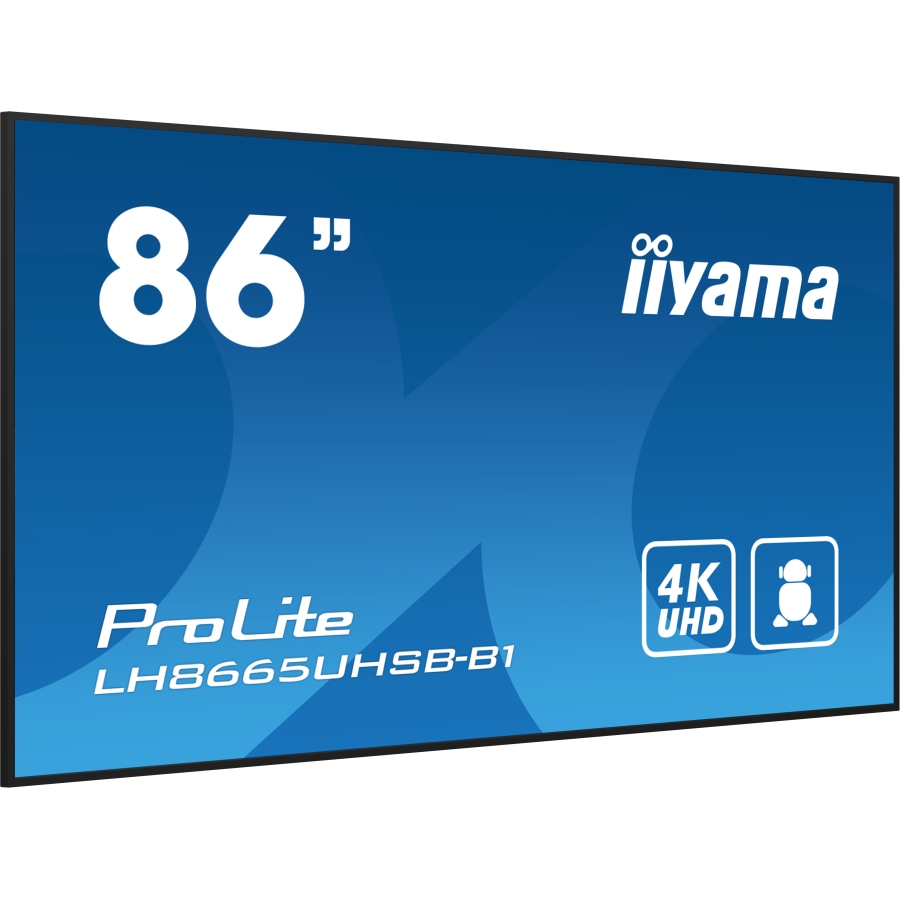

iiyama LH8665UHSB-B1 86″ Black Digital Signage Kiosk Design Display with 800nit Brightness and 4K Ultra HD

iiyama LH8665UHSB-B1 86″ Black Digital Signage Kiosk Design Display with 800nit Brightness and 4K Ultra HD

LH8665UHSB-B1

  • Kiosk design Black
  • 2.18 m (86″) 3840 x 2160 pixels LED 800 cd/m²
  • 60 Hz 8 ms
  • Ethernet LAN Wi-Fi
  • Built-in speaker(s) 20 W
-
+

Details

iiyama LH8665UHSB-B1. Product design: Kiosk design. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Specification

Display
Panel type IPS
Display diagonal 2.18 m (86″)
Display technology LED
Display resolution 3840 x 2160 pixels
Display brightness 800 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Pixel pitch 0.315 x 0.315 mm
Active display area (W x H) 1209.6 x 680.4 mm
Display diagonal (metric) 217 cm
Horizontal scan range 28 – 160 kHz
Native refresh rate 60 Hz
Haze rate 1%
RGB colour space NTSC

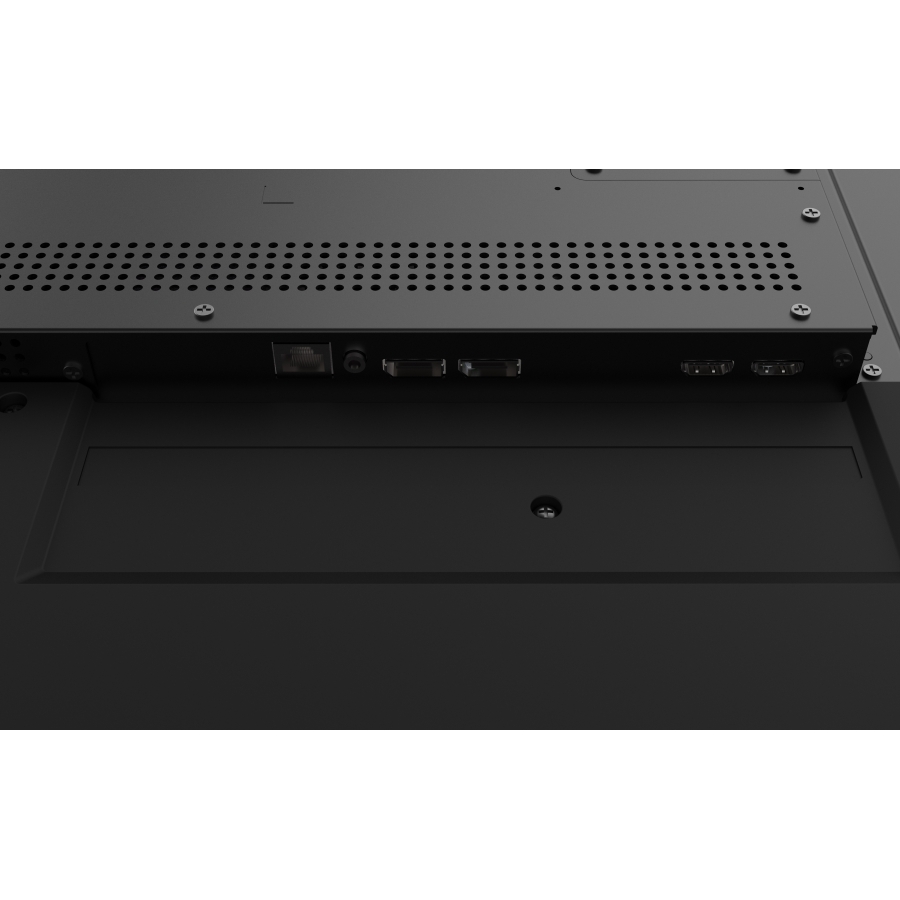

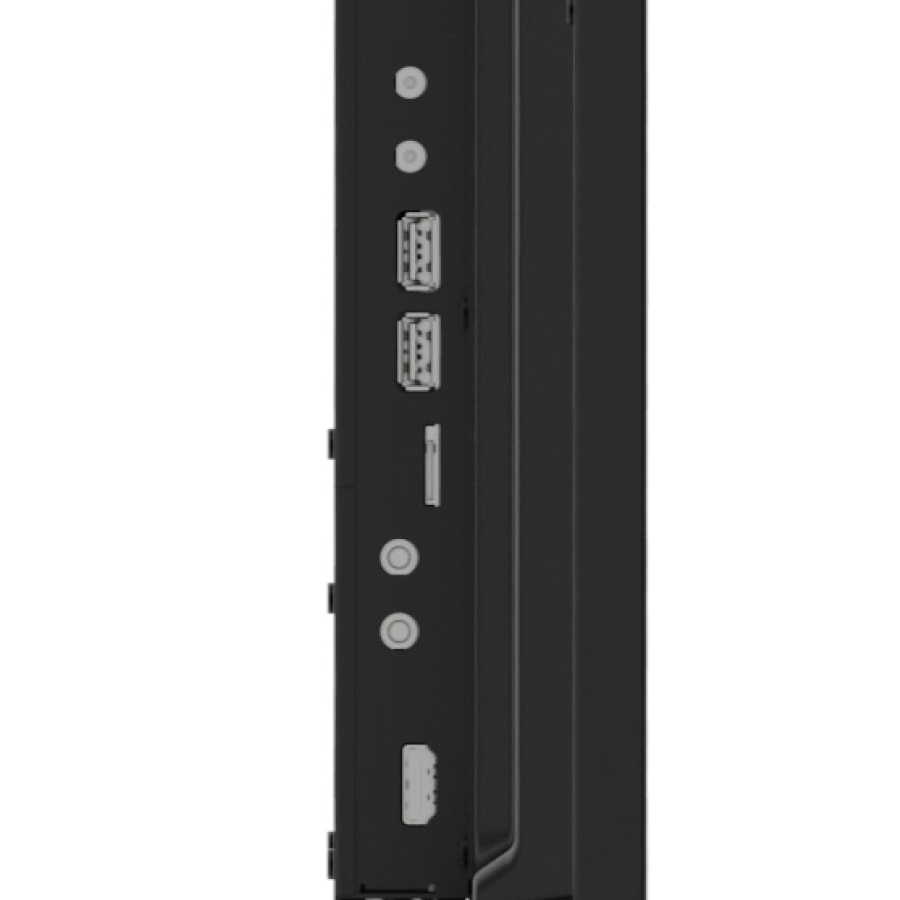

Ports & interfaces
HDMI ports quantity 2
HDMI version 2.0
DisplayPorts quantity 1
DisplayPort version 1.2
USB port Yes
USB ports quantity 2
USB version 2.0
Ethernet LAN Yes
Ethernet LAN (RJ-45) ports 1
Wi-Fi Yes
Wi-Fi standards Wi-Fi 5 (802.11ac)
Audio (L/R) in 1
RS-232 interface Yes
RS-232C Yes
Audio
Built-in speaker(s) Yes
Number of built-in speakers 2
RMS rated power 20 W
Design
Product design Kiosk design

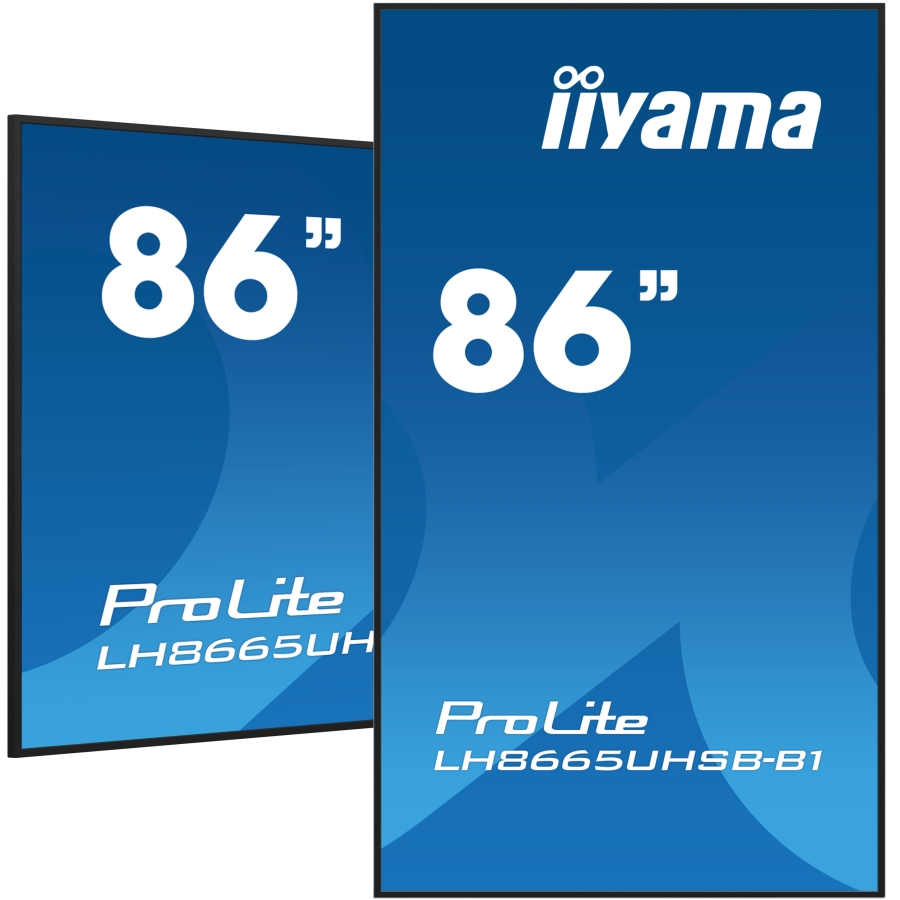

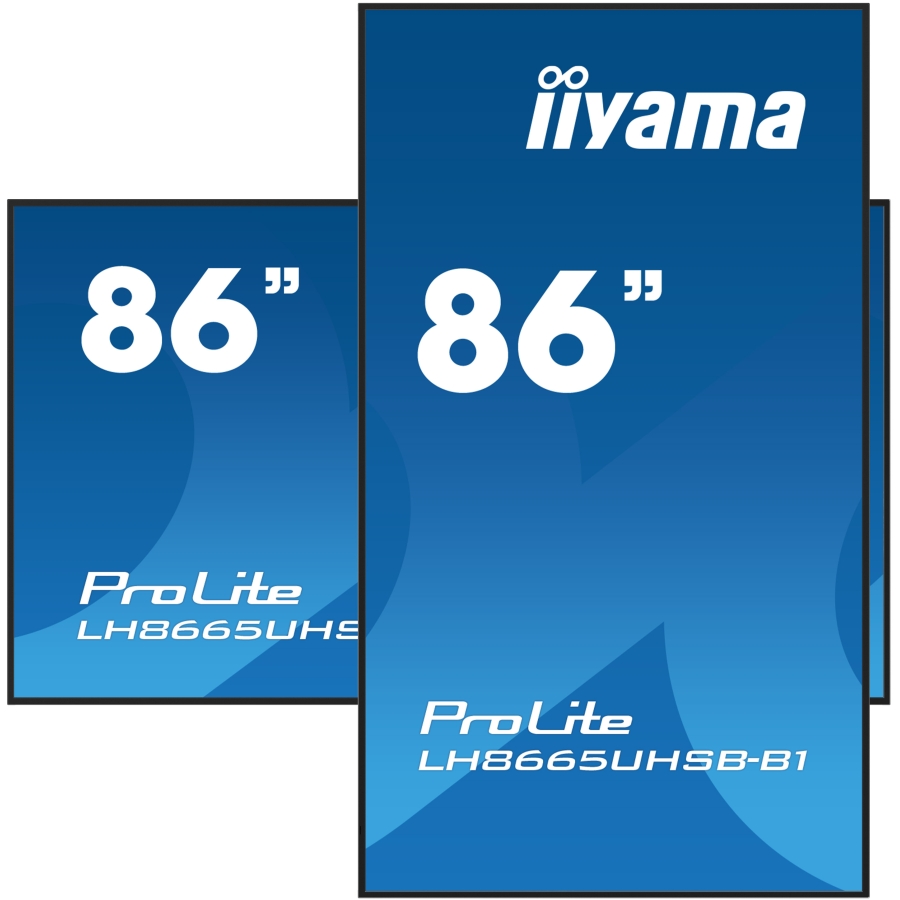

Orientation Horizontal/Vertical
Product colour Black

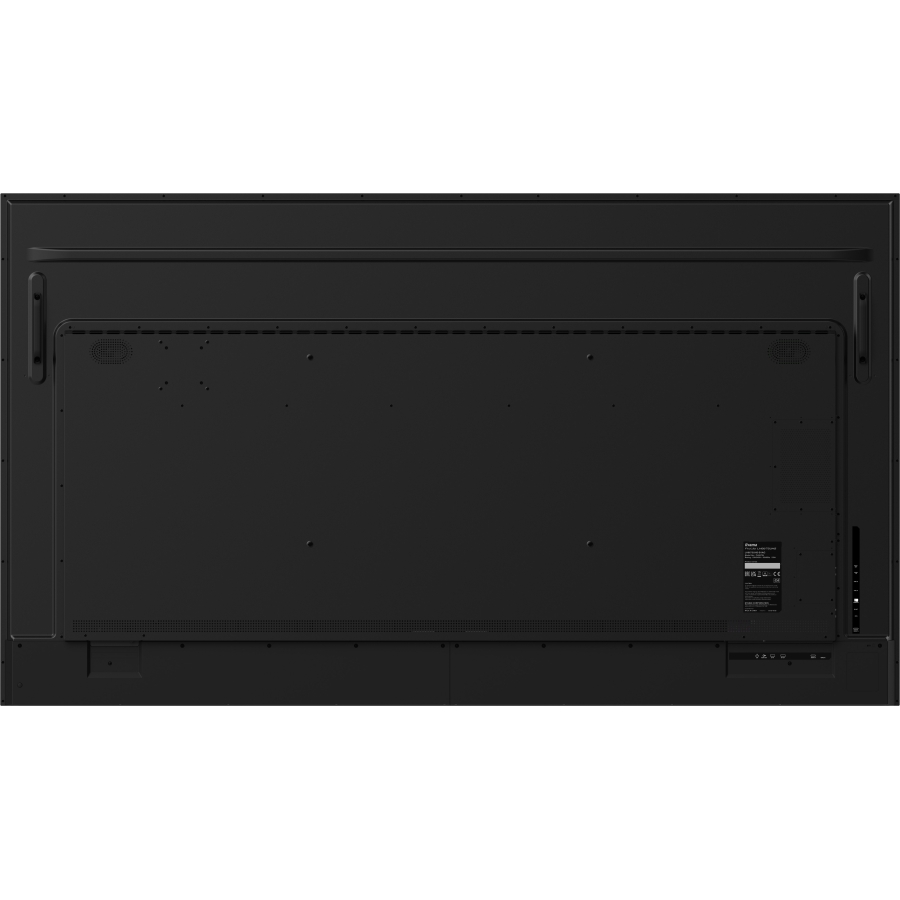

VESA mounting Yes
Panel mounting interface 600 x 400 mm
Bezel width (bottom) 1.62 cm
Bezel width (side) 1.6 cm
Bezel width (top) 1.62 cm
Bezel colour black
Performance
Purpose Commercial
Number of OSD languages 8
On Screen Display (OSD) languages Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Operating hours (hours/days) 24/7
HDCP Yes
HDCP version 2.2
Mean time between failures (MTBF) 50000 h
Power
Power consumption (typical) 159 W
Power consumption (standby) 0.5 W
Power consumption (off) 0.3 W
Energy efficiency class (SDR) E
Energy consumption (SDR) per 1000 hours 159 kWh
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Energy efficiency scale A to G
Computer system
Computer system Yes
Built-in processor Yes
Processor manufacturer ARM
Processor family ARM Cortex
Processor architecture ARM Cortex-A53+Cortex-A73
Processor cores 8
Internal memory 4 GB
On-board graphics card model ARM Mali-G52
Internal storage capacity 32 GB
Operating system installed Android 11
Weight & dimensions
Display width 1927 mm

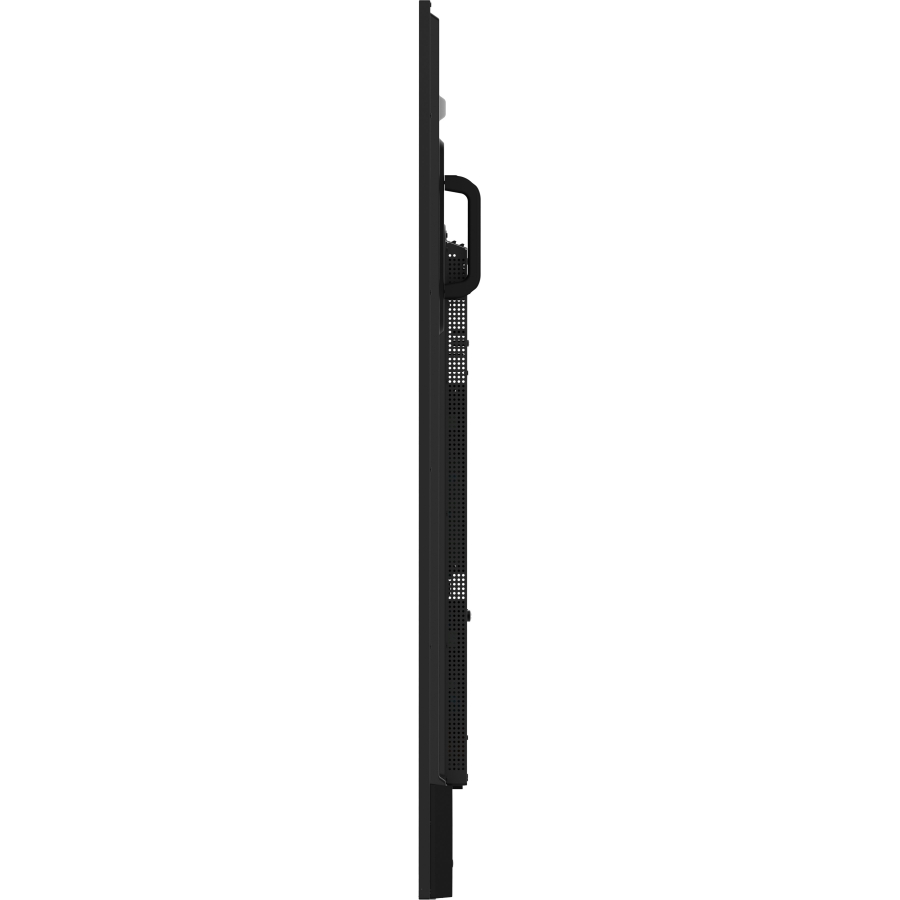

Display depth 57 mm
Display height 1098.5 mm
Display weight 49 kg
Packaging data
Package width 2123 mm
Package depth 225 mm
Package height 1247 mm
Package weight 64 kg
Packaging content
Remote control included Yes

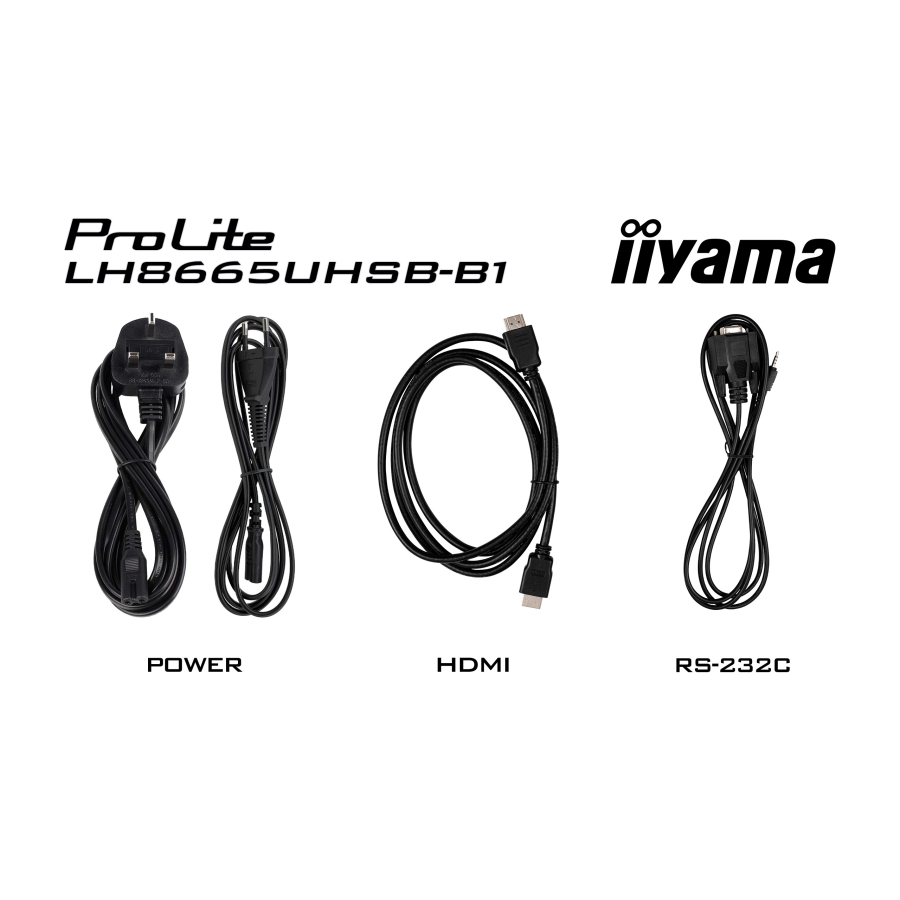

Cables included HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) -20 – 60%
Screen Size 86"
Aspect Ratio 16:9
Resolution 3840x2160
Brightness 800nit
Viewing Angle 178/178 (H/V)
Speaker Yes
I/O DisplayPort, HDMI, RS232
Mounting VESA
Operating Temperature 0°C to 40°C
CPU ARM
LAN Yes
Wi-Fi Yes
OS Android
