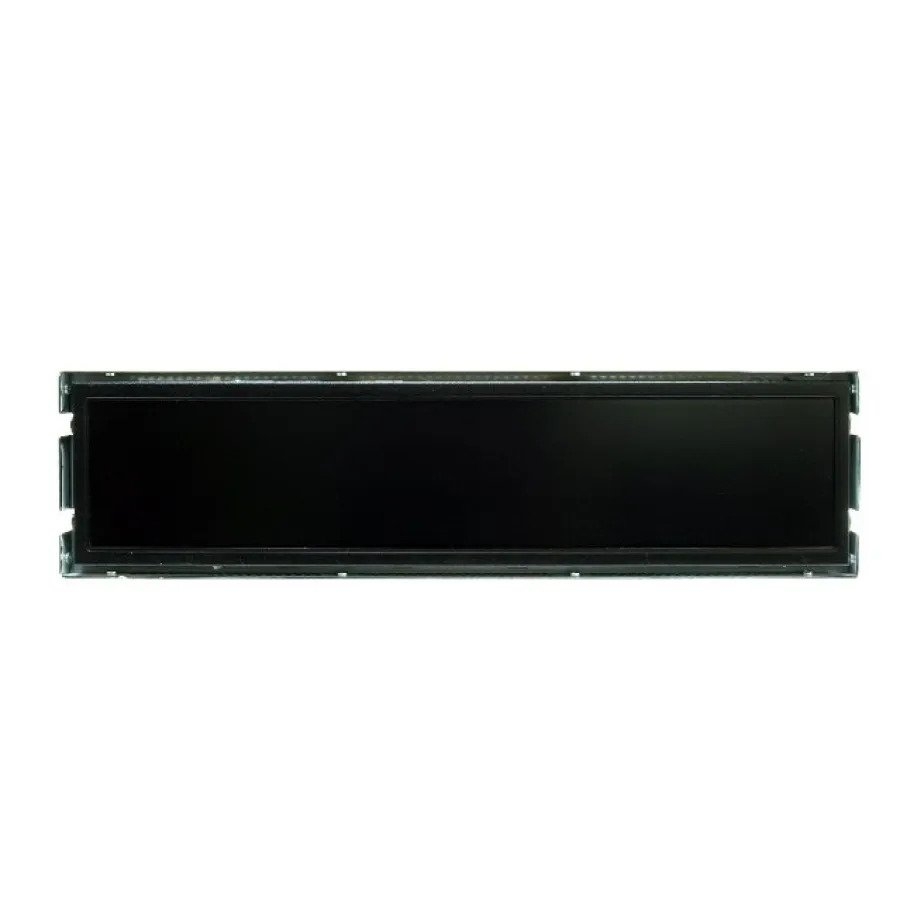

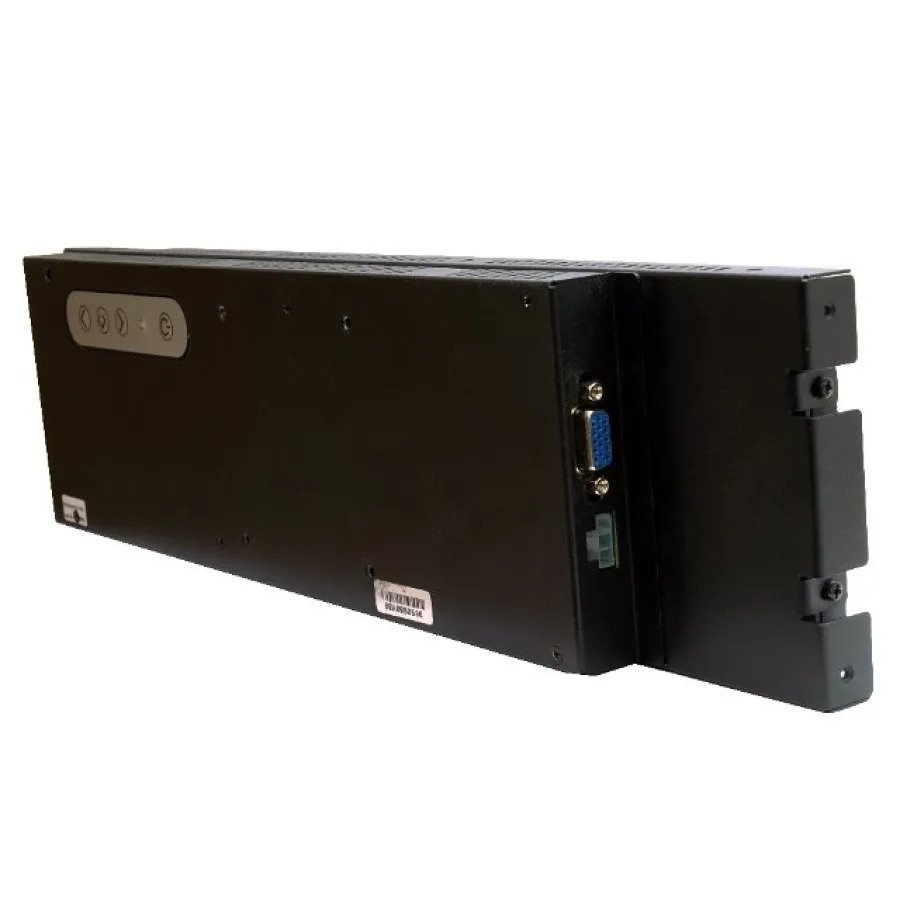

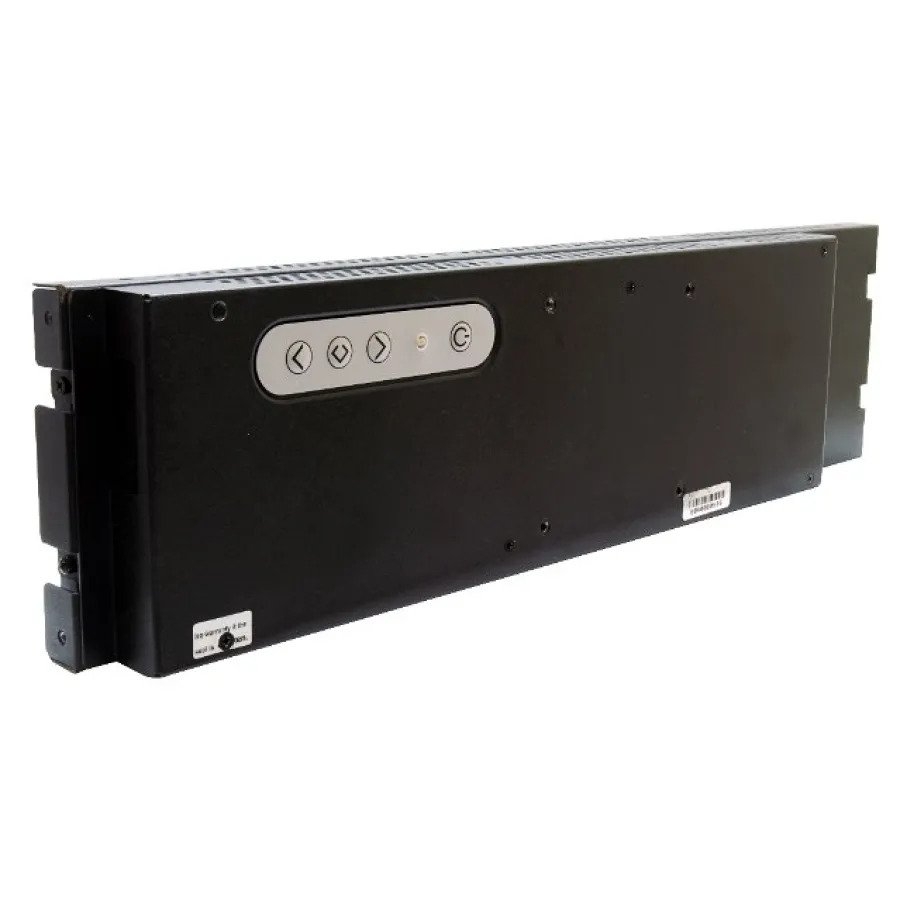

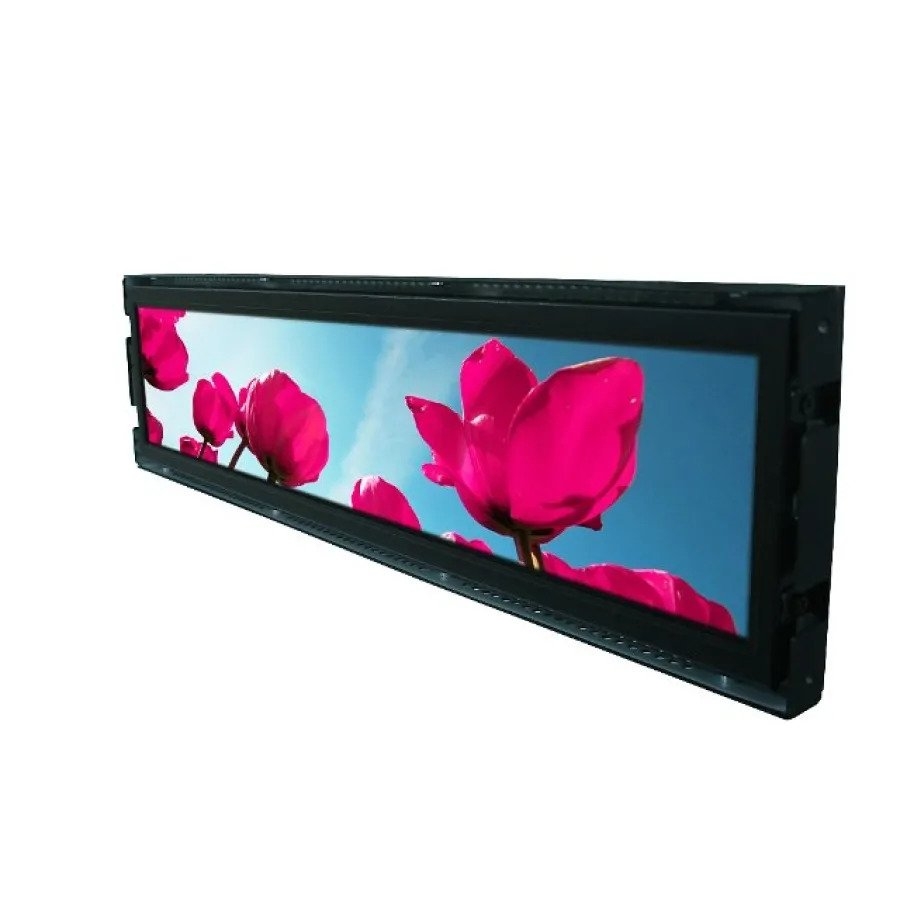

Litemax SSD1505-E 15″ Ultra Wide Stretched Bar LCD Monitor (1280×242) 1000 NIT

Litemax SSD1505-E 15″ Ultra Wide Stretched Bar LCD Monitor (1280×242) 1000 NIT

SSD1505-E

  • Brand: Litemax
  • 1000 NITS
  • 1280 x 242 resolution
  • Size: 408mm (W) x 106.2mm (H) x 37.8mm (D)
-
+

Details

The Litemax SSD1505-E is a specially resized 15″ ultra wide stretched LCD monitor at 1280 x 242 resolution. The product is housed in a wall mountable chassis with standard VESA mounting points, and this eye catching format offers an innovative and fresh approach to grab the public’s attention. The display features a high brightness 1000 NITS LCD panel with multiple video inputs for flexibility. Additional features for the SSD1505 include low power consumption at 15W and a viewing angle of +80°~-80°(H), +85°~-85°(V). The stretched design of these screens gives OEM designers the perfect solution for restricted digital signage spaces, public transportation, venue box office information, restaurant menu headers, and vending machine applications.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 15"
Aspect Ratio 16:3
Resolution 1280x242
Brightness 1000nit
Viewing Angle 80/80 (H/V)
I/O LVDS
Mounting VESA
