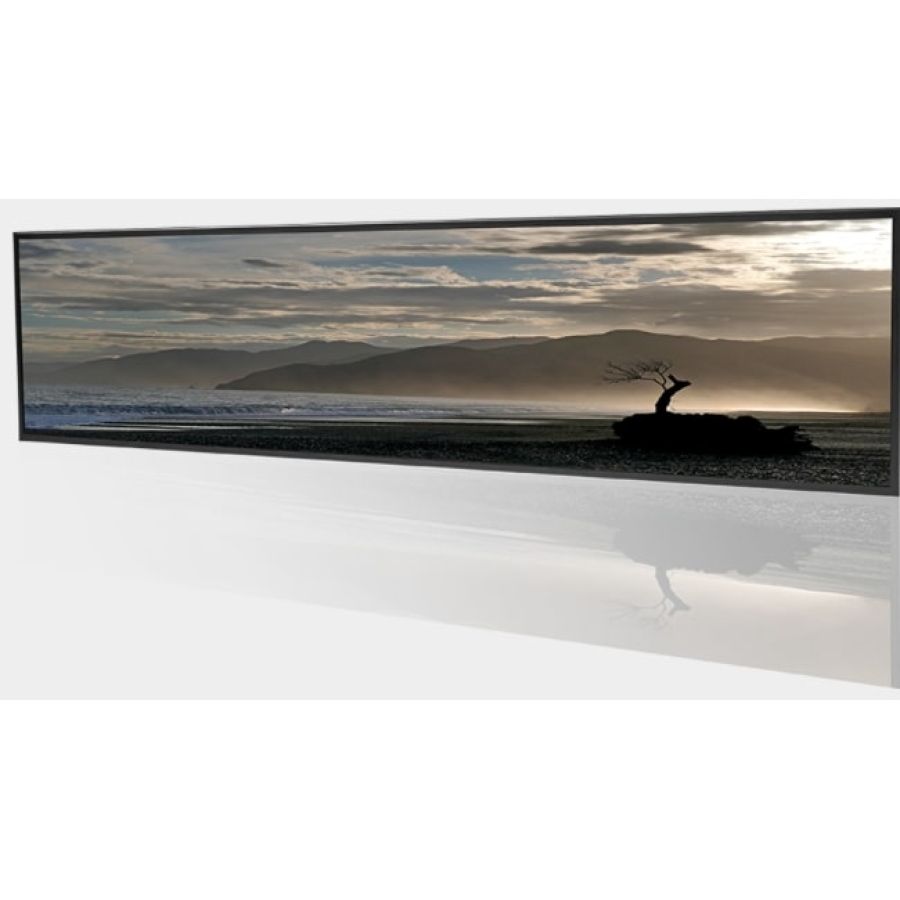

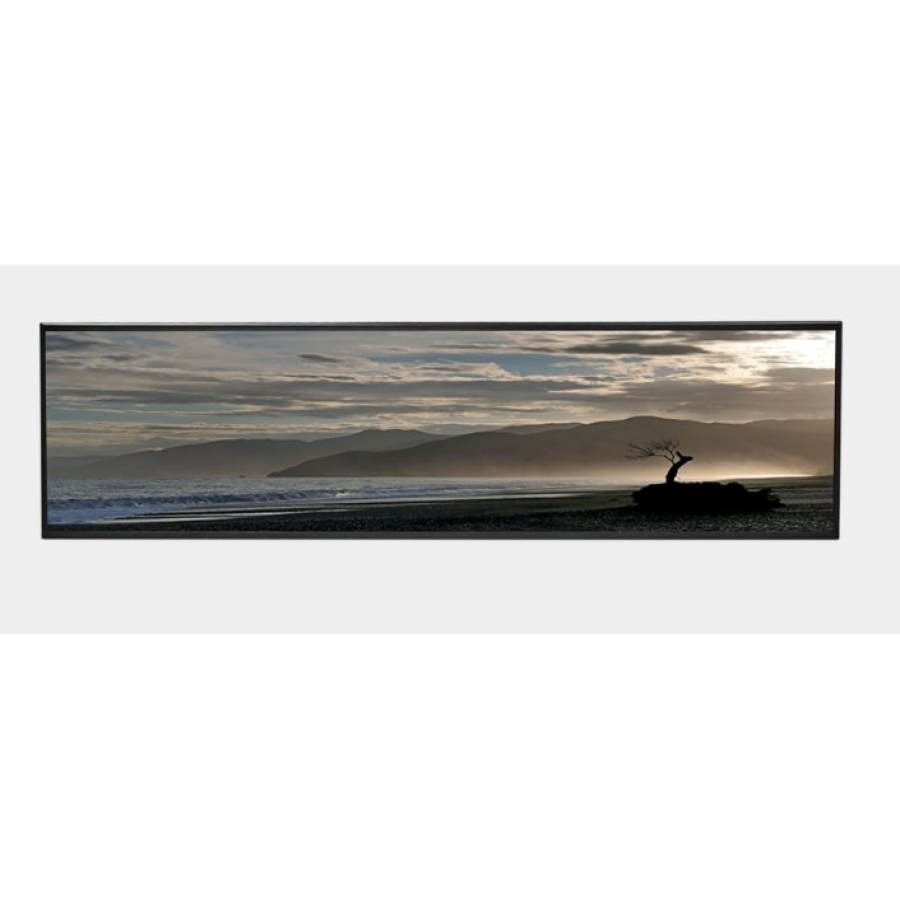

Litemax SSD4225-Y 42.2″ Stretched Digital High Bright Display with AD Control Board and Housing

Litemax SSD4225-Y 42.2″ Stretched Digital High Bright Display with AD Control Board and Housing

SSD4225-Y

  • 42.2” Stretched LCD
  • Ultra Wide Screen (16: 4 )
  • High Brightness 1000 nits
  • LED Backlight
  • LCD Blacking Defect Free (Hi-Tni 110 ˚C)
  • Low Power Consumption
  • BL MTBF: 50,000 hours
-
+

Details

The SSD4225-Y is a 42.2 inch color TFT-LCD display with special aspect ratio 16:4 and wide resolution 1920 x 480. It is Litemax’s Spanpixel series product which designed for high brightness 1000 nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 42.2"
Aspect Ratio 16:4
Resolution 1920x480
Brightness 1000nit
Viewing Angle 178/178 (H/V)
I/O DP, HDMI
Mounting VESA
Operating Temperature 0°C to 50°C
