Litemax SSH1916-B 19.1″ Stretch Digital 1200nit High Bright Display with AD Control Board
Litemax SSH1916-B 19.1″ Stretch Digital 1200nit High Bright Display with AD Control Board
SSH1916-B
- Resizing LCD
- Ultra Wide Screen 16:3.2
- LED Backlight
- Brightness 1200nits
- Low Power Consumption
- BL MTBF: 100,000 hours
Details

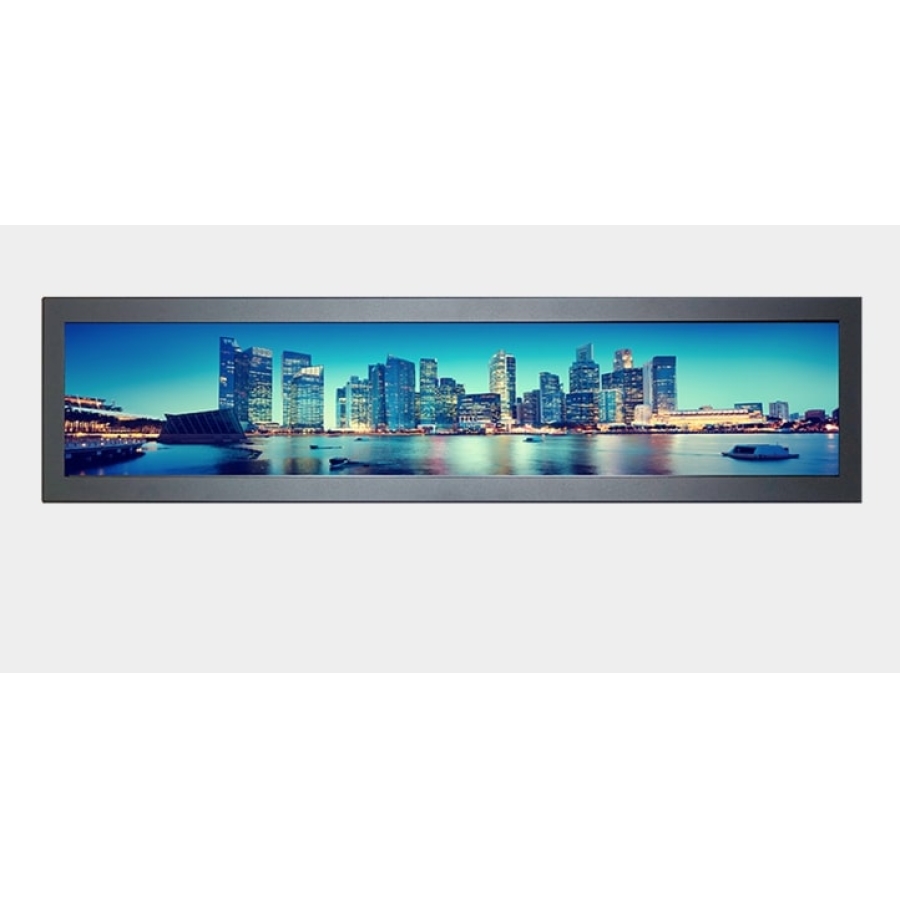

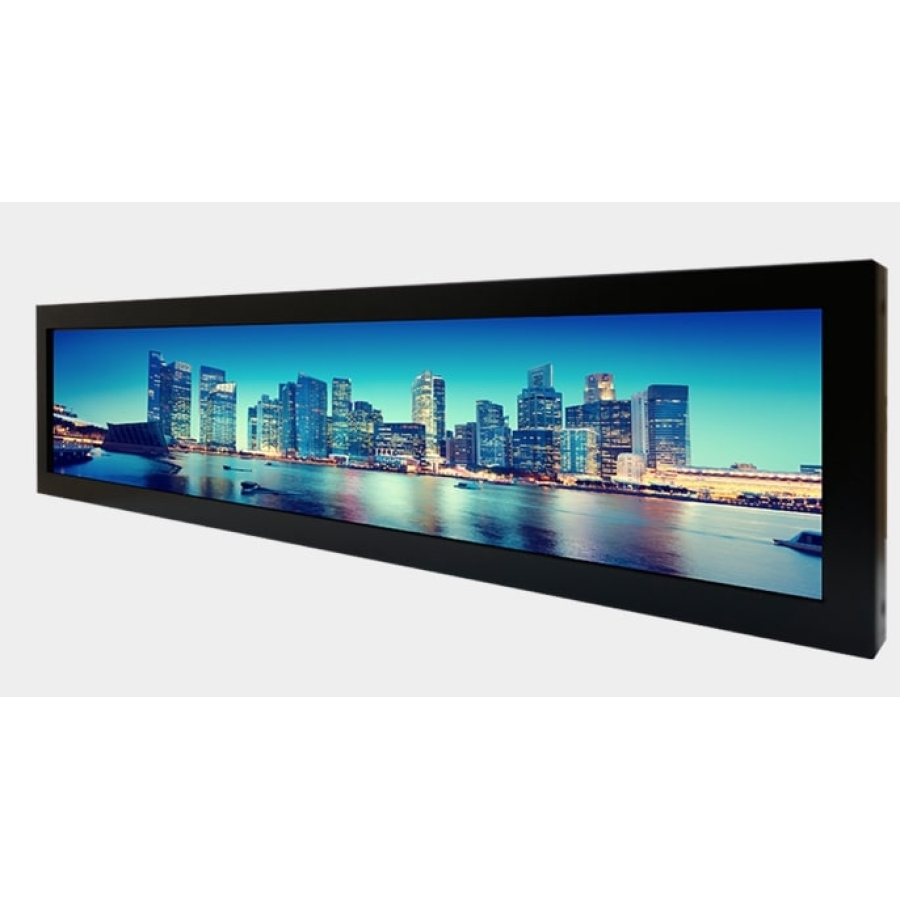

The SSF/SSH1916-B is a 19.1 inch color TFT-LCD display with special aspect ratio 16:3.2 and wide resolution 1920 x 388. It is Litemax’s Spanpixel series product which designed for high brightness 1200nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.
Downloads
System Integration
Please ask about how we can configure your solution
Global Operations
We ship and support products via offices globally
Full Warranty
Industry leading warranties on all solutions as standard
Technical Support
Experienced engineers are on hand to support your project
Screen Size | 19.1" |
---|---|
Aspect Ratio | 16:3.2 |
Resolution | 1920x388 |
Brightness | 1200nit |
Viewing Angle | 178/178 (H/V) |

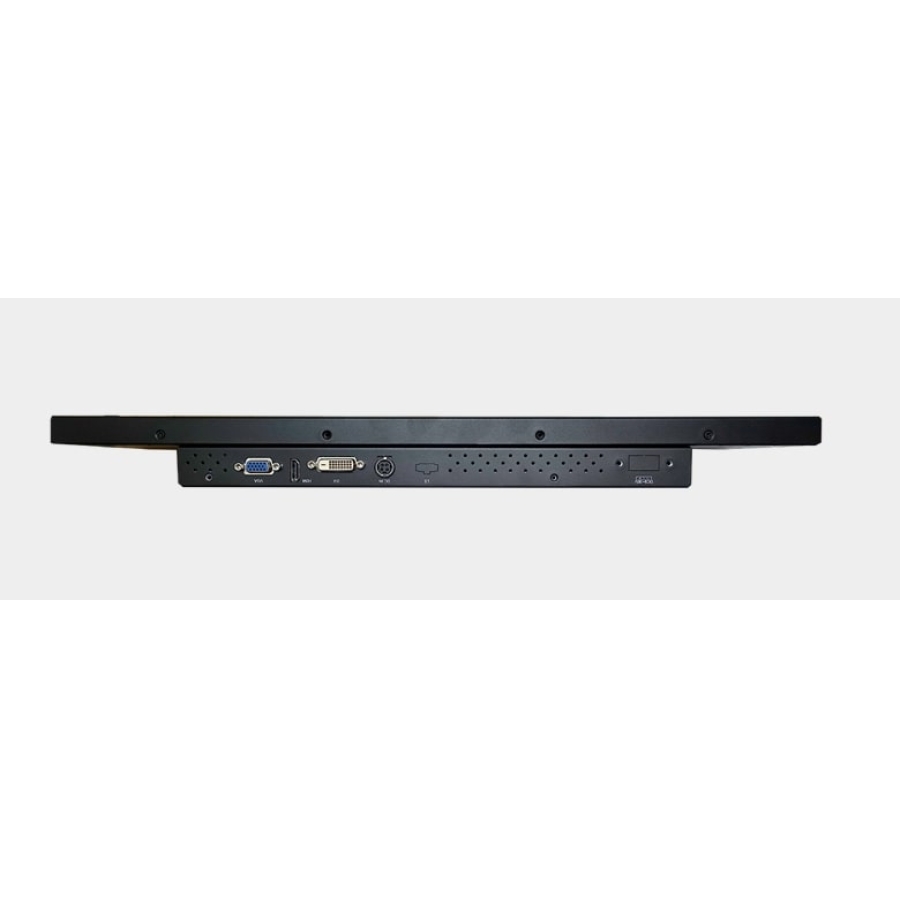

I/O | DVI-D, HDMI, VGA |
Operating Temperature | 0°C to 50°C |
