Litemax SSH2755-A 27.5″ Stretched LCD Display w/ Optional USB 3.0 Functionality

Litemax SSH2755-A 27.5″ Stretched LCD Display w/ Optional USB 3.0 Functionality

SSH2755-A

  • 27.5″ resizing LCD
  • Resizing display (aspect ratio of 16:1.1)
  • Brightness of 1000 nits
  • Resolutions: 1366 x 70
  • Wide viewing angle of 178° (H), 178° (V)
  • Low power consumption
  • USB 3.0 functionality (optional)
  • BL MTBF: 100,000 hours
-
+

Details

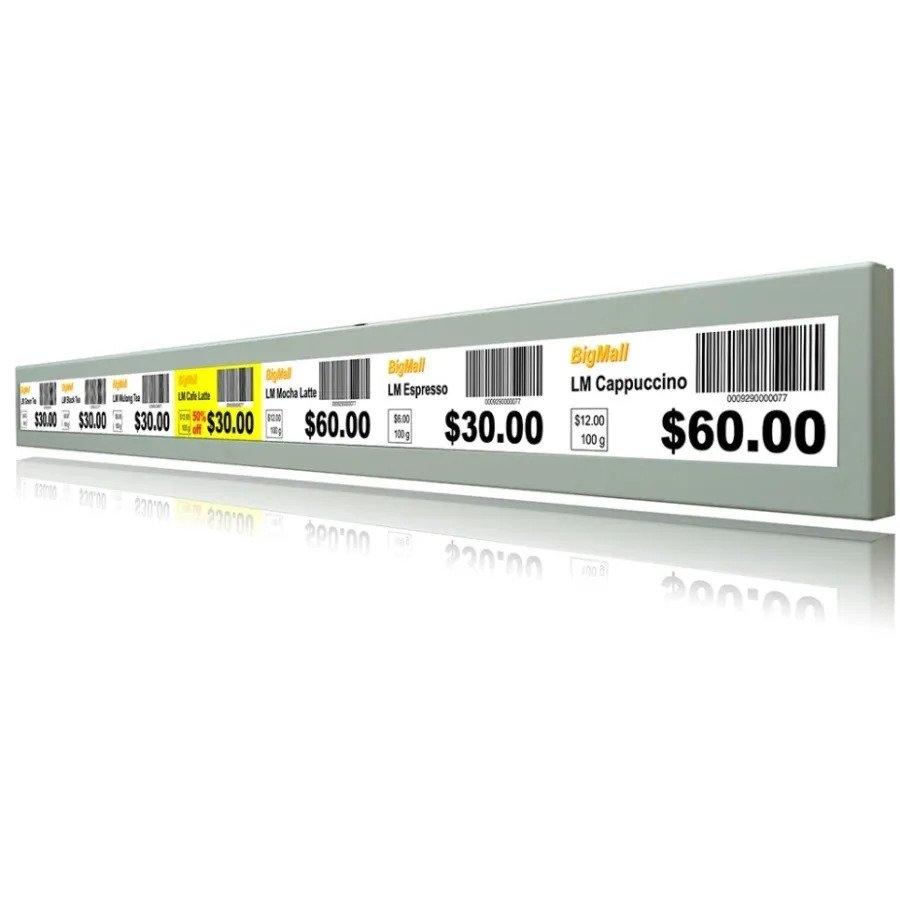

The Litemax SSH2755-A is a 27.5″ Stretched Bar LCD Display with a special aspect ratio of 16:1 alongside a wide resolution of 1366×70. This display is part of Litemax’s Spanpixel series designed for sunlight readable application with 1000nit or 200nit brightness whilst also incorporating a power efficiency LED backlight. This display comes with a optional USB 3.0 functionality. The SSH2755-A is suitable for digital signage applications including public transportation, exhibition halls, department stores and vending machines.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 27.5"
Aspect Ratio 16:1.1
Resolution 1366x70
Brightness 1000nit
Viewing Angle 178/178 (H/V)
I/O DVI-D
Operating Temperature 0°C to 50°C
