Litemax SSH3565-I 35.6″ Stretch Digital Display with 1000nit High Brightness and AD Control Board

Litemax SSH3565-I 35.6″ Stretch Digital Display with 1000nit High Brightness and AD Control Board

SSH3565-I

  •  Resizing LCD
  •  Square Screen (8 : 9)
  •  High Brightness 1000 nits
  •  Sunlight Readable
  •  LED Backlight
  •  Slim Bezel
  •  BL MTBF: 100,000 hours
-
+

Details

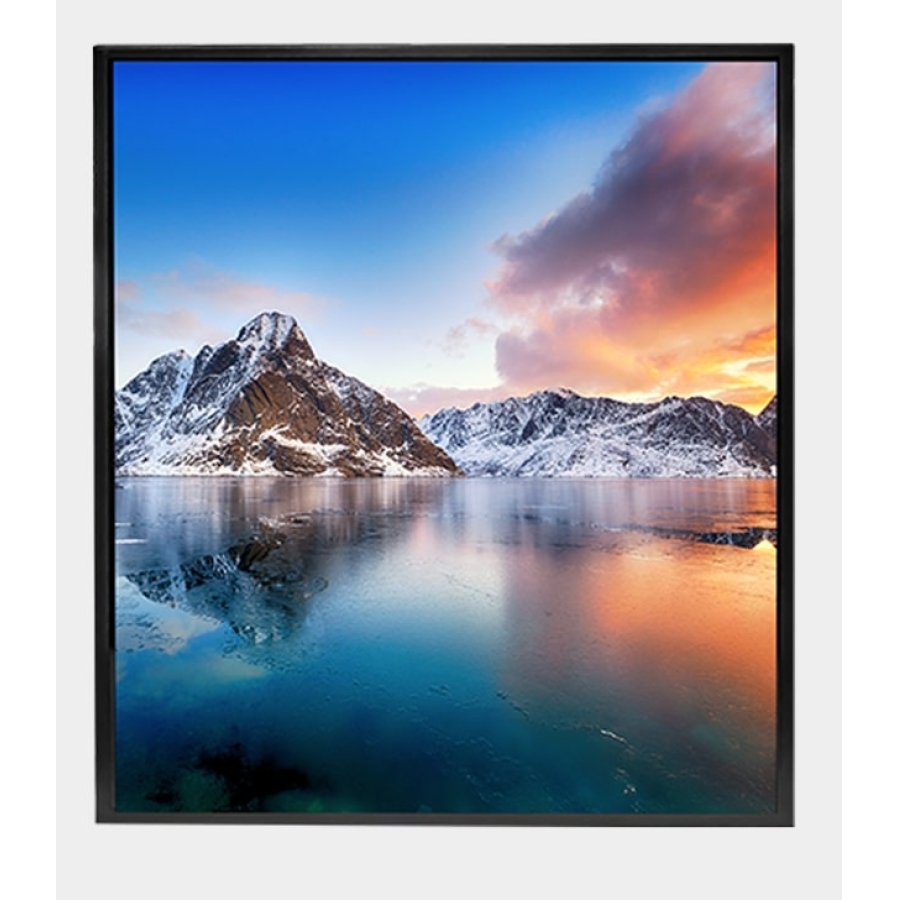

The SSF/SSH3565-I is a 35.6 inch color TFT-LCD display with special aspect ratio 8:9 and wide resolution 1900 x 2160. It is Litemax’s Spanpixel series product which designed for high brightness 1000 nits with power efficiency LED backlight. It provides LCD panel with specific aspect ratios and sunlight readable for digital signage, public transportation, exhibition hall, department store, and vending machine.

Downloads

System Integration

Please ask about how we can configure your solution

Global Operations

We ship and support products via offices globally

Full Warranty

Industry leading warranties on all solutions as standard

Technical Support

Experienced engineers are on hand to support your project

Screen Size 35.6"
Aspect Ratio 8:9
Resolution 1900x2160
Brightness 1000nit
Viewing Angle 178/178 (H/V)

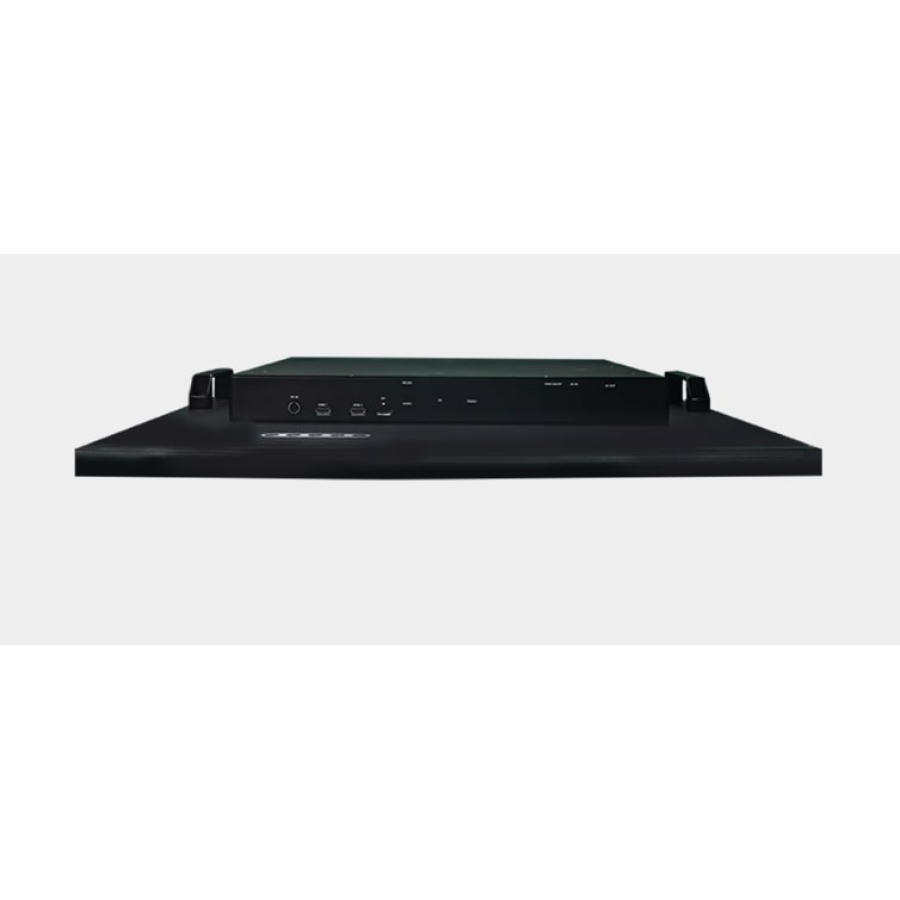

I/O DP, HDMI
Operating Temperature 0°C to 50°C
